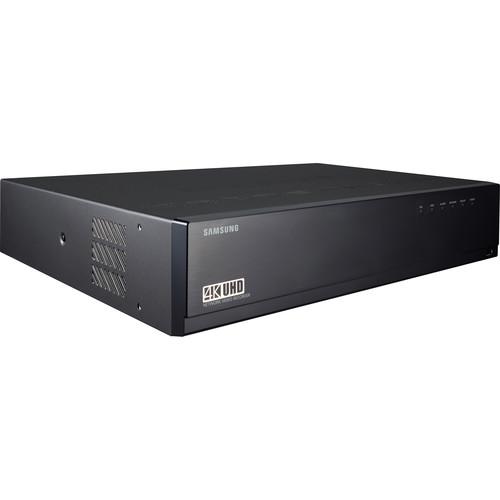

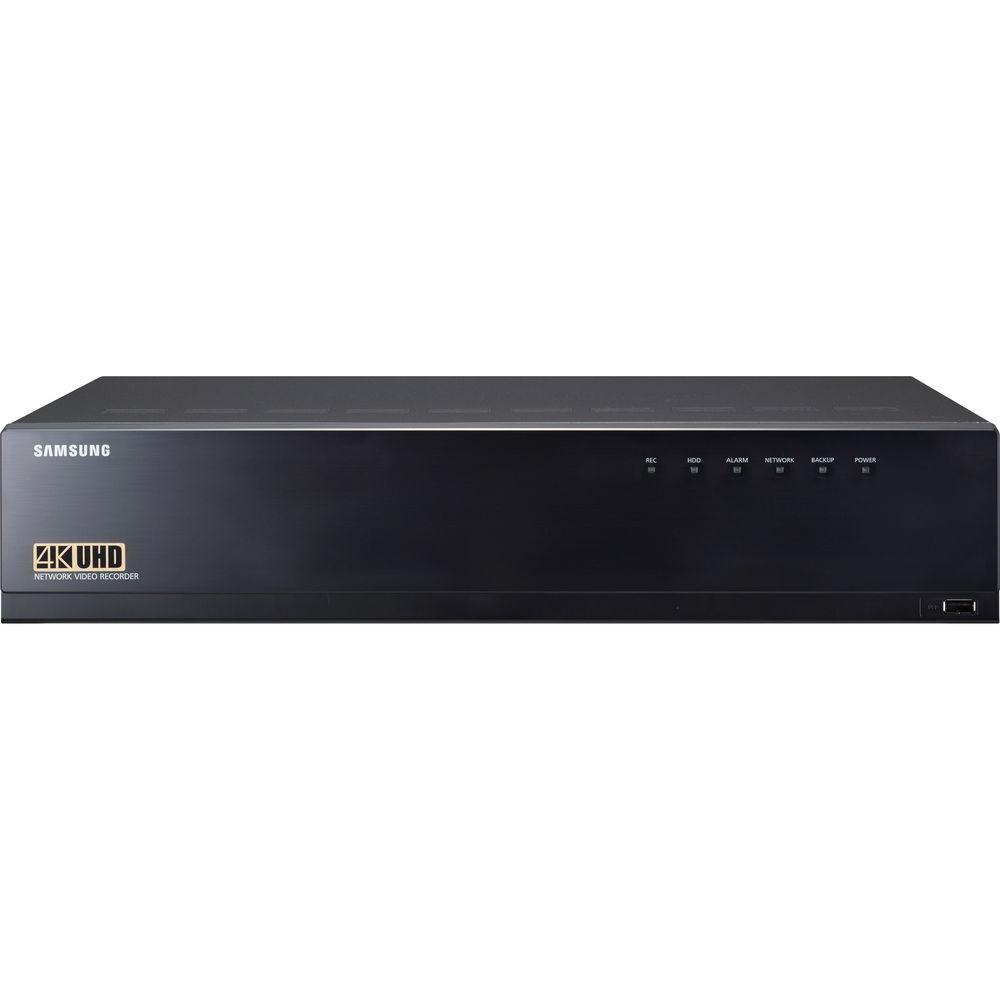

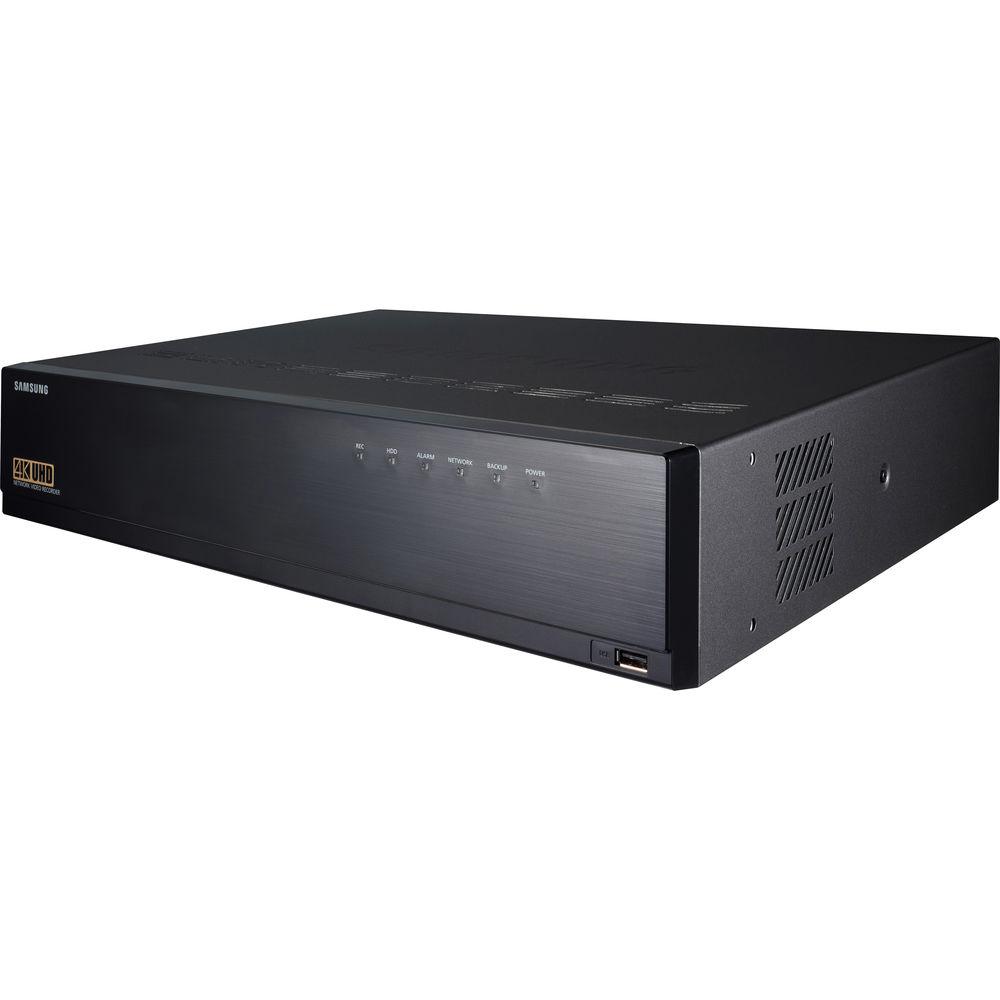

Product description Stream and record up to 64 video channels with the XRN-3010 NVR from Hanwha Techwin, at resolutions of up to 4K at 12MP. Preinstalled with 12TB of HDD storage, the recorder can be expanded to host eight HDDs up to 8TB each for a maximum internal storage capacity of 64TB. External storage options include PCs via internet connection, network servers, USB storage devices, and eSATA devices. WiseStream H.265/H.264 and MJPEG compression are supported, enabling you to choose the format that works best for your application.
The NVR enables simultaneous live viewing of up to 36 channels and playback of up to 16 channels at resolutions up to 3840 x 2160 via its HDMI and VGA ports. Up to 64 channels can be simultaneously recorded at full frame rate 12MP resolution, with an incoming bandwidth of up to 300 Mb/s. The NVR supports two-way audio, and is equipped with an RS-232 port for serial communication. Internet connectivity enables remote monitoring via PCs as well as from Android and iOS devices. - HDMI and VGA simultaneous video output
- Supports ARB (Auto Recovery Backup) & failover (N+1)
In the Box Hanwha Techwin XRN-3010 64-Channel 12MP NVR with 12TB HDD Mouse Power Cable HDD SATA/Power Cable Terminal Block Bracket Rack and Fixing Screws HDD-Fixing Screws Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hanwha Techwin XRN-3010 64-Channel 12MP NVR with 12TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHanwha Techwin XRN Series Specs | | | Video Input | Up to 64 Channels | | Video Resolution | CIF to 12 MP | | Protocols | Samsung, ONVIF | | Multi-Screen Display | Live View on Local Display: 1/2V/3V/4/9/16/25/36/Sequence
Live View on Web: 1/4/9/16/25/36/Sequence | | Performance | Live View on Local Monitor:
12 MP at 30 fps
8.3 MP at 120 fps
1080p at 480 fps
720p at 960 fps
D1 at 1560 fps | | | | Operating System | Embedded Linux | | Recording Resolution | CIF to 12 MP | | Compression | H.265, H.264, MJPEG, WiseStream (H.265, H.264) | | Bandwidth | Recording: 300 Mb/s
Transmission: 512 Mb/s | | Recording Mode | Normal, Schedule (Continuous/Event) & Event (Pre/Post) | | Event Trigger | 8 x Alarm Inputs, Video Loss, Camera Event (Sensor, Motion Detection, Video Analytics, Defocus) | | Event Action | Email, PTZ Preset, Alarm Out, Buzzer, Monitor Out | | Playback | 32 Mb/s, 16 Channels Simultaneously
CIF to 12 MP Resolution
Fisheye Dewarping: Processed on Web/CMS | | User Limit | 4 (1 Local, 3 Remote) | | Search Modes | Date & Time (Calendar), Event Log List, Text Search (POS, ANPR), ARB Search, Smart Search (Virtual Line with Direction, Enter/Exit) | | Playback Control | Fast/Slow, Forward/Backward, Move One Step Up/Down | | Internal HDD | 64 TB HDD Capacity
12 TB Preinstalled | | External HDD | eSATA Storage | | Video File Backup | Function: Up to 16 Channels Simultaneously
Display: Date-Time/Title
Via Web: Backup, Executable File (GUI); JPEG, AVI (Network) | | Audio | 64-Channel Input (Network)
1 x RCA, Output | | Audio Compression | G.711, G.726, AAC (16/48 kHz) | | Audio Communication | 2-Way | | | | Interface | 2 x RJ45 Ports, LAN/WAN (1 Gb/s) | | Network Function | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, ONVIF (Profile S), SUNAPI (Server, Client) | | DDNS Support | Hanwha DDNS | | Max. Remote Users | Search: 3
Live Unicast: 10
Live Multicast: 20 | | IP | IPv4, IPv6 | | Security | IP Address Filtering, User Access Log, 802.1x Authentication, Encryption | | Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai | | OS Supported | Windows 7, 8, 10
Mac OS X 10.8 or Above | | Web Browser | Microsoft Internet Explorer, Google Chrome, Apple Safari, Mozilla Firefox | | Viewer | Software Type: SSM, Webviewer, SmartViewer, iPOLiS mobile viewer
CMS Support: SDK/CGI (SUNAPI) | | | | Camera Setup | Register: Auto, Manual
Setup Items: IP Address, Add Profile Edit, Bit Rate, Compression, GOP, Quality, Camera MD Setup, Camera Video Setup (Simple Focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | | PTZ Control | Via GUI, Webviewer, SPC-2000
255 Presets | | Smart Phone | OS: iOS & Android
Protocol Support: RTP, RTSP, HTTP, CGI (SUNAPI)
16-Channel Live Control: Multi-Profile Support, 1-Channel Playback

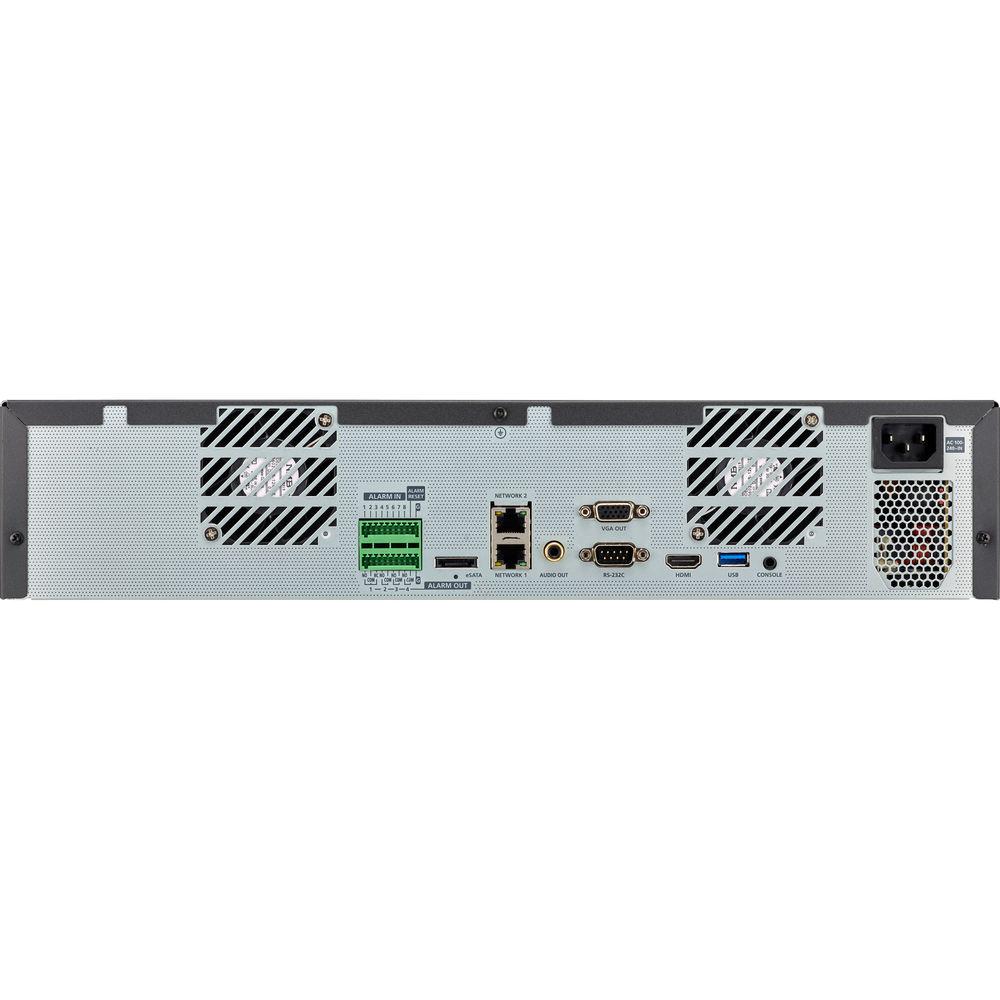

Maximum Remote Users: Search - 3; Live Unicast - 10; Live Multicast - 20 | | Redundancy | N+1 Failover, ARB | | System Control | Mouse, Web, SPC-2000 (Controller) | | | | Indicators | HDD Action, Alarm, Power, Record, Backup, Network | | Connectors | 1 x VGA, Video Output
1 x HDMI, Video Output
1 x RCA, Audio Output
2 x RJ45, LAN/WAN Ethernet
8 x Alarm, Inputs (Terminal Block)
4 x Alarm, Outputs (Terminal Block)
1 x Alarm Reset
1 x USB 3.0 on Rear Panel
1 x USB 2.0 on Front Panel
1 x RS-232C Serial
1 x eSATA Port
1 x AC Power | | | | System Log | Log List: 20,000 Max. (for Each System Log & Event Log) | | | | Power Input | 100-240 VAC, ±10%
50/60 Hz
4-1.5 A | | Power Consumption | 99 W, Max. | | Working Environment | 32 to 104°F / 0 to 40°C
20-85% RH | | Rack Mount | 2 RU | | Dimensions | 17.3 x 15.2 x 3.5" / 44.0 x 38.5 x 8.8 cm | | Weight | 10.7 lb / 4.9 kg without HDDs |
