Harman Kardon Adapt Wireless HD Audio

Search your instruction manual in PDF to download

User Manual for Harman Kardon Adapt Wireless HD Audio Adapter

Click to enlarge the picture
Harman Kardon Adapt Wireless HD Audio Adapter Contents of the user manual for the Harman Kardon Adapt Wireless HD Audio
  • Product category: Wireless & Multi-Room Components Harman Kardon
  • Brand: Harman Kardon
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Harman Kardon Wireless & Multi-Room Components

Harman Kardon Adapt Wireless HD Audio Adapter Harman Kardon Adapt Wireless HD Audio Adapter Harman Kardon Adapt Wireless HD Audio Adapter Harman Kardon Adapt Wireless HD Audio Adapter Harman Kardon Adapt Wireless HD Audio Adapter
User manual for the Harman Kardon Adapt Wireless HD Audio contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Harman Kardon product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Harman Kardon user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Harman Kardon product will considerably shorten its lifespan!



Product description

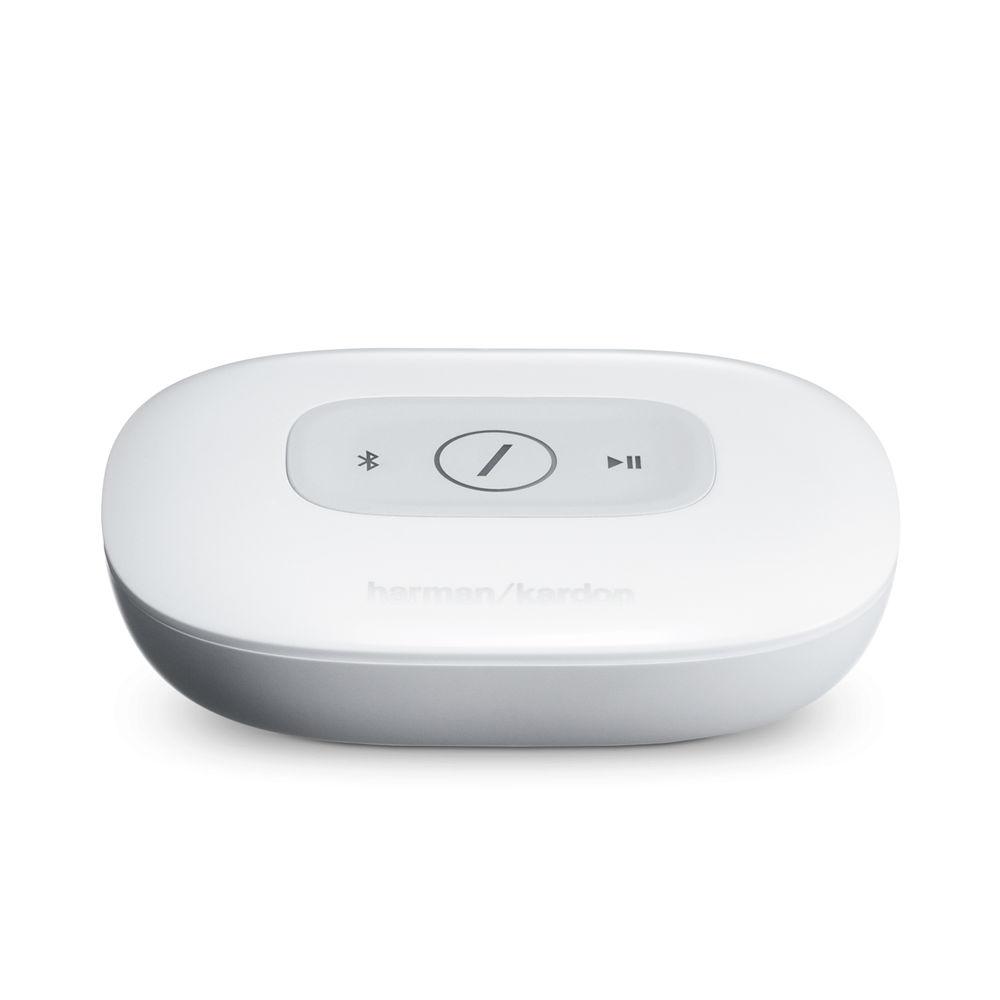

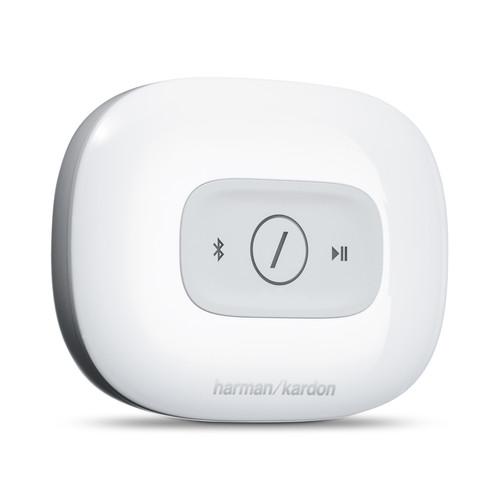

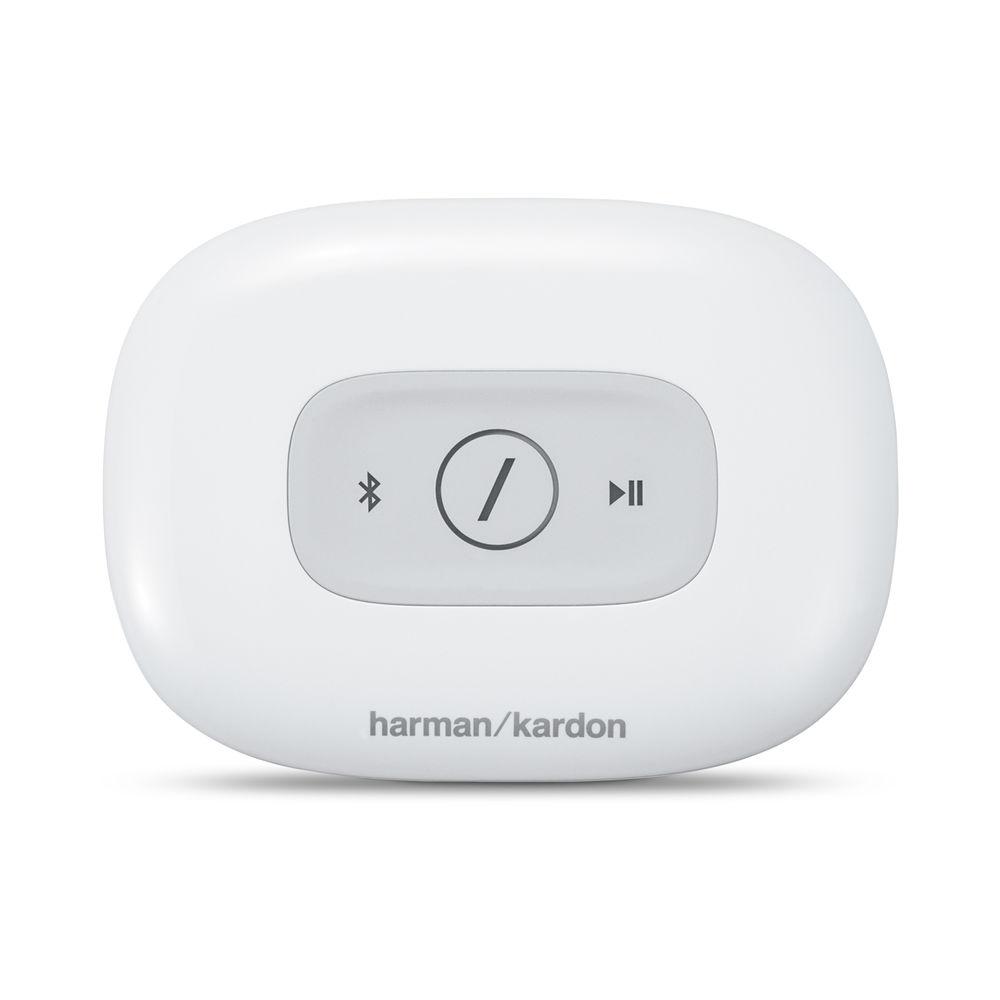

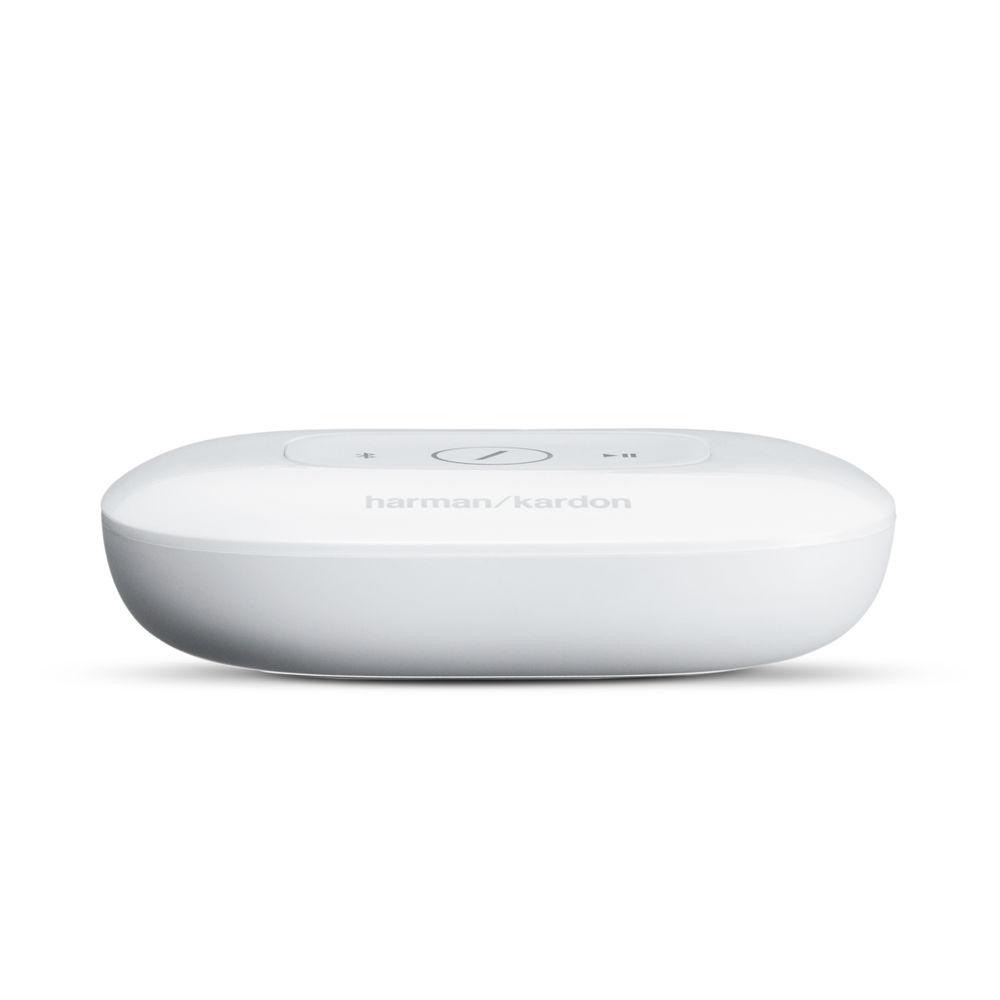

Add wireless audio streaming to your existing audio sources with the white Harman Kardon Adapt Wireless HD Audio Adapter. Using this adapter, your audio system can also communicate with Harmon Kardon's Omni wireless speaker systems. The free Harman Kardon app enables convenient device control and configuration. Wi-Fi and Bluetooth connectivity allows the adapter to wirelessly connect to your similarly equipped music sources such as smartphones and tablets.

The Omni Adapt is equipped with a 3.5mm input for connecting your wired audio sources. When multiple Omni speakers and adapters are used, you can wirelessly share your music with your other connected devices. You can group speakers together to play the same song, or you can play different songs in different rooms.
    App Control and Setup
  • Use the free Harman Kardon app to stream your favorite music anywhere in your home. Control and configure your HD audio system wirelessly via the app with no cable connection required.
    Multi-Room Listening and One Touch Follow Me Audio
  • When used with multiple Omni adapters and speakers you can stream different types of music to different rooms in your home. You can also walk from one room to another and have your favorite music follow you with the touch of a button.
    Link Button Speaker Control
  • When multiple songs are playing wirelessly, one button press can cycle through them all so you can pick your favorite. One long press of the button starts party mode with every connected speaker playing back the same music. Room-to-room control is made easy without the need to use your phone or tablet.
    HD Audio Streaming
  • The Harman Kardon Adapt supports 24-bit/96 kHz studio quality HD audio streaming. This allows you to enjoy high-resolution audio playback.
    Multi-Channel Surround Sound
  • Group speakers together for an immersive, same-room wireless sound experience. A pair of Harman Kardon Adapt-equipped systems can be used as part of a stereo or multi-channel speaker system.
    Re-Stream Bluetooth or 3.5mm Audio Sources
  • Connect audio sources via Bluetooth or a 3.5mm mini-jack to your Omni Adapter and it will automatically translate the signal to Wi-Fi and stream its sound all over your house. Bluetooth connectivity also allows you to stream music services such as iTunes and Spotify.
UPC: 028292265631 In the Box Harman Kardon Adapt Wireless HD Audio Adapter (White)

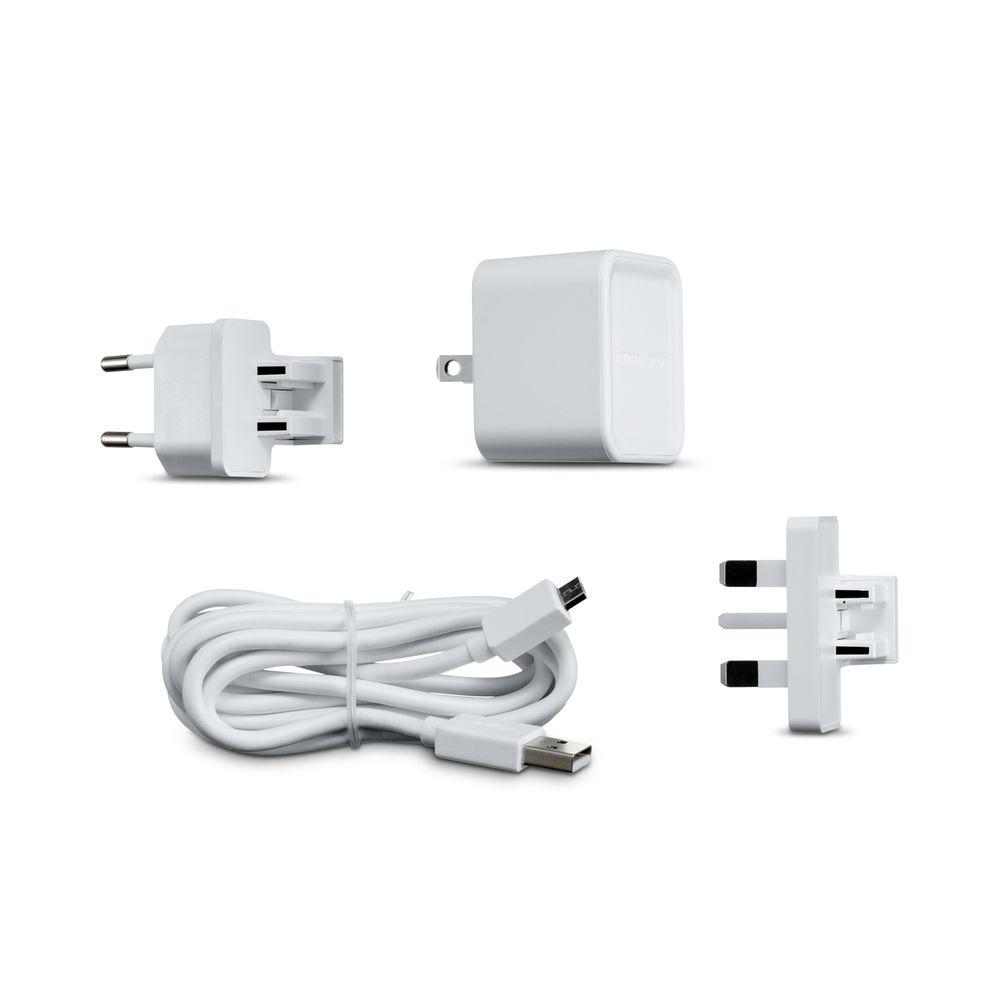

  • USB Power Supply
  • Power Pin
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Harman Kardon Adapt Wireless HD Audio Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Harman Kardon HKADAPTWHTAM Specs

    Output Voltage >1 Vrms
    Frequency Response 20 to 20 kHz
    Signal to Noise Ratio >85 dB

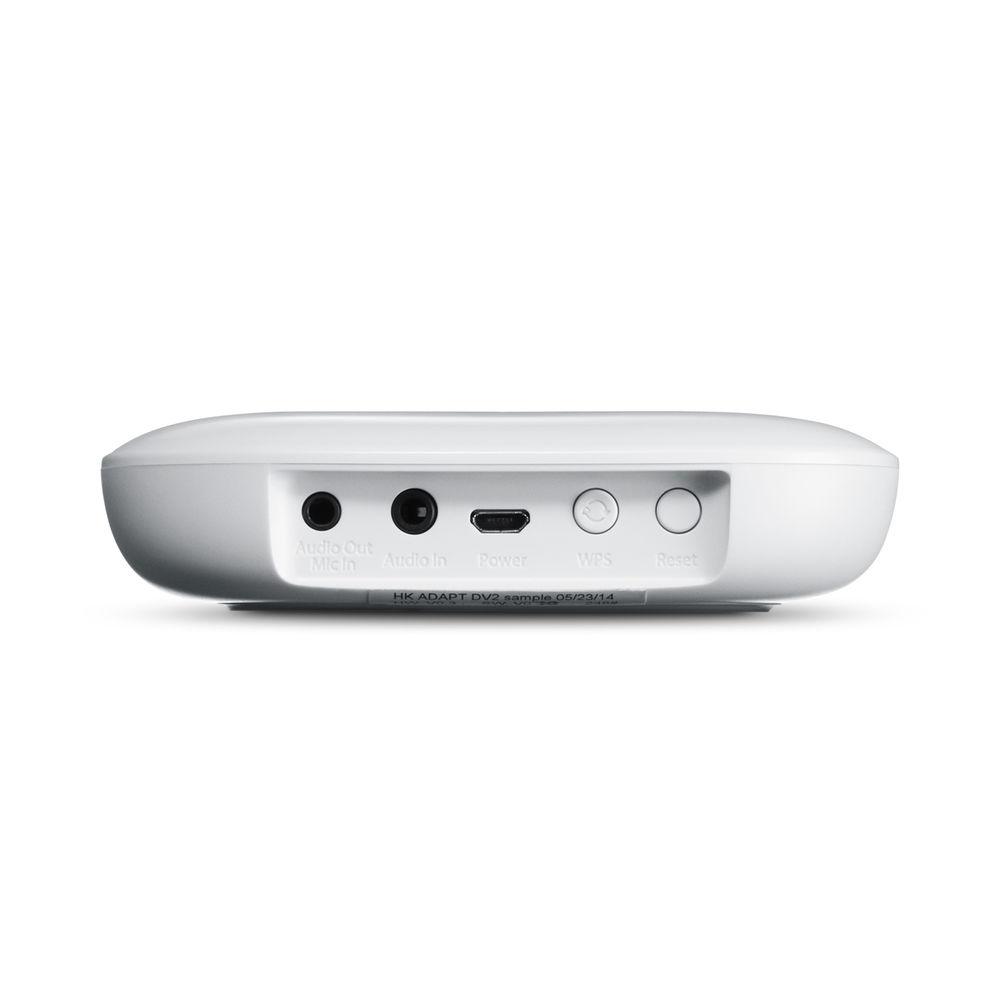

    Ports 1 x 1/8" (3.5 mm) audio-in
    1 x 1/8" (3.5 mm) audio-out / mic-in
    1 x Power
    Input Connections Bluetooth
    Aux-In
    Wi-Fi
    Wi-Fi 2.4 GHz Wi-Fi Transmitter Frequency Range: 2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
    2.4 GHz Wi-Fi Transmitter Power: <20dbm (eirp)
    2.4 GHz Wi-Fi Modulation: OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM
    2.4 GHz Wi-Fi Network Compatibility: IEEE 802.11b/g/n
    Bluetooth Transmitter Frequency Range: 2402 - 2480 MHz
    Transmitter Power: <4 dbm
    Transmitter Modulation: GFSK, π/4 DQPSK, 8DPSK
    WPS Button Yes
    Reset Button Yes
    Power Supply 5 VDC, 1.0 A
    Dimensions (WxDxH) 4.6 x 3.4 x 1.2" (118.0 x 86.0 x 30.0 mm)
    Weight 4.3 oz (121.0 g)
    Package Weight 0.95 lb
    Box Dimensions (LxWxH) 8.3 x 5.4 x 2.3"

    Rating

    50% users recommend this product to others. And what about you?
    Rating: 2.5 of 5

    This product has already been rated by 69 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Harman Kardon Adapt Wireless HD Audio Adapter

    Subject: How to connect Adapt with PC
    Date: 29.07.2021 08:57:21Name: Shibu Mammen
    How can I connect my laptop with HK AVR 151S through HK Adapt? I want to listen the songs in my laptop in the HK AVR 151S audio system
