User Manual for Harman Kardon AVR-1510S 5.1-Channel Network A V Receiver Click to enlarge the picture
Contents of the user manual for the Harman Kardon AVR-1510S 5.1-Channel Network A
- Product category: Receivers Harman Kardon
- Brand: Harman Kardon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Harman Kardon Receivers
 |
User manual for the Harman Kardon AVR-1510S 5.1-Channel Network A contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Harman Kardon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Harman Kardon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Harman Kardon product will considerably shorten its lifespan!
|
Product description Designed to deliver high-resolution audio and video from a variety of sources, the Harman Kardon AVR-1510S 5.1-Channel Network A/V Receiver features a discrete 5.1-channel amplifier that will output up to 75W per channel at either 6 or 8 ohms. It supports 3D and 4K pass-through via its four HDMI inputs and one HDMI output. The HDMI output is ARC compatible for the reproduction of TV-based audio, such as your TV's built-in Netflix or Hulu apps, for example.
The front USB port will accept most iOS devices as well as USB drives for the playback of stored files. The receiver's DLNA certification will allow it to connect with other certified DLNA devices to deliver your favorite media via your home network. It can be controlled via the included programmable remote control or via the Harman Kardon Remote App. - Five Discrete Amplifiers
- The AVR-1510S audio/video receiver pumps out 75 watts per channel to power a full 5.1-channel surround sound system. It can also connect to powered subwoofers to provide enhanced low-frequency performance for your music, movies, HDTV shows, sports, and video games. A digitally based power supply gives the amplifier all the muscle it needs without the weight of traditional power supply designs and their heavy transformers.
- More Ways to Connect
- The AVR-1510S can connect to compatible Apple devices, such as the iPad, iPhone, and iPod touch, directly via its front-panel USB port, and play their content without the need for an external adapter. The USB port will also support USB sticks to play stored tracks. Additionally, the AVR-1510S features Spotify Connect, which allows you to stream music directly from your Spotify premium account on your phone, tablet, or computer.
- Built-in vTuner Internet Radio
- The AVR-1510S features vTuner Internet radio technology to connect you to a whole world of online audio entertainment. Right out of the box, you can stream over-the-air radio stations from around the globe as well as from a wide range of Internet-only radio stations.
- Four 3D-Ready HDMI Inputs
- Four HDMI inputs with 3D and 30/36-bit Deep Color deliver high-definition digital video at resolutions up to 1080p with full-fidelity audio through a single cable. There is no loss of video or audio quality because of format conversion. And because it features 4K passthrough, your ultra-high-definition videos will make it all the way to compatible television screens.
- Dolby TrueHD and DTS-HD Master Audio Decoding
- The AVR-1510S delivers high-resolution audio to match the digital video quality of Blu-ray Disc formats, unlocking the full potential of movie soundtracks formatted with Dolby TrueHD and DTS-HD Master Audio encoding.
- HARMAN GreenEdge Certification
- HARMAN GreenEdge certification is designed to ensure that the receiver's design is environmentally friendly without compromising performance. Thanks to the digital power supply, the AVR-1510S can deliver high-quality audio in a smaller, lighter chassis that uses less metal and plastic.
- Compact Design

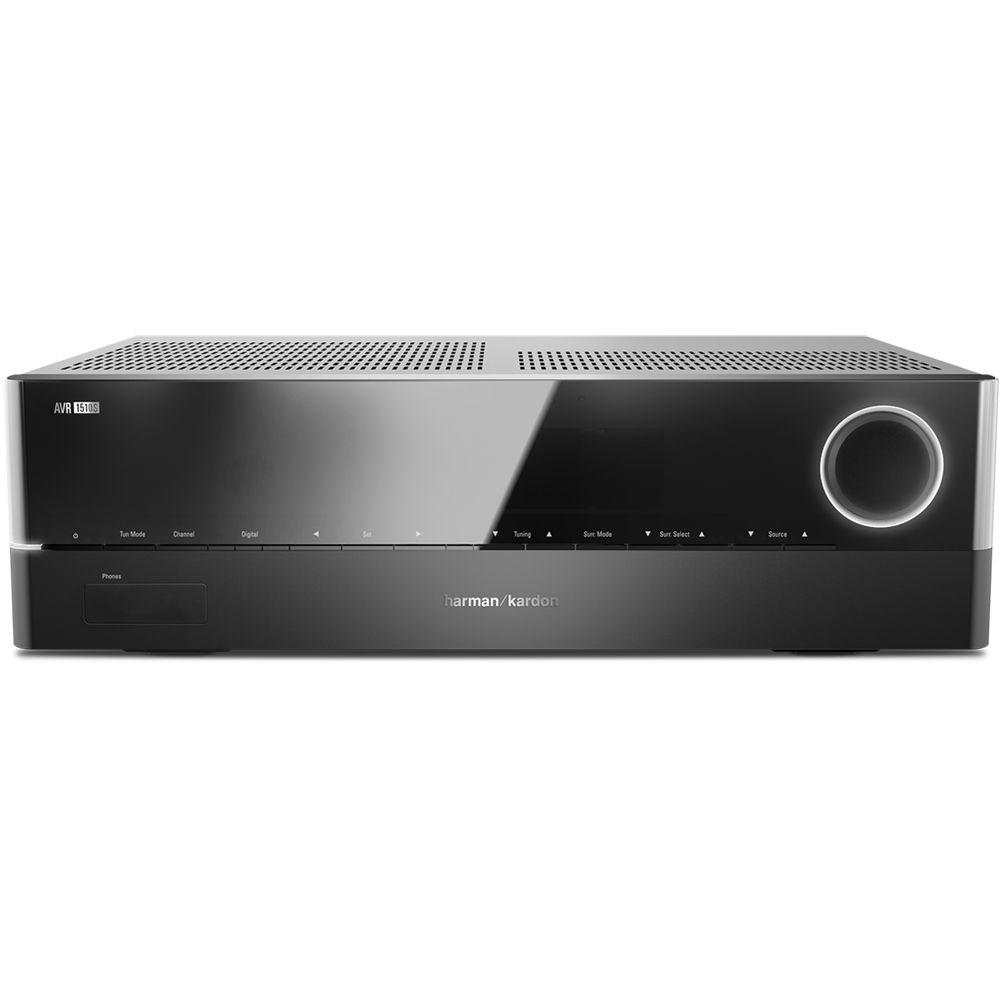

- The AVR-1510S features a flush volume control and compact design. Because of the lighter weight made possible by a digital power supply, the unit weighs less without sacrificing performance. The unit is designed to match the thin glass shelves of open TV/entertainment furniture.
- Color-Coded Connectors and Binding-Post Speaker Terminals
- All connections on the AVR-1510S are color-coded to simplify setup.
- Multi-Device, Programmable Remote Control
- The AVR-1510S includes a programmable infrared (IR) remote control. It is designed to work seamlessly with the receiver's multilingual on-screen display, guiding you through system setup and operation with ease. The multi-device remote can also control your TV, cable boxes, satellite tuners, and other playback sources. For further installation flexibility, there is a 12-volt trigger output and a remote IR sensor input.
UPC: 028292269073 In the Box Harman Kardon AVR-1510S 5.1-Channel Network A/V Receiver Programmable Remote Control with Batteries AM Loop Antenna with 2' Cable FM Antenna with 6' Cable 6' AC Power Cord Limited 2-Year Warranty User Manual PDF 33.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Harman Kardon AVR-1510S 5.1-Channel Network A V Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHarman Kardon AVR 1510S Specs | | | No. of Channels | 5.1 | | Stereo RMS Power | 75W per channel, two channels driven @ 6/8 Ohms, 1 kHz, <0.1% THD | | Surround RMS Power | 75W per channel, two channels driven @ 6/8 Ohms, 1 kHz, <0.1% THD | | High Instantaneous Current Capability | ±28 A | | Transient Intermodulation Distortion | Unmeasurable | | | | Dolby | Dolby TrueHD, Dolby Digital Plus | | DTS | DTS-HD Master Audio | | THX Certified | No | | | | Speaker Selector | None | | Remote Control | Programmable | | | | AM/FM Tuner | Yes | | Frequency Range | AM: 520 to 1620 kHz
FM: 87.5 to 108.0 MHz | | Usable Sensitivity | AM, Loop: 375 μV
FM, IHF: 1.3 μV (13.2 dBf) | | Distortion | AM: 1.0% at 1 kHz, 50% mod
FM, Mono: 0.2%
FM, Stereo: 0.3% | | Selectivity | AM: 30 dB ±10 kHz
FM: 70 dB ±400 kHz | | Image Rejection | FM: 80 dB | | IF Rejection | FM: 80 dB | | | | Television System | NTSC | | Input Level and Impedance | 1 Vp-p/75 Ohms | | Output Level and Impedance | 1 Vp-p/75 Ohms | | Frequency Response | Composite Video: 10 Hz to 8 MHz (-3 dB) | | HDMI Resolution | Up to 4K x 2K | | | | Input | 4 x HDMI 1.4
1 x Digital coaxial audio
1 x Digital optical audio
2 x RCA video
2 x RCA audio | | Output | 1 x HDMI 1.4 with ARC
1 x RCA video

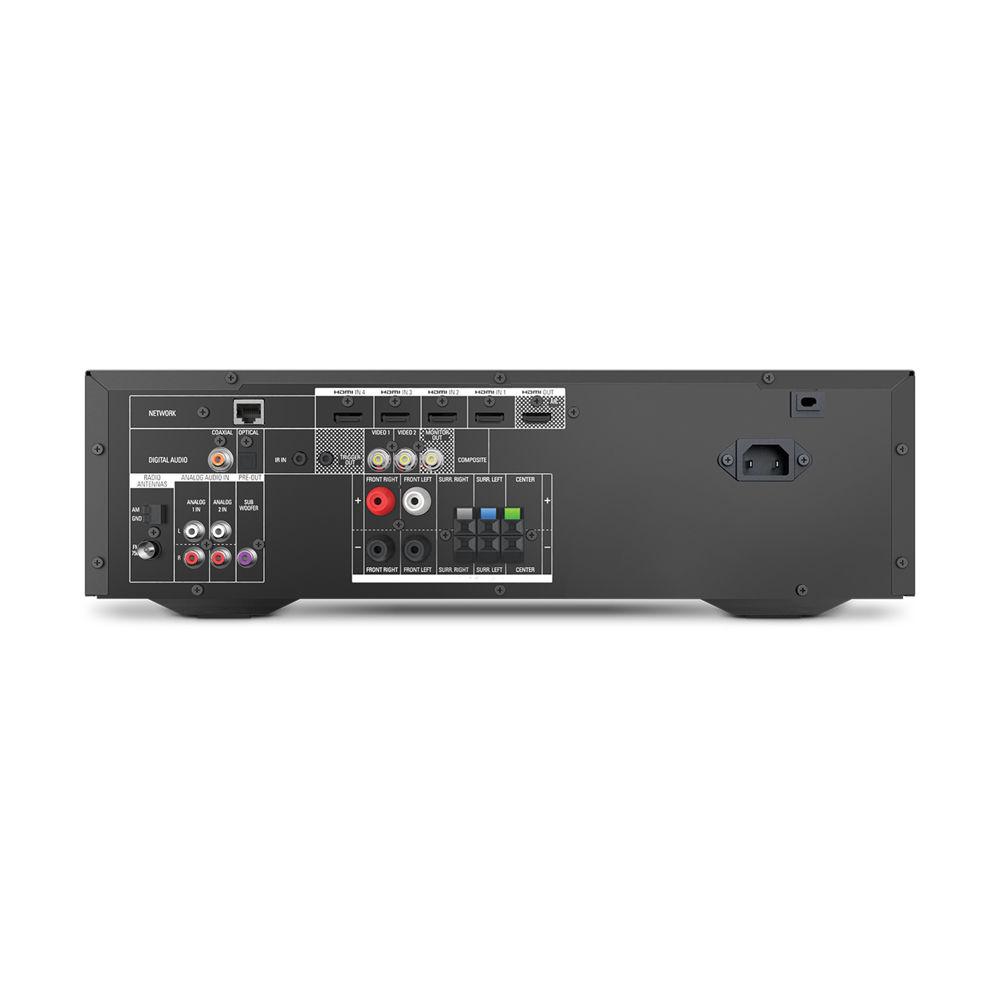

1 x ¼" Headphone jack (front) | | Other Ports | 1 x Ethernet network connector
1 x USB port (front)
1 x AM antenna in
1 x FM antenna in
1 x IR control in
1 x 12V trigger out
2 x Binding post pairs (front L/R)
3 x Spring clip pairs (center and rear L/R)
1 x RCA subwoofer pre-out | | Input Sensitivity/Impedance | 250 mV/27 kOhms | | Audio Frequency Response | 10 Hz to 130 kHz (+0/-3 dB) @ 1 W | | Signal to Noise Ratio | General: 100 dB IHF-A
AM: 38 dB
FM Mono: 70 dB
FM Stereo: 68 dB | | | | Power Requirements | 120 VAC, 60 Hz | | Power Consumption | Maximum: 410 W
Standby: <0.5 W | | Slew Rate | 40 V/second | | Dimensions (W x H x D) | 17.3 x 4.8 x 11.8" (44.0 x 12.1 x 30.0 cm) | | Weight | 10.0 lb (4.6 kg) | | | | Package Weight | 14.2 lb | | Box Dimensions (LxWxH) | 21.0 x 15.0 x 9.0" |
