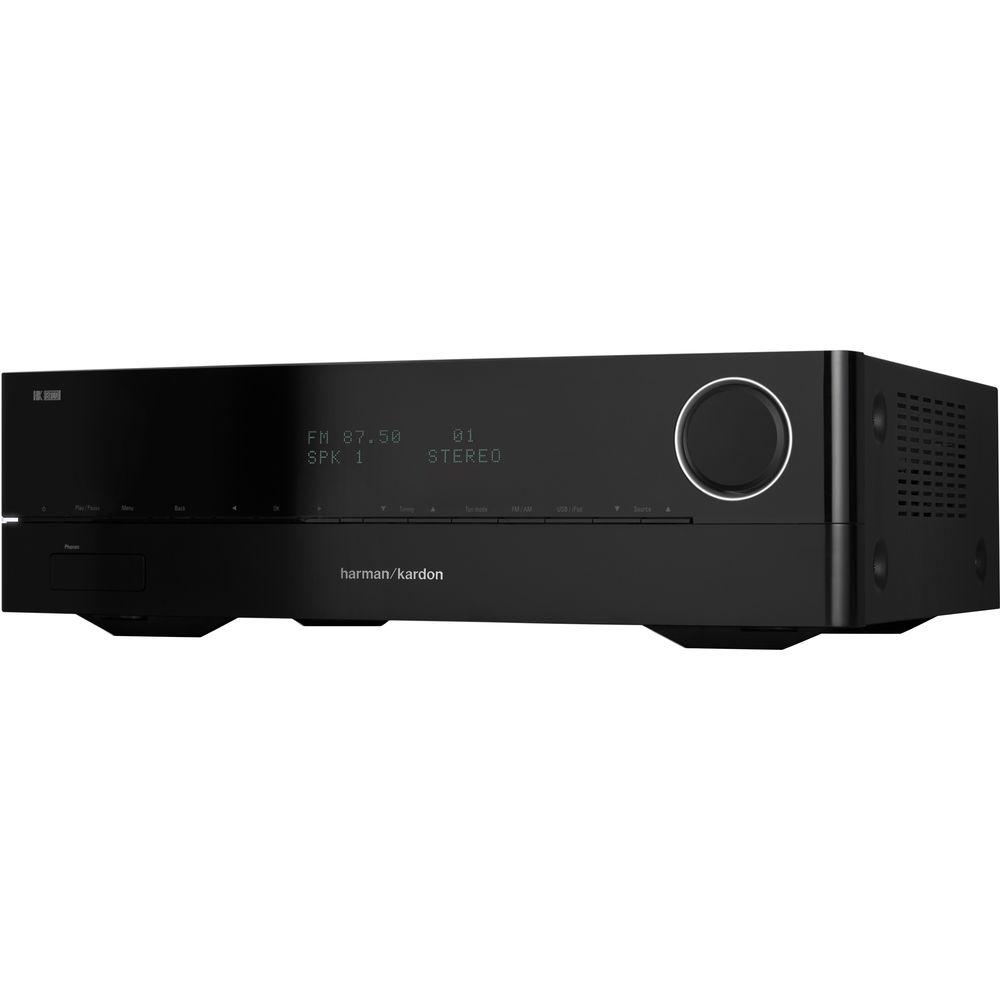

User Manual for Harman Kardon HK 3700 Stereo Network Receiver Click to enlarge the picture
Contents of the user manual for the Harman Kardon HK 3700 Stereo Network
- Product category: Receivers Harman Kardon
- Brand: Harman Kardon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Harman Kardon Receivers
 |
User manual for the Harman Kardon HK 3700 Stereo Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Harman Kardon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Harman Kardon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Harman Kardon product will considerably shorten its lifespan!
|

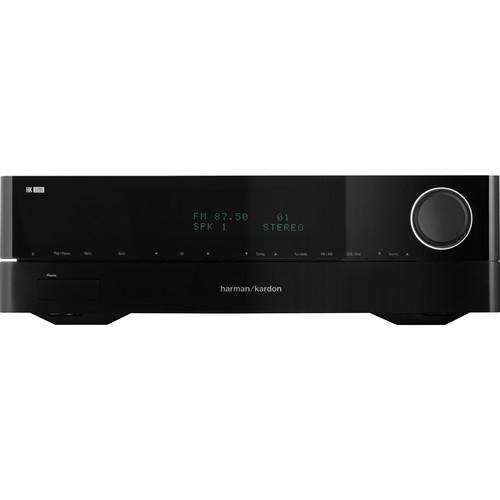

Product description The Harman Kardon HK 3700 Stereo Network Receiver delivers powerful stereo performance in a compact design. This receiver features 2-channel speaker output and delivers up to 85W per channel and features a subwoofer output. Built-in Ethernet connectivity allows you to use DLNA technology to connect to your home network for sharing content such as music, photos and videos. You can also use this receiver's Internet connectivity to access Internet streaming radio. The built-in digital AM and FM tuner allows you to listen to free over-the-air content; AM and FM antennas are included.

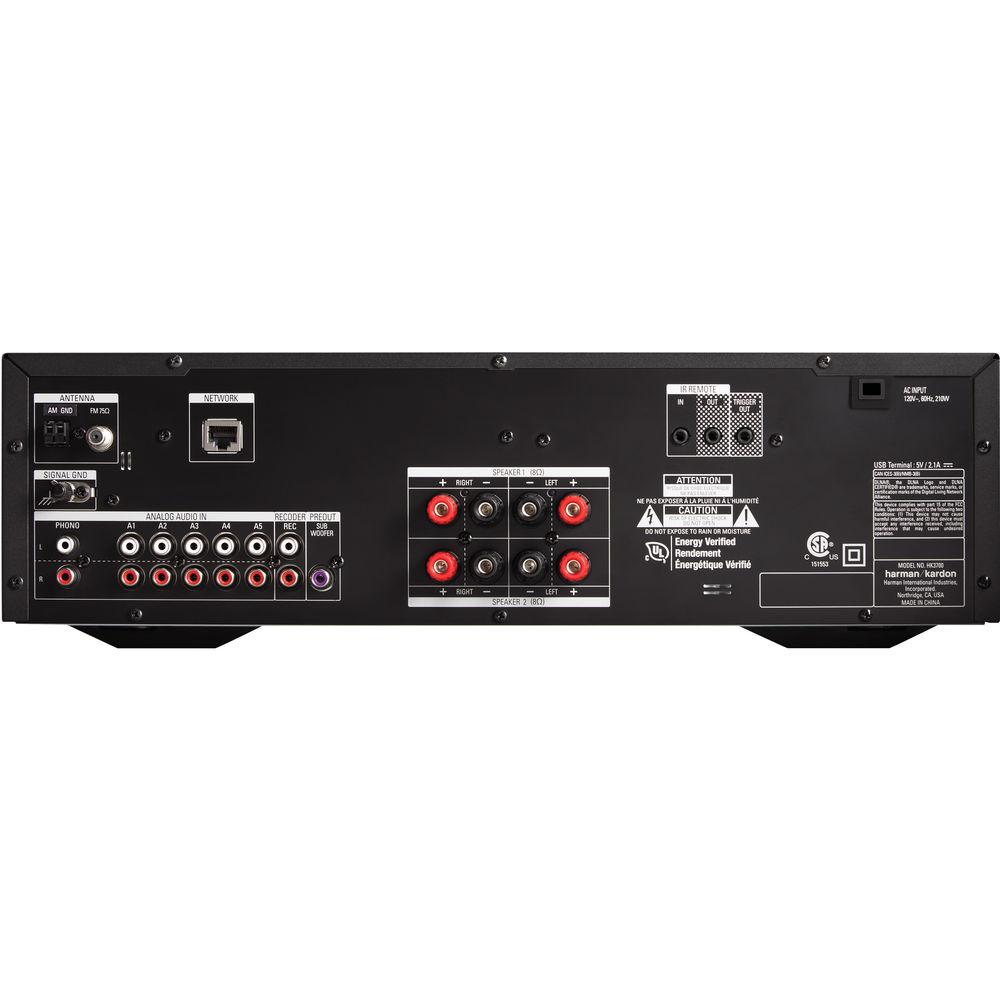

The Harman Kardon HK 3700 is equipped multiple connection options for interfacing audio components. Five stereo RCA inputs are available for connecting a variety of analog audio sources, in addition to a phono input for connecting a turntable. A USB input is also available for connecting additional audio sources such as MP3 players and thumb drives. For enhanced system control, the free Harman Kardon Remote app is available for controlling your receiver from compatible Android and iOS devices. A standard remote control is also included with the receiver. - USB Port
- The USB port on the front-panel allows you to connect an iPod, iPhone or iPad using a compatible connecting cable (not supplied). You can also connect a USB flash drive for music playback (MP3, WMA or WAV format).
- Phono Input
- This stereo receiver has a phono input for connecting turntables with a moving magnet cartridge.
- Subwoofer
- There's a subwoofer output with trigger on-board for direct connection to powered subwoofers for low-frequency impact.
- Network Connectivity
- This receiver is equipped with an Ethernet connection to enjoy Internet radio and content from DLNA-compatible devices that are connected to the network.
- Other Features
-
- High-resolution DAC, featuring a 24-bit/192 kHz sampling rate
- Compact design at 4.8" high
- One analog-recording output
- vTuner (Internet radio) streaming
- Wide bandwidth and low distortion design
- A/B speakers election
- Headphone output
- Tape monitor loop
UPC: 028292264290 In the Box Harman Kardon HK 3700 Stereo Network Receiver Remote Control 2 x AAA Batteries AM Loop Antenna FM Antenna 6' (1.8 m) IEC Power Cord Limited 1-Year Warranty User Manual PDF 1.1mbzqxeffturdfdacutaaryzxxweytycaex Table of Contents
|
Upload User Manual
Have you got an user manual for the Harman Kardon HK 3700 Stereo Network Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHarman Kardon HK3700AM Specs | | | Channels | 2 | | Power Output | 85 W x 2 at 8 ohms, 20 Hz - 20 kHz, <0.07% THD, with all channels driven simultaneously | | Signal-to-Noise Ratio | IHF-A: 100 dB | | Current | ±30 amps | | Frequency Response | 10 Hz - 130 kHz (+0 dB / 3 dB) at 1 W | | | | Frequency Range | 87.5 MHz - 108.0 MHz | | Usable Sensitivity | IHF: 1.3 μV / 13.2 dBf | | Signal-to-Noise Ratio | Mono / Stereo: 70 db / 68 db | | Distortion | Mono / Stereo: 0.2% / 0.3% | | Stereo Separation | 40 dB at 1 kHz | | Selectivity | ±400 kHz: 70 dB | | | | Frequency Range | 520 kHz - 1,710 kHz | | Signal-to-Noise Ratio | 38 db | | Usable Sensitivity | Loop: 500 μV | | Distortion | 1 kHz, 50% Mod: 1.0% | | Selectivity | ±10 kHz: 30 dB | | | | DLNA Certified | Yes, 1.5 | | Input | 1 x USB
5 x Stereo RCA
1 x Phono
1 x IR | | Output | 1 x Stereo RCA (record)
1 x IR
1 x Trigger
1 x Subwoofer
1 x Headphone | | Other Connectors | 4 x Left + Right Speaker
1 x Ethernet
1 x AM / Ground
1 x FM
1 x Signal Ground | | | | Power Requirement | 120 VAC, 60 Hz | | Power Consumption | Standby: <0.5 W
Maximum: 310 W | | Dimensions (WxHxD) | 17.3 x 4.8 x 11.8" (439 x 122 x 300 mm) | | Weight | 13.2 lb (6 kg) | | | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 21.5 x 15.5 x 8.8" |
