User Manual for Hartke HA2500 Bass Amplifier Click to enlarge the picture
Contents of the user manual for the Hartke HA2500 Bass Amplifier
- Product category: Bass Amplifiers Hartke
- Brand: Hartke
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hartke Bass Amplifiers
 |
User manual for the Hartke HA2500 Bass Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hartke product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hartke user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hartke product will considerably shorten its lifespan!
|

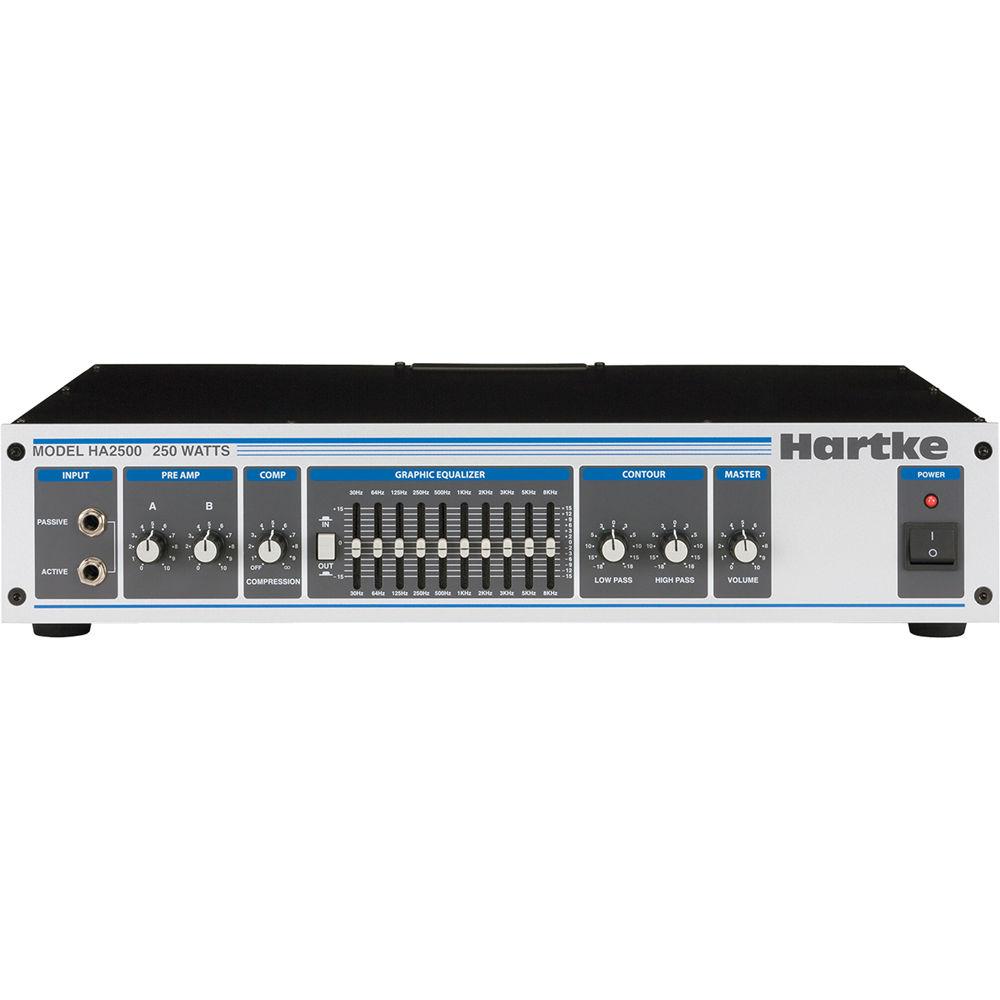

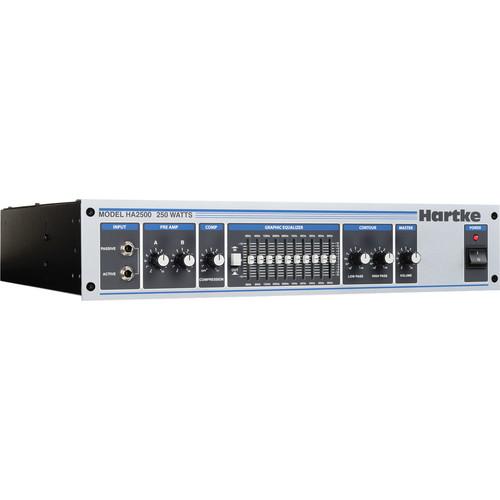

Product description The Hartke HA2500 Bass Amplifier is a rackmountable 250W bass amplifier designed to amplify passive and active bass guitars in live performance and recording environments. The HA2500 features two pre-amplification input knobs to allow custom blending of tube and solid state tone, and a 10-band graphic equalization. The amplifier's dedicated preset button allows you to set an equalization curve, and 2 adjustable contour knobs are designed to provide you with more sound-shaping possibilities. The built-in compressor allows you to smooth out volume differences between notes. The amplifier also features LEDs that show you the settings of the graphic equalizer in low-light environments as well as a two-color LED that continuously shows the status of the compression circuitry in response to your playing. A ground lift switch is provided to prevent hum or buzz from entering the signal, and a pre/post switch allows the direct signal to be derived either before or after equalization. - Selectable tube and solid-state preamps
- Active and passive inputs
- Bass and treble contour controls
- Balanced XLR direct output
UPC: 809164004967 In the Box Hartke HA2500 Bass Amplifier (250W) Rack Ears Limited 2-Year Warranty Manual PDF 2mbrzdqfxcttfbqyxaxe Table of Contents
|
Upload User Manual
Have you got an user manual for the Hartke HA2500 Bass Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHartke HA2500 Specs | Input Sensitivity | Passive: 100 kOhms, 20 mV
Active: 100 kOhms, 60 mV | | Connectors | Front Panel:
1 x 1/4" phone jack, passive input
1 x 1/4" phone jack, active input

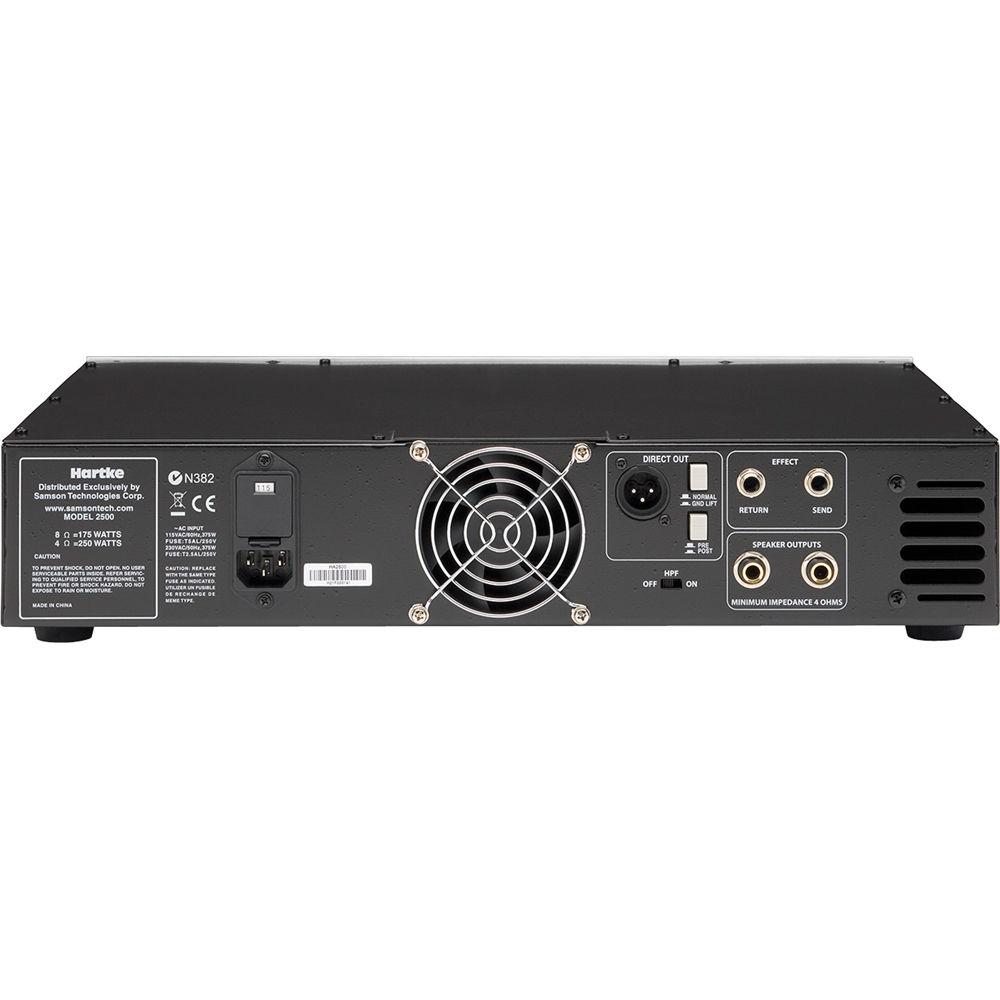

Rear Panel:
1 x AC input
2 x 1/4" phone jack, speaker output
1 x 1/4" phone jack, effect send
1 x 1/4" phone jack, effect return
1 x 3-pin XLR male, direct output | | Controls | Front Panel:
1 x Pre-amp A tube control knob
1 x Pre-amp B solid state control knob
1 x Compression knob
1 x Graphic equalizer in/out switch
10 x Graphic EQ control slider
1 x Contour low pass control knob
1 x Contour high pass control knob
1 x Master volume control knob
1 x Power switch
Rear Panel:
1 x Fuse sled
1 x Balance control knob (HA3500C and HA5500C only)
1 x Direct out post/pre switch
1 x Direct out normal/ground lift switch | | LED Indicators | 1 x Compression, green/red
1 x Graphic equalizer
1 x Power | | Rated Output Power | 250 W @ 4 ohms, 180 W @ 8 ohms | | Signal to Noise Ratio | Approximately 78 dB | | Equalizer | Contour Low Pass: ± 18 dB @ 100 Hz
Contour High Pass: ± 18 dB @ 10 kHz
Ten-Band Graphic: ± 15 dB, center detented @ 30 Hz, 64 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 3 kHz, 5 kHz, and 8 kHz | | Dimensions (L x W x H) | 17.3 x 14.0 x 3.5" (44.0 x 35.5 x 8.9 cm) | | Weight | 19.6 lb (8.9 kg) | | | | Package Weight | 25.99 lb | | Box Dimensions (LxWxH) | 21.26 x 17.13 x 6.69" |
