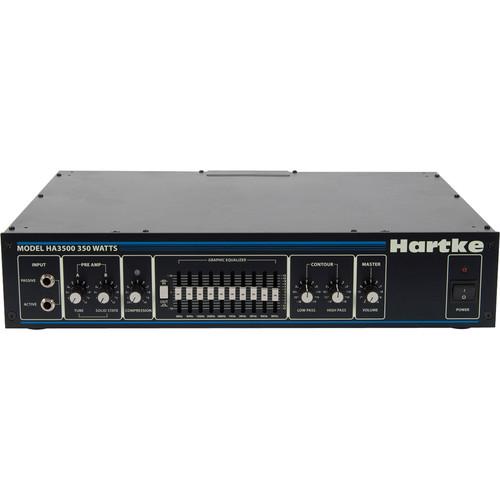

Hartke HA3500C Bass Amplifier

Search your instruction manual in PDF to download

User Manual for Hartke HA3500C Bass Amplifier

Click to enlarge the picture
Hartke HA3500C Bass Amplifier Contents of the user manual for the Hartke HA3500C Bass Amplifier
  • Product category: Bass Amplifiers Hartke
  • Brand: Hartke
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hartke Bass Amplifiers

User manual for the Hartke HA3500C Bass Amplifier contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hartke product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hartke user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hartke product will considerably shorten its lifespan!



Product description

The Hartke HA3500C Bass Amplifier is a rackmountable 350W bass amplifier designed to amplify passive and active bass guitars in live performance and recording environments. The HA3500C features two pre-amplification input knobs to allow custom blending of tube and solid state tone, and a 10-band graphic equalization. The amplifier's dedicated preset button allows you to set an equalization curve, and 2 adjustable contour knobs are designed to provide you with more sound-shaping possibilities. The built-in compressor allows you to smooth out volume differences between notes. The amplifier also features LEDs that show you the settings of the graphic equalizer in low-light environments as well as a two-color LED that continuously shows the status of the compression circuitry in response to your playing. A ground lift switch is provided to prevent hum or buzz from entering the signal, and a pre/post switch allows the direct signal to be derived either before or after equalization.
  • Selectable tube and solid-state preamps
  • Active and passive inputs
  • Bass and treble contour controls
  • 10-band graphic EQ
  • Balanced XLR direct output
  • Rackmountable
UPC: 809164009412 In the Box Hartke HA3500C Bass Amplifier (350W)
  • Rack Ears
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Hartke HA3500C Bass Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Hartke HA3500C Specs

    Input Sensitivity Passive: 100 kOhms, 20 mV
    Active: 100 kOhms, 60 mV
    Connectors Front Panel:
    1 x 1/4" phone jack, passive input
    1 x 1/4" phone jack, active input

    Rear Panel:
    1 x AC input
    2 x 1/4" phone jack, speaker output
    1 x 1/4" phone jack, effect send
    1 x 1/4" phone jack, effect return
    1 x 3-pin XLR male, direct output
    Controls Front Panel:
    1 x Pre-amp A tube control knob
    1 x Pre-amp B solid state control knob
    1 x Compression knob
    1 x Graphic equalizer in/out switch
    10 x Graphic EQ control slider
    1 x Contour low pass control knob
    1 x Contour high pass control knob
    1 x Master volume control knob
    1 x Power switch

    Rear Panel:
    1 x Fuse sled
    1 x Balance control knob (HA3500C and HA5500C only)
    1 x Direct out post/pre switch
    1 x Direct out normal/ground lift switch
    LED Indicators 1 x Compression, green/red
    1 x Graphic equalizer
    1 x Power
    Rated Output Power 350 W @ 4 ohms, 240 W @ 8 ohms
    Signal to Noise Ratio Approximately 78 dB
    Equalizer Contour Low Pass: ± 18 dB @ 100 Hz
    Contour High Pass: ± 18 dB @ 10 kHz
    Ten-Band Graphic: ± 15 dB, center detented @ 30 Hz, 64 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 3 kHz, 5 kHz, and 8 kHz
    Dimensions (L x W x H) 17.3 x 14.0 x 3.5" (44.0 x 35.5 x 8.9 cm)
    Weight 24.3 lb (11.0 kg)
    Package Weight 28.4 lb
    Box Dimensions (LxWxH) 20.5 x 16.5 x 7.0"
