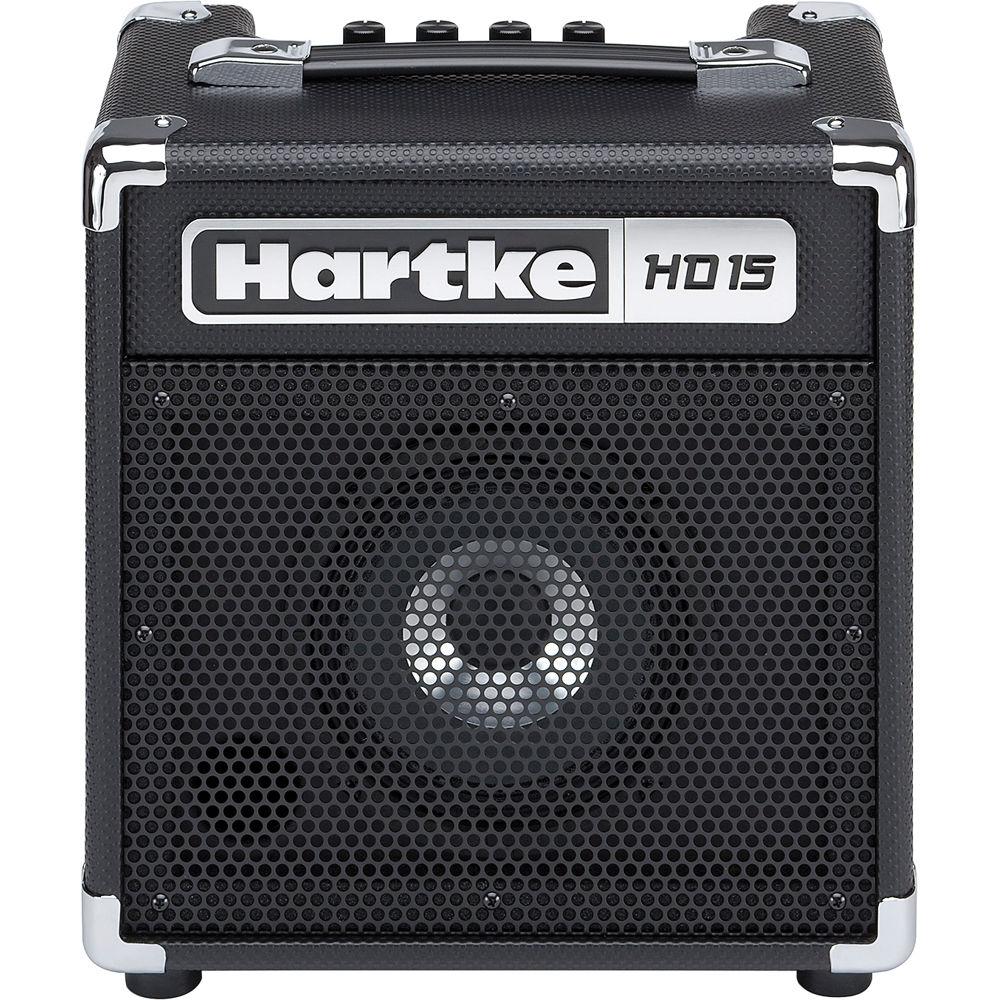

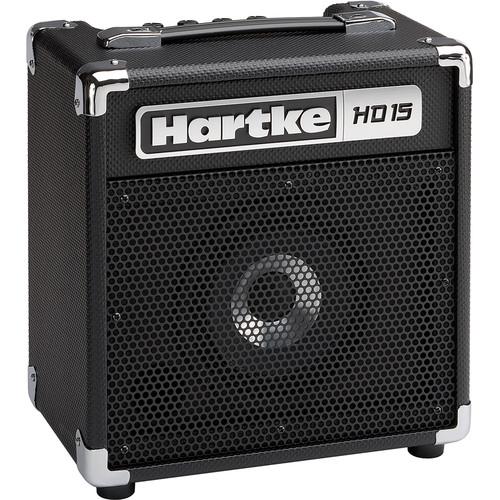

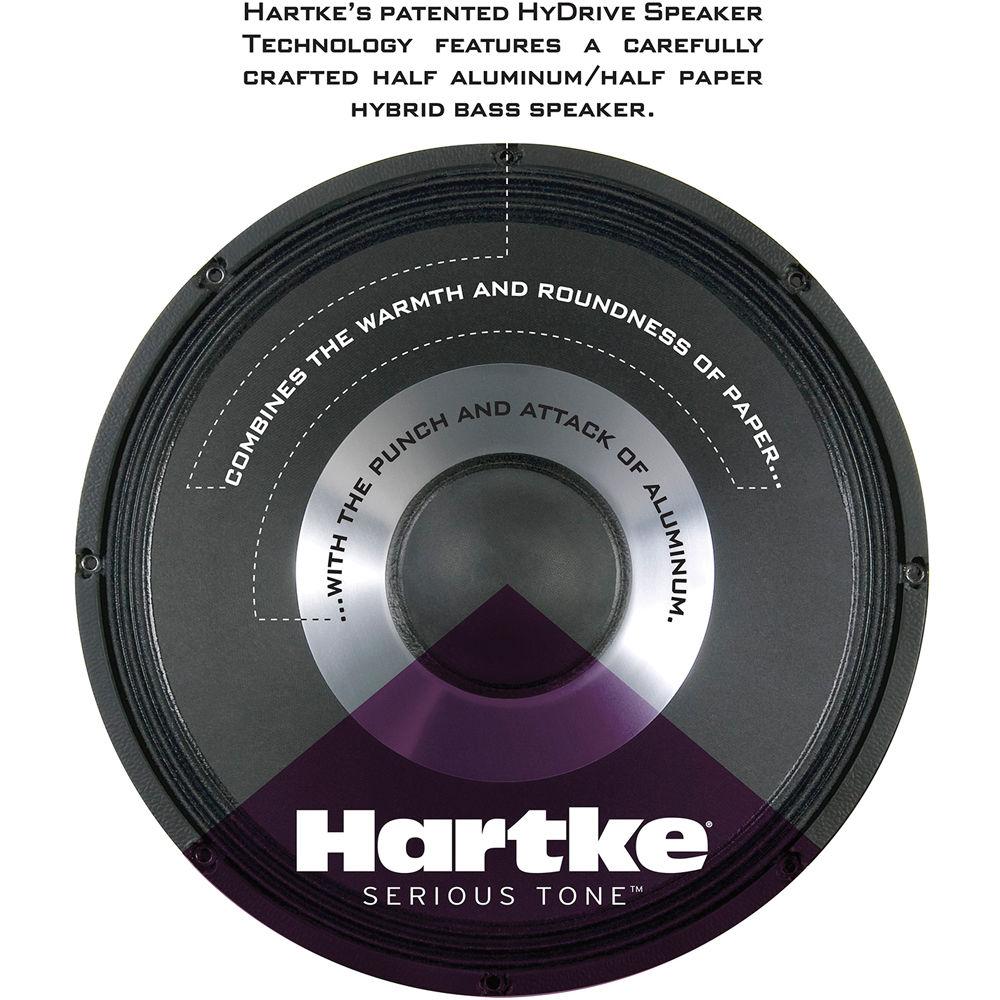

Product description The HD15 Bass Combo by Hartke incorporates a 15W amplifier and a 6.5" Hydrive series hybrid cone bass speaker within a sturdy, portable enclosure. The hybrid cone speaker is constructed using an outside paper cone for warm low frequencies, and an inside aluminum cone for punchy mids. The Combo's top-mounted amplifier panel offers bass, mid, treble, and overall volume controls. A further feature of the HD15 Combo is a dedicated 3.5mm line input for hooking up a portable CD or MP3 player to practice along with. A 1/4" headphone output is also provided for quiet practice sessions; when a plug is inserted into it, the speaker output is disconnected, allowing you to use your HD15 at any time without disturbing others. A built-in limiter ensures constant amplifier operation at safe levels. The enclosure is designed with a perforated metal grill and a molded strap top carry handle. The HD15 Bass Combo is ideal for use in rehearsal spaces, private practice sessions, and small venues, and accommodates all musical styles. - Delivers 15W to its 6.5" Hydrive bass speaker
- 1/4" input accommodates a broad range of input levels: use your HD15 with passive or active circuitry bass guitars
- Three-band equalizer to create a broad range of tonal colors
- Dedicated 1/8" auxiliary input allows you to hook up a stereo line-level device such as a portable CD or MP3 player to practice along with
- 1/4" headphone output automatically disconnects the speaker output allowing use as a high-quality practice amplifier
- Built-in limiter protects the speaker and amplifier from overload
- Molded strap top carry handle
UPC: 809164017707 In the Box Hartke HD15 Bass Combo (15W) Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hartke HD15 Bass Combo in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHartke HD15 Specs | Rated Output Power | 15 W (@1 kHz, 4 ohms, 1% THD) | | Rated Input | -28 dBV (@ 1 kHz) | | Total Harmonic Distortion | 0.13% (@ 1 dB below rated output, 1 kHz typical) | | Signal to Noise Ratio | 57 dB (1 W RMS @ 1 kHz) | | Signal Gain | 46 dB | | Equalizer | Bass Center Frequency: 100 Hz
Mid Center Frequency: 400 Hz
Treble Center Frequency: 10 kHz | | Headphone Output | 137 mW / 32 ohms | | Dimensions | 12.5 x 12.2 x 8.0" (316 x 309 x 202 mm) | | Weight | 13.4 lb (6.1 kg) | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 15.5 x 14.5 x 11.0" |
