User Manual for Hartke Kickback KB12 500W 1x12" Combo Amplifier for Electric Bass Click to enlarge the picture
Contents of the user manual for the Hartke Kickback KB12 500W 1x12" Combo
- Product category: Bass Amplifiers Hartke
- Brand: Hartke
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hartke Bass Amplifiers
|
User manual for the Hartke Kickback KB12 500W 1x12" Combo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hartke product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hartke user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hartke product will considerably shorten its lifespan!
|

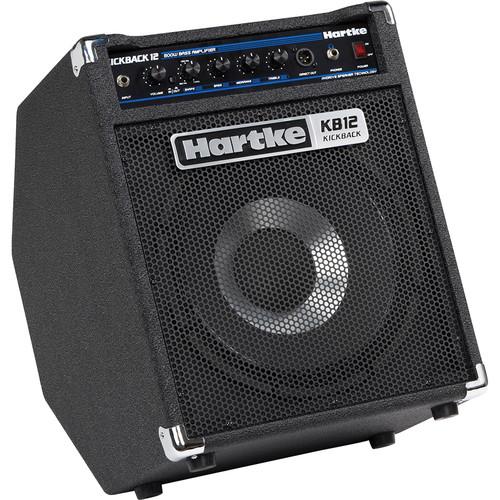

Product description Designed to tilt upwards on the stage if you should want it to—and thus, earning its name in the process—the Kickback KB12 from Hartke is a 500W combo amplifier intended for electric basses. It utilizes class-D amplification technology, and a 12" HyDrive speaker to deliver a powerful sound. The input jack can accommodate both active and passive basses, and the on-board three-band EQ will let you dial in a variety of tones, augmented all the more by the shape-control circuit. When engaged, this switch applies a 20 dB filter to a given frequency area adjustable via a knob to the right of the switch. The circuit is designed to further enhance your bass' tone.
This amplifier boasts both a headphones output for silent practice as well as an XLR output for feeding direct signal to the house, mixer, or recording interface. Should you wish to loop in an external 4-Ohm cabinet, you can do so through its 1/4" speaker jack on the rear. A built-in limiter protects both the speaker and the amp from overloads, and at approximately 28 lb, the amp is relatively portable and lightweight. - Lightweight Class-D amplifier design
- 12" HyDrive paper/aluminum hybrid cone driver
- Unique Shape EQ contour control with variable filter
- Molded strap carry handle
UPC: 809164018001 In the Box Hartke Kickback KB12 500W 1x12" Combo Amplifier for Electric Bass Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hartke Kickback KB12 500W 1x12" Combo Amplifier for Electric Bass in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHartke KB12 Specs | | | Amplifier Type | Solid-State | | Output Power | 500 W Peak | | Channels | 1 | | Output Impedance | 4 Ohms Mono | | Master Volume | Yes | | Inputs | 1 x 1/4" Mono Instrument | | Outputs | 1 x 1/4" Stereo Headphone
1 x 1/4" Mono External Speaker
1 x XLR Mono DI | | Tone Section | Channel 1: Bass, Mid, Treble | | | | Speaker Through/Output | 1 x 1/4" | | Configuration | 1 x 12" Speaker(s) | | Cabinet Type | Straight Closed Mono | | Power Rating | 500 W Peak
250 W RMS | | Construction Material | Plywood | | | | Dimensions (WxHxD) | 14.8 x 15.7 x 18.1" / 375.0 x 399.0 x 461.0 mm Combo | | Weight | 28.22 lb / 12.8 kg Combo | | | | Package Weight | 36.35 lb | | Box Dimensions (LxWxH) | 21.3 x 18.9 x 17.6" |
