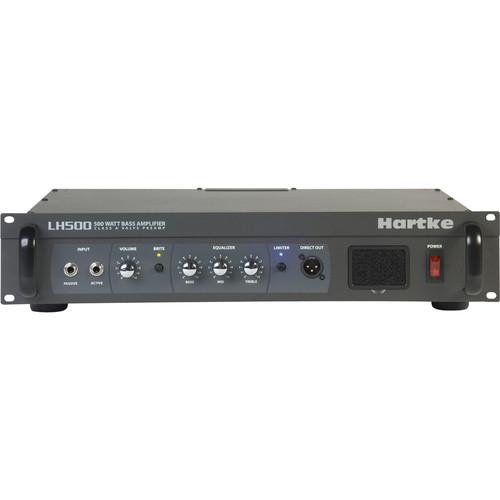

User Manual for Hartke LH500 Bass Amplifier Click to enlarge the picture
Contents of the user manual for the Hartke LH500 Bass Amplifier
- Product category: Bass Amplifiers Hartke
- Brand: Hartke
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hartke Bass Amplifiers
|
User manual for the Hartke LH500 Bass Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hartke product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hartke user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hartke product will considerably shorten its lifespan!
|
Product description The Hartke LH500 Bass Amplifier is a 500W bass amplifier designed for the Hartke HyDrive cabinets and similar speaker cabinets. The LH500 features a 12AX7 Class-A tube front-end and a 2RU design with a solid-state output stage. The front panel features Treble, Mid, and Bass equalization controls, as well as brite and limiter control switches. The brite switch provides a preset EQ curve to enhance the bass instruments high-end performance. - 500 W @ 4 ohms, 350 W @ 8 ohms
- Classic 12AX7 High Voltage Class-A tube preamp circuit
- Bass and Treble Shelving, plus mid-peak EQ controls
- Selectable brite switch for added high frequency response
- Selectable limiter switch with LED indicator
- Front panel XLR balanced direct output
- Rear panel 1/4-inch effects loop
- Two-rackspace metal chassis with steel faceplate and handles
UPC: 809164008460 In the Box Hartke LH500 Bass Amplifier (500W, 2RU) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hartke LH500 Bass Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHartke LH500 Specs | Controls | Front Panel:
1 x Volume control knob
1 x Bass equalizer knob
1 x Mid equalizer knob
1 x Treble equalizer knob
1 x Power switch
Rear Panel:
1 x AC voltage selection switch
1 x Fuse sled | | Connectors | Front Panel:
1 x 1/4" phone jack, passive input
1 x 1/4" phone jack, active input
1 x 3-pin XLR male direct output
Rear Panel:
1 x 1/4" phone jack, effects send
1 x 1/4" phone jack, effects return
2 x 1/4" phone jack, speaker output
1 x 3-pin IEC AC input | | Input Sensitivity | Passive: 100 kΩ, 20 mV
Active: 100 kΩ, 60 mV | | Rated Output Power | 500 W @ 4 ohms, 350 W @ 8 ohms | | Total Harmonic Distortion (THD) | Less than 0.5% | | Signal to Noise Ratio | Approximately 78 dB | | Output Level | 0 dBm (send) | | Input Level | 0 dBm (return) | | Dimensions (W x D x H) | 19.0 x 14.5 x 3.3" (48.3 x 36.9 x 8.3 cm) | | Weight | 23.10 lb (10.50 kg) | | | | Box Dimensions (LxWxH) | 20.75 x 16.75 x 7.0" |
