Hartke TX600 600W Bass Amplifier Head

Search your instruction manual in PDF to download

User Manual for Hartke TX600 600W Bass Amplifier Head

Click to enlarge the picture
Hartke TX600 600W Bass Amplifier Head Contents of the user manual for the Hartke TX600 600W Bass Amplifier Head
  • Product category: Bass Amplifiers Hartke
  • Brand: Hartke
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hartke Bass Amplifiers

Hartke TX600 600W Bass Amplifier Head Hartke TX600 600W Bass Amplifier Head
User manual for the Hartke TX600 600W Bass Amplifier Head contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hartke product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hartke user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hartke product will considerably shorten its lifespan!



Product description

The Hartke TX600 is an amplifier head intended for electric bass. Providing 600W of Class D amplification, a 12AX7 Class A tube preamp, and a wide array of tone-shaping options, the TX600 is portable to boot, featuring a compact construction and a relatively light weight of 7 lb.

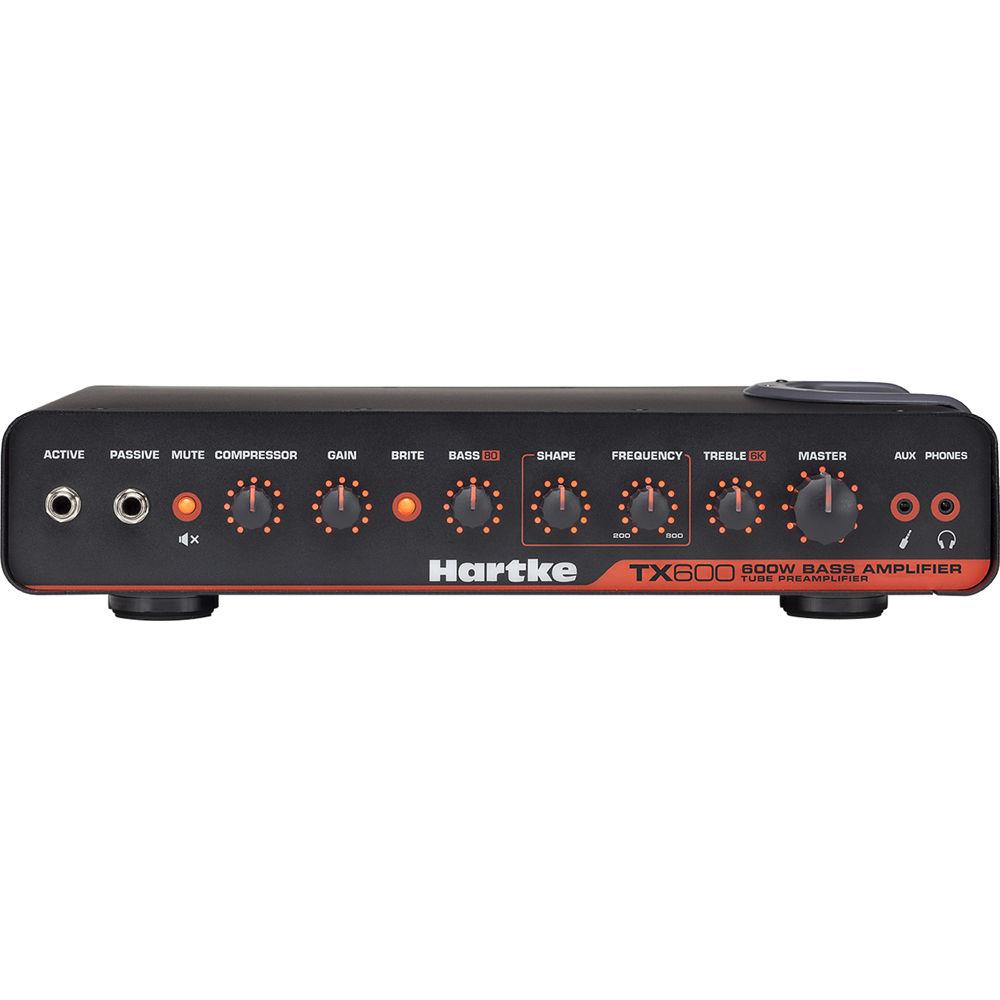

The front panel offers two input jacks—one for passive instruments, one for active—as well as 3.5mm auxiliary input and headphones output jacks. Consider the tone-stack EQ, which provides two separate controls for treble (a bright switch offering extra high-frequency attack), as well as the ability to shape a variable frequency band between 200 and 800 Hz; these controls, combined with the bass knob, allow you to dial in a most satisfactory sound for your bass, whether you prefer a biting growl or a scooped, smile-curved sound. An on-board compressor can help to reduce sudden peaks and increase sustain, while a mute knob will kill all outgoing signal, if that's your wish.

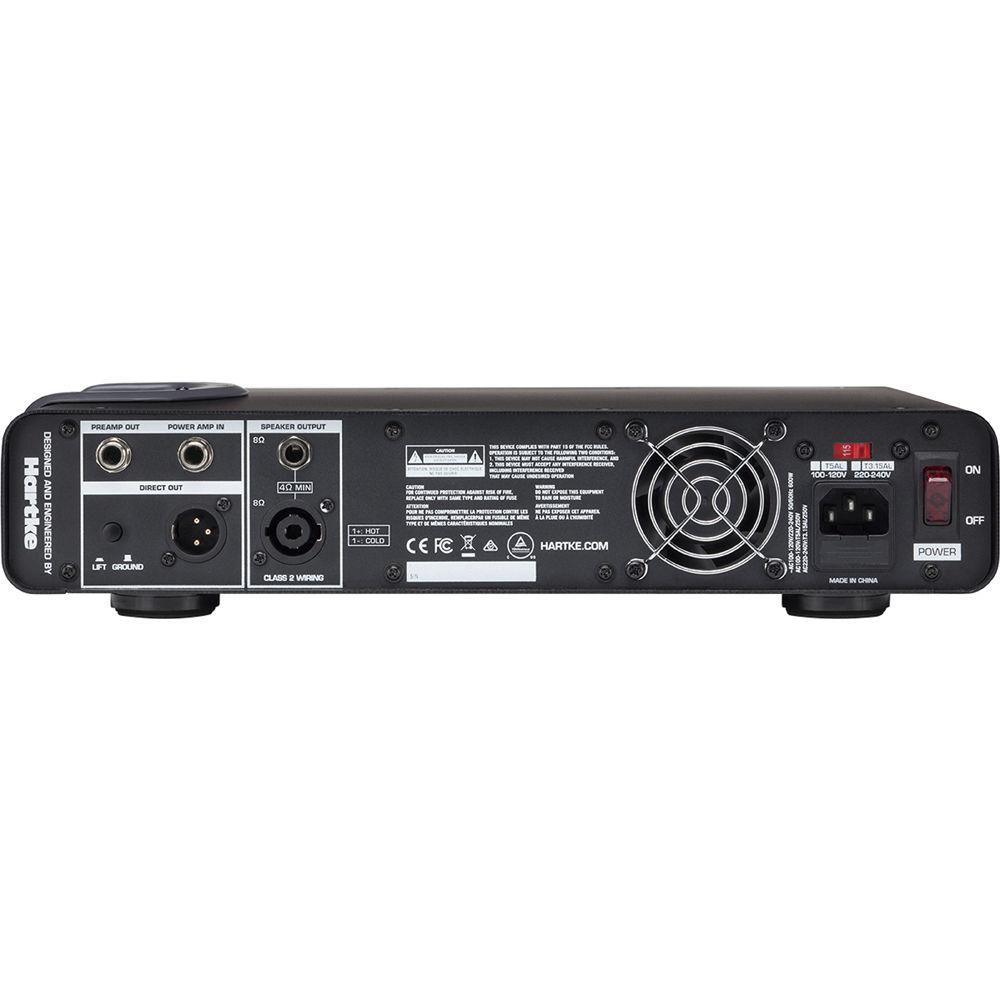

The rear of the amplifier provides a panoply of connection jacks, including XLR and speakON connection points for external speakers, and a balanced XLR output for DI'ing the sound of the amplifier. An on-board preamp output jack allows you to route your preamp into an external power amplifier or mixing console; likewise, a power amp input jack allows you to use a separate preamp with this unit, should you desire to do so.
    Notable Features
    • 600W Class D amplification
    • 12AX7 class A tube preamp circuitry
    • Tone stack EQ section with shape, frequency, bass, and treble controls
    • Compressor for smooth dynamics control
    • 1/4" Active and passive inputs
    • 3.5mm / 1/8" auxiliary input
    • 3.5mm / 1/8" headphone output
    • Balanced XLR direct output
    • Integrated carry handle
    • Rugged aluminum chassis
UPC: 809164019169 In the Box Hartke TX600 600W Bass Amplifier Head
  • Power Cable
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Hartke TX600 600W Bass Amplifier Head in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Hartke TX600 Specs

    Amplifier Type Tube
    Output Power 600 W RMS
    Channels 1
    Tube Types 1 x Preamp 12AX7/ECC83
    Output Impedance 4/8 Ohms Mono
    Built-In Effects Compression
    Master Volume Yes
    Inputs 1 x 1/4" Hi Instrument
    1 x 1/4" Low Instrument
    1 x 1/8" Stereo Aux
    1 x 1/4" Mono Power Amp
    Outputs 1 x XLR Mono DI
    1 x 1/4" Mono Preamp
    1 x 1/4" Mono Speaker
    1 x 1/8" Stereo Headphone
    1 x speakON Mono Speaker
    Tone Section Channel 1: Bass, Gain, Treble
    Dimensions (WxHxD) 14.0 x 10.6 x 2.6" / 35.6 x 26.9 x 6.6 cm Amplifier
    Weight 7 lb / 3.18 kg Amplifier
    Package Weight 10.95 lb
    Box Dimensions (LxWxH) 17.5 x 14.3 x 6.9"
