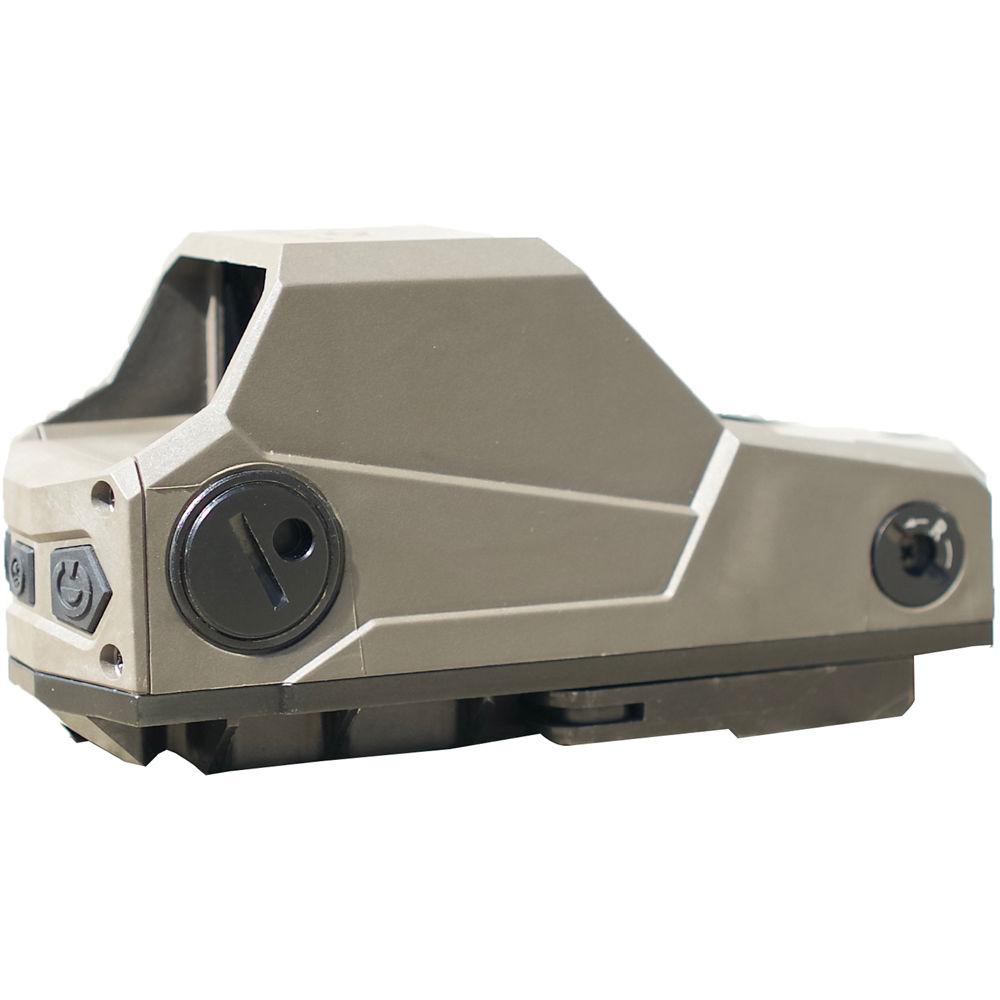

Product description Designed for shooters by shooters, Hartman's first foray in optics, the green 1x MH1 Reflex Sight, features a unique micro-USB interface that allows you to not only recharge an internal li-ion battery, but customize many of the sight's features to your own preferences via proprietary software running on your PC. This unmagnified optic is designed to be virtually parallax-free with a large sight window which provides a large field of view when using one-eye-open shooting styles such as when shooting at small or distant targets, at night, or when using secondary optics like magnifiers or NVDs.Another innovative function of the MH1 is its use of three-axis motion detection. When the sight is brought up past a 30° angle, into a shooting position, the sight automatically activates to be ready for duty. A secondary sensor will keep the sight on as long as it's held in a firing position, such as bench shooting at the range. The motion detectors can be deactivated if you will be using unconventional stances or firing positions. To ensure the sight goes on when you need it, there is a programmable sleep function to deactivate it after a predetermined period of inactivity to preserve battery life, plus a disposable CR123 backup battery to the internal rechargeable one.Built to withstand the rigors of daily use, the MH1 is made of 6061-T6 aluminum with a MIL-STD matte-green anodized finish that is corrosion and scratch-resistant. The housing is nitrogen-filled and O-ring sealed to be water and fogproof, and with an IP67 rating, it is dustproof and submersible. The sight comes with an integrated quick release Picatinny/Weaver rail mount that utilizes a single lever to lock it into place. When used on flat-top carbine platforms it will be lower 1/3 co-witnessed with your BUIS. - Optical Performance
-
- 1x magnification
- Large sight window:
- Anti-reflection fully multi-coated optics
- Unlimited field of view when using both-eyes-open shooting style
- Reticle Details
-
- Center red aiming dot:
- 2 MOA diameter dot
- Left and right balancing lines help to ensure weapon is held horizontal for better accuracy
- Use center dot and lines for ranging and target size estimation
- Lower 1/3 co-witness with most flat-top rail BUIS
- Reticle cannot be seen from front of sight
- Ten selectable brightness levels:
- Five for daytime use
- Five NVD-compatible for night use
- Dual motion sensors:
- Activates when moved 30° on X,Y,Z axes
- Automatic sleep mode after a predetermined inactivity period from 10 seconds to 10 minutes
- Automatic reactivation when rifle is moved into a shooting position
- A secondary sensor will prevent it from going to sleep if rifle remains in horizontal shooting position
- Motion sensors can be deactivated when using unconventional shooting styles
- Embedded chip 'remembers' settings even with full battery depletion
- Optional ambidextrous PTT wireless remote
- Use and Handling
-
- Windage and elevation adjustments:
- 1/4 MRAD per click impact point correction
- ±15 MRAD windage and adjustment range
- Flush adjustments dials reduce snag hazards
- Virtually parallax-free
- Ambidextrous control buttons:
- Rear facing buttons eliminate the possibility of accidental activation due to hitting the body
- Angled orientation for easier access when using stacked secondary optics such as magnifiers or NVDs
- Dual power system:

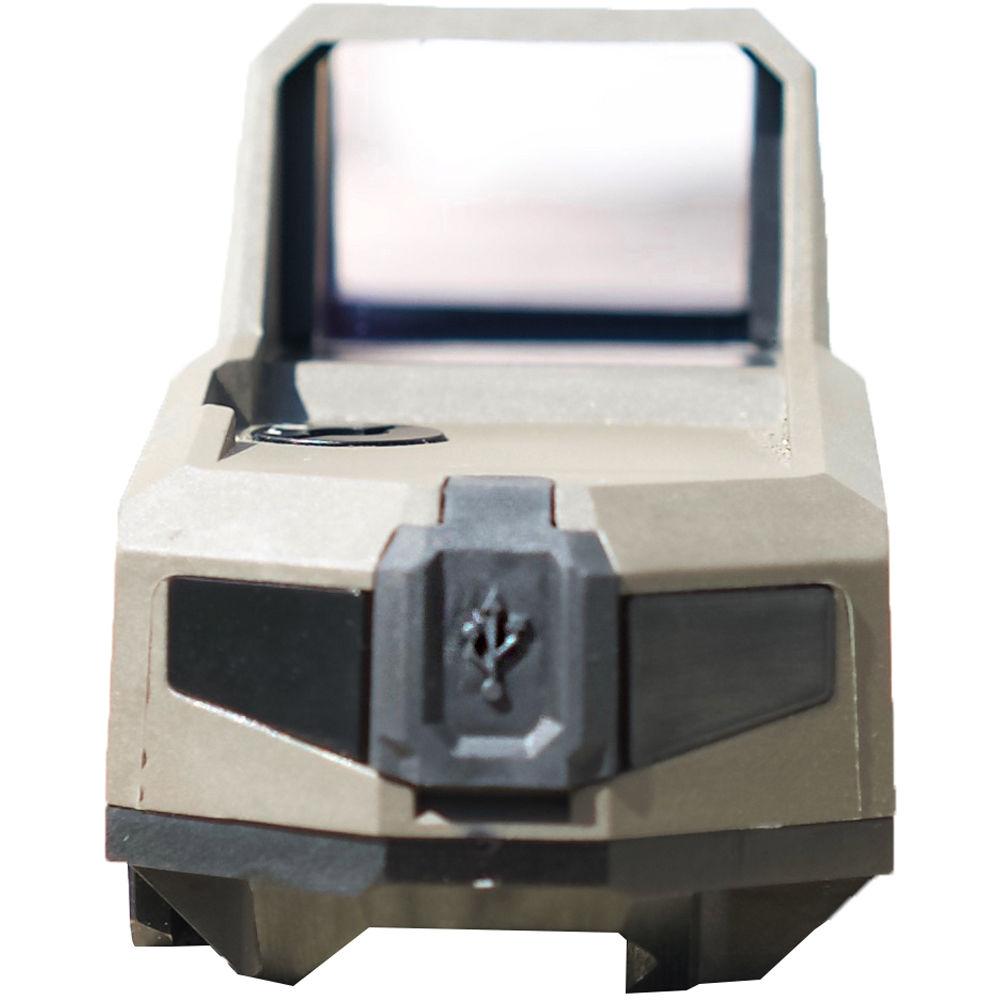

- Internal rechargeable lithium battery charges via front USB port
- Charge time: 2 hours, maximum
- Secondary CR123 disposable acts as a backup
- CR123 battery compartment set perpendicular to rail mount so it won't disengage during heavy or repeated recoil
- Charging status and low-battery indicator
- Interactive user-interface
- Connect sight to computer via USB cable
- Adjust all settings including brightness levels, automatic sleep interval, motion detector sensitivity, and low battery indicator
- Construction Details
-
- Lightweight and durable 6061-T6 aluminum alloy housing
- Scratch and corrosion-resistant matte green MIL-STD anodized finish
- Nitrogen-filled for water and fogproof performance
- Integrated Picatinny/Weaver quick release rail mount
- Weight: 13 ounces
In the Box Hartman 1x MH1 Reflex Sight with 2 MOA Red Dot Reticle (Single Lever, Green) CR123 Battery Hartman Keychain Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hartman 1x MH1 Reflex Sight with 2 MOA Red Dot Reticle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHartman MH1 Specs | | | Power Source | 1 x CR123 + Internal Rechargeable Battery | | Sight Window Dimensions | 1.4 x 0.9" / 35 x 23 mm | | Mounting | Picatinny / Weaver | | Quick Release | Yes | | | | Impact Point Correction | 0.25 MRAD | | Windage Adjustment |
