Hasselblad H5X Medium Format DSLR Camera

Search your instruction manual in PDF to download

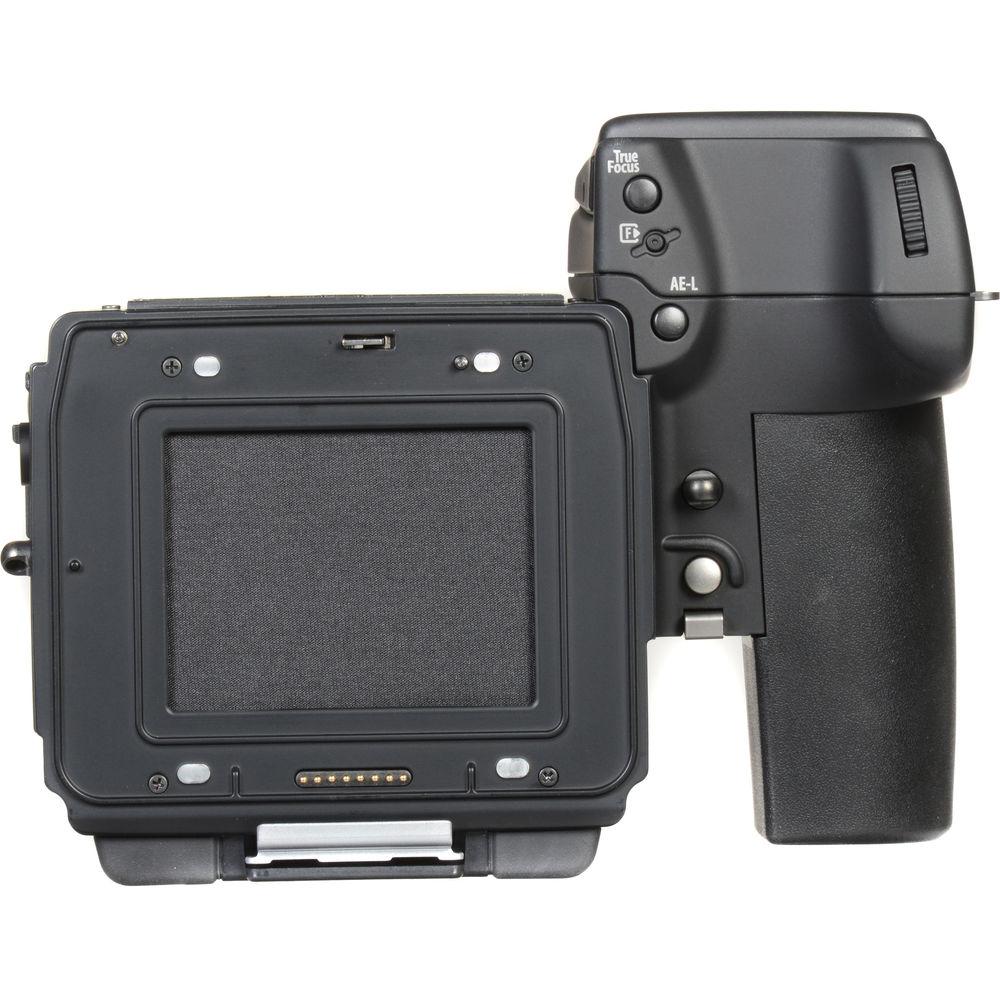

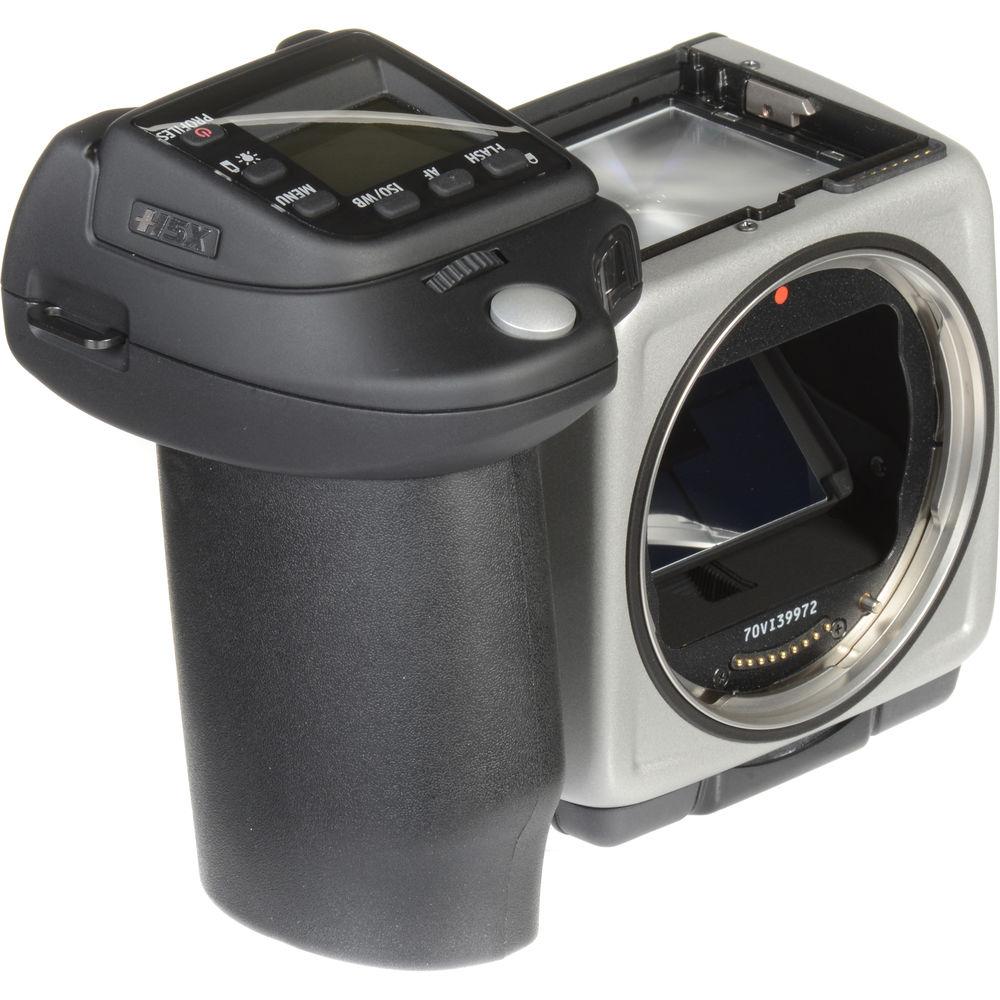

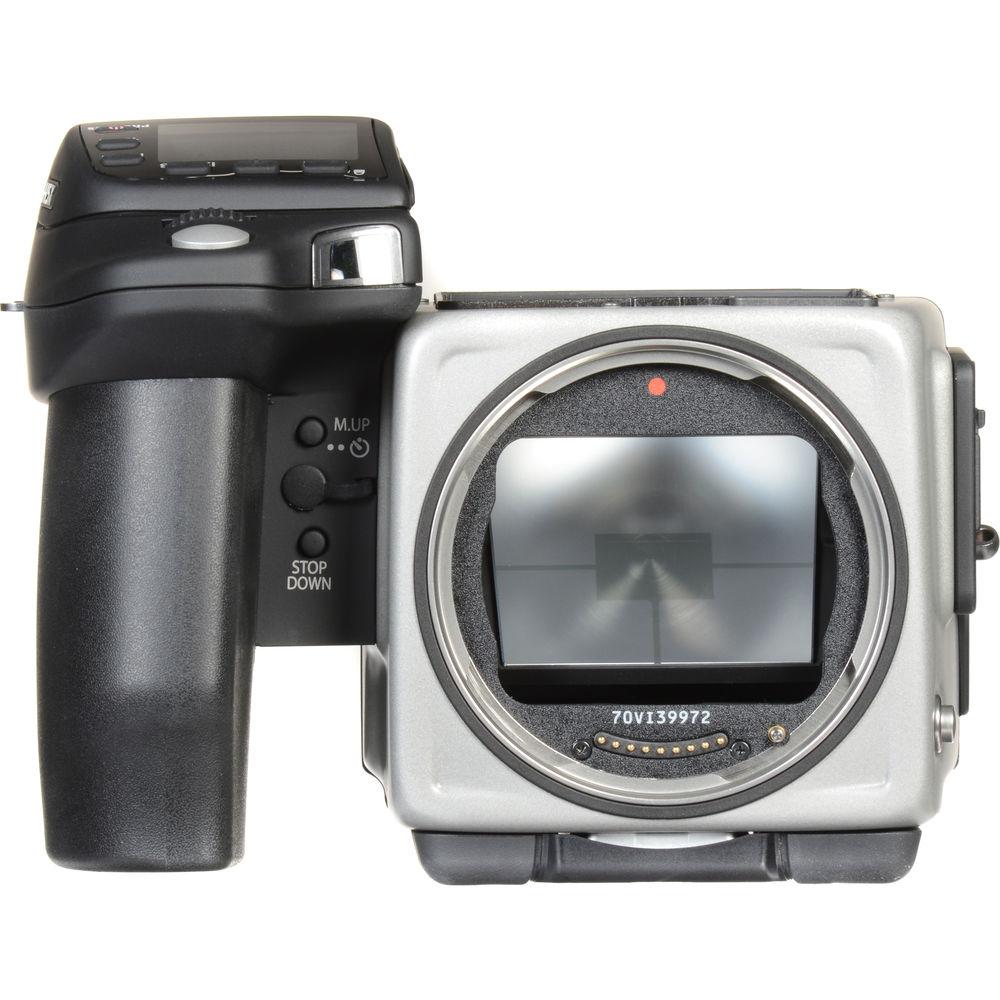

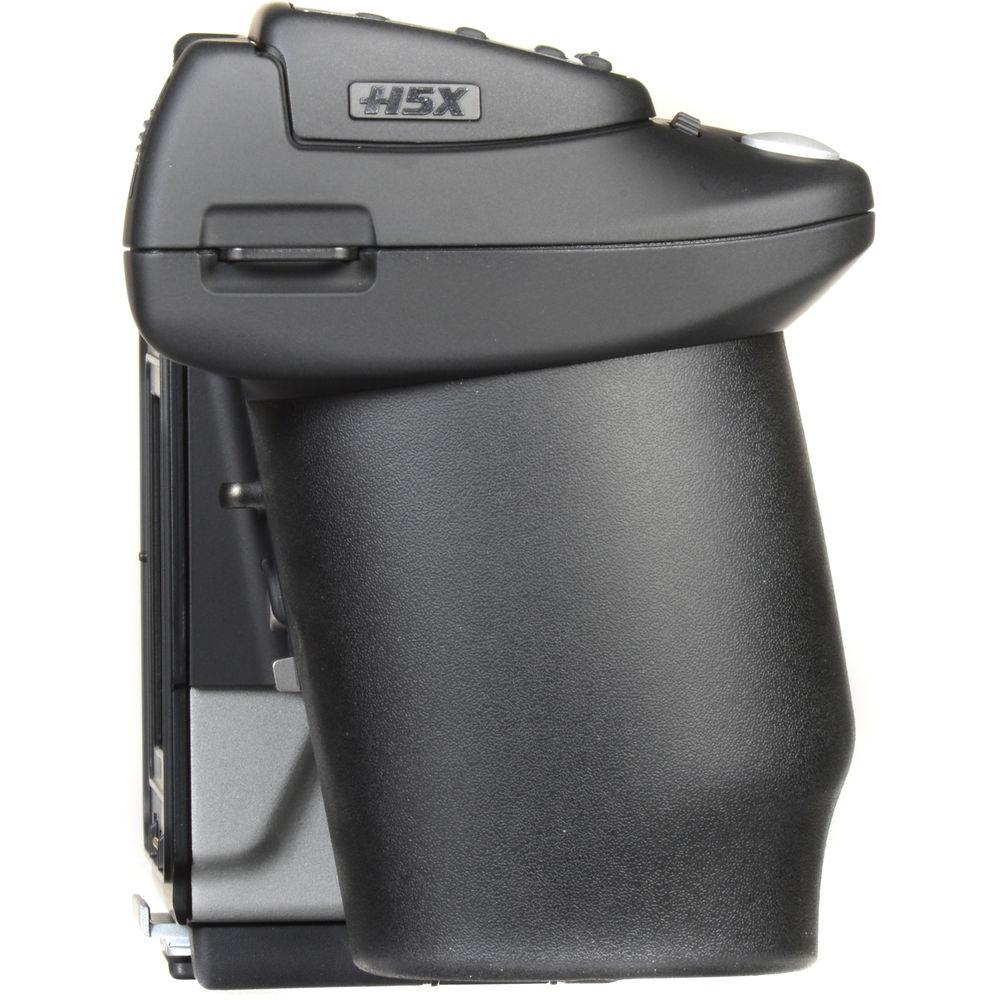

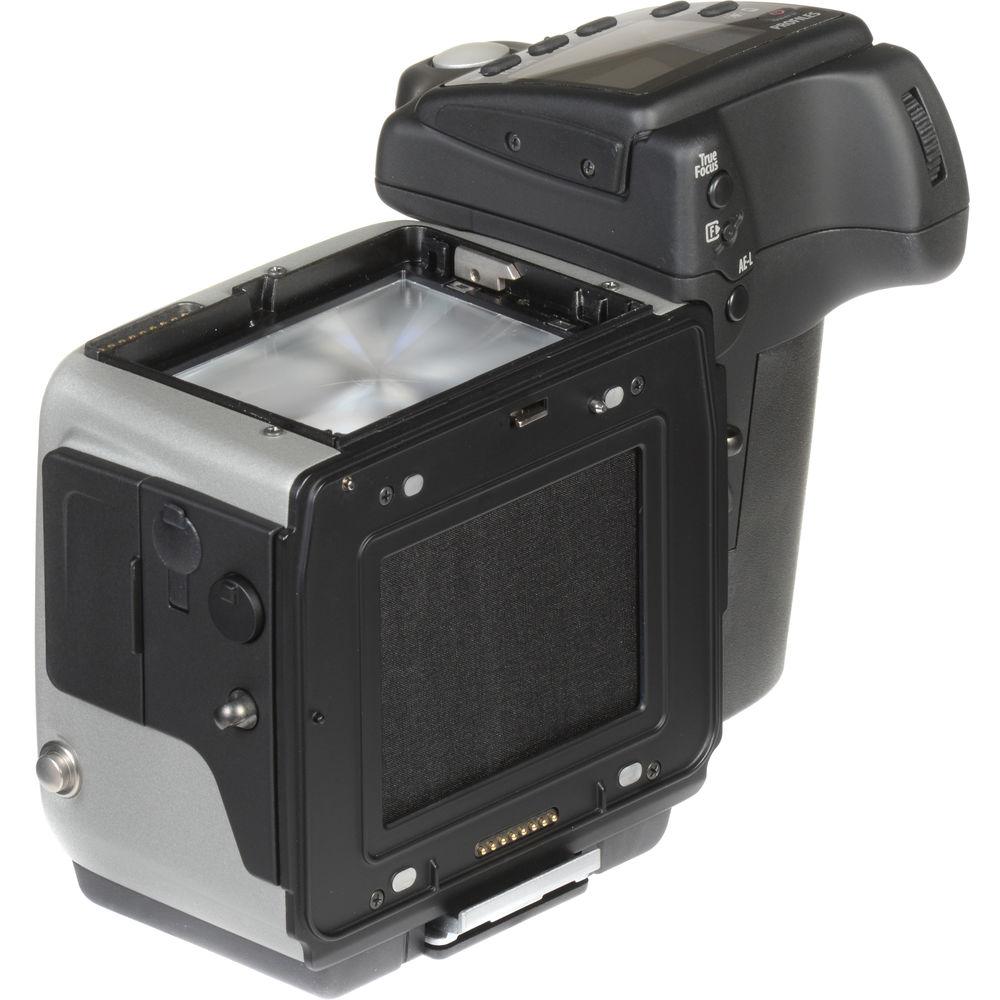

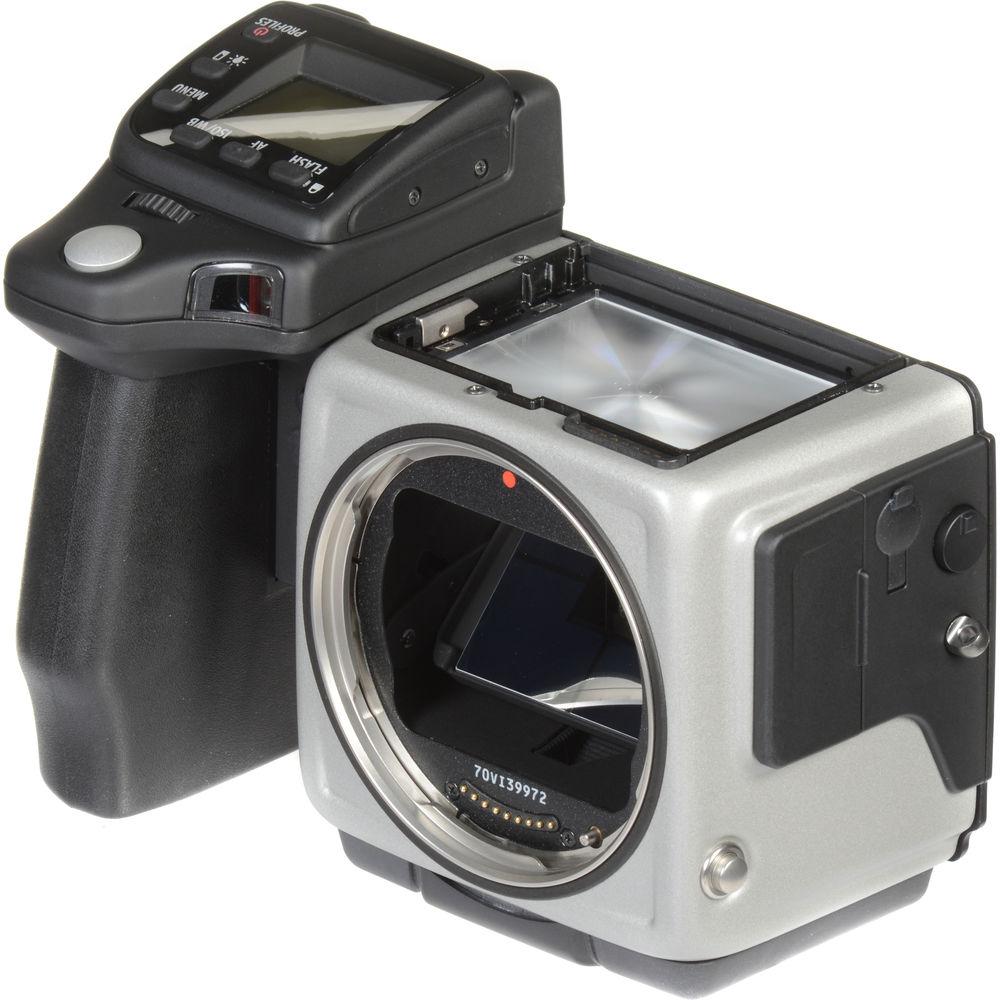

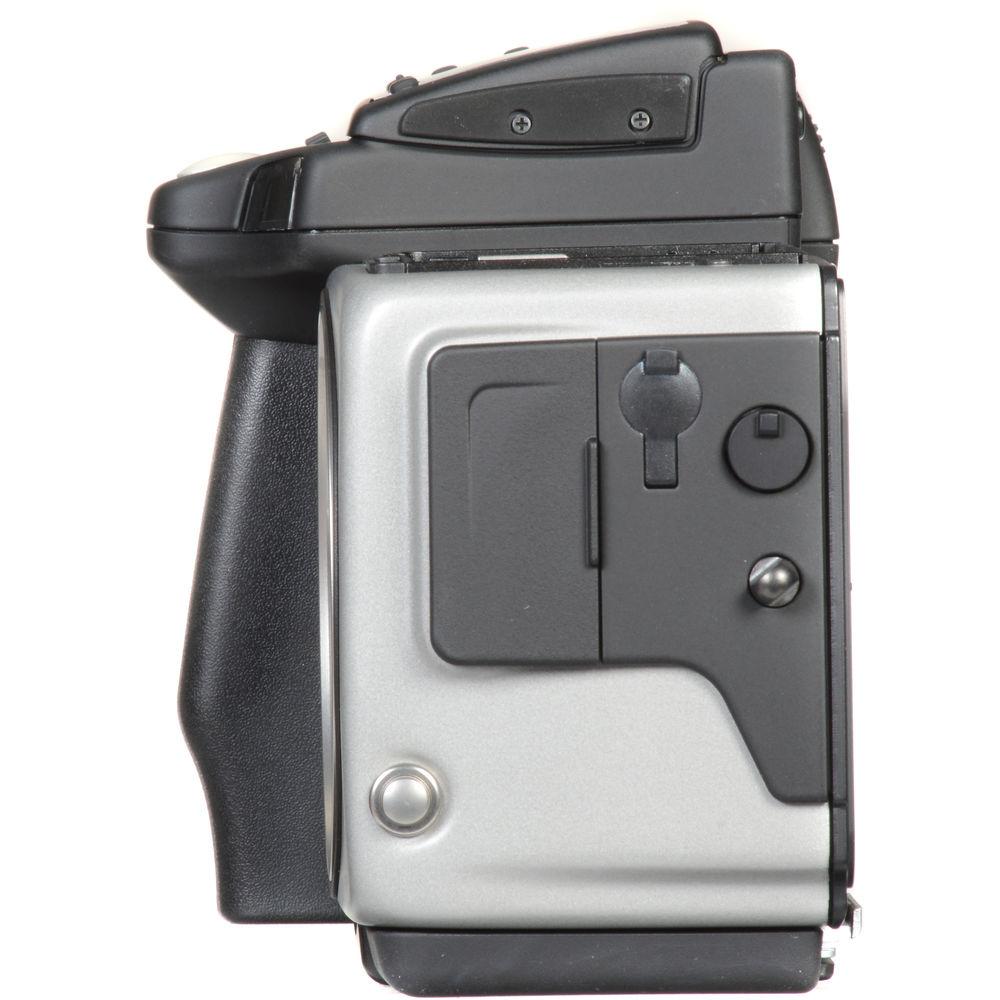

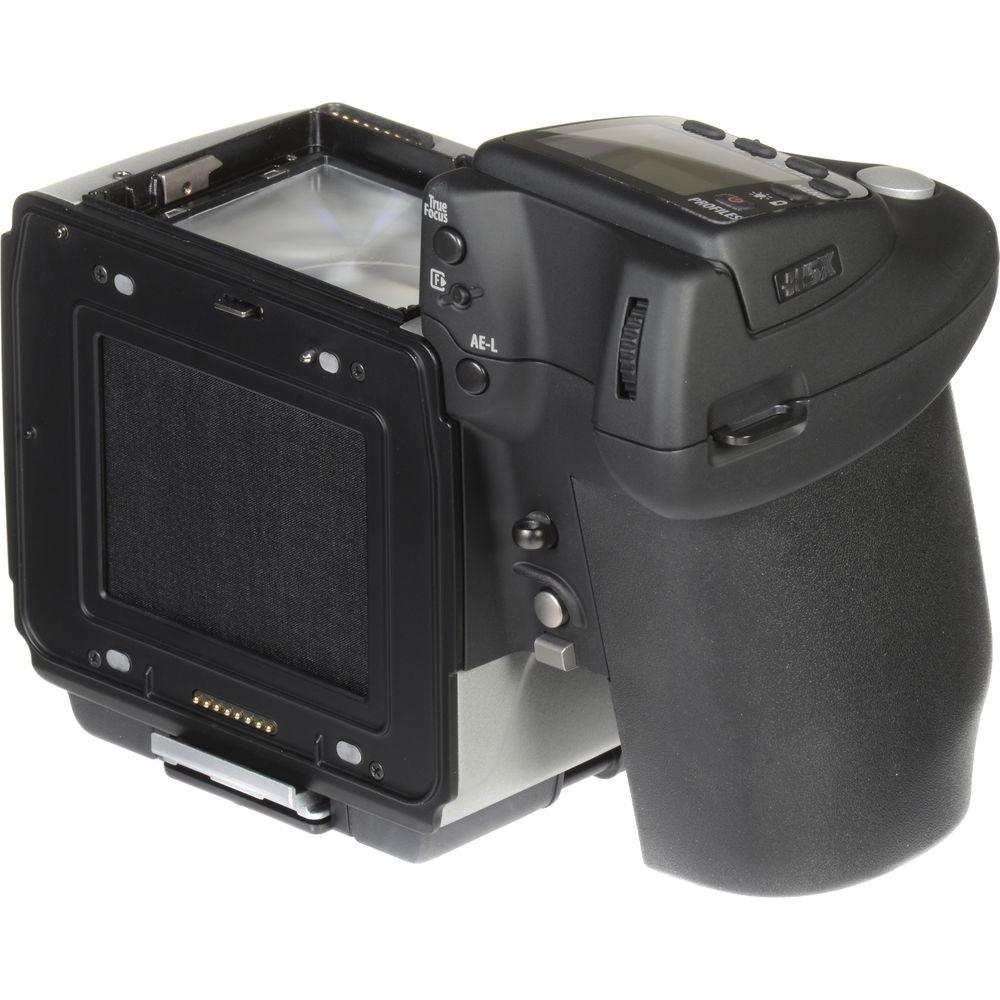

User Manual for Hasselblad H5X Medium Format DSLR Camera Body with Battery Grip and HVD 90x Viewfinder

Click to enlarge the picture
Hasselblad H5X Medium Format DSLR Camera Body with Battery Grip and HVD 90x Viewfinder Contents of the user manual for the Hasselblad H5X Medium Format DSLR Camera
  • Product category: Medium Format Cameras Hasselblad
  • Brand: Hasselblad
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hasselblad Medium Format Cameras

Hasselblad H5X Medium Format DSLR Camera Body with Battery Grip and HVD 90x Viewfinder Hasselblad H5X Medium Format DSLR Camera Body with Battery Grip and HVD 90x Viewfinder Hasselblad H5X Medium Format DSLR Camera Body with Battery Grip and HVD 90x Viewfinder Hasselblad H5X Medium Format DSLR Camera Body with Battery Grip and HVD 90x Viewfinder Hasselblad H5X Medium Format DSLR Camera Body with Battery Grip and HVD 90x Viewfinder Hasselblad H5X Medium Format DSLR Camera Body with Battery Grip and HVD 90x Viewfinder Hasselblad H5X Medium Format DSLR Camera Body with Battery Grip and HVD 90x Viewfinder Hasselblad H5X Medium Format DSLR Camera Body with Battery Grip and HVD 90x Viewfinder Hasselblad H5X Medium Format DSLR Camera Body with Battery Grip and HVD 90x Viewfinder
User manual for the Hasselblad H5X Medium Format DSLR Camera contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hasselblad product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hasselblad user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hasselblad product will considerably shorten its lifespan!



Product description

The H5X Medium Format DSLR Camera Body with Battery Grip and HVD 90x Viewfinder from Hasselblad is available as an upgrade for H1, H2, H2F and H4X cameras. Like its predecessors it is a high-performance medium format camera for professional and advanced users with an image format of 56 x 41.5mm. The H5X incorporates H5 technology and versatility including optimized True Focus AF and improved grip design. It is compatible with H-system lenses, CF/CFH backs, numerous third party digital backs and four distinct viewfinders. Included in this kit is the HVD 90x viewfinder which is an eye-level viewfinder providing a 3.1x image magnification and diopter adjustment from -5 to +3.5D. It has a built-in flash with Guide Number 12 at ISO 100 and an integrated hot shoe mount. It is optimized for the 36 x 48mm format.True Focus with Absolute Position Lock allows true and fast auto-focusing throughout the image field and compensates with accuracy for focus shift when re-composing. Manual focus override is supported and an optional manual focus indicator in the viewfinder. Single shot and Continuous AF with focus lock are available and the camera also features AF Assist Illumination for working in dark environments. Spot, Center Spot and Center Weighted exposure metering is supported with manual, aperture-priority, shutter speed priority, programmed and programmed variable exposure modes.The camera offers a wide ISO sensitivity range from 16 to 6400. A built-in flash in select viewfinders or external flash compatible with SCA3002 can be used with an automatic TTL-OTF center-weighted system with adjustable output from -3 to +3. For manual flashes, a built-in metering system is available and a standard PC connecter on the camera body is supported. Flash sync speed is available to 1/800th of a second.A dot-matrix LCD monitor is provided on the grip to view camera setting information. An Acute Matte type D focusing screen is supplied and the camera also works with numerous optional focusing screens. Eight profile settings enable fast and accurate one-button switching to custom settings and the H5X supports four programmable buttons that can be set to customize up to 35 functions.The H5X is compatible with all Hasselblad HC and HCD lenses and all C-type lenses from the V system when using an optional CF lens adapter.
    True Focus & Absolute Position Lock (APL)
  • True Focus enables fast and accurate focusing throughout the image field. The Absolute Position Lock (APL) processor forms the foundation of Hasselblad's True Focus feature using modern yaw rate sensor technology to measure angular velocity. The APL processor accurately logs camera movement during any re-composing, then uses these exact measurements to calculate the necessary focus adjustment and programs the lens's focus motor so it can compensate. The APL processor computes the positional algorithms and carries out the required focus corrections at such a rapid speed that no shutter lag occurs.
    Lens Compatibility
  • The H5X is compatible with the highly renowned HC/HCD lens line, all with central lens shutters. The built-in central lens shutter allows flash to be used at all shutter speeds up to 1/800th second. It also improves image quality by reducing camera vibration. The CF adapter allows the use of classic CF-lenses from the Hasselblad V-camera and the HTS 1.5 tilt/shift adapter delivers an easy to use, portable tilt/ shift solution for 6 HC/HCD lenses ranging from 24mm to 100mm.
    Viewfinder Compatibility
  • Included in this kit is the HVD 90x viewfinder which is an eye-level viewfinder providing a 3.1x image magnification and diopter adjustment from -5 to +3.5D. It has a built-in flash with Guide Number 39' at ISO 100 and an integrated hot shoe mount. It is optimized for the 36 x 48mm format. The H5X is also compatible with the HV 90x, HV 90x-II and the HVM viewfinders. The HV 90x and HV 90x-II are 90º eye-level finders with built-in flash units and hot shoe mounts. The HVM is a waist-level viewfinder. The HV 90x-II is optimized for film and the 40.2 x 53.7mm format.
    Advanced Exposure Control
  • The exposure can be controlled either by sophisticated exposure automation or with full manual control. Metering options (with the HV 90x-II and HVD 90x) include Spot, Center Spot and Center Weighted. Exposure lock is supported with a separate button on the camera. Exposure modes are Manual, Aperture priority, Shutter speed priority, Programmed and Programmed Variable.
    Flash Metering System
  • The built-in flash metering system is designed to be used when working with manually controlled flashes, such as studio flashes.
    Built-in Flash and Flash Adapter
  • Three compatible viewfinders (HV 90x, HV 90x-II, HVD 90x) feature a compact flash. Though primarily intended to be used as fill flash it can also be used as main flash in some cases. The flash has a metric guide number of 12, but when used as fill flash with -2 stops adjustment it is equal to guide number 24. With the SCA 3902 flash adapter, any flash compatible with the SCA3002 system defined by Metz can be used. This means that you can choose from small and compact flashes for extremely portable use as well as larger and more powerful flashes when so required.
    Dot-Matrix LCDs
  • The grip LCD and the viewfinder LCD is of dot-matrix type. This means that the camera is able to present clear and easy-to-understand information and messages instead of fixed text and symbols.
    Interchangeable Film Magazines
  • The film magazines for the H5X camera feature inserts that can handle both 120 and 220 film. If you use bar-coded film (defined by FUJIFILM) the setting of both film type and ISO value is automatic. Film wind-on and wind-off is also automatic with all films.
    Enhanced Programmability
  • The H5X includes 35 functions that can be customized by the user. It features 4 buttons that can be programmed as short cuts to the camera's most used functions.
    8 Profile Settings
  • A profile stores all the settings of the camera and can be recalled with one button. This allows for quick switching to a given mode of photography, it eases set-up time, and perhaps most important, it prevents mistakes from happening. The H5X has 8 different profiles in the camera and the function to create and manage profiles directly in Phocus.
    High Power AF Illumination
  • A stronger AF Illumination light enables more accurate auto focus when shooting in dim light.
    Compatibility
  • The H5X is compatible with the following lenses, backs and accessories:
    HM-16-32 Film Magazines
    Hmi-100 Instant Film Back
    H5D Sensor Unit
    HC Lenses
    HCD Lenses (Lower edge image quality & vignetting can occur on sensors larger than 36×48mm)
    Converter H1.7x
    Extension Tubes HE
    HTS 1.5x Adapter
    GIL (GPS Receiver) with an H5D sensor unit
    HV 90x Viewfinder
    HV 90x-II Viewfinder
    HVD 90x Viewfinder
    HVM Viewfinder
    Flash System SCA 3902
    Battery Grip Rechargeable Li-ion (1850 & 2900mAh)
    DC Power Grip
    Focusing Screens
    Third Party Digital Backs (same compatibility as H1 and H2 cameras)
In the Box Hasselblad H5X Medium Format DSLR Camera Body with Battery Grip and HVD 90x Viewfinder
  • HVD 90X Viewfinder
  • Battery Grip
  • Rechargeable Li-ion Battery
  • Battery Charger
  • Neck Strap
  • Front Body Cap
  • Rear Body Cap
  • Limited 1-Year Warranty
  • User Manual PDF 16.9mbxyxvysazzfxsbbexbzsczfyxeutdybuzzewu Table of Contents




    Upload User Manual

    Have you got an user manual for the Hasselblad H5X Medium Format DSLR Camera Body with Battery Grip and HVD 90x Viewfinder in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Hasselblad H5X Specs

    Camera Type SLR type medium-format camera with optional interchangeable lenses, viewfinder and magazines
    Lenses Hasselblad HC and HCD lenses with integral lens shutter. Autofocus or manual focusing. All C-type lenses from the V system with optional CF lens adapter
    Shutter Electronically controlled integral lens shutter in each lens. Shutter speed range 1/800th second to 18 hours
    Image Format 56 x 41.5 mm
    Viewfinders Included:•HVD 90x: 90° eye-level viewfinder w. diopter adjustment (-5 to +3.5D). Image magnification 3.1 times. Integral fill-flash (G.No. 12 @ ISO 100). Hot shoe for SCA3002-system flashes from MetzAlso Compatible:•HV 90x: 90° eye-level viewfinder w. diopter adjustment (-4 to +2.5D). Image magnification 2.7 times. Integral fill-flash (G.No. 12 @ ISO 100). Hot shoe for SCA3002-system flashes from Metz•HV 90x-II: 90° eye-level viewfinder w. diopter adjustment (-4 to +2.5D). Image magnification 2.7 times. Integral fill-flash (G.No. 12 @ ISO 100). Hot shoe for SCA3002-system flashes from Metz•HVM: Waist-level viewfinder
    Focusing Screen Acute Matte type D with markings for spot metering area and AF sensitive area. Optional screens with grid and/or format markings available
    Focusing Automatic and manual focusing. Instant manual focus override. AF metering with passive central cross-type sensor. Metering range EV 1 to 19 at ISO 100. High power white focus assist LED for low light conditions
    Focusing Modes Manual with optional focus indication in viewfinder Single shot AF and Continuous AF. Focus lock available in AF modes either with shutter release or any of the four programmable buttons. True Focus to compensate for focus shift when re-composing
    Exposure Metering Spot, Center Spot and Center Weighted (with HV 90x-II and HVD 90x) Exposure lock with separate button on camera
    Metering Range Spot: EV 2 to 21; Center Weighted: EV 1 to 21; Center Spot: EV 1 to 21
    Exposure Modes Manual, Aperture priority, Shutter speed priority, Programmed and Programmed Variable
    Automatic Bracketing Control Available with 2, 3, 5, 7 or 9 frames. 1/3, 1/2, 1, 2 or 3 EV step. Exposure sequence can be changed
    ISO Range 16 to 6400 (excluding any exposure adjustment)
    Interval Shooting 1 second to 1 hour. Maximum 32 frames with film (unlimited with digital back).
    Multi Exposure 2, 3, 4, 5 and no limit. Available with film only
    Flash Control Automatic TTL-OTF center weighted system. Uses built-in flash or flashes compatible with SCA3002 (Metz). Output can be adjusted from -3 to +3EV. For manual flashes a built-in metering system is available.
    Flash Metering Available when using manually controlled flashes
    Flash Sync TTL hot-shoe on viewfinder or standard PC connector on camera body
    Flash Synch Speeds Flash can be used at all shutter speeds up to 1/800 sec. Flash can be synchronized in the beginning or at the end of the exposure.
    Digital Compatibility All Hasselblad H5D, ixpress, CF and CFH digital backs. 3rd party backs that where compatible with the H1/H2 cameras
    LCD Display Two dot-matrix LCDs (one on the camera grip and one in the viewfinder)
    Power Supply Rechargeable Li-ion battery (7.2 VDC / 2900 mAh)
    Dimensions 5.7 x 4.3 x 3.5" / 144 x 110 x 88 mm
    Weight 1.8 lb / 830 g (body only)
    Package Weight 6.95 lb
    Box Dimensions (LxWxH) 12.4 x 10.5 x 10.1"
