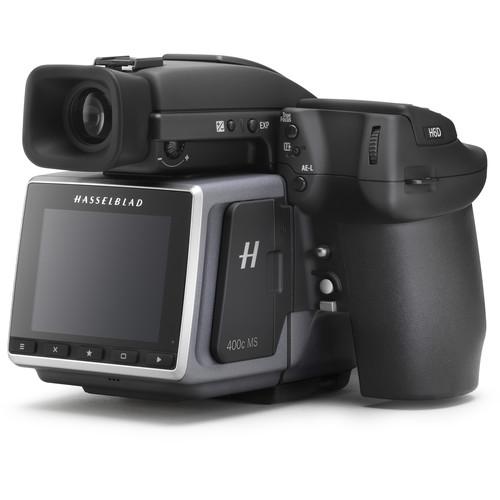

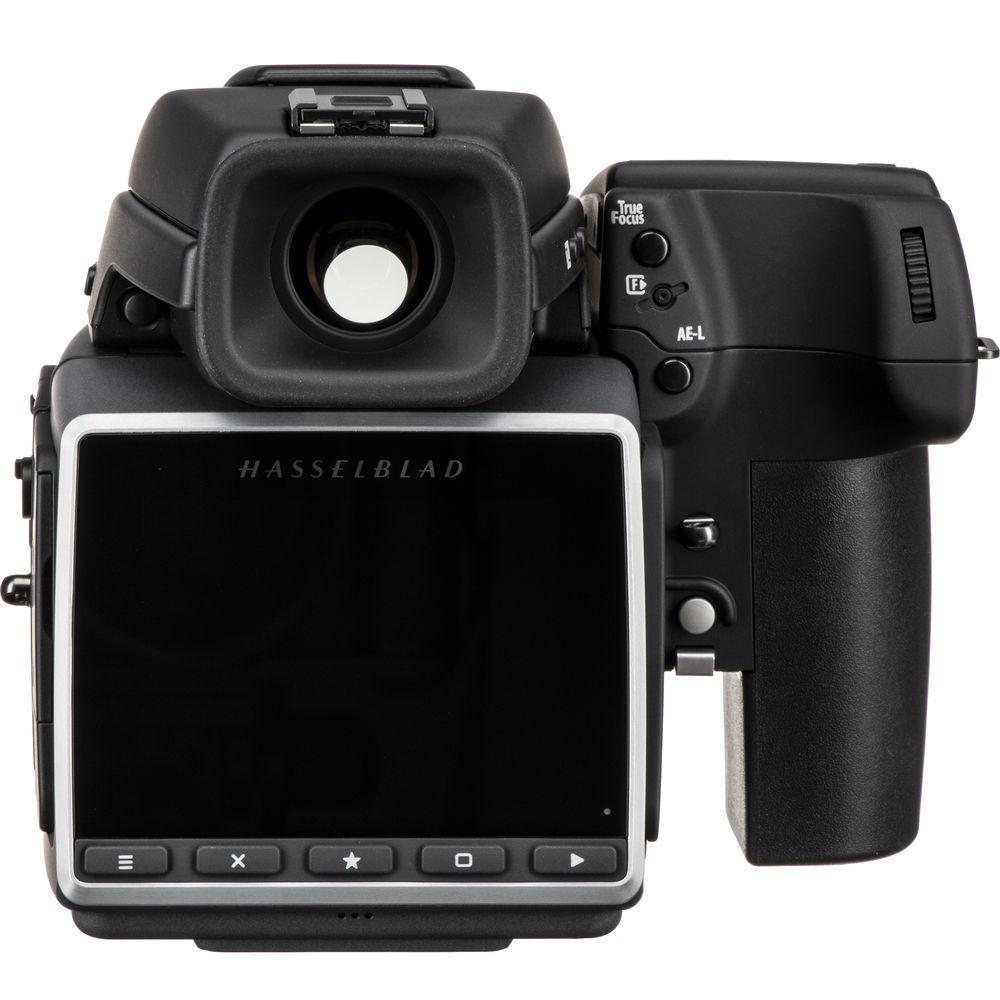

User Manual for Hasselblad H6D-400c MS Medium Format DSLR Camera Click to enlarge the picture
Contents of the user manual for the Hasselblad H6D-400c MS Medium Format DSLR
- Product category: Medium Format Cameras Hasselblad
- Brand: Hasselblad
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hasselblad Medium Format Cameras
 |
User manual for the Hasselblad H6D-400c MS Medium Format DSLR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hasselblad product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hasselblad user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hasselblad product will considerably shorten its lifespan!
|

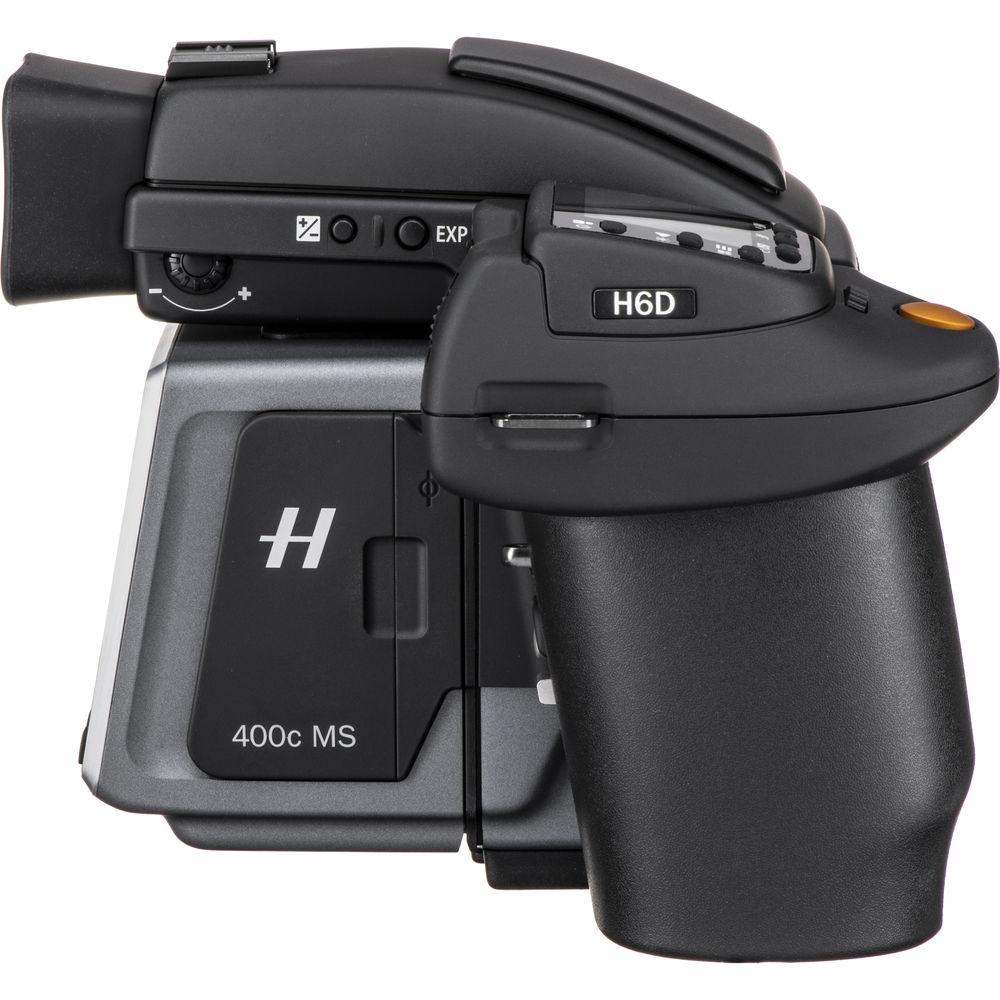

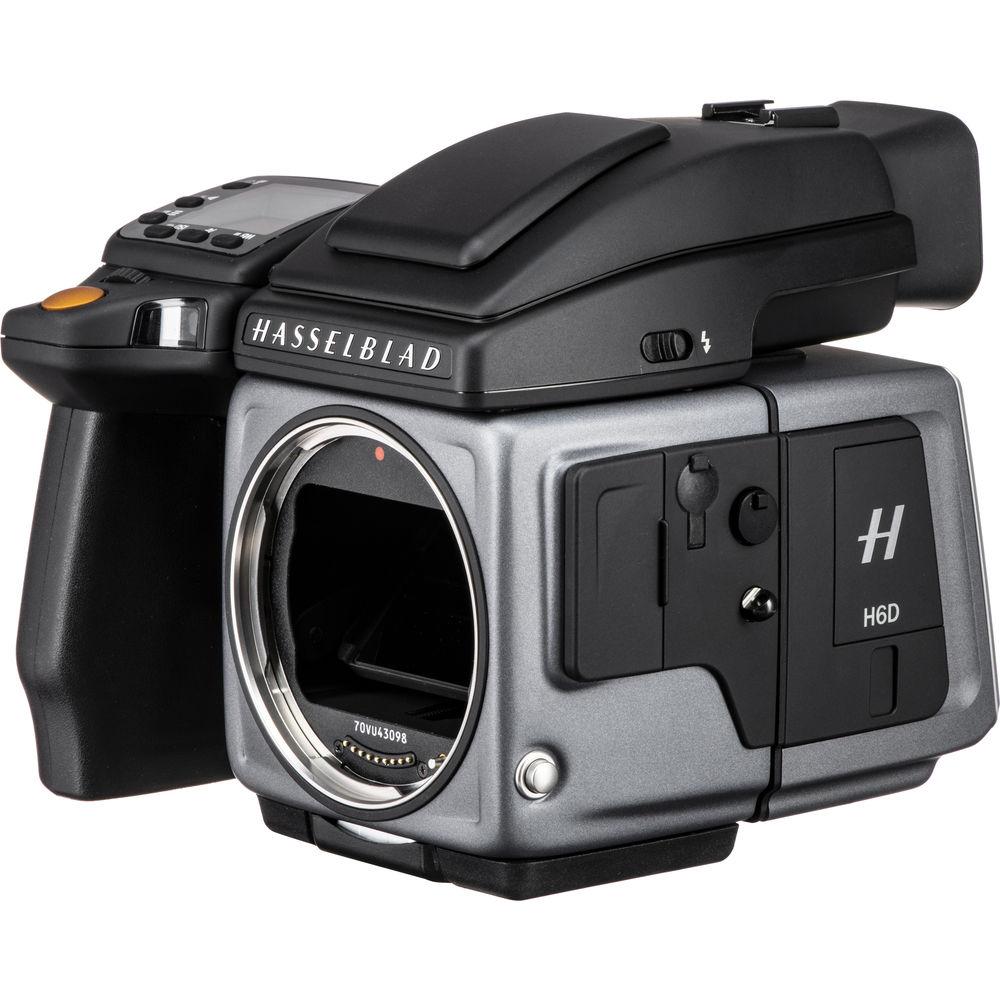

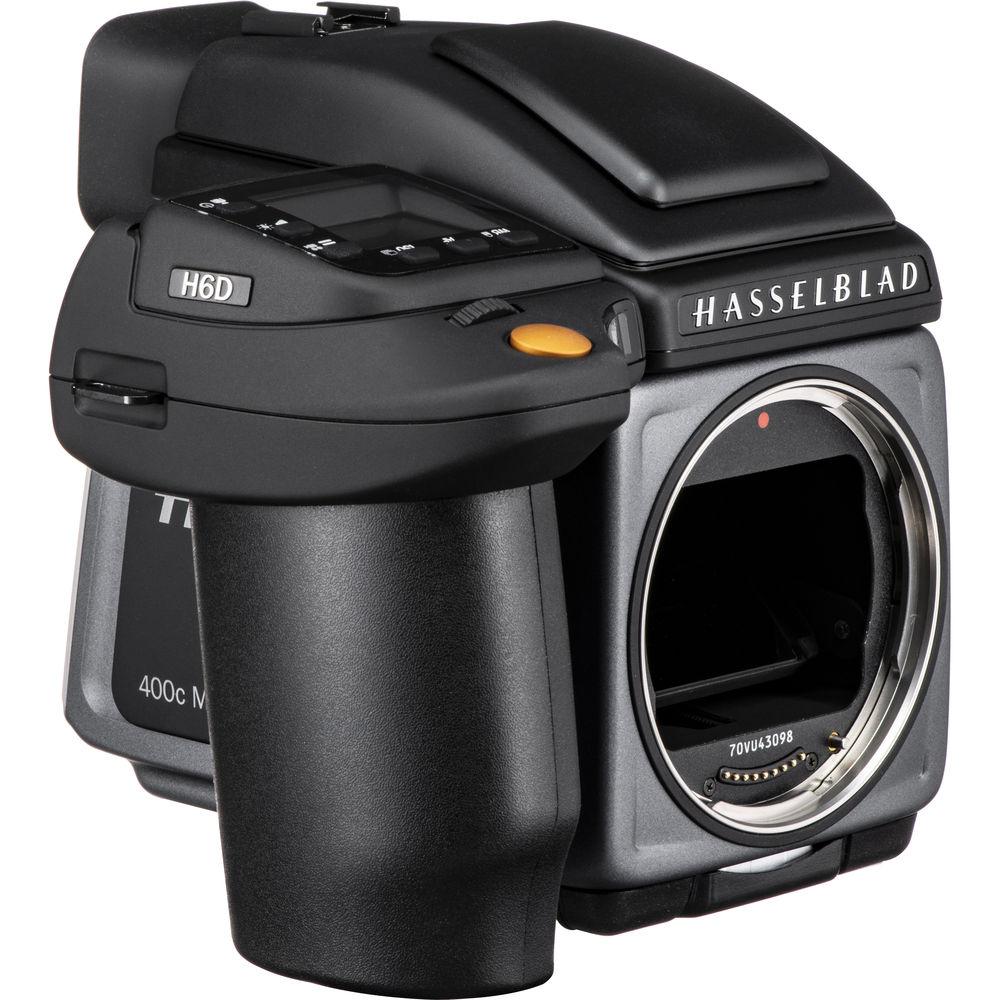

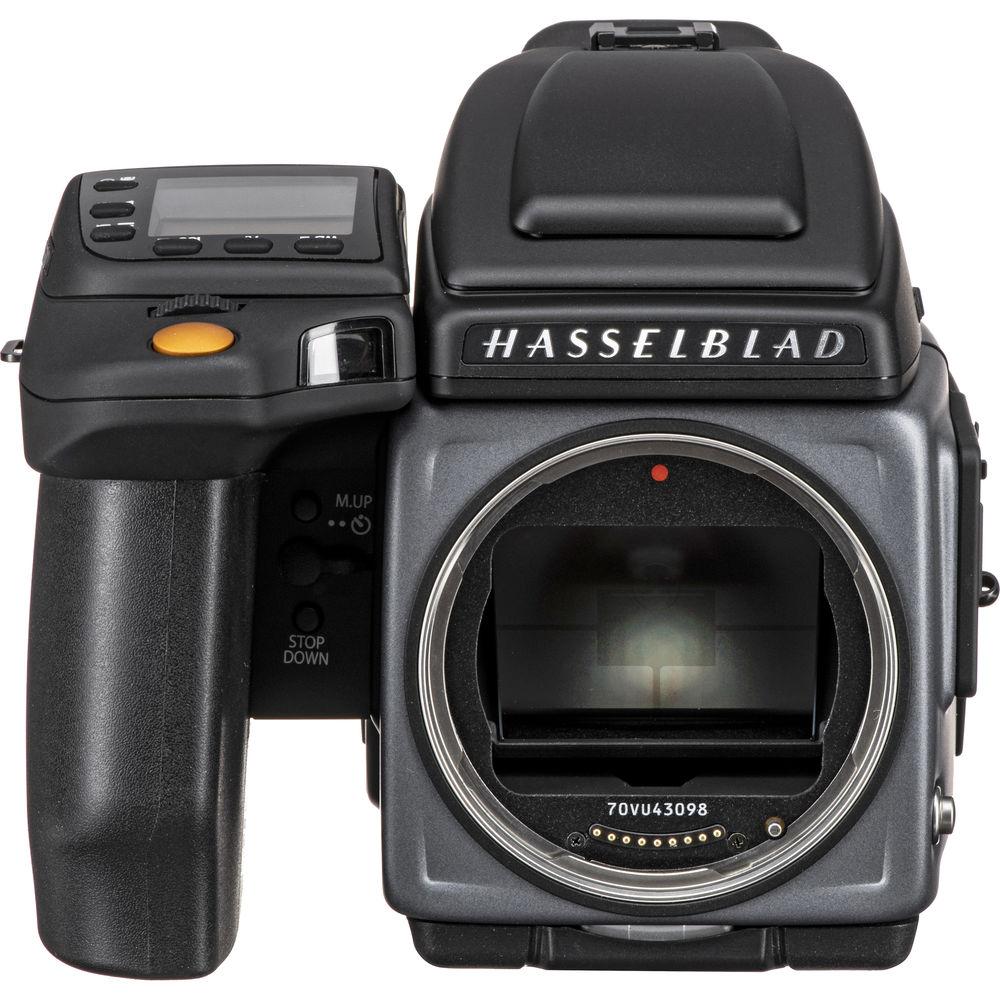

Product description Offering incredibly high resolution and color accuracy, the H6D-400c MS from Hasselblad is a specialized medium format camera system that is distinguished by its unique multi-shot capabilities. Compared to traditional single-shot images, this multi-shot capture records up to six sequential images and automatically composites them into a single 400MP-equivalent frame with noticeably greater color detail and a near complete lack of moiré and aliasing. Helping to realize this impressive recording capability, as well as enabling high-resolution single-shot shooting, too, this camera system is based on the H6D-100c platform and its 100MP 53.4 x 40mm CMOS sensor. The CMOS design affords a wide sensitivity range of ISO 64-12800, along with 16-bit color depth and a dynamic range of up to 15 stops to maintain notable detail and quality when working in the most difficult of lighting conditions. Coupled with an enhanced electronic platform with faster processing capabilities, the ability to shoot both UHD 4K and Full HD video at 30 fps in the Hasselblad Raw format is also supported.
Beyond imaging, the H6D also sports improved connectivity with the inclusion of a USB 3.0 Type-C connector for fast 5 Gb/s transfer speeds and more fluid tethered shooting performance. The back itself incorporates a bright, clear 3.0" 920k-dot touchscreen LCD monitor for live view shooting and intuitive settings control, and a mini-HDMI port is available for working with larger external monitors. In-camera saving is possible via dual memory cards slots-one CFast slot and one SD slot-and files can also be saved remotely when shooting tethered over USB 3.0. Built-in Wi-Fi can also be used in conjunction with iOS devices running the Phocus Mobile app, which permits wireless remote control of the camera as well as the ability to preview imagery and browse files - 400MP Multi-Shot Capture
- Differing from standard single-shot capture, this multi-shot system allows you to record either four or six sequential exposures, which are automatically blended into a single frame, in order to achieve greater color definition that is void of unwanted moiré and aliasing. During each multi-shot capture, the sensor physically moves, using piezo motors, in small increments between exposures in order to gain full RGB data for each pixel to afford heightened color resolution, sharpness, and clarity. This 400c back allows you to work in either 4-shot or 6-shot modes, with the ability to produce up to a 16-bit, 400MP-equivalent 2.4GB TIFF file.
- 100MP CMOS Sensor
- Revolving around a large 100MP CMOS sensor, measuring 53.4 x 40.0mm, the H6D-400c MS is capable of capturing an extremely wide dynamic range of up to 15 stops along with vivid 16-bit color depth. When combined with the Hasselblad Natural Color Solution, tonal transitions and skin tones show immense depth, detail, and clarity for lifelike image quality, even in dark shadow and bright highlight regions. To suit working in a variety of lighting conditions, a sensitivity range of ISO 64-12800 is available, and still files are saved in the Hasselblad 3FR raw file format.
- Updated Electronic Platform
- An improved electronic processing platform offers quicker performance throughout the camera system, along with more flexible connectivity options. This platform also expedites the handling of the large image sizes and permits recording both UHD and Full HD video.
- UHD 4K and Full HD Video
- In addition to high-resolution stills shooting, the H6D can also record both UHD 4K and Full HD 1080p video at 30 fps. Video can be saved in the proprietary Hasselblad Raw format, which can be converted to the edit-friendly Apple ProRes format using Phocus 3.0 software. Full HD video can also be saved in the H.264 compressed format for greater editing flexibility with a variety of software options.
- System Design and Connectivity
-

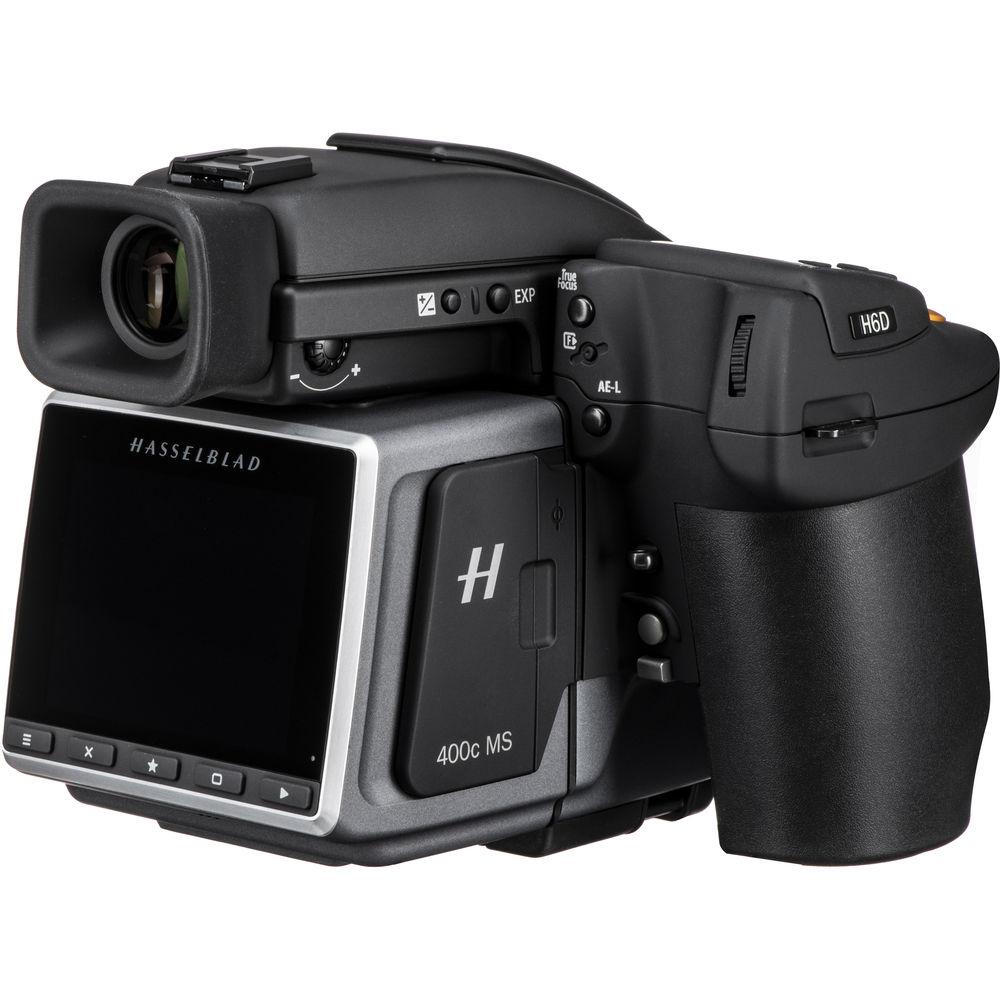

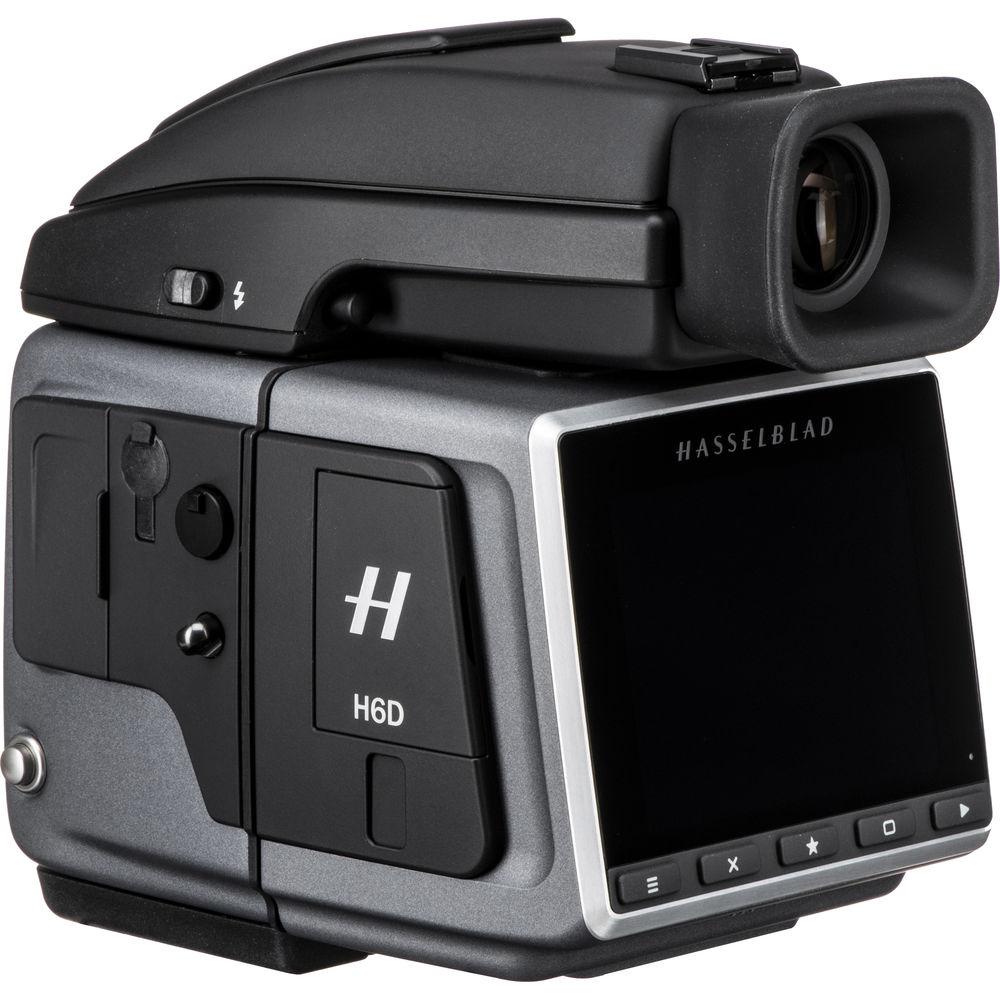

- Built-in 3.0" 920k-dot touchscreen LCD affords intuitive control over settings navigation and adjustment, and also permits bright, clear live view monitoring.
- USB 3.0 Type-C connector offers transfer speeds of up to 5 Gb/s for quick and responsive tethered live view and stills capture.
- In addition to tethered shooting, dual memory card slots are incorporated into the back for flexible storage capabilities. One CFast card can be used for fast read/write speeds, which are necessary for continuous shooting or UHD 4K video recording, and one SD slot is provided for backup storage and wide compatibility with existing cards and card readers.
- Benefitting video applications, as well as working with the back on technical view cameras, a mini-HDMI port permits use of an optional external monitor for clear monitoring. Additionally, audio in/out ports are provided for more flexible control over audio recording during video.
- Built-in Wi-Fi enables working with an iOS mobile device and the Phocus Mobile app for remote camera control, wireless image previews, and file browsing.
- Compatible with the updated range of HC and HCD lenses, which feature an improved leaf shutter unit for increased shutter and flash sync speeds of up to 1/2000 sec.
- Designed within a modular system, the H6D is comprised of the digital back, camera body, and an included HVD 90x viewfinder. Beyond the included components, additional optional viewfinders, film backs, and other accessories can also be used in conjunction with the digital back or the H6D body.
- Phocus 3.0 is a free image processing software that complements the H6D's capabilities and enables raw file processing for both stills and video, as well as a range of editing capabilities, including automatic moir
|
Upload User Manual
Have you got an user manual for the Hasselblad H6D-400c MS Medium Format DSLR Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHasselblad H6D-400C Specs | | | Resolution | 100 MP (11600 x 8700 pixels) | | Sensor | 53.4 x 40.0 mm CMOS sensor
IR filter mounted in front of CMOS sensor | | Pixel Size | 4.6 x 4.6 μm | | Bit Depth | 16-bit
Dynamic range approx. 15 stops | | File Formats | Hasselblad Raw 3FR | | File Size | Raw 3FR:- Single-Shot (100 MP): 211 MB
- 4-Shot (100 MP): 650 MB
- 6-Shot (400 MP): 925 MB
TIFF 8-Bit:- Single-Shot (100 MP): 300 MB
- 4-Shot (100 MP): 300 MB
- 6-Shot (400 MP): 1.2 GB
TIFF 16-Bit:- 4-Shot (100 MP): 579 MB
- 6-Shot (400 MP): 2.4 GB
| | Color Management System | Hasselblad Natural Color Solution | | Storage Type | 1x CFast card slot
1x SD card slot | | Shooting Modes | Single shot, 4-shot, and 6-shot stills or video | | Focus | Autofocus metering with passive central cross-type sensor
Ultra focus digital feedback
Instant manual focus override
Metering range: EV 1 to 19 at ISO 100 | | Lens Compatibility | Hasselblad H system lens line with integral central lens shutter | | | | Shutter Speeds | 60 min to 1/2000 sec (depending on lens in use) | | ISO Range | ISO 64, 100, 200, 400, 800, 1600, 3200, 6400, 12800 | | Metering Options | Spot: EV 2 to 21
Center Weighted: EV 1 to 21
Center Spot: EV 1 to 21 | | | | Recording Format | UHD 4K: 3840 x 2160p at 25 fps
Full HD: 1920 x 1080p at 25 fps | | File Format | Hasselblad Raw: HD and UHD
H.264 compressed: HD only | | Connectivity | Mini-HDMI and audio in/out ports | | | | External Flash Connection | Yes; hot shoe and flash sync port | | Max Sync Speed | Flash can be used at all shutter speeds with central shutter lens | | Flash Control | Automatic TTL center weighted system
Uses built-in flash or flashes compatible with SCA3002 (Metz)
Output can be adjusted from -3 to +3EV
For manual flashes, a built-in metering system is available | | | | Viewfinder | HVD 90x
90° eye-level viewfinder with diopter adjustment from -5 to +3.5 Image magnification 3.1x

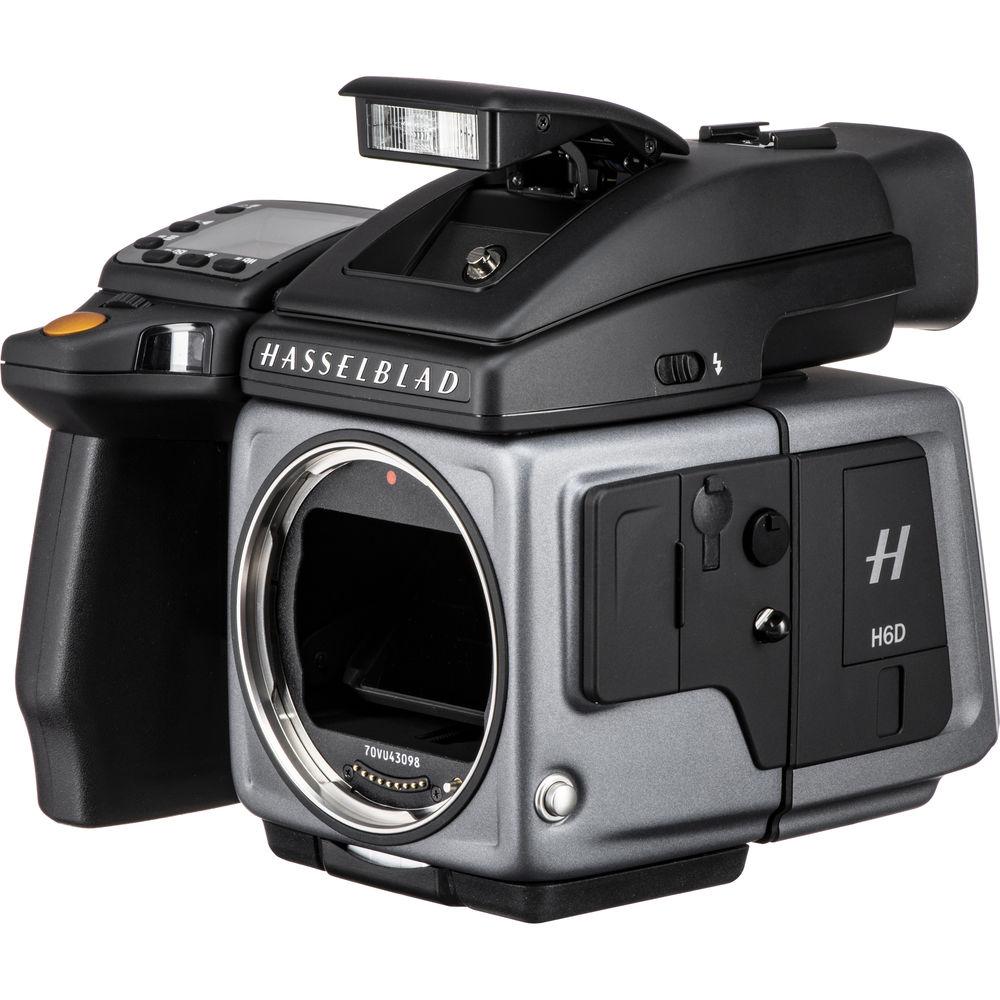

Built-in flash (GN 39.4' / 12 m @ ISO 100)
TTL-compatible hot shoe for optional Metz SCA3002-system flashes | | Display | 3.0" 920k-dot touchscreen LCD
24-bit color | | Histogram | Yes; on rear display and camera grip | | | | Connectivity | USB 3.0 Type-C connector, mini-HDMI, audio in/out | | Wi-Fi | Built-in; 802.11a/b/g/n | | System & Software Requirements | Phocus for Mac and Windows: Mac OS X 10.9 or later
Windows 10, 8, 7 (32- and 64-bit), Vista, and XP | | | | Battery Type | Rechargeable lithium-ion battery (7.2 VDC, 3200 mAh) | | | | Operating Temperature | 14 to 113°F / -10 to 45°C | | Dimensions | 6 x 5.2 x 8.1" / 153 x 131 x 205 mm (complete camera with HC 80mm f/2.8 lens) | | Weight | 4.8 lb / 2180 g (with battery, card, and optional HC 80mm f/2.8 lens) | | | | Package Weight | 7.25 lb | | Box Dimensions (LxWxH) | 10.9 x 10.8 x 6.9" |
