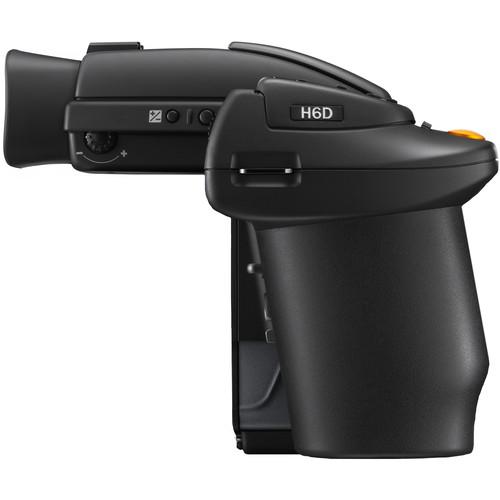

User Manual for Hasselblad H6D Medium Format Camera Body with HV 90X-II Viewfinder Click to enlarge the picture
Contents of the user manual for the Hasselblad H6D Medium Format Camera Body
- Product category: Medium Format Cameras Hasselblad
- Brand: Hasselblad
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hasselblad Medium Format Cameras
|
User manual for the Hasselblad H6D Medium Format Camera Body contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hasselblad product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hasselblad user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hasselblad product will considerably shorten its lifespan!
|
Product description Dedicated to use with the Hasselblad H6D-50c and 100c digital backs, this H6D Medium Format Camera is an ideal second or backup body for use in conjunction with HC/HCD lenses and a variety of compatible viewfinders. Beneficial to fast-paced shooting in an accurate manner, the H6D also utilizes a single central autofocus point in conjunction with True Focus and Absolute Position Lock technologies to maintain focusing precision while using a focus-then-recompose method of shooting. Also enhancing usability, eight shooting profiles are available for quickly changing combinations of settings, and seven of the profiles are fully customizable to suit your own personal shooting needs. Additionally, designed with the professional photographer in mind, the H6D sports a durable stainless steel and aluminum alloy body construction, and uses a convenient lithium-ion battery grip to both power the camera as well as provide a comfortable means for handling the camera.
Included with the camera body is the HV 90X-II viewfinder, which serves as a bright, clear viewing means intended for use with the larger sensor size of the H6D-100c digital back. The finder is a 2.7x magnification, 90° reflex type offering full 100% frame coverage as well as -4 to +2.5 dioptric adjustment to suit eyeglass wearers. Additionally, it incorporates a top hot shoe for on-camera external flashes, and also has a built-in pop-up flash and internal dot matrix LCD for shooting settings review. - H6D System
- Designed as a second or backup camera body when working with the H6D-50c or 100c digital backs, the H6D body is the core component within the modular H system. It supports working with a variety of viewfinders and is compatible with HC/HCD lenses as well as C-series lenses when used in conjunction with the CF lens adapter.
- True Focus and Absolute Position Lock
- True Focus is an intelligent and flexible technology to benefit working with the single, central autofocus point configuration of the H6D. Compared to multiple-point AF systems, single point systems lose accuracy when used with a focus-then-recompose method of shooting. True Focus and Absolute Position Lock help to solve this problem by correcting for slight shifts in focus position when working at close range in order to deliver sharper imagery.
- Body Design
-
- Stainless steel and aluminum alloy are used in concert to create a camera body that is both highly durable and lightweight, and built to withstand heavy professional use in myriad conditions.
- Included lithium-ion battery grip serves as both the power source for the camera system as well as an ergonomic right-hand grip for handling.
- Integrated white LED AF illuminator aids autofocus performance when working in low-light conditions.
- Dot matrix LCD is located on the top plate of the body and allows you to quickly check, adjust, and confirm shooting settings.
- Front and rear scroll wheels afford intuitive and direct adjustment over settings.
- Profiles
- Eight profiles are available for quickly accessing preset combinations of settings, and include Default, Full Auto, Studio, Fill Flash, two Action, and two Spare profiles that can be customized. While two spare profile spaces are reserved for customizing, all of the profiles, except for Default, can be renamed and personalized for greater control.
In the Box Hasselblad H6D Medium Format Camera Body with HV 90X-II Viewfinder HV 90X-II Viewfinder (Black) Rechargeable Li-Ion 3200 Battery Grip for H Cameras (7.2V, 3200mAh) Charger for 2900mAh Li-Ion Battery Grip for H5D Camera Focusing Screen Acute-Matte D HS-STD Front and Rear Body Caps Protective Baseplate Carrying Strap Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hasselblad H6D Medium Format Camera Body with HV 90X-II Viewfinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHasselblad H6D Specs | Camera Type | SLR camera with optional interchangeable lenses, viewfinders, and backs | | Lenses | Hasselblad HC and HCD lenses
All C-type lenses from the V system with optional CF lens adapter | | Shutter | Electronically controlled integral lens shutter in each lens
Shutter Speed Range: 1/2000 second to 1 hour | | Image Format | 56 x 41.5 mm (maximum) | | Viewfinders | Included HV 90X-II viewfinder
Compatible with optional HVD 90X, and HVM viewfinders | | Focusing Screen | Acute Matte type D with markings for spot metering area and AF sensitive area | | Focusing | Automatic and manual focusing; instant manual focus override
AF metering with passive central cross-type sensor
Metering range EV 1 to 19 at ISO 100
White focus assist LED for low-light conditions | | Focusing Modes | Manual with optional focus indication in viewfinder, Single Shot AF, and Continuous AF
Focus lock available in AF modes either with shutter release or any of the four programmable buttons
True Focus to compensate for focus shift when recomposing | | Exposure Metering | Spot, Center Spot, and Center Weighted (with HV 90X-II and HVD 90X)
Exposure lock with separate button on camera | | Metering Range | Spot: EV 2 to 21
Center-Weighted: EV 1 to 21
Center Spot: EV 1 to 21 | | Exposure Modes | Manual, Aperture Priority, Shutter Speed Priority, Programmed, and Programmed Variable | | Automatic Bracketing Control | 2, 3, 5, 7, or 9 frames in 1/3, 1/2, 1, 2, or 3 EV steps | | Interval Shooting | 1 second to 1 hour intervals
Maximum 32 frames with film, unlimited with digital back | | Multi Exposure | 2, 3, 4, and 5 frames or no limit (available with film only) | | Flash Control | Automatic TTL-OTF center weighted system via viewfinder's built-in flash or flashes compatible with optional Metz SCA3002
Output can be adjusted from -3 to +3 EV | | Flash Metering | Available when using manually controlled flashes | | Flash Sync | TTL hot-shoe on viewfinder or standard PC connector on camera body | | Flash Synch Speeds | Sync at all shutter speeds to 1/800 sec
Flash can be synchronized in the beginning or at the end of the exposure | | Compatible Digital/Film Backs | Hasselblad H6D-50c and H6D-100c digital backs | | LCD Display | Dot-matrix LCD | | Power Supply | Rechargeable lithium-ion battery grip (7.2 VDC, 3200 mAh) | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer |
