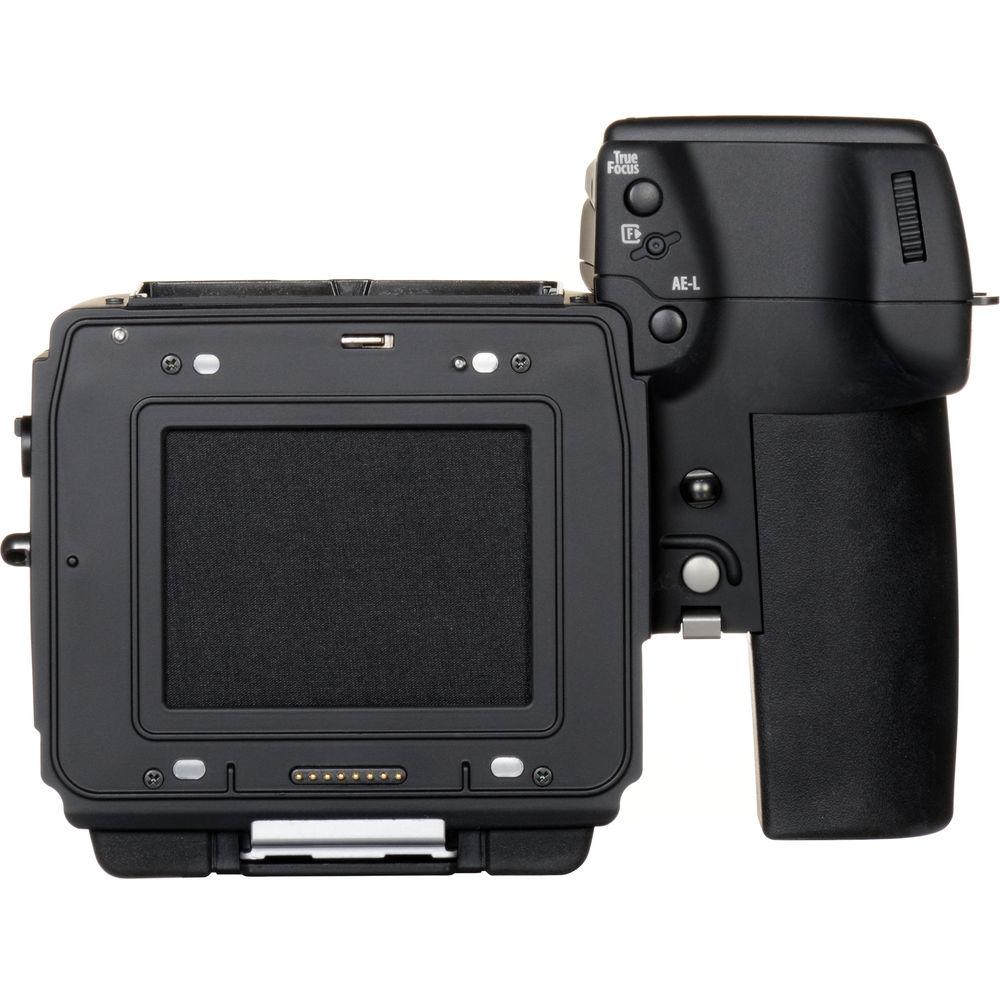

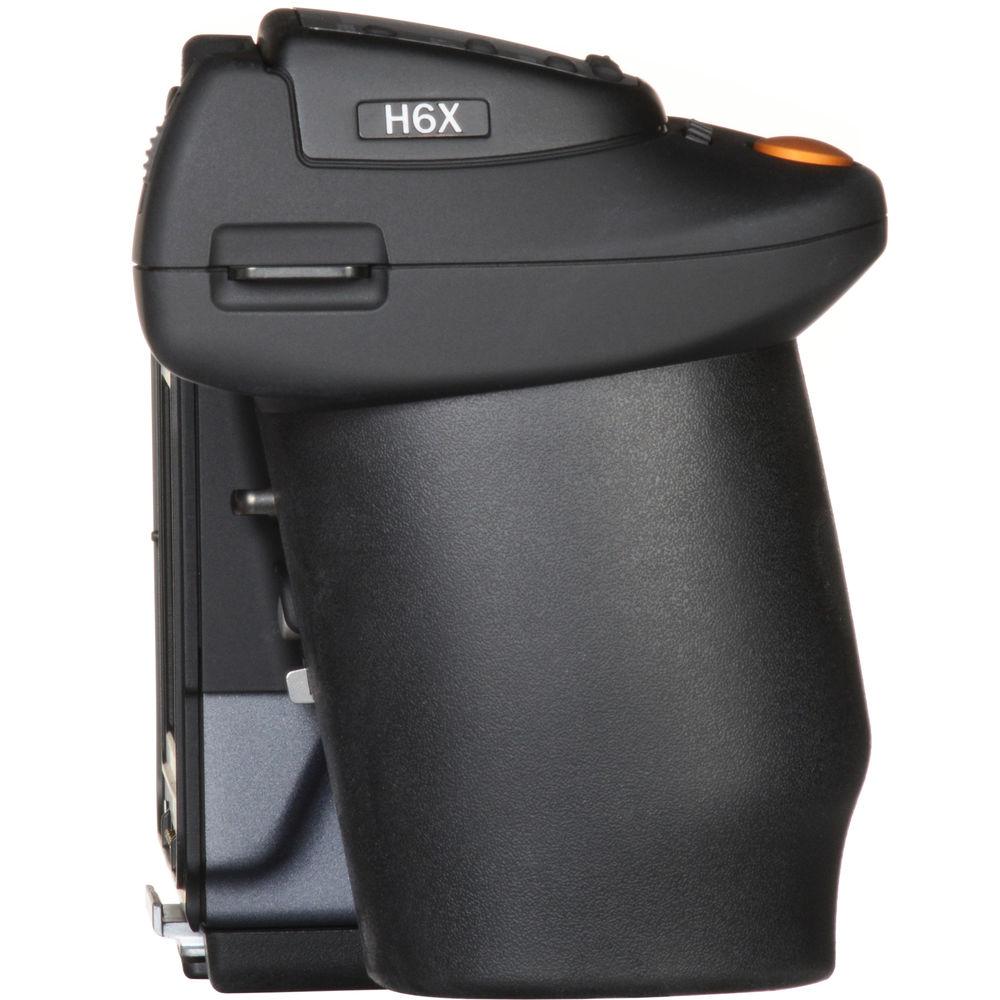

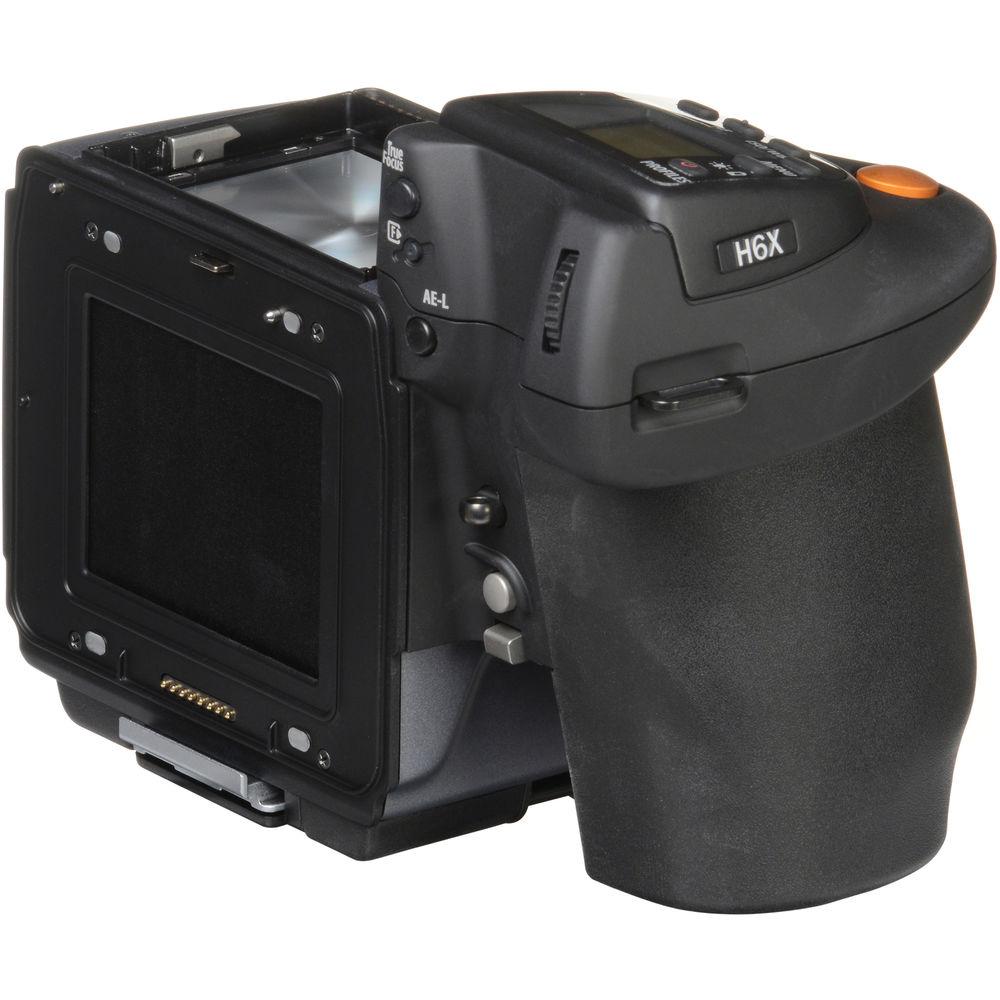

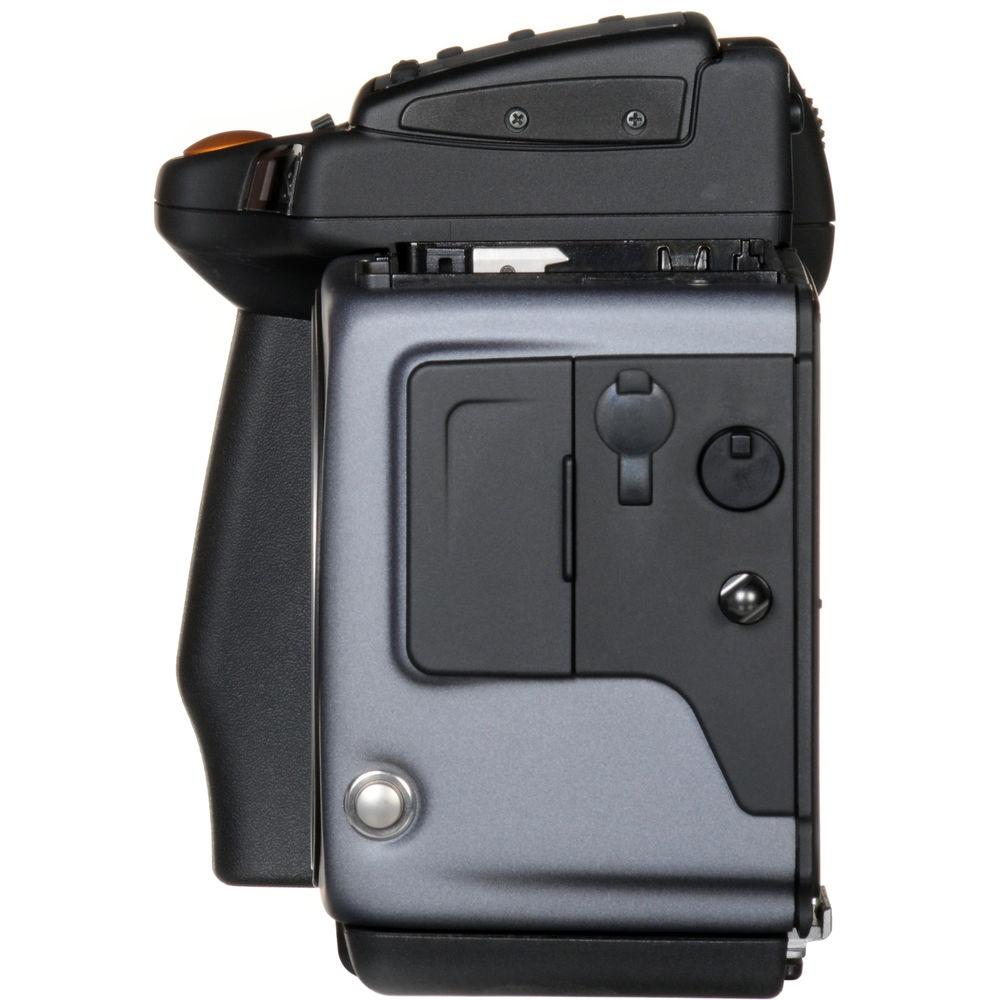

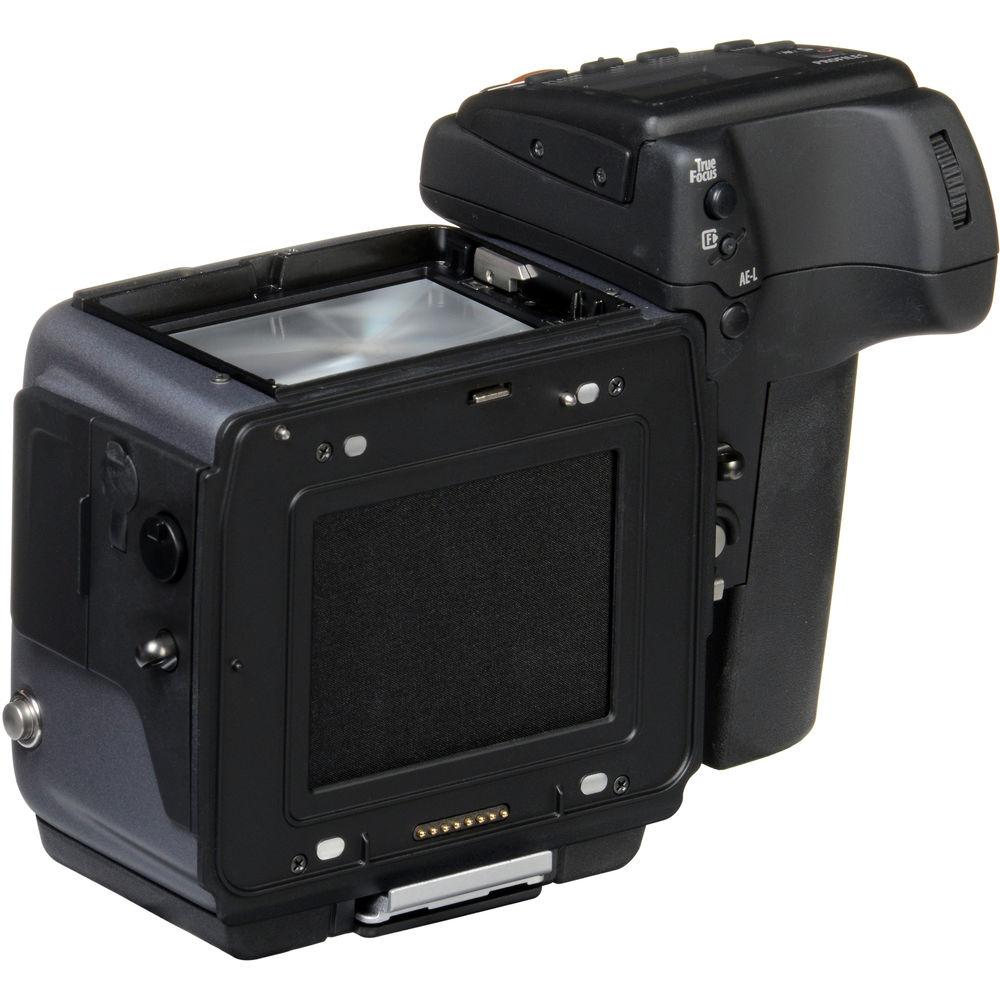

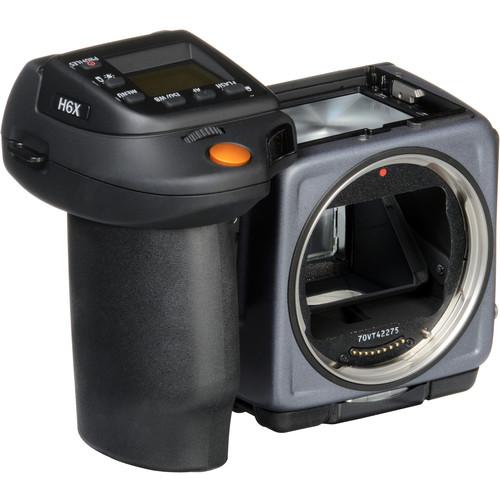

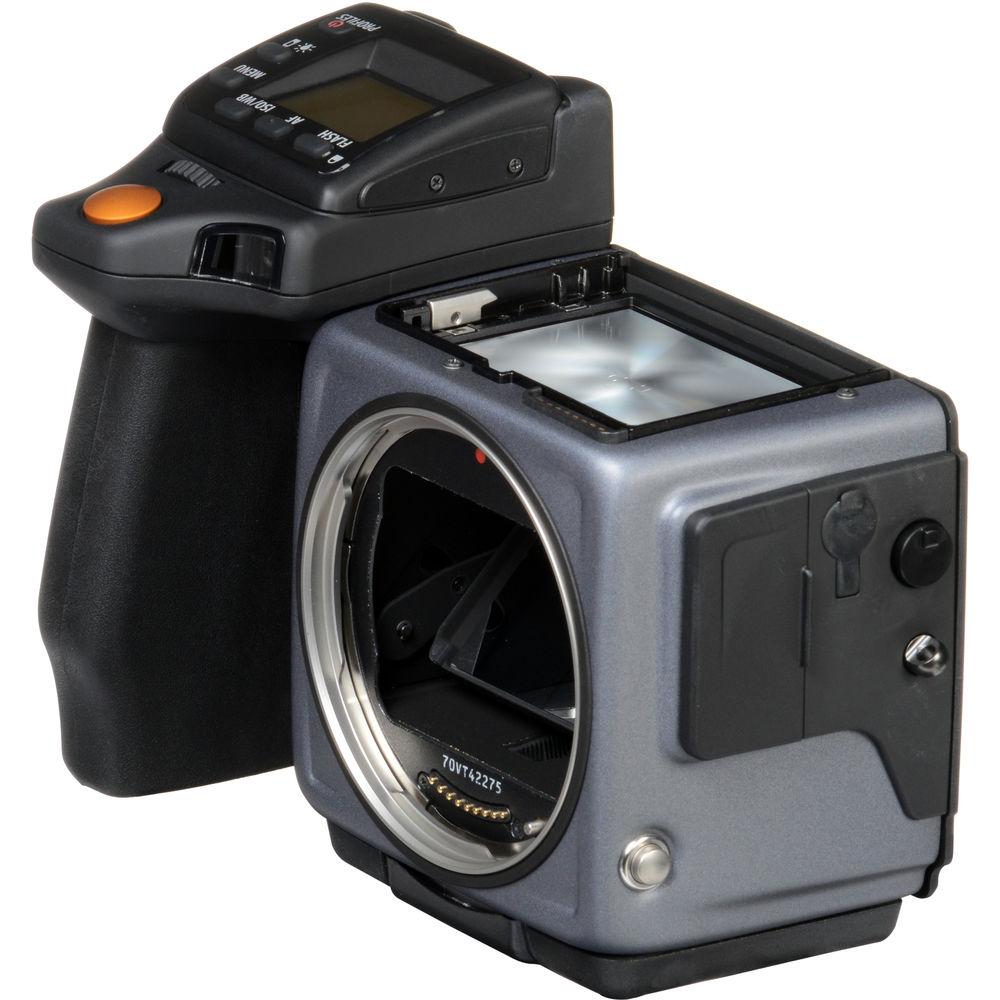

Product description Introducing the H6X Medium Format Camera Body Read More A modular platform for both film and digital capture, the Hasselblad H6X is a medium format SLR camera body designed for use with HC/HCD lenses, as well as a variety of dedicated viewfinders and compatible backs. Its H-system back interface permits working with a wide range of digital backs as well as the H 16-32 film magazine to suit a versatile and changing workflow. Beneficial to fast-paced shooting in an accurate manner, the H6X also utilizes a single central autofocus point in conjunction with True Focus and Absolute Position Lock technologies to maintain focusing precision while using a focus-then-recompose method of shooting. Also enhancing usability, eight shooting profiles are available for quickly changing combinations of settings, and seven of the profiles are fully customizable to suit your own personal shooting needs. Additionally, designed with the professional photographer in mind, the H6X sports a durable stainless steel and aluminum alloy body construction, and uses a convenient lithium-ion battery grip to both power the camera as well as provide a comfortable means for handling the camera. - H System
- As the core component within the modular H system, this camera body is designed for use with both film and digital backs featuring an H interface; it supports a variety of optional viewfinders; and is compatible with HC and HCD lenses, as well as C-series lenses when used in conjunction with the CF lens adapter.
- True Focus and Absolute Position Lock
- True Focus is an intelligent and flexible technology to benefit working with the single, central autofocus point configuration of the H6X. Compared to multiple-point AF systems, single point systems lose accuracy when used with a focus-then-re-compose method of shooting. True Focus and Absolute Position Lock help to solve this problem by correcting for slight shifts in focus position when working at close range in order to deliver sharper imagery.
- Body Design
-
- Stainless steel and aluminum alloy are used in concert to create a camera body that is both highly durable and lightweight, and built to withstand heavy professional use in myriad conditions.

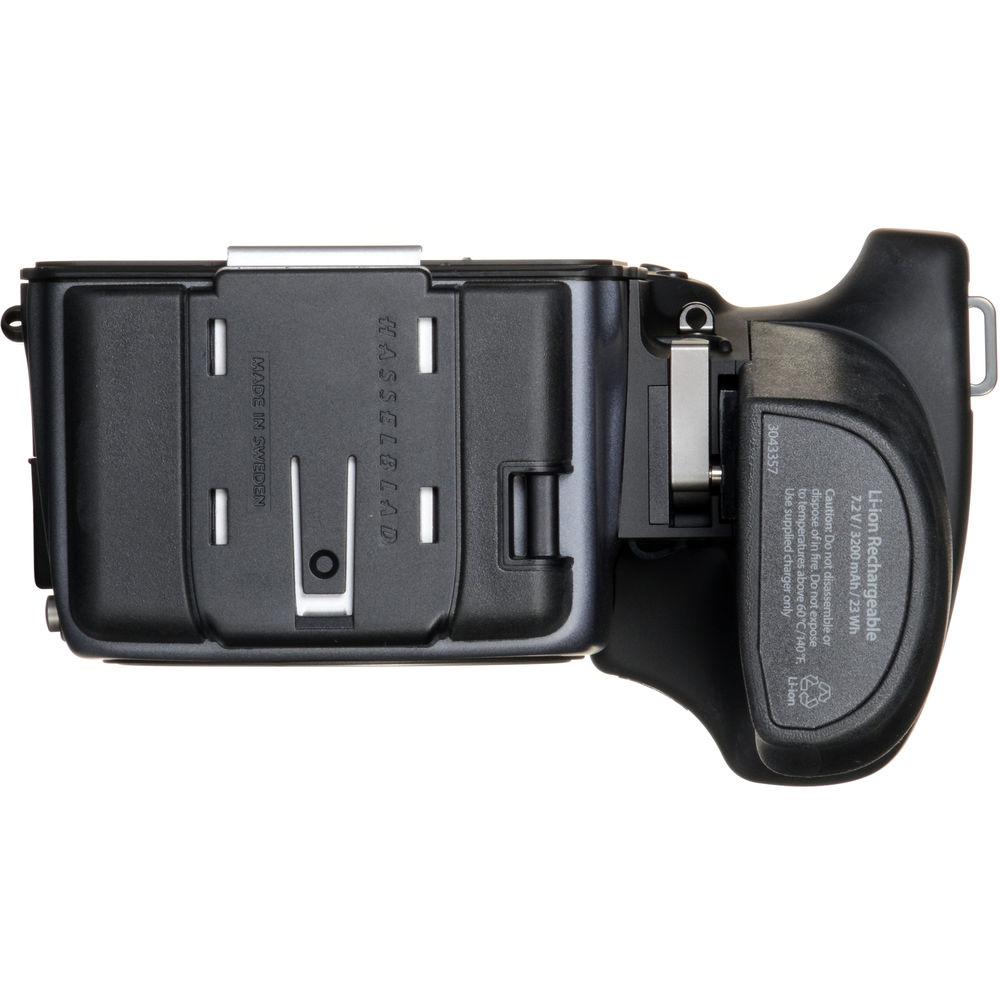

- Included lithium-ion battery grip serves as both the power source for the camera system as well as an ergonomic right-hand grip for handling.
- Integrated white LED AF illuminator aids autofocus performance when working in low-light conditions.

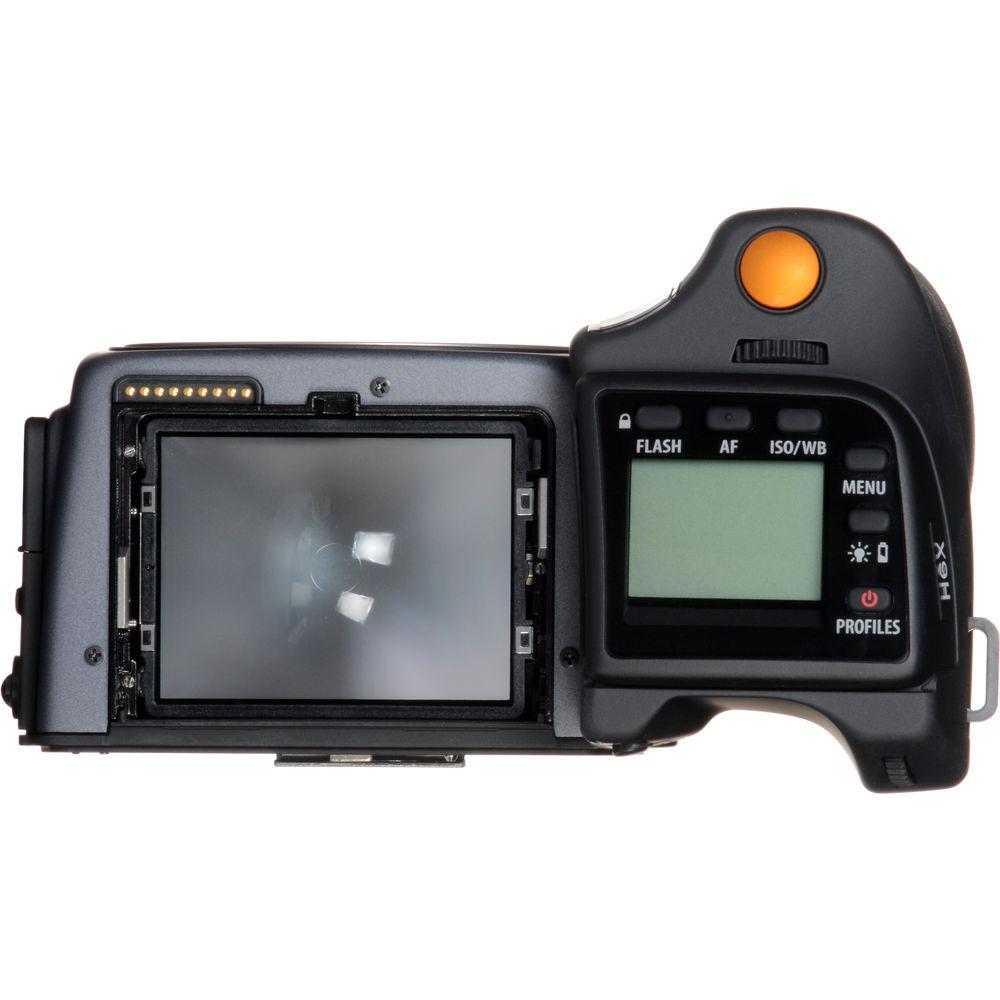

- Dot matrix LCD is located on the top plate of the body and allows you to quickly check, adjust, and confirm shooting settings.
- Front and rear scroll wheels afford intuitive and direct adjustment over settings.
- Profiles
- Eight profiles are available for quickly accessing preset combinations of settings, and include Default, Full Auto, Studio, Fill Flash, two Action, and two Spare profiles that can be customized. While two spare profile spaces are reserved for customizing, all of the profiles, except for Default, can be renamed and personalized for greater control.
In the Box Hasselblad H6X Medium Format Camera (Body Only) Rechargeable Li-Ion 3200 Battery Grip for H Cameras (7.2V, 3200mAh) Charger for 2900mAh Li-Ion Battery Grip for H5D Camera Spherical Acute Matte D Viewfinder Screen Front and Rear Body Caps Protective Baseplate Carrying Strap Limited 1-Year Warranty User Manual PDF 17mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hasselblad H6X Medium Format Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHasselblad H6X Specs | Camera Type | SLR camera with optional interchangeable lenses, viewfinders, and backs | | Lenses | Hasselblad HC and HCD lenses
All C-type lenses from the V system with optional CF lens adapter | | Shutter | Electronically controlled integral lens shutter in each lens
Shutter speed range 1/800 second to 18 hours | | Image Format | 56 x 41.5 mm (maximum) | | Viewfinders | Compatible with optional HV 90X, HV 90X-II, HVD 90X, and HVM viewfinders | | Focusing Screen | Acute Matte type D with markings for spot metering area and AF sensitive area | | Focusing | Automatic and manual focusing; instant manual focus override
AF metering with passive central cross-type sensor
Metering range EV 1 to 19 at ISO 100
White focus assist LED for low-light conditions | | Focusing Modes | Manual with optional focus indication in viewfinder, Single Shot AF, and Continuous AF
Focus lock available in AF modes either with shutter release or any of the four programmable buttons
True Focus to compensate for focus shift when re-composing | | Exposure Metering | Spot, Center Spot, and Center Weighted (with HV 90X-II and HVD 90X)
Exposure lock with separate button on camera | | Metering Range | Spot: EV 2 to 21
Center-Weighted: EV 1 to 21
Center Spot: EV 1 to 21 | | Exposure Modes | Manual, Aperture Priority, Shutter Speed Priority, Programmed, and Programmed Variable | | Automatic Bracketing Control | 2, 3, 5, 7, or 9 frames in 1/3, 1/2, 1, 2 or 3 EV steps | | Interval Shooting | 1 second to 1 hour intervals
Maximum 32 frames with film, unlimited with digital back | | Multi Exposure | 2, 3, 4, and 5 frames or no limit (available with film only) | | Flash Control | Automatic TTL-OTF center weighted system via viewfinder's built-in flash or flashes compatible with optional Metz SCA3002
Output can be adjusted from -3 to +3 EV | | Flash Metering | Available when using manually controlled flashes | | Flash Sync | TTL hot-shoe on optional viewfinder or standard PC connector on camera body | | Flash Synch Speeds | Sync at all shutter speeds to 1/800 sec
Flash can be synchronized in the beginning or at the end of the exposure | | Compatible Digital/Film Backs | H-system interface
All Hasselblad H5D, ixpress, CF, and CFH digital backs
Third-party backs that were compatible with the H1/H2 cameras
HM 16-32 Magazine for 120/220 film | | LCD Display | Two dot-matrix LCDs (one on the camera grip and one in the viewfinder) | | Power Supply | Rechargeable lithium-ion battery grip (7.2 VDC, 3200 mAh) | | Dimensions | 5.7 x 4.3 x 3.5" / 144 x 110 x 88 mm | | Weight | 1.8 lb / 830 g (body only) | | | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 10.6 x 10.4 x 10.4" |
