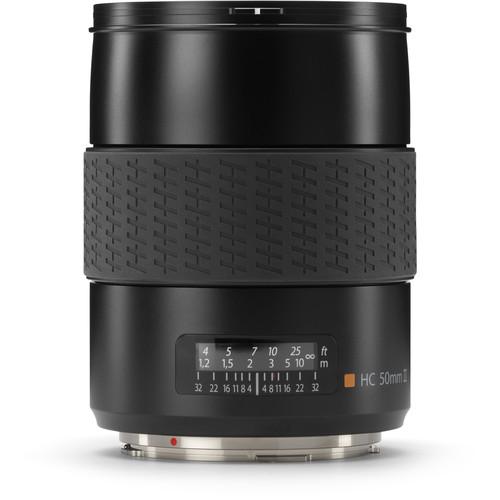

User Manual for Hasselblad HC 50mm f 3.5 II Aerial Lens Click to enlarge the picture
Contents of the user manual for the Hasselblad HC 50mm f 3.5 II
- Product category: Medium Format Lenses Hasselblad
- Brand: Hasselblad
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hasselblad Medium Format Lenses
|
User manual for the Hasselblad HC 50mm f 3.5 II contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hasselblad product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hasselblad user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hasselblad product will considerably shorten its lifespan!
|
Product description Dedicated to aerial photography, this specialized version of the HC 50mm f/3.5 II Lens from Hasselblad is a general wide-angle prime offering a 70° angle of view. Differing from the standard lens range, this lens features a secure locking mount to significantly reduce unwanted vibrations and flexing on the lens-camera interface, and the rigid mount also ensures the image and sensor planes remain perfectly parallel at all times. Additionally, this lens has a locked focus position at infinity as well as dedicated firmware to close the central shutter and aperture mechanism to their working positions when power is applied to the camera system.
The lens employs a sophisticated 11 elements in seven groups optical design, which controls aberrations and distortions in order to deliver a high degree of sharpness, clarity, and illumination from edge to edge. Additionally, the central shutter unit affords a shutter speed range up to 1/800 sec. - Specialized aerial version of the HC 50mm f/3.5 II lens features a robust locking mount to reduce vibrations and flex at the camera-lens interface, as well as maintain absolute parallelity between the image and sensor planes. This version also has a locked focus position at infinity and dedicated firmware to close the shutter and aperture mechanisms to their working positions when power is provided to the camera.
- Standard wide-angle prime offers a 70° angle of view and features a sophisticated optical design that limits distortions and provides edge-to-edge sharpness and illumination.
- Central shutter offers a shutter speed range up to 1/800 sec.
In the Box Hasselblad HC 50mm f/3.5 II Aerial Lens Front and Rear Lens Caps Lens Hood Soft Lens Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hasselblad HC 50mm f 3.5 II Aerial Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHasselblad H-3014604 Specs | Focal Length | 50.7mm | | Maximum Aperture | f/3.5 | | Minimum Aperture | f/32 | | Lens Mount | Hasselblad H | | Angle of View | 70
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
