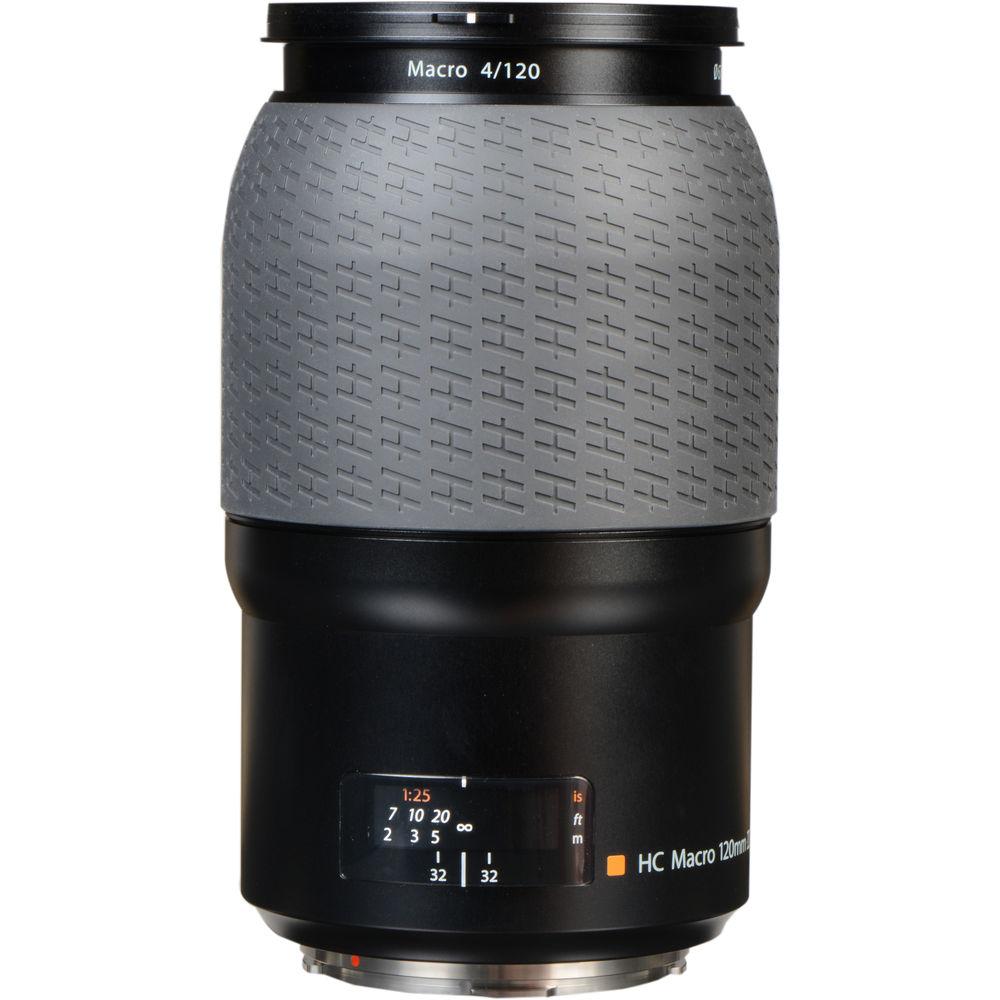

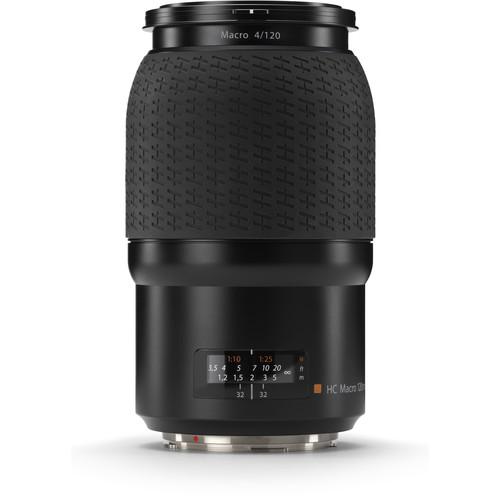

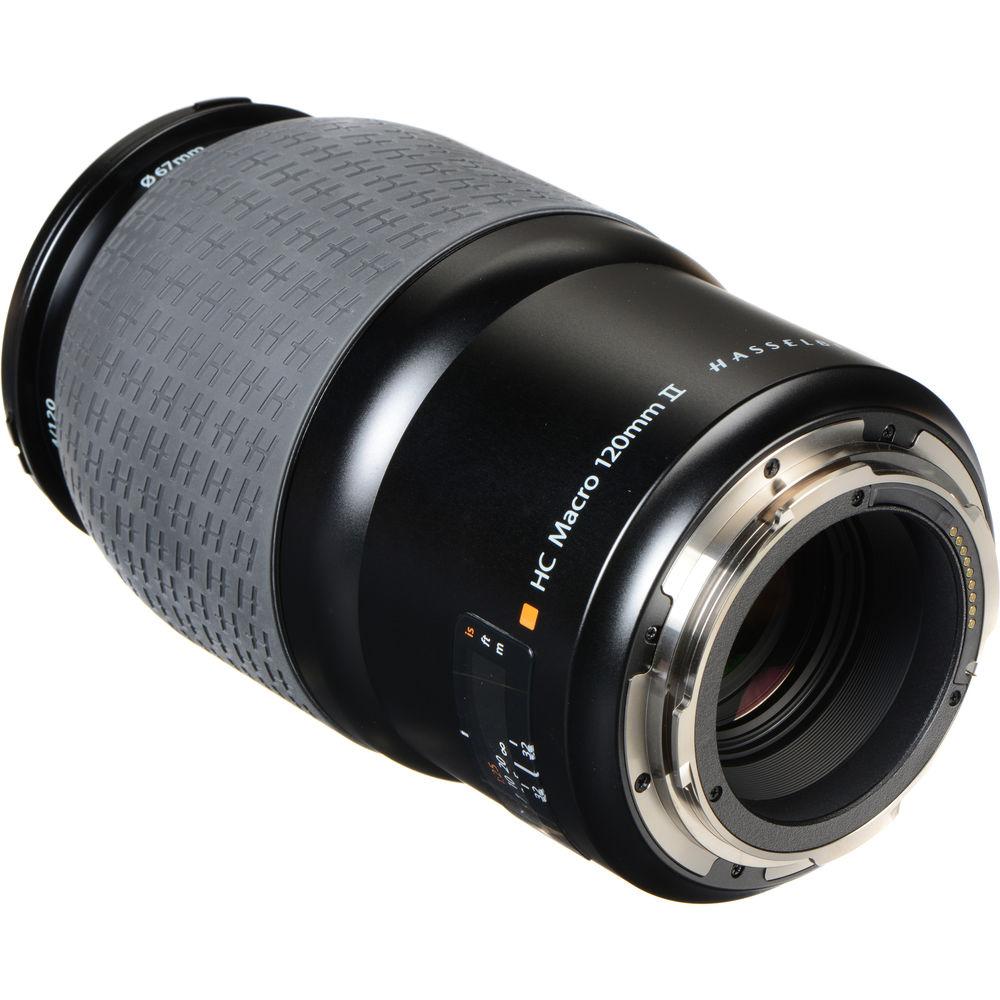

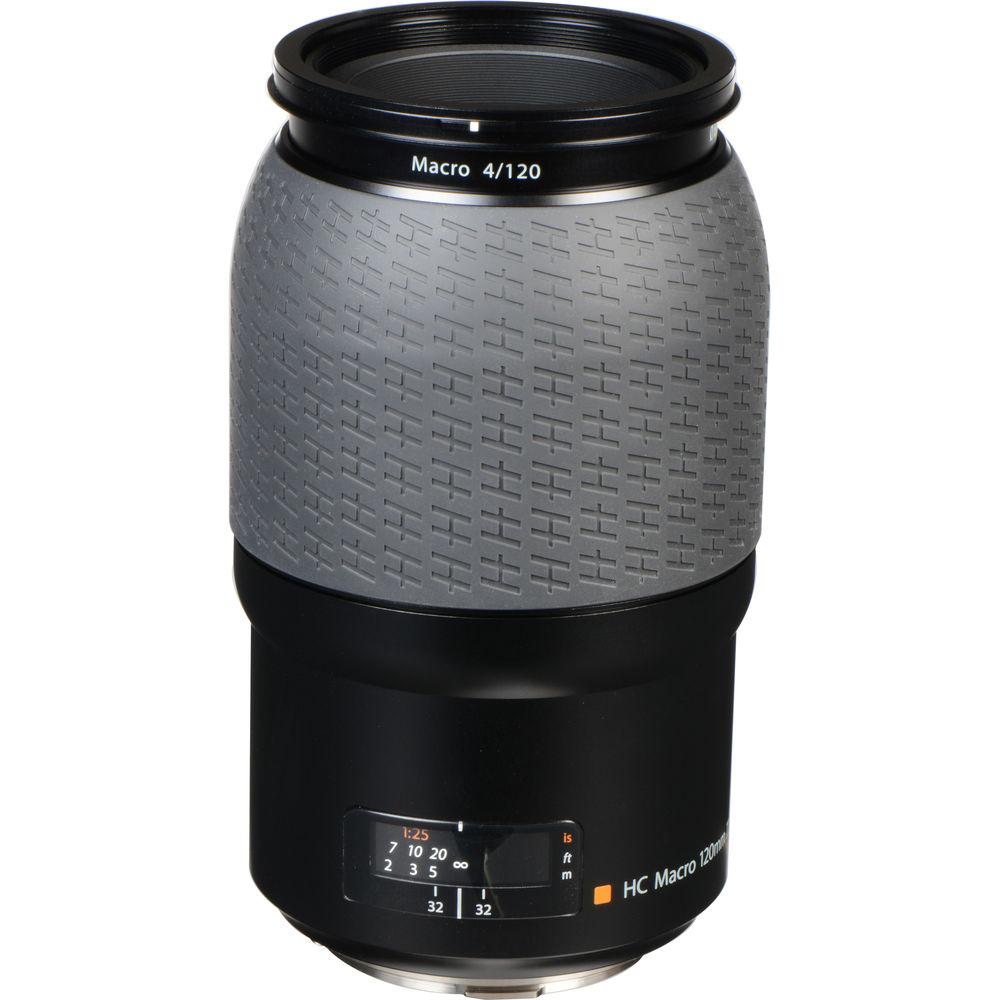

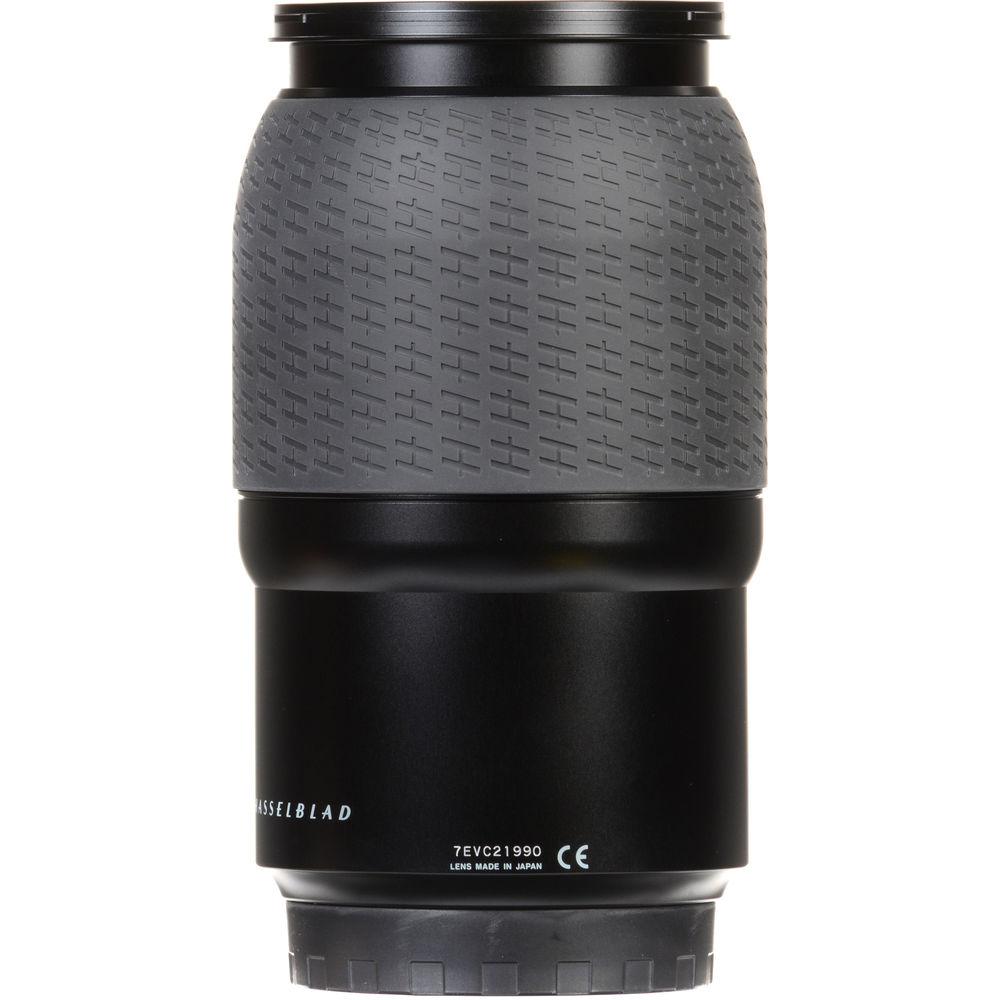

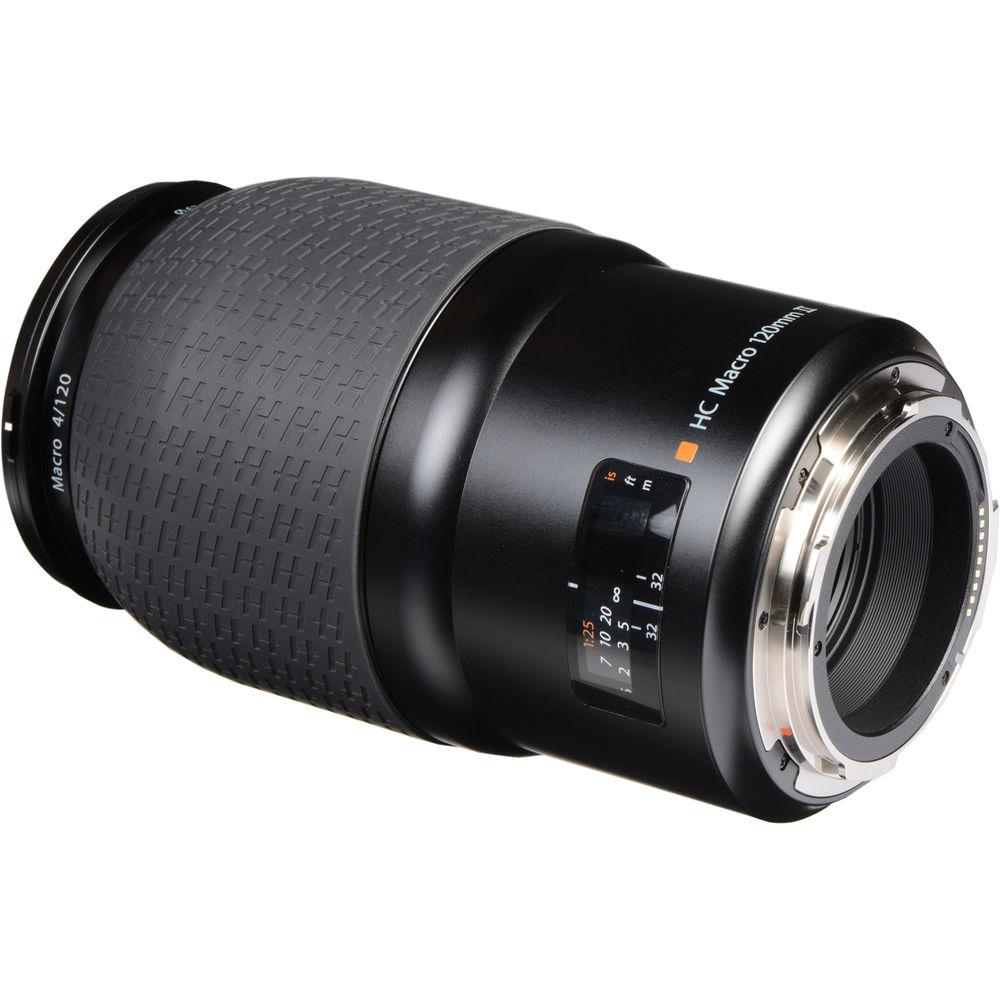

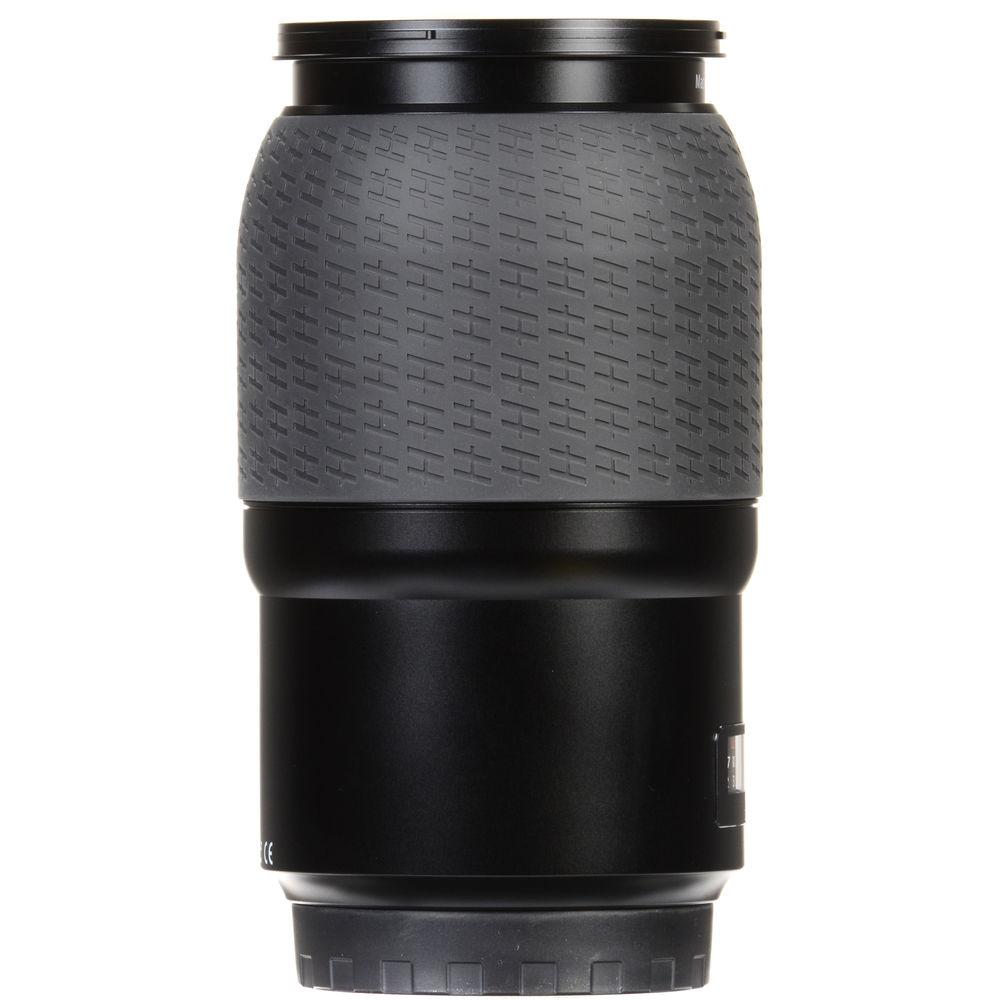

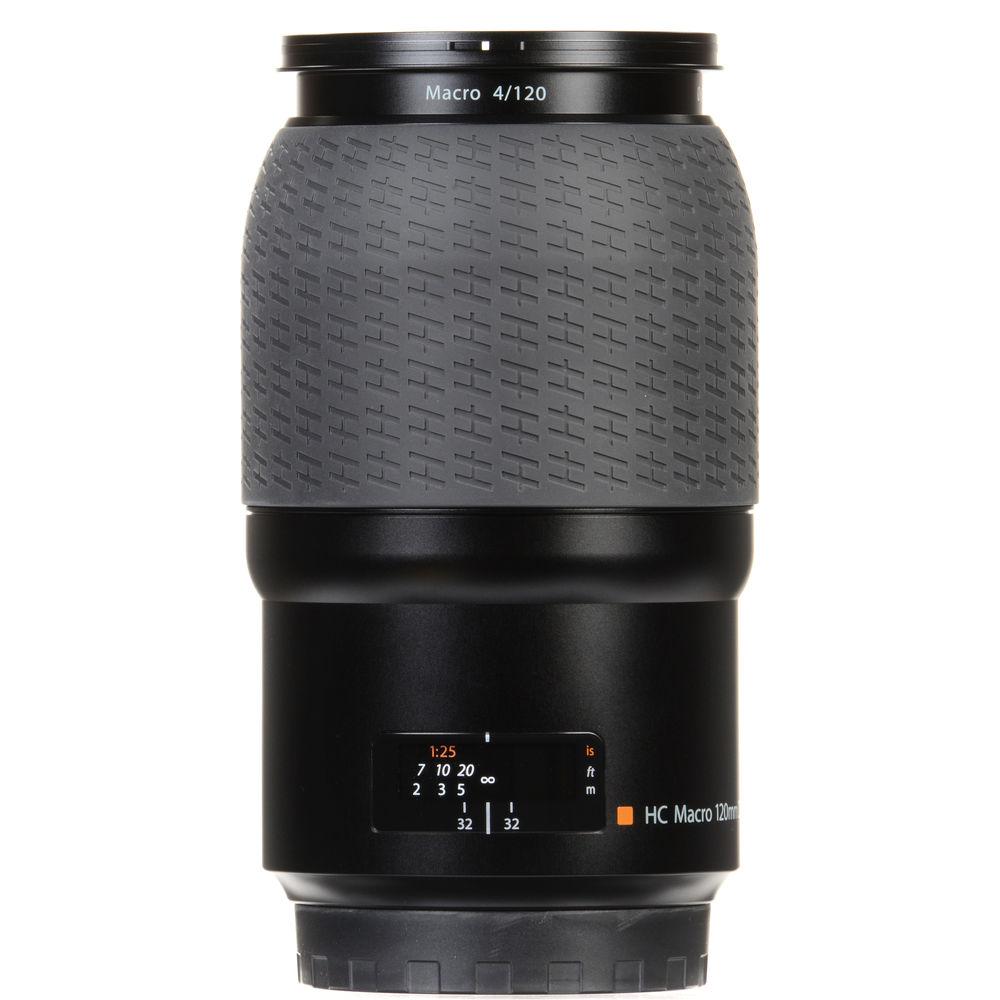

User Manual for Hasselblad HC Macro 120mm f 4 II Lens Click to enlarge the picture
Contents of the user manual for the Hasselblad HC Macro 120mm f 4
- Product category: Medium Format Lenses Hasselblad
- Brand: Hasselblad
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hasselblad Medium Format Lenses
 |
User manual for the Hasselblad HC Macro 120mm f 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hasselblad product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hasselblad user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hasselblad product will considerably shorten its lifespan!
|

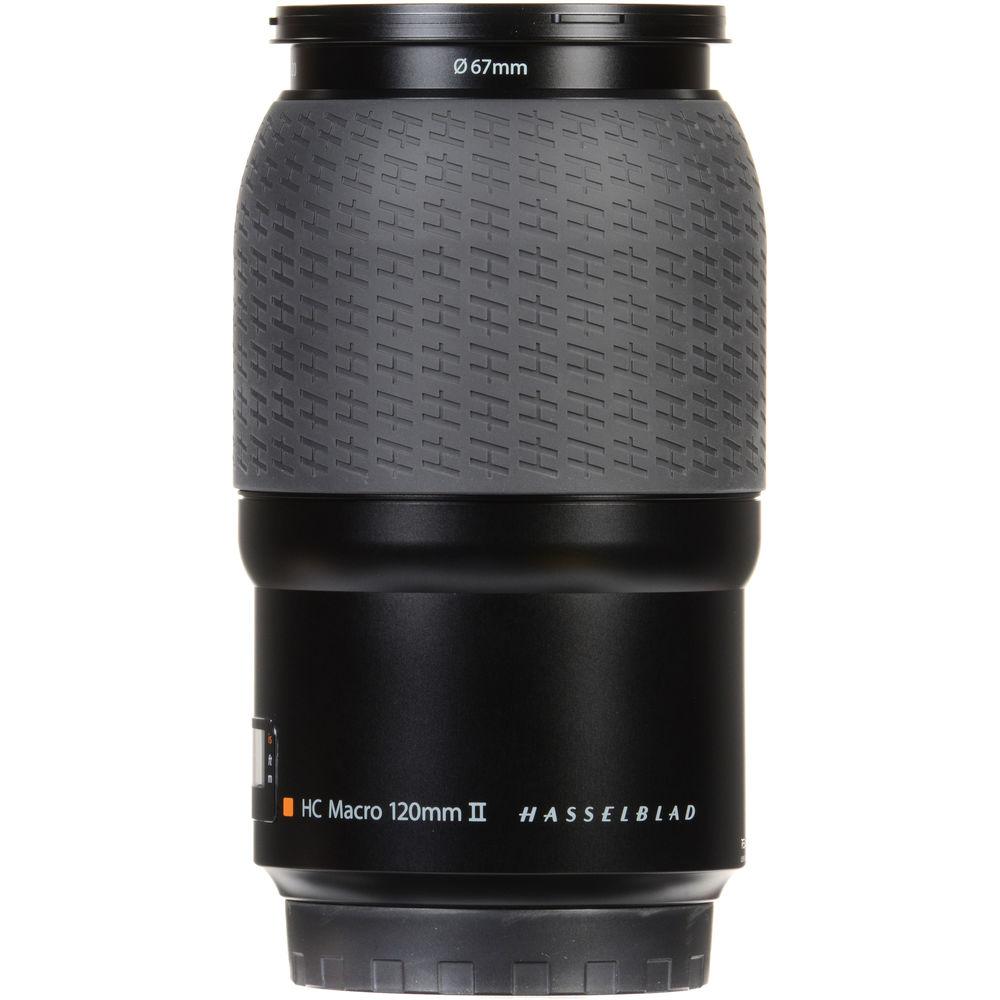

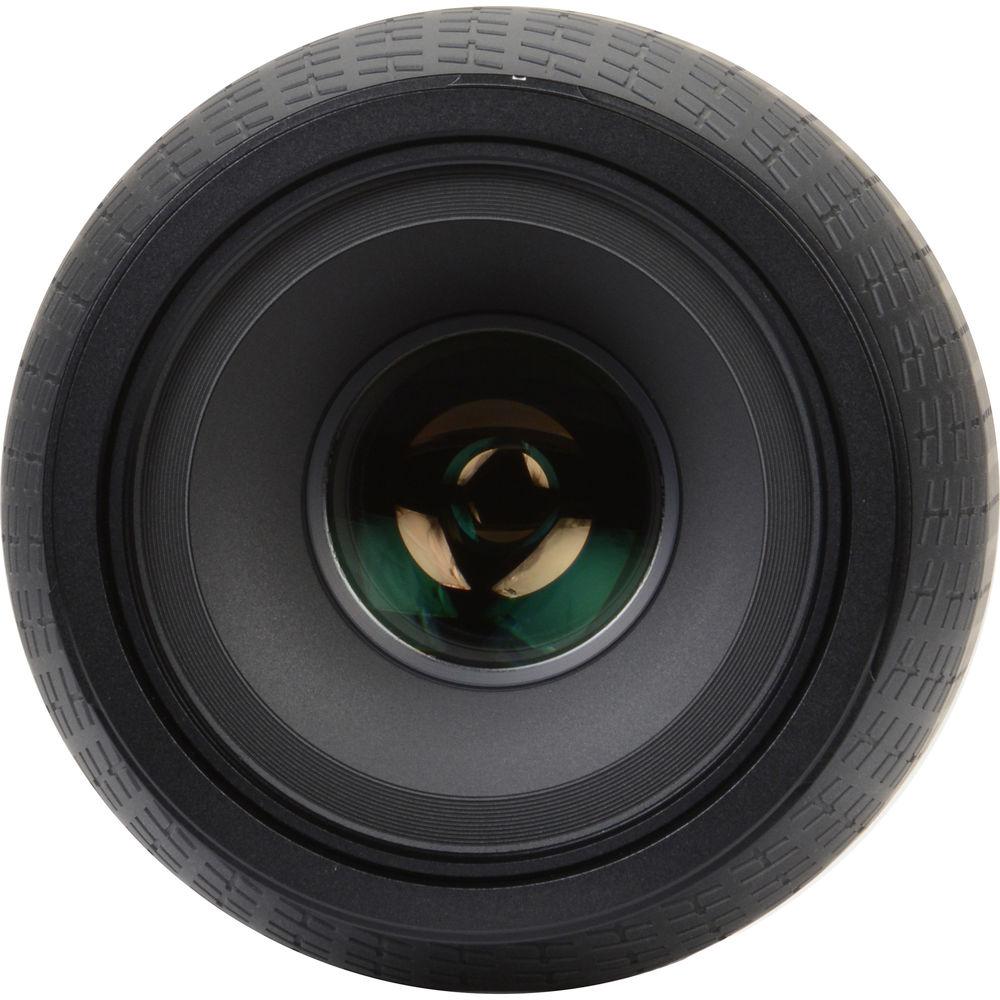

Product description Well-suited for close-up shooting applications, the HC Macro 120mm f/4 II Lens from Hasselblad is a true macro optic offering a 1:1 maximum magnification ratio, along with a close minimum focusing distance of 1.3'. This H system lens features an improved shutter unit to permit working with shutter speeds up to 1/2000 sec, with flash sync available at all speeds. Aside from its penchant for close-up subjects, the short telephoto perspective is also ideal for portraiture and general applications, and the f/4 maximum aperture offers a notable degree of control over depth of field and selective focus. This autofocus lens utilizes a front-focusing design and permits full-time manual focus override for greater focusing control, especially at closer shooting distances. - Updated HC 120mm f/4 Macro II lens features an improved central shutter unit that offers a faster shutter speed range of up to 1/2000 sec with flash sync available at all speeds. This lens is demarcated by an orange dot, and also features a more robust design that has been tested for up to 1,000,000 actuations.
- Ideal for macro applications, this 120mm f/4 lens can focus as closely as 1.3' away with a life-size, 1:1 maximum magnification ratio.
- Short telephoto design lens with a 29° angle of view is also well-suited for portraiture and other general applications.
- Front-focusing AF lens with manual focus override for increased control when focusing. Depth of field and distance scales are also featured in the design to aid in pre-focusing and hyperfocal focusing techniques.
In the Box Hasselblad HC Macro 120mm f/4 II Lens Front and Rear Lens Caps Lens Hood Soft Lens Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hasselblad HC Macro 120mm f 4 II Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHasselblad HC Specs | Focal Length | 118.7 mm | | Aperture | Maximum: f/4
Minimum: f/45 | | Camera Mount | Hasselblad H | | Angle of View @ Infinity | 29° | | Minimum Focus Distance | 1.28' / 39 cm | | Area of Coverage | 56 x 41.5 cm | | Optical Design | 9 Elements in 9 Groups | | Maximum Reproduction Ratio | 1:1 | | Shutter Type | Electronic Leaf Shutter | | Flash Synchronization | Shutter Speed up to 1/2000 | | DOF Scale | Yes | | Distance Scale | Yes | | Autofocus | Yes | | Filter Thread | Front: 67 mm | | Dimensions | Approx. 3.78 x 6.54" (96 x 166 mm) | | Weight | 3.10 lb / 1410 g | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 15.4 x 11.2 x 6.7" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
