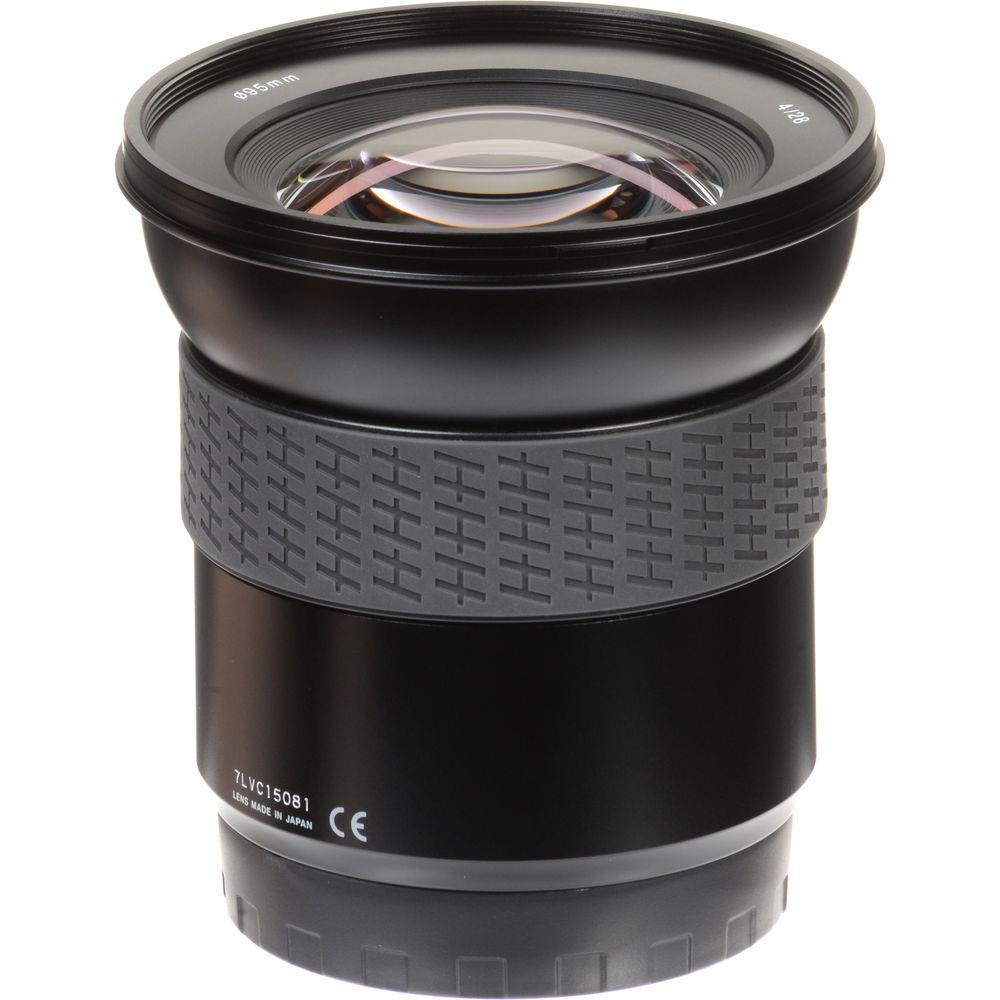

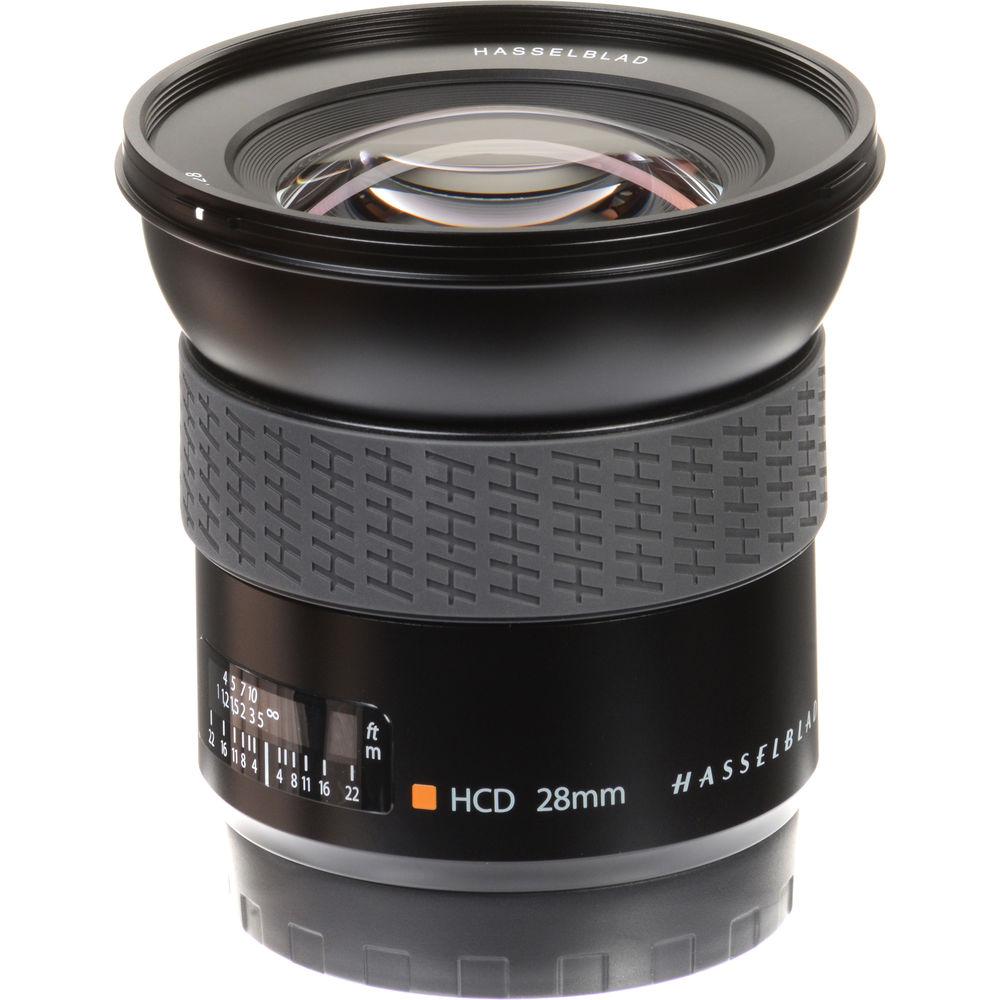

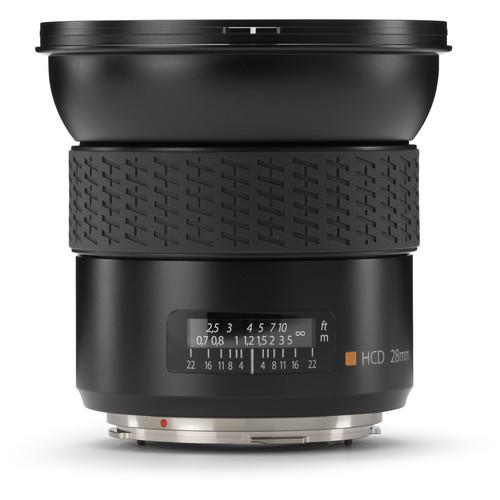

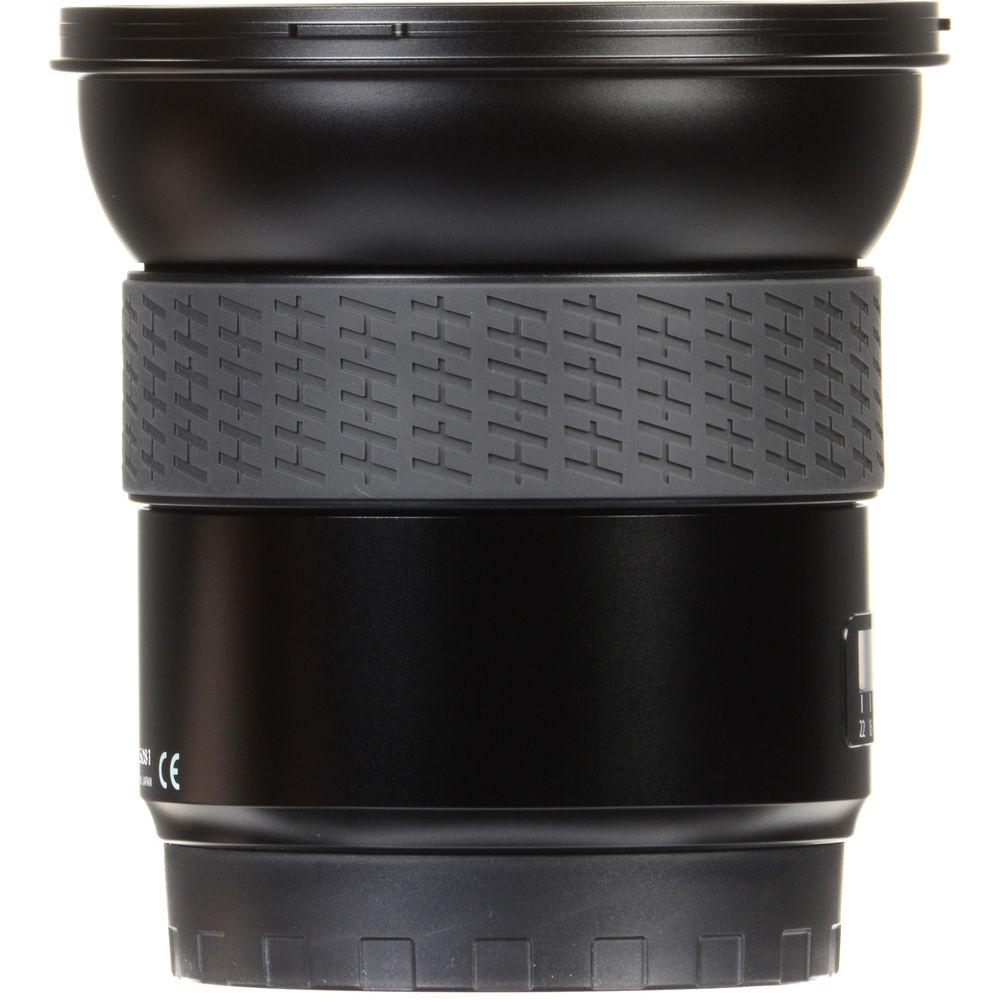

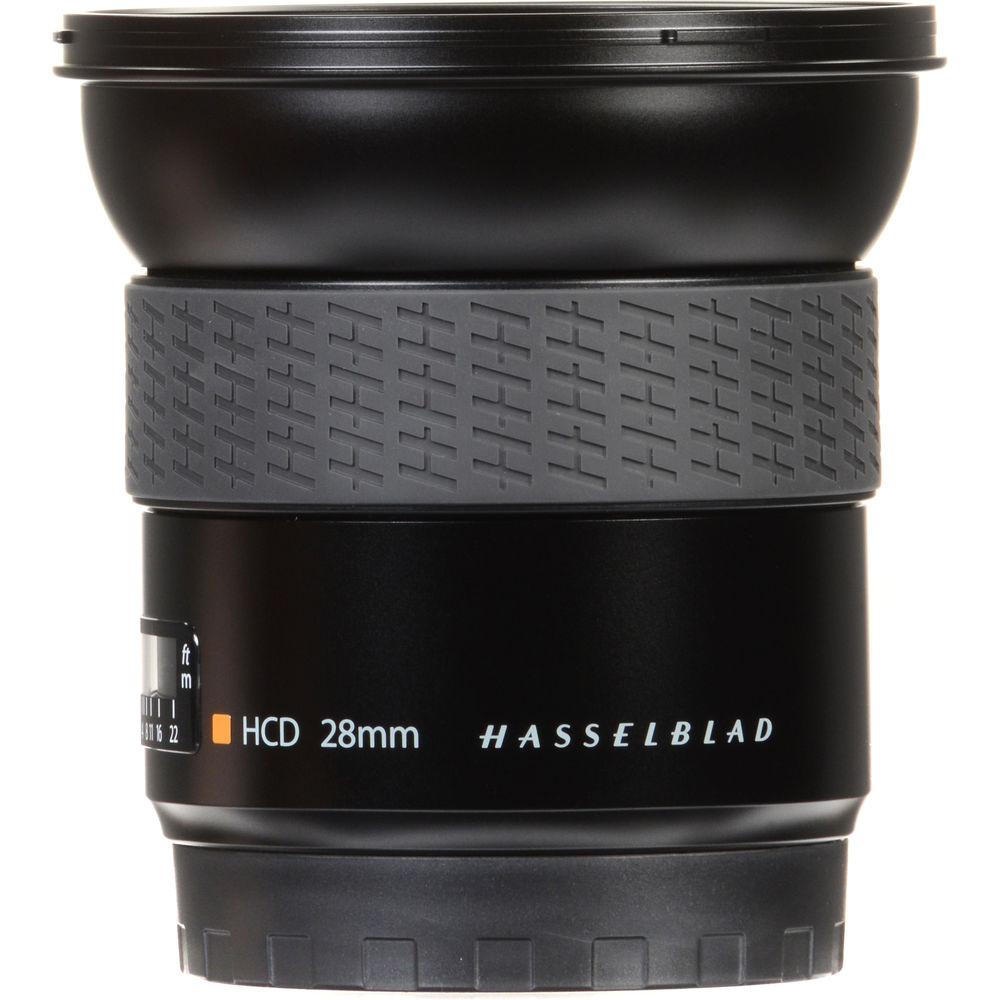

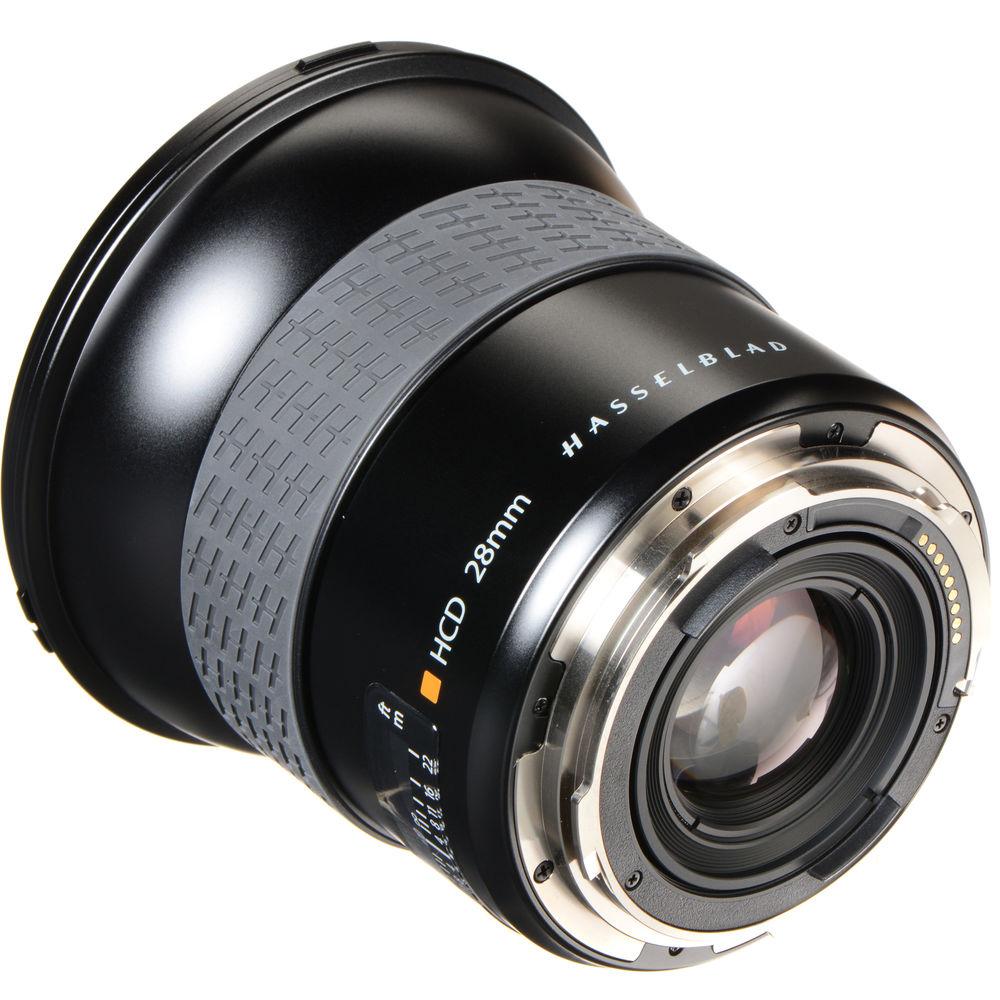

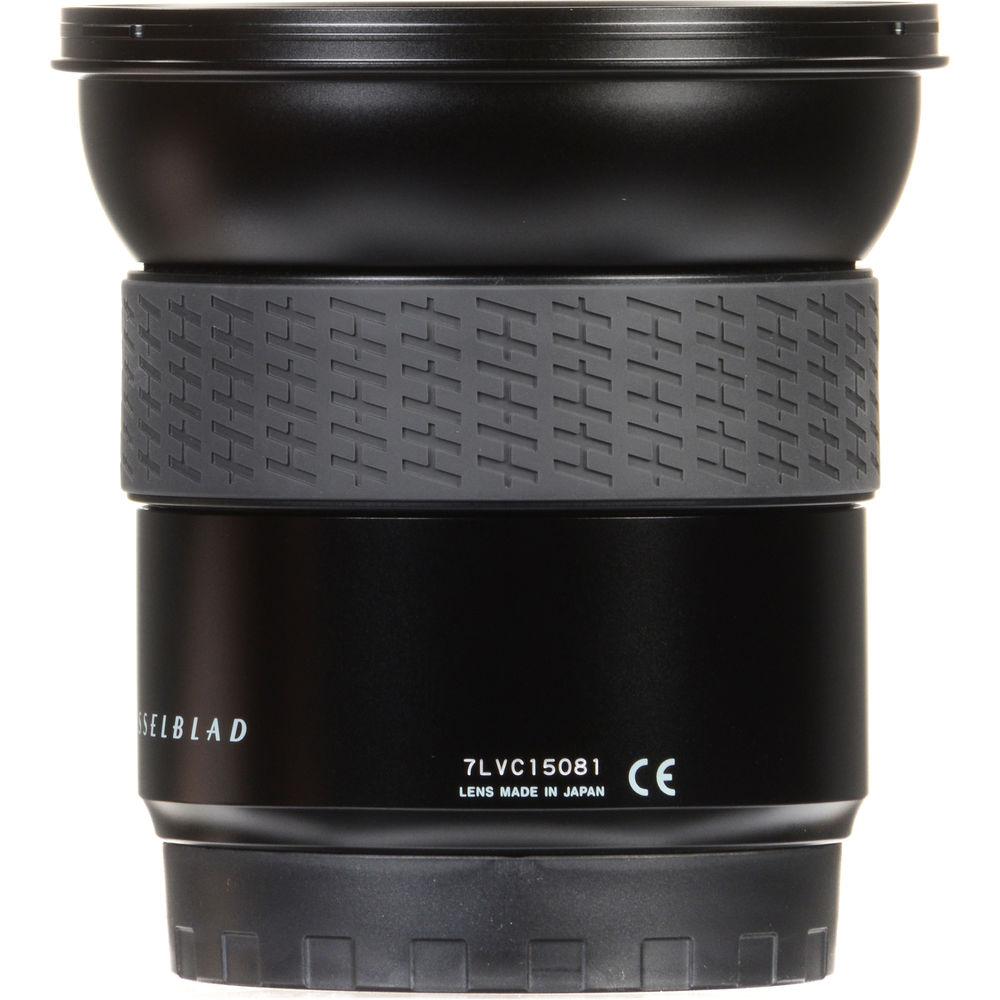

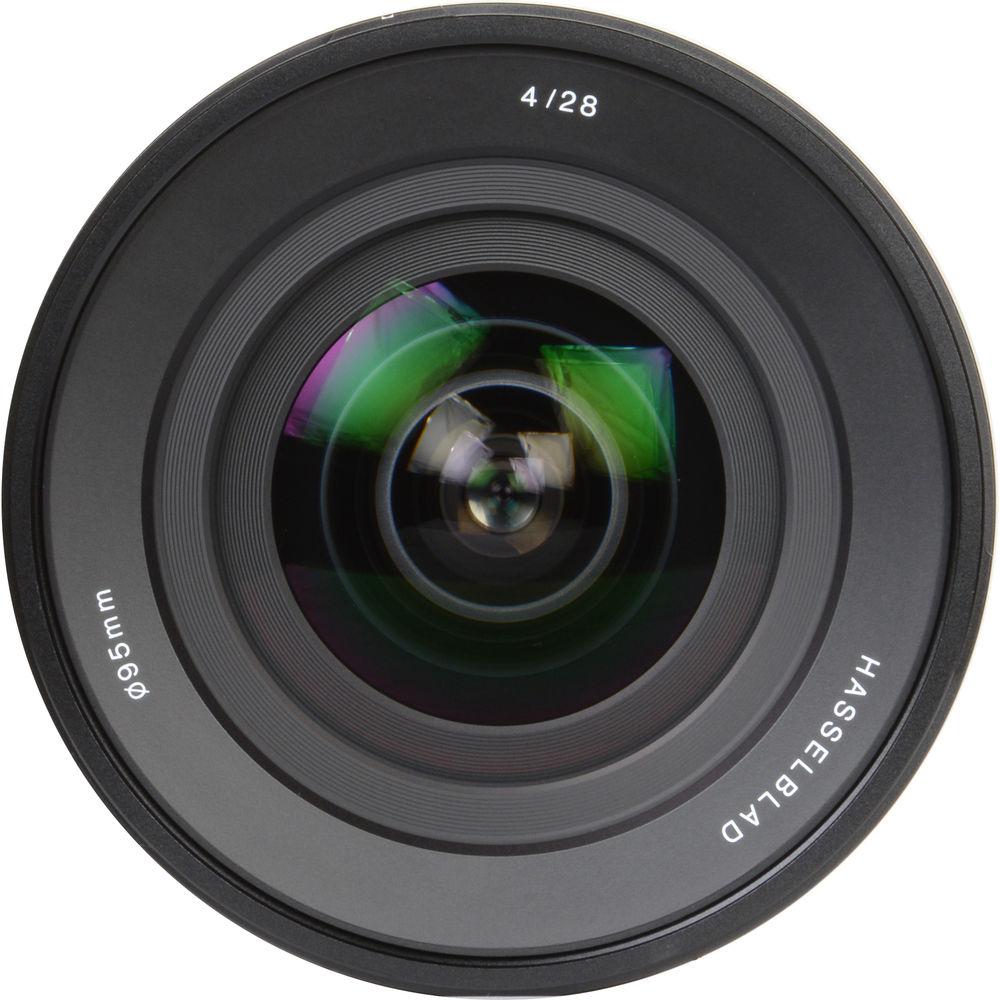

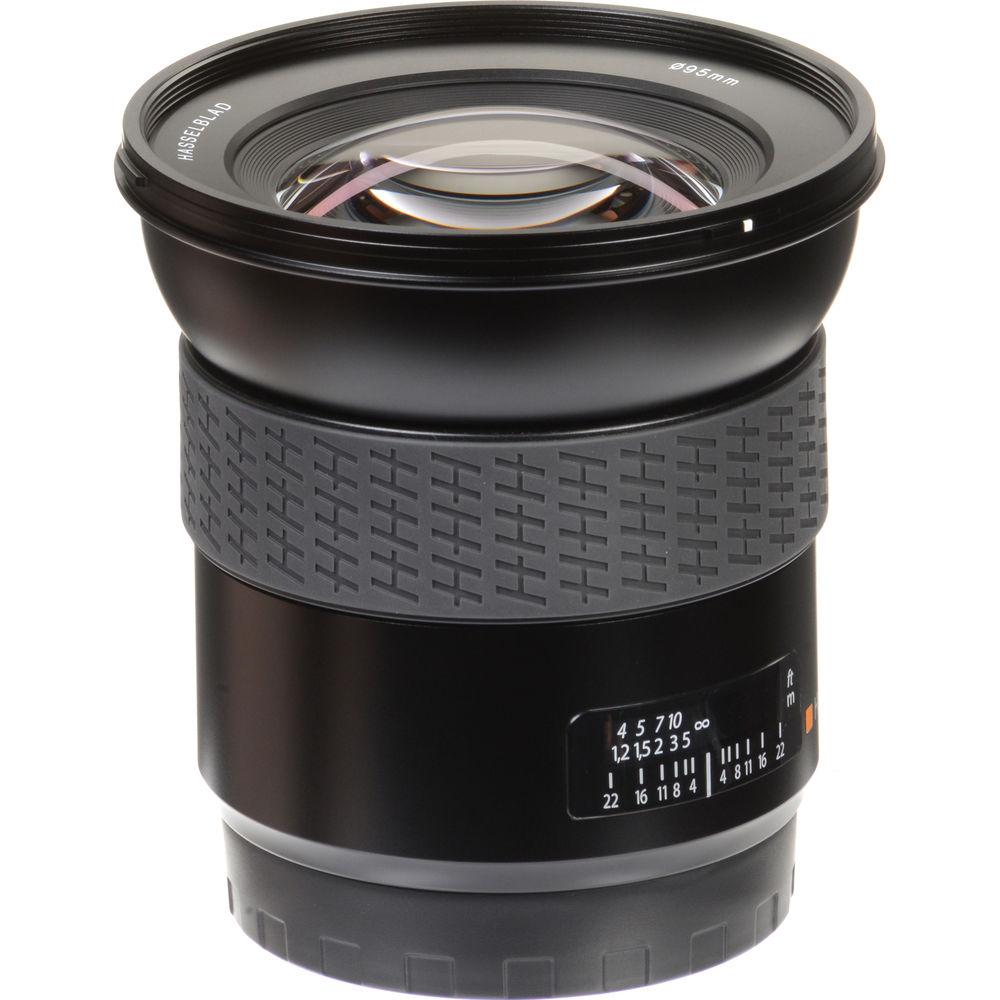

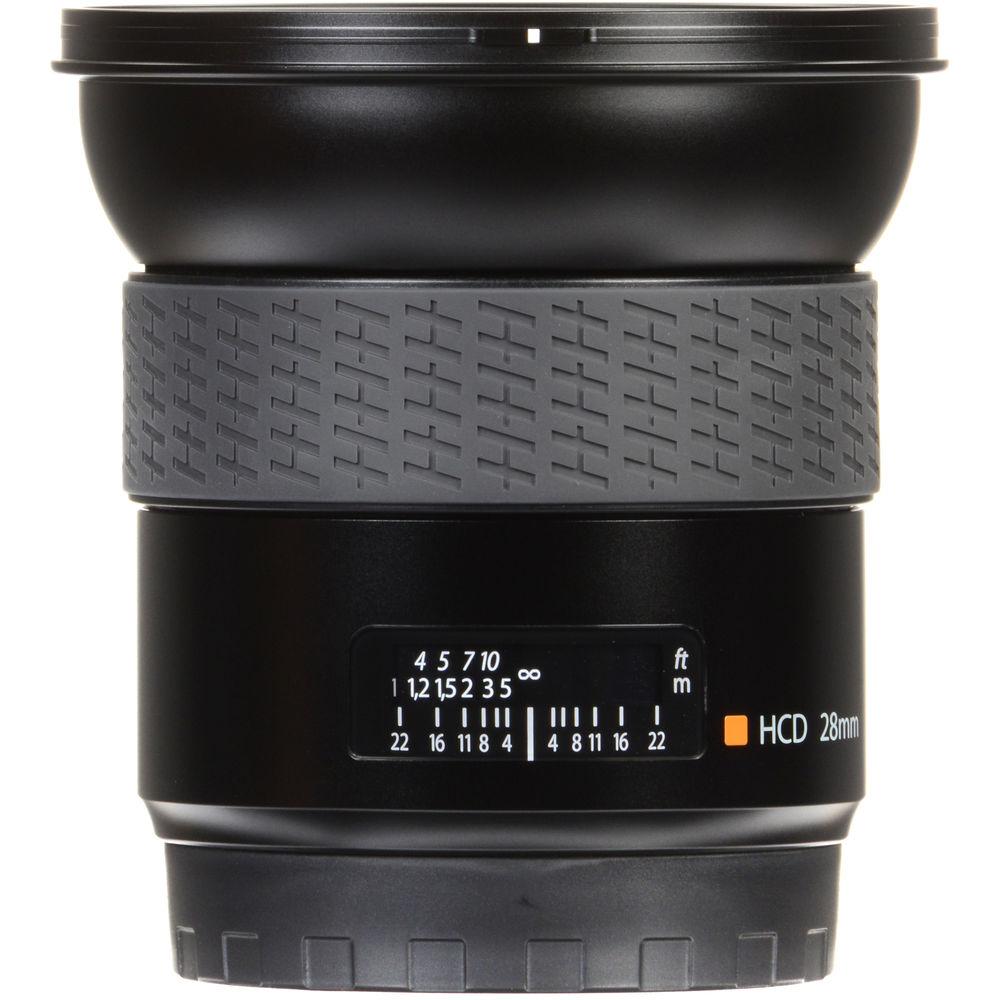

User Manual for Hasselblad HCD 28mm f 4 Lens Click to enlarge the picture
Contents of the user manual for the Hasselblad HCD 28mm f 4 Lens
- Product category: Medium Format Lenses Hasselblad
- Brand: Hasselblad
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hasselblad Medium Format Lenses
 |
User manual for the Hasselblad HCD 28mm f 4 Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hasselblad product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hasselblad user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hasselblad product will considerably shorten its lifespan!
|
Product description A truly wide-angle prime for the Hasselblad H system, the HCD 28mm f/4 Lens is distinguished by its improved shutter unit that supports working with shutter speeds up to 1/2000 sec, with flash sync available at all speeds. The advanced optical design of this lens affords consistent sharpness and clarity throughout the aperture range which pairs well with the expansive field of view that is well-suited to nature and landscape shooting applications. This 28mm f/4 lens also utilizes a retro focus design for quick autofocus performance and full-time manual focus override, as well as consistent image quality throughout the focusing range of 1.15' to infinity. - Updated HCD 28mm f/4 lens features an improved central shutter unit that offers a faster shutter speed range of up to 1/2000 sec, with flash sync available at all speeds. This lens is demarcated by an orange dot, and also features a more robust design that has been tested for up to 1,000,000 actuations.
- Impressive wide-angle prime offers a 95° angle of view, making it well-suited to landscape and architectural applications, and features a sophisticated optical design to provide edge-to-edge sharpness and illumination throughout the focusing range.
- Rear focusing AF lens with manual focus override for increased control when focusing as close as 1.15' away. Depth of field and distance scales are also featured in the design to aid in pre-focusing and hyperfocal focusing techniques.
In the Box Hasselblad HCD 28mm f/4 Lens Front and Rear Lens Caps Lens Hood Soft Lens Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hasselblad HCD 28mm f 4 Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHasselblad HCD Specs | Focal Length | 28.9 mm | | Aperture | Maximum: f/4
Minimum: f/32 | | Camera Mount | Hasselblad H | | Angle of View @ Infinity | 95° | | Minimum Focus Distance | 1.15' / 35 cm | | Area of Coverage | 36 x 27 cm | | Optical Design | 12 Elements in 9 Groups | | Maximum Reproduction Ratio | 1:7.3 | | Shutter Type | Electronic Leaf Shutter | | Flash Synchronization | Shutter Speed up to 1/2000 | | DOF Scale | Yes | | Distance Scale | Yes | | Autofocus | Yes | | Filter Thread | Front: 95 mm | | Dimensions | Approx. 3.94 x 4.02" (100 x 102 mm) | | Weight | 1.87 lb / 850 g | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 15.8 x 9.5 x 7.1" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 63 owners. Add your rating and experience with the product.
