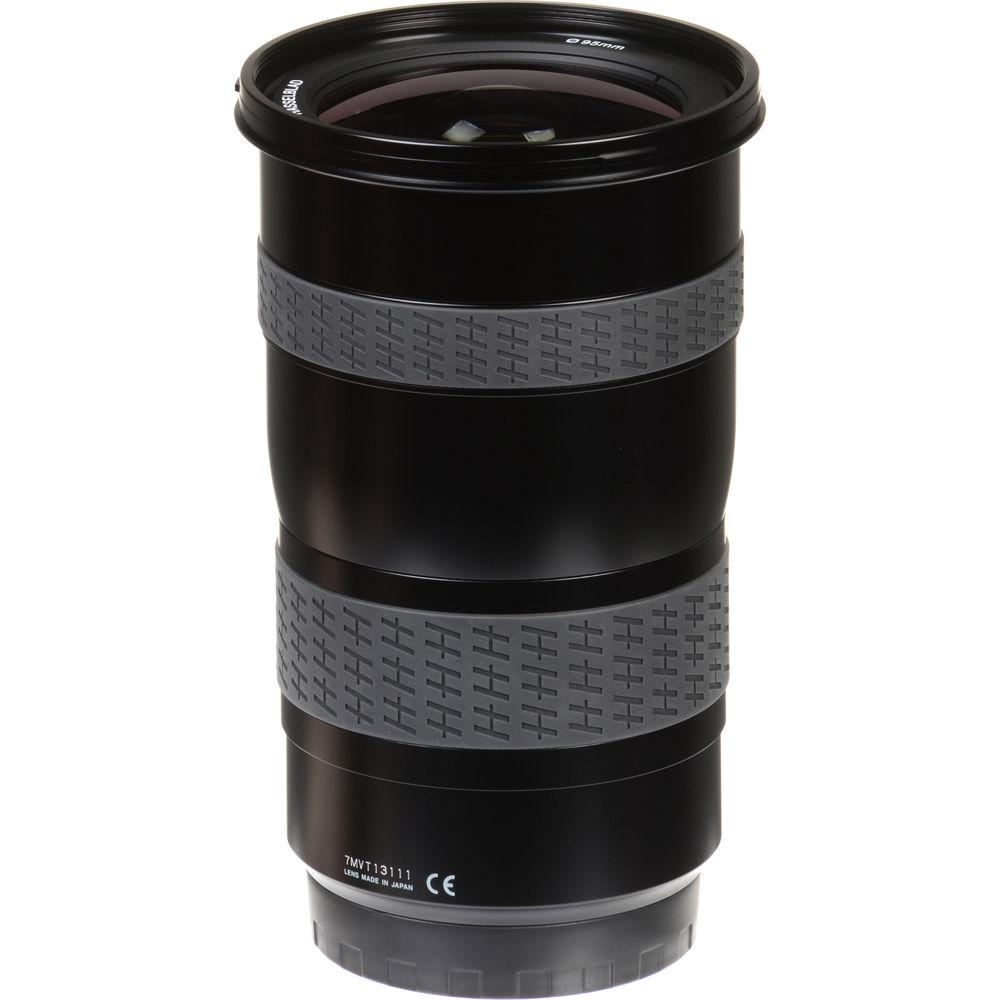

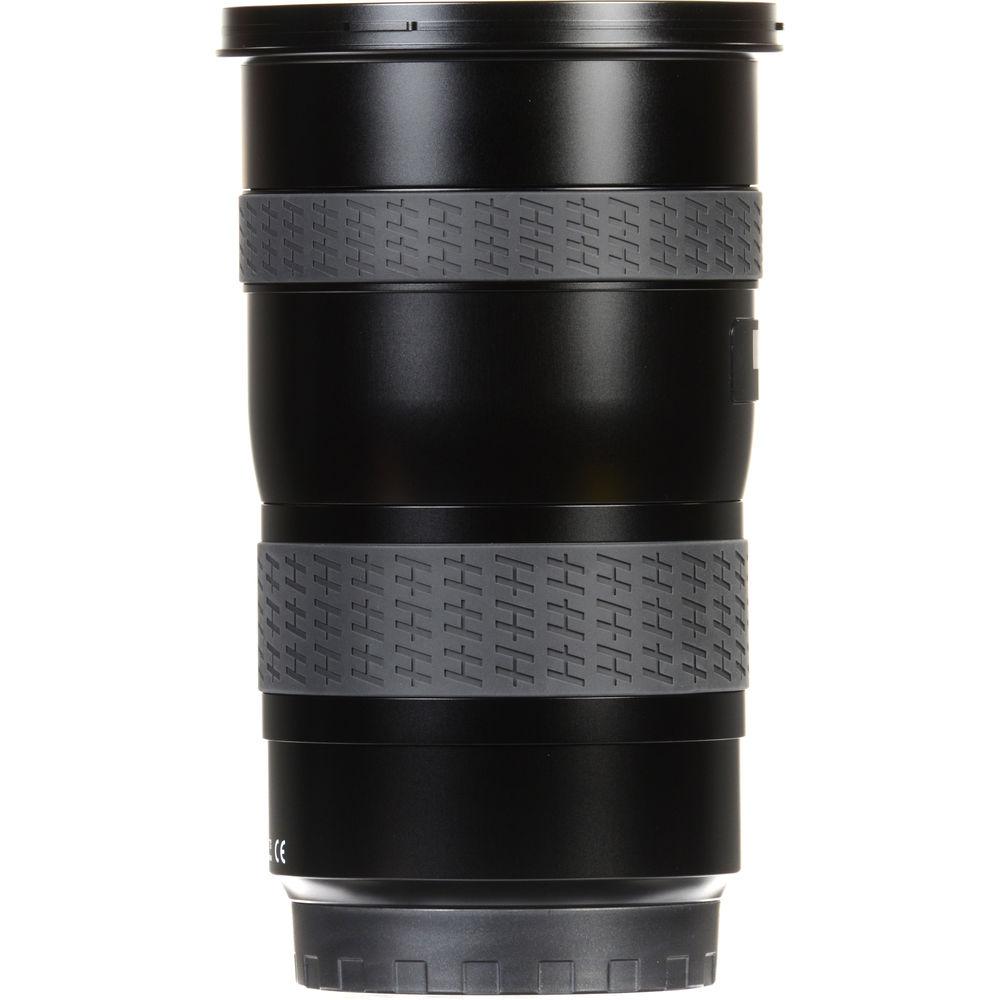

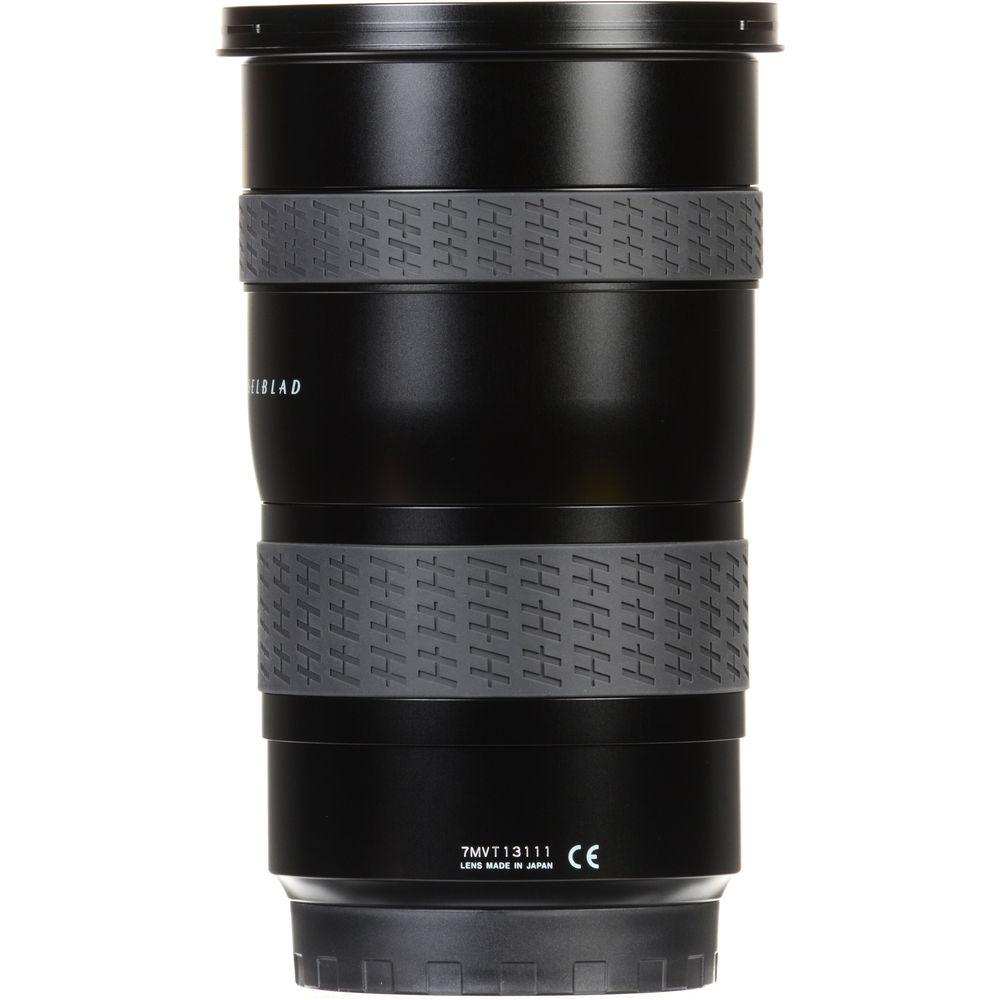

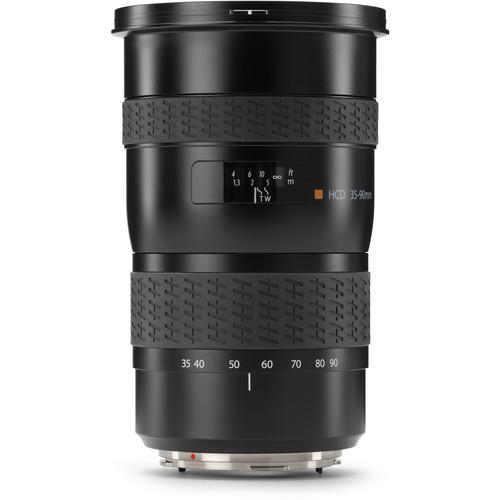

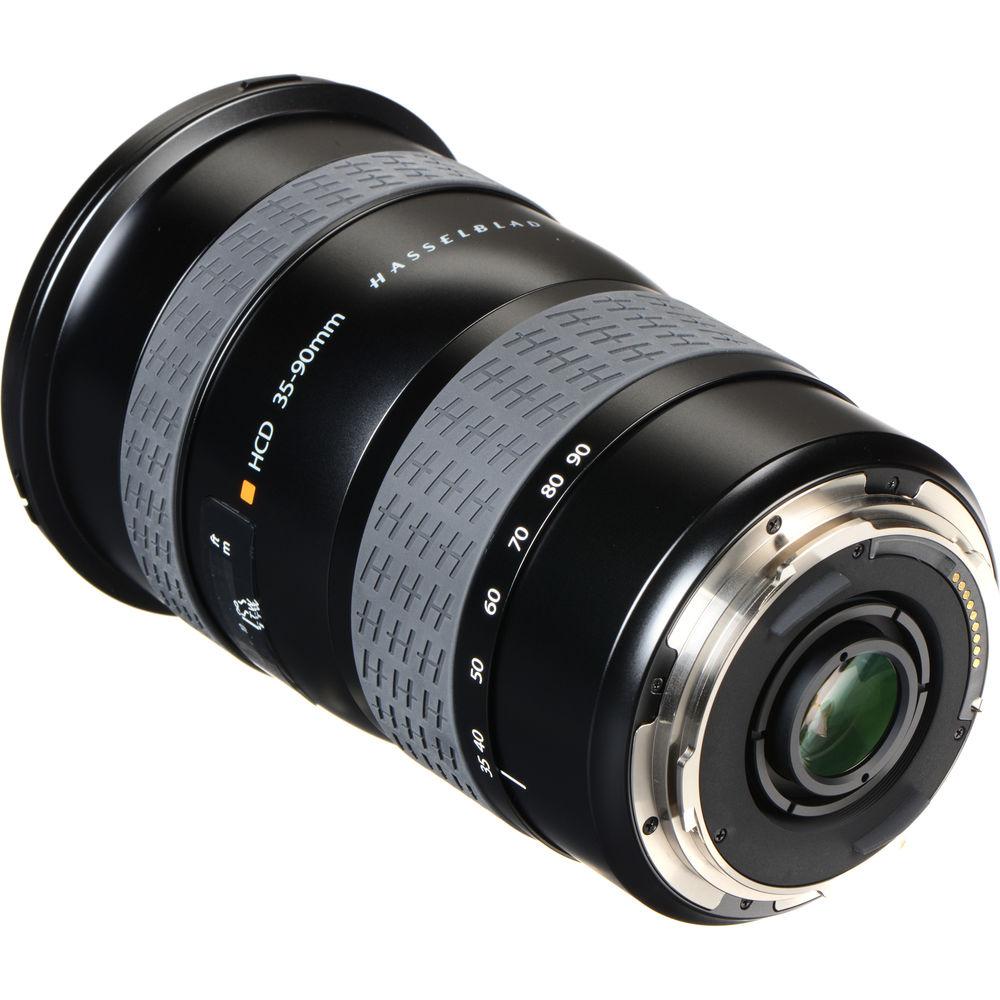

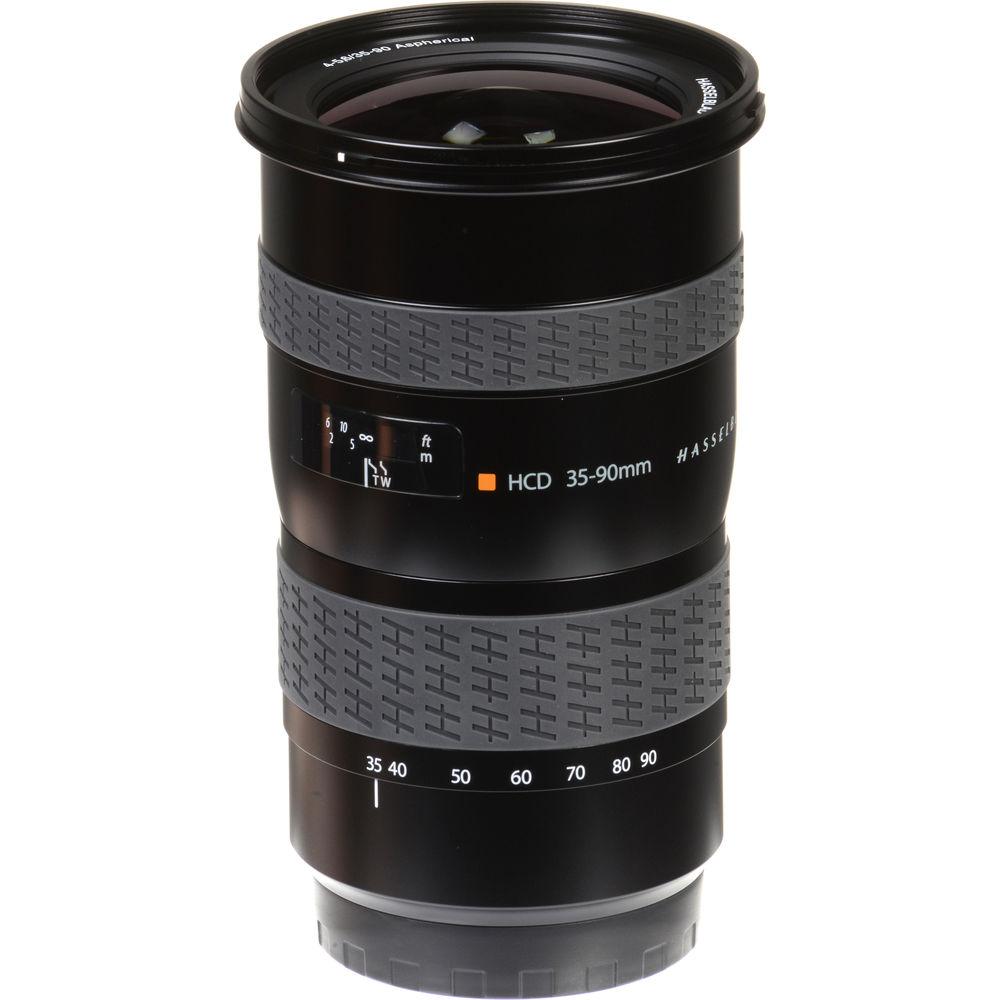

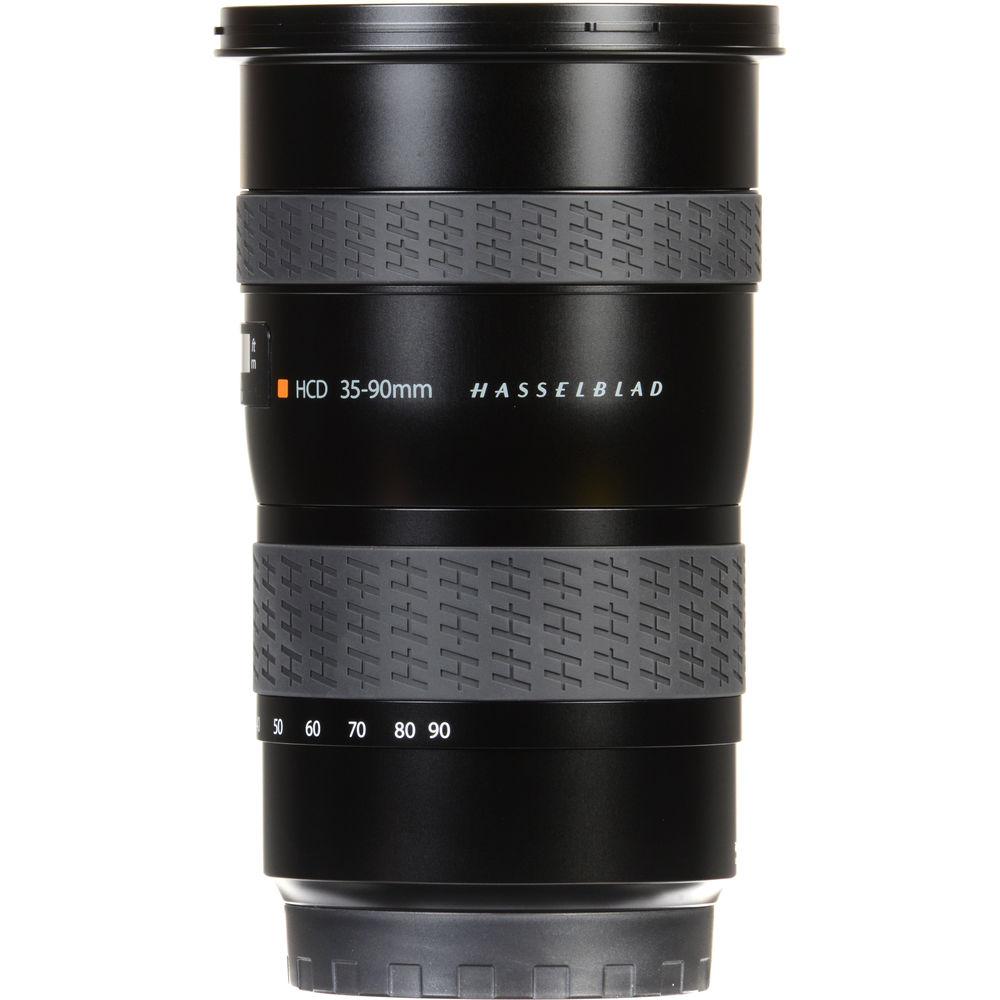

User Manual for Hasselblad HCD 35-90mm f 4-5.6 Lens Click to enlarge the picture
Contents of the user manual for the Hasselblad HCD 35-90mm f 4-5.6 Lens
- Product category: Medium Format Lenses Hasselblad
- Brand: Hasselblad
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hasselblad Medium Format Lenses
 |
User manual for the Hasselblad HCD 35-90mm f 4-5.6 Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hasselblad product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hasselblad user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hasselblad product will considerably shorten its lifespan!
|
Product description Stay on the move and forget about changing lenses by picking up the versatile HCD 35-90mm f/4-5.6 Lens from Hasselblad. This model is equipped with an improved shutter unit that permits shooting at shutter speeds up to 1/2000 sec. with flash sync supported at all speeds. The wide-angle to normal/slight telephoto perspective is going to be useful in a range of situations and environments. A variable maximum aperture of f/4-5.6 helps keep the lens relatively compact while allowing for great control over depth of field.

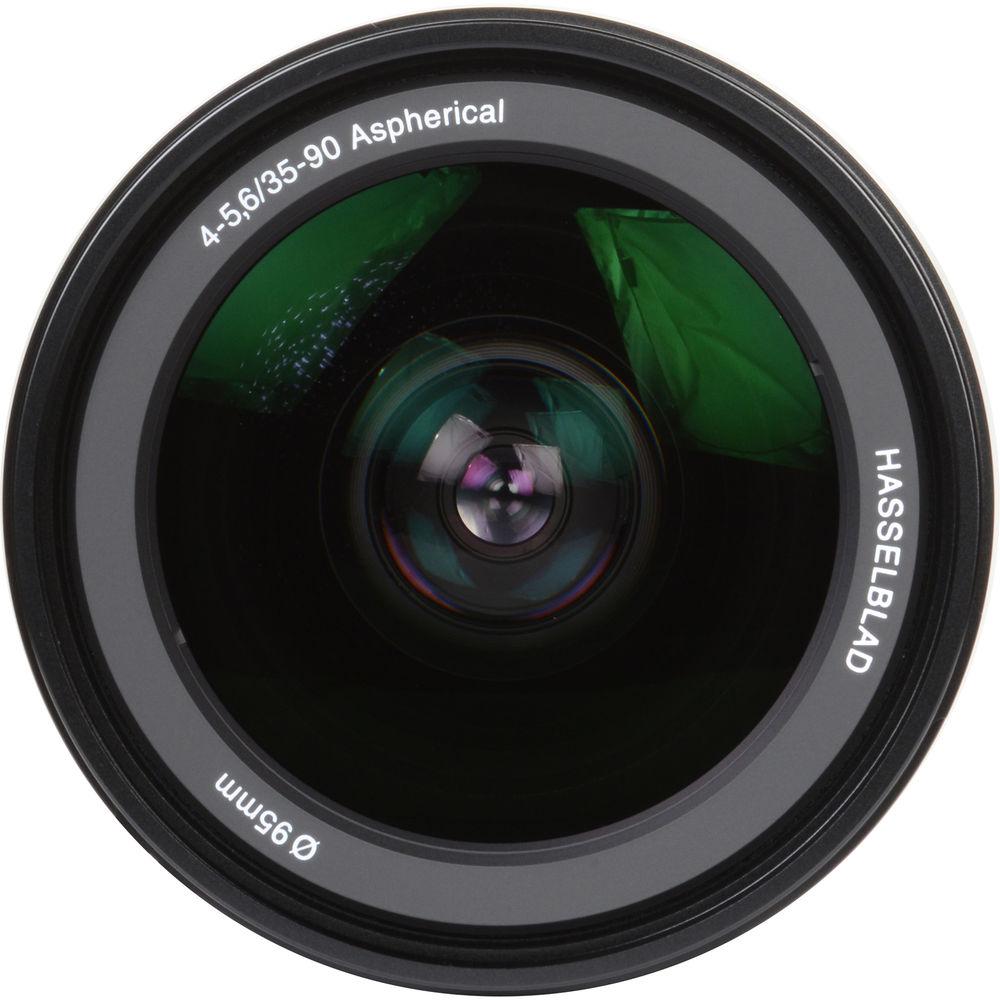

An aspherical surface helps guarantee superb performance throughout the range, resulting in one of the highest-quality zoom lenses available today. A 13 element in 11 groups construction furthers quality by minimizing distortion and maximizing sharpness throughout the zoom range. Also, it features an internal focus AF system with full-time manual override. Photographers will be able to capture subjects as close as 2.1' and, when desired, a 95mm front filter thread can be utilized. - Updated HCD 35-90mm f/4-5.6 lens features an improved central shutter unit that offers a faster shutter speed range of up to 1/2000 sec. with flash sync available at all speeds. This lens is demarcated by an orange dot, and also features a more robust design that has been tested for up to 1,000,000 actuations.
- A High-quality wide-angle to normal/slight telephoto lens with an 83-39° angle of view, this zoom features a variable f/4-5.6 maximum aperture that helps keep the lens compact while permitting control over depth of field.
- A complex 13 elements in 11 groups design uses an aspherical surface to maximize image quality by minimizing the impact of aberrations and distortion.

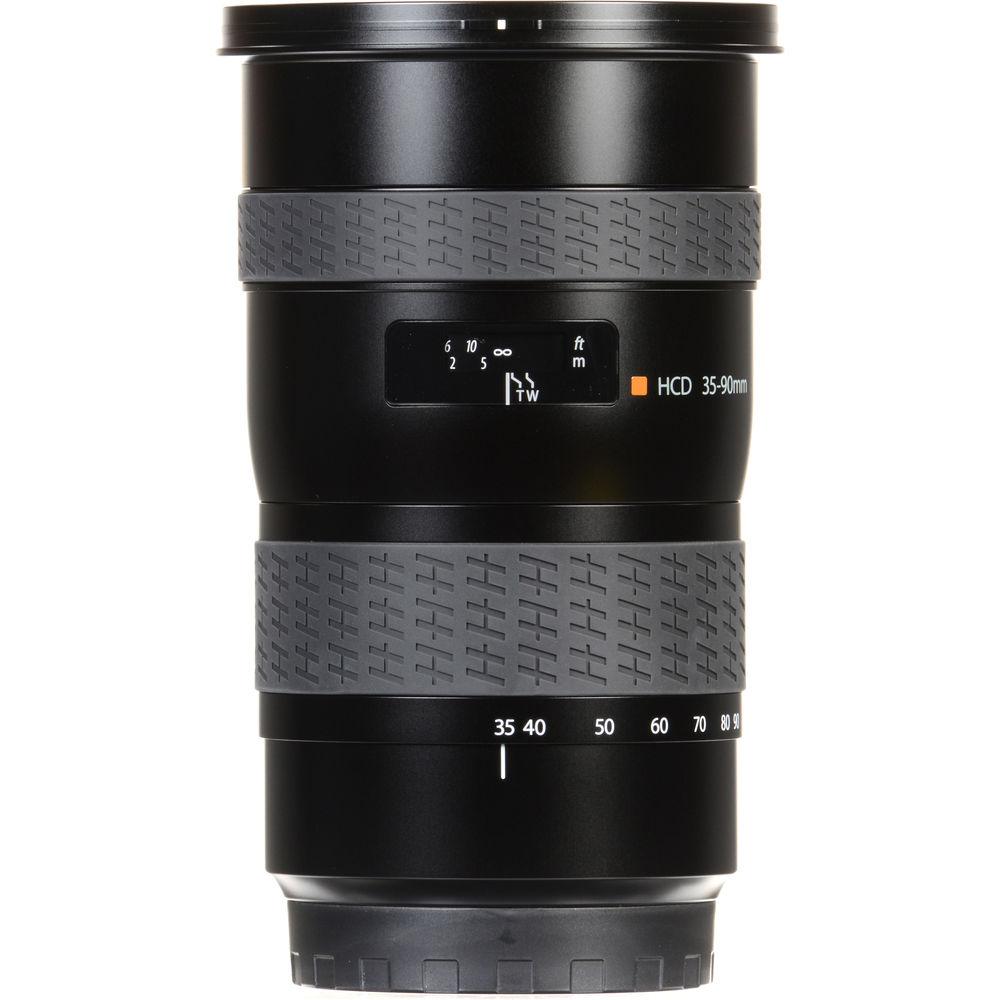

- Internally focusing AF lens with manual focus override for increased control when focusing as closely as 2.1' away. Depth of field and distance scales are also featured in the design to aid in pre-focusing and hyperfocal focusing techniques.
In the Box Hasselblad HCD 35-90mm f/4-5.6 Lens Front and Rear Lens Caps Lens Hood Soft Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hasselblad HCD 35-90mm f 4-5.6 Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHasselblad HCD Specs | Focal Length | 36.3 - 87 mm | | Aperture | Maximum: f/4.0 - 5.6
Minimum: f/32 | | Camera Mount | Hasselblad H | | Angle of View @ Infinity | 83° - 39° | | Minimum Focus Distance | 2.13' / 65 cm | | Area of Coverage | 64 x 48 cm | | Optical Design | 13 Elements in 11 Groups | | Maximum Reproduction Ratio | 1:5.4 | | Shutter Type | Electronic Leaf Shutter | | Flash Synchronization | Shutter Speed up to 1/2000 | | DOF Scale | Yes | | Distance Scale | Yes | | Autofocus | Yes | | Filter Thread | Front: 95 mm | | Dimensions | Approx. 6.57 x 4.04" (167.0 x 102.5 mm) | | Weight | 49.74 oz / 1410 g | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 14.5 x 9.5 x 6.8" |
