Hasselblad X1D-50c Medium Format Mirrorless Digital

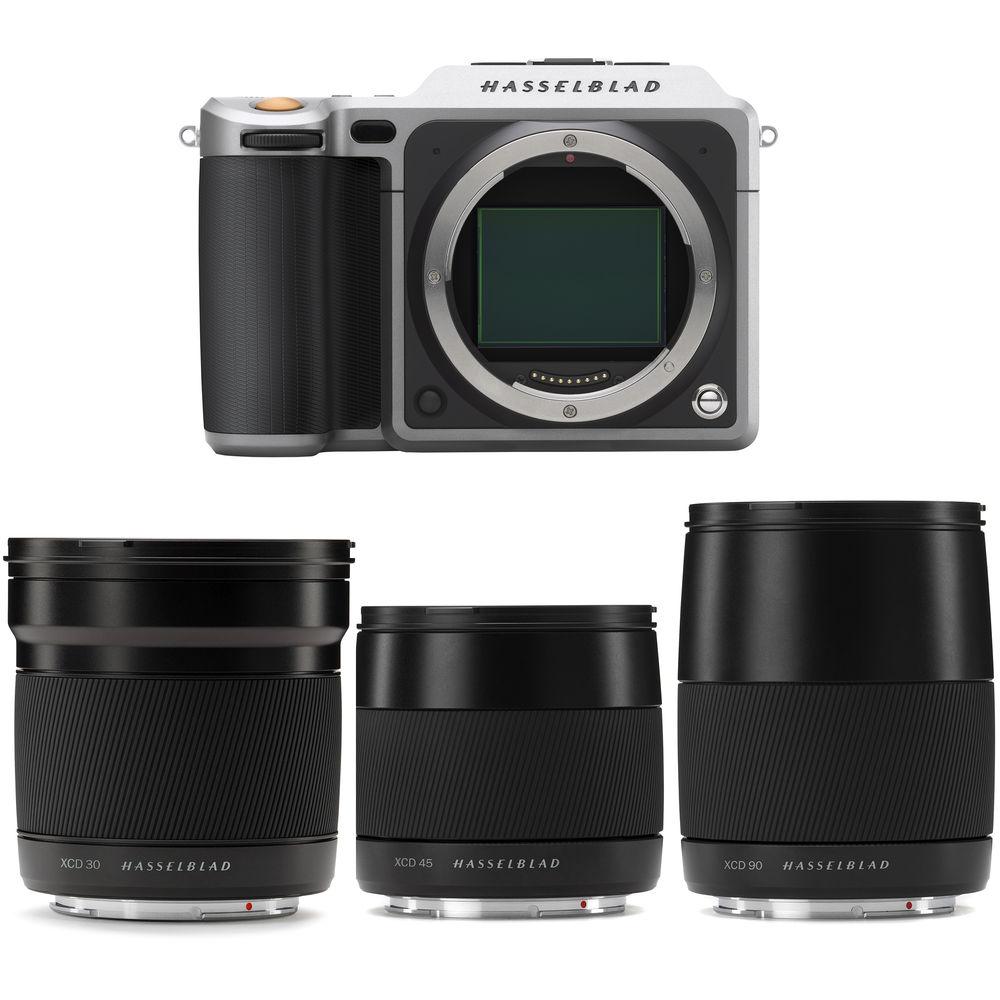

User Manual for Hasselblad X1D-50c Medium Format Mirrorless Digital Camera and Lenses Field Kit

• Product category: Medium Format Cameras Hasselblad
• Brand: Hasselblad
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Hasselblad Medium Format Cameras

Product description

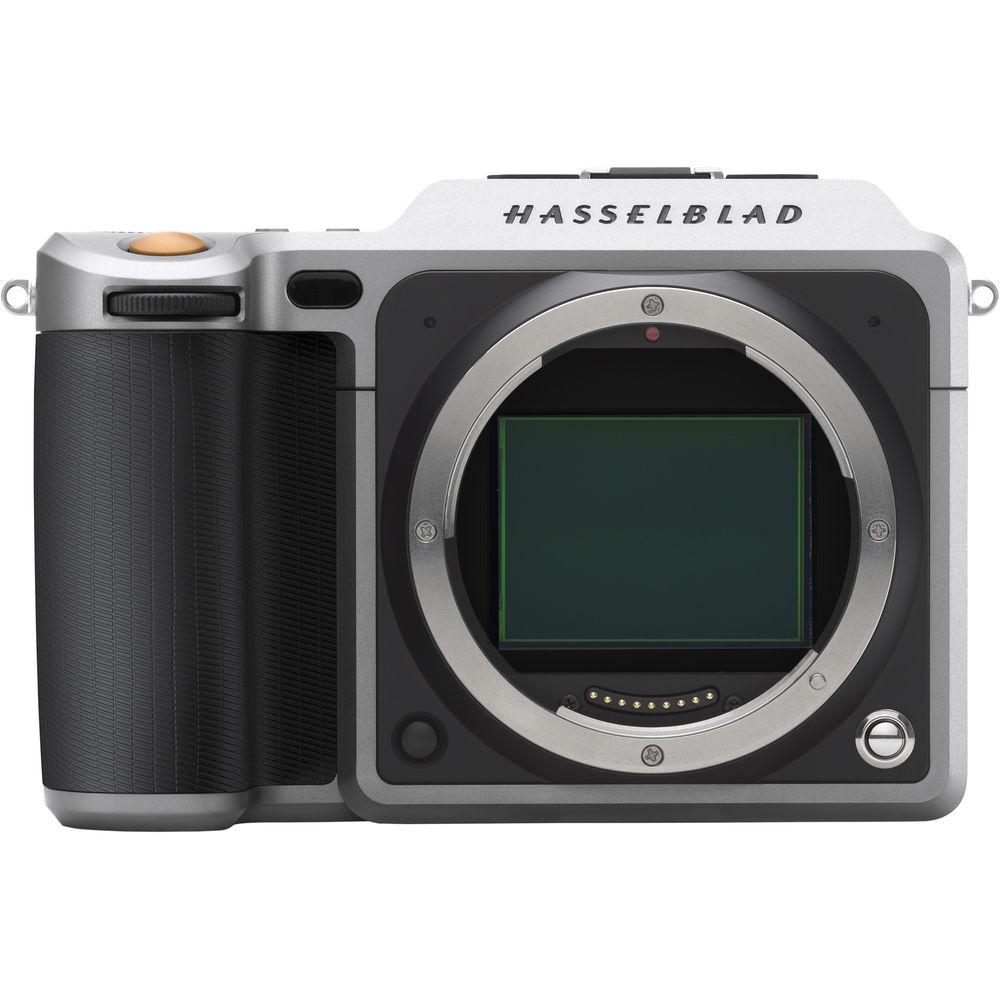

• X1D-50c Medium Format Mirrorless Digital Camera (Body Only, Silver) Determined to shake up the photographic industry, Hasselblad has unleashed a world's first in the form of the silver X1D-50c Medium Format Mirrorless Digital Camera. This camera takes the well-regarded 50MP 43.8 x 32.9mm CMOS sensor found in numerous medium format systems and incorporates it into a revolutionary mirrorless camera body. Designed and handmade in Sweden, this camera is a precision tool with exceptional ergonomics and a compact size that even rivals smaller format systems. Taking this system above and beyond the rest is a large sensor that works hand-in-hand with the Hasselblad Natural Color Solution to create phenomenal raw images with smooth tonal gradations thanks to 16-bit color depth and 14 stops of dynamic range.

  Image quality is superb, and Hasselblad's electronic system is capable of capturing clean images within a sensitivity range of ISO 100-25600, while also being able to capture photos at a rate of up to 2.3 fps. Moving a bit beyond pure image quality, the X1D embraces the Hasselblad Central Lens Shutter, enabling shutter speeds as long as 60 minutes or as short as 1/2000 second, with flash sync possible at every speed. Additionally, to make the camera more versatile, Full HD 1080p video at 25 fps using H.264 compression is possible.

  Moving into operational details, the X1D embraces mirrorless design by incorporating a 2.36MP XGA electronic viewfinder that permits natural, eye-level monitoring with the added advantage of overlays and programmable information in direct sight. One such feature would be the ability to shoot in various aspects with a view that compensates for such changes, including square or the classic XPan panoramic format. Alongside this EVF is a 3.0" 920k-dot touchscreen LCD on the rear that permits intuitive operation of all of the camera's features and settings.

  For more physical and tactile use, the X1D offers front and rear dials as well as a mode dial which can be locked into a recessed position to prevent accidental changes when it is in your bag. There are also dual SD card slots for backup, organization, or just having extra storage. Bringing the system into the modern age is built-in Wi-Fi, allowing for remote connection and file transfer. Additionally, it has Mini HDMI, audio input and output, and a super-fast USB 3.0 Type C connection.
  Hasselblad X System
  • Introducing mirrorless medium format, Hasselblad's X system takes the outstanding quality of a larger sensor and manages to create a compact, yet uncompromising camera that will deliver almost unparalleled image quality. It is designed and made in Sweden and draws inspiration from the company's legendary V system. Also, making use of the mirrorless design and a central lens shutter, system noise is kept to a minimum for shooting without disturbing your subject.
  50MP CMOS Sensor
  • Revolving around a large 50MP CMOS sensor, measuring 43.8 x 32.9mm, the X1D-50c is capable of capturing an extremely wide dynamic range of up to 14 stops along with vivid 16-bit color depth. When combined with the Hasselblad Natural Color Solution, tonal transitions and skin tones show immense depth, detail, and clarity for lifelike image quality, even in dark shadow and bright highlight regions. To suit working in a variety of lighting conditions, a sensitivity range of ISO 100-25600 is available, and still files are saved in the Hasselblad 3FR raw file format.
  Hasselblad Natural Color Solution
  • Working with the spectacular image quality of the 50MP CMOS sensor, the Hasselblad Natural Color Solution is designed to deliver images with the most natural color without needing to delve into a variety of presets. This system is also capable of creating imagery with exceptionally smooth tonal transitions that are reminiscent of analog film capture, which is thanks in part to the X1D's 16-bit color depth.
  Hasselblad Central Lens Shutter
  • Able to accelerate to open and close exceptionally quickly and reliably while also using minimal power, the central lens shutter mechanism offers numerous advantages for photographers. Namely, flash sync is possible at all shutter speeds up to 1/2000 second. The shutter is also in a ready state at all times for near instant response and it causes virtually no vibration at longer exposures. Additionally, it is durable and rated to beyond 1,000,000 exposures.
  Full HD Video Recording
  • In addition to high-resolution stills shooting, the X1D can also record Full HD 1080p video at 25 fps. Video can be saved in the H.264 compressed format for greater editing flexibility with a variety of software options. For further video recording capabilities, the X1D offers 3.5mm audio input and output jacks as well as a Mini HDMI port for monitoring.

  System Design and Connectivity

  • Built-in 3.0" 920k-dot touchscreen LCD affords intuitive control over settings navigation and adjustment, and also permits bright, clear live view monitoring.
  • Integrated 2.36MP XGA electronic viewfinder permits natural eye-level viewing as well as the ability to display overlays and additional information clearly and effectively during shooting. It also displays the capture area when set to shoot 39MP square format or XPan panoramic images.
  • USB 3.0 Type-C connector offers transfer speeds of up to 5 Gbps for quick and responsive tethered live view and stills capture.
  • In addition to tethered shooting, dual SD memory card slots are incorporated into the side for flexible storage capabilities. Multiple options are available for maximum flexibility, including the ability to save all images to one card and automatically switch to the other when it is full as well as save RAW images to card 1 and JPEG to card 2.
  • Benefitting video applications, a Mini HDMI port permits use of an optional external monitor for clear monitoring. Additionally, 3.5mm audio in and out ports are provided for more flexible control over audio recording during video.
  • Built-in Wi-Fi enables working with an iOS mobile device and the Phocus Mobile app for remote camera control, wireless image previews, and file browsing.
  • Optimized for use with XCD series of lenses which offer an integrated central shutter system capable of sync speeds up to 1/2000 sec.
  • Optional adapter provides compatibility with the updated range of HC and HCD lenses, which feature an improved leaf shutter unit for increased shutter and flash sync speeds of up to 1/2000 sec.
  • Weather and dust sealing ensures this system can stand up to all environmental conditions professionals find themselves in.
  • Phocus 3.1 is a free image processing software that complements the X1D's capabilities, and enables raw file processing for both stills and video, as well as a range of editing capabilities, including automatic moiré detection and the ability to work with adjustment layers for applying exposure, white balance, and color corrections.

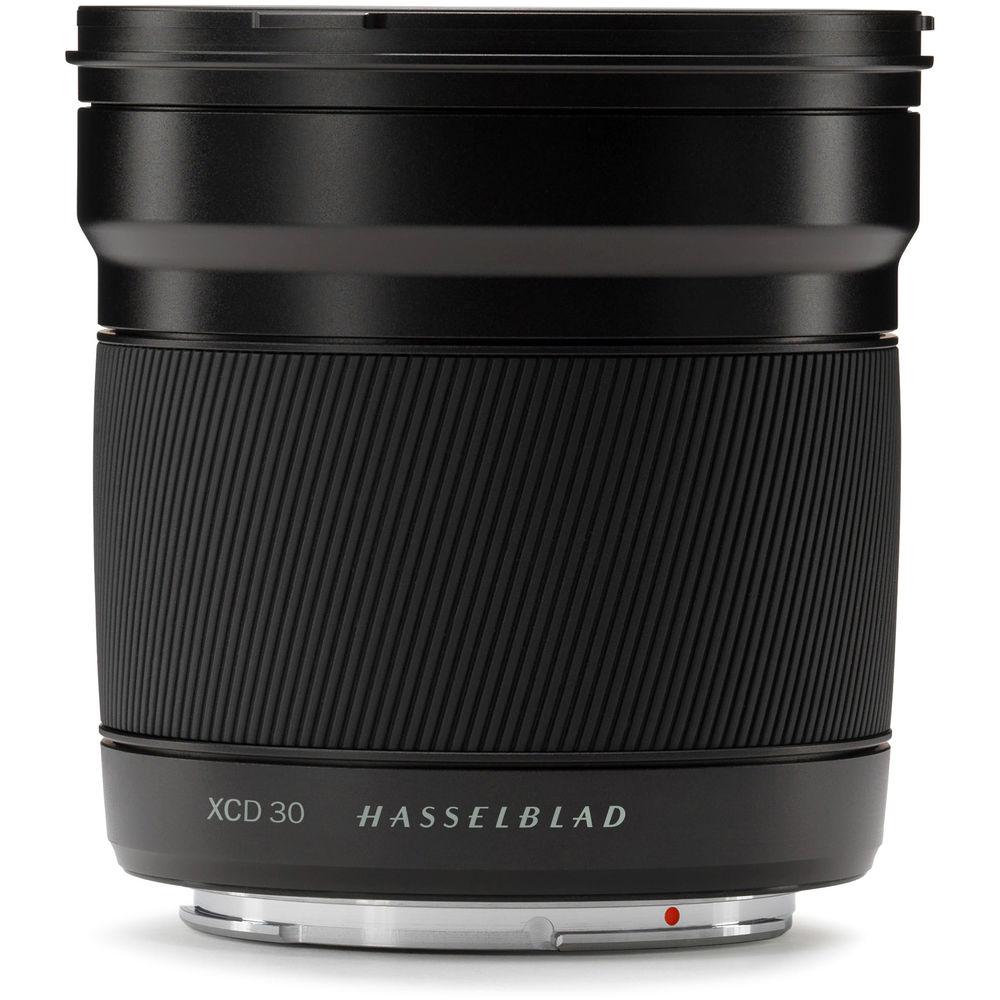

• XCD 30mm f/3.5 Lens With a sleek design to match the X1D camera system, the XCD 30mm f/3.5 Lens from Hasselblad is a wide-angle, 24mm equivalent prime designed to cover the camera's large 43.8 x 32.9mm sensor area. This wide lens, with a 71° angle of view, is well-suited to landscape, architectural, and reportage shooting applications. It also features a 1.3' minimum focusing distance along with an optical design meant to maintain image quality and sharpness throughout the focusing range for accurate depiction of close-up subjects. Like other XCD lenses, the 30mm f/3.5 has an integrated Central Lens Shutter that is capable of shutter speeds up to 1/2000 sec with flash sync at all speeds, and its internal autofocus design can be manually overridden for precise manual focusing control.

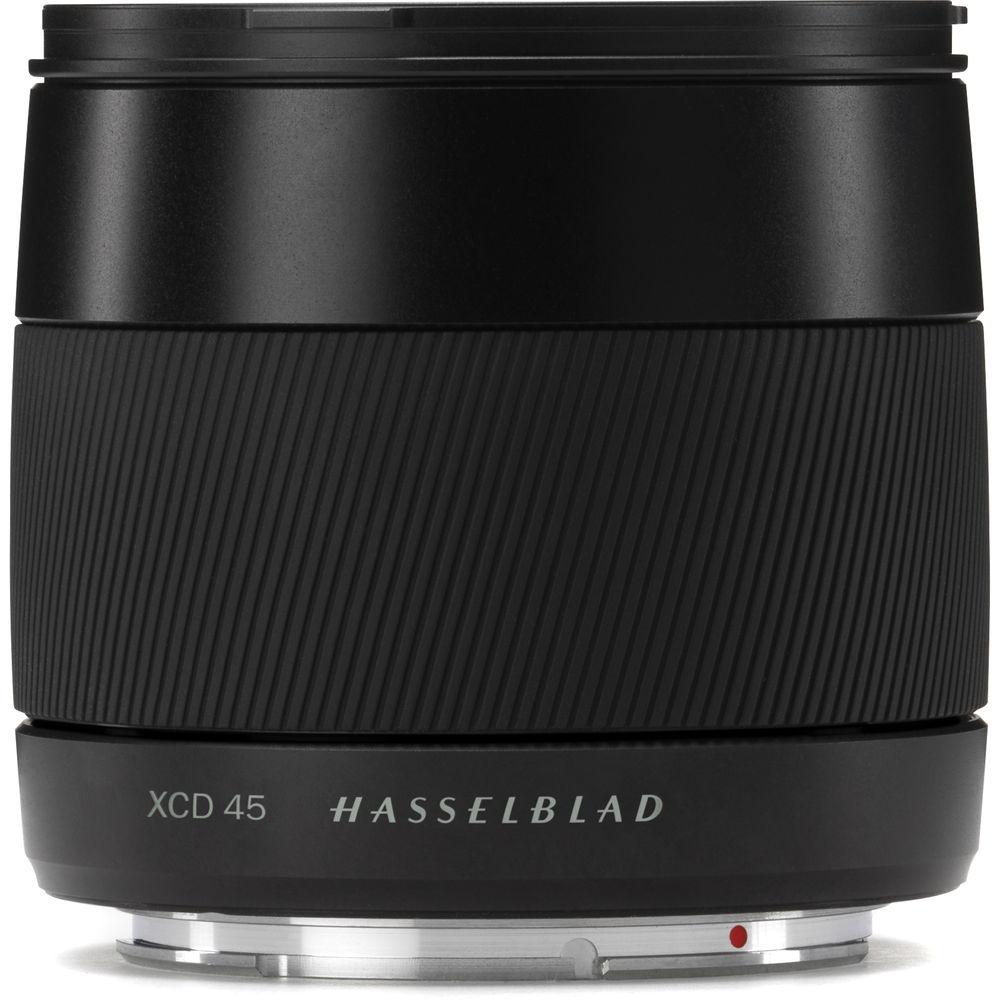

• XCD 45mm f/3.5 Lens Incorporating exceptional optics and beautiful a design signature of Hasselblad, the XCD 45mm f/3.5 Lens will deliver crisp, finely detailed images for the mirrorless X system. Covering a large 44 x 33mm sensor area, this lens provides a wide angle 35mm equivalent focal lent when compared to more common full-frame sensors. It also offers a huge advantage in the form of an integrated Central Lens Shutter capable of flash sync up to 1/2000 second. During general use it can focus as close as 1.3' and offers autofocus with internal focusing and full-time manual focus override. Additionally, it has a 67mm front filter thread.

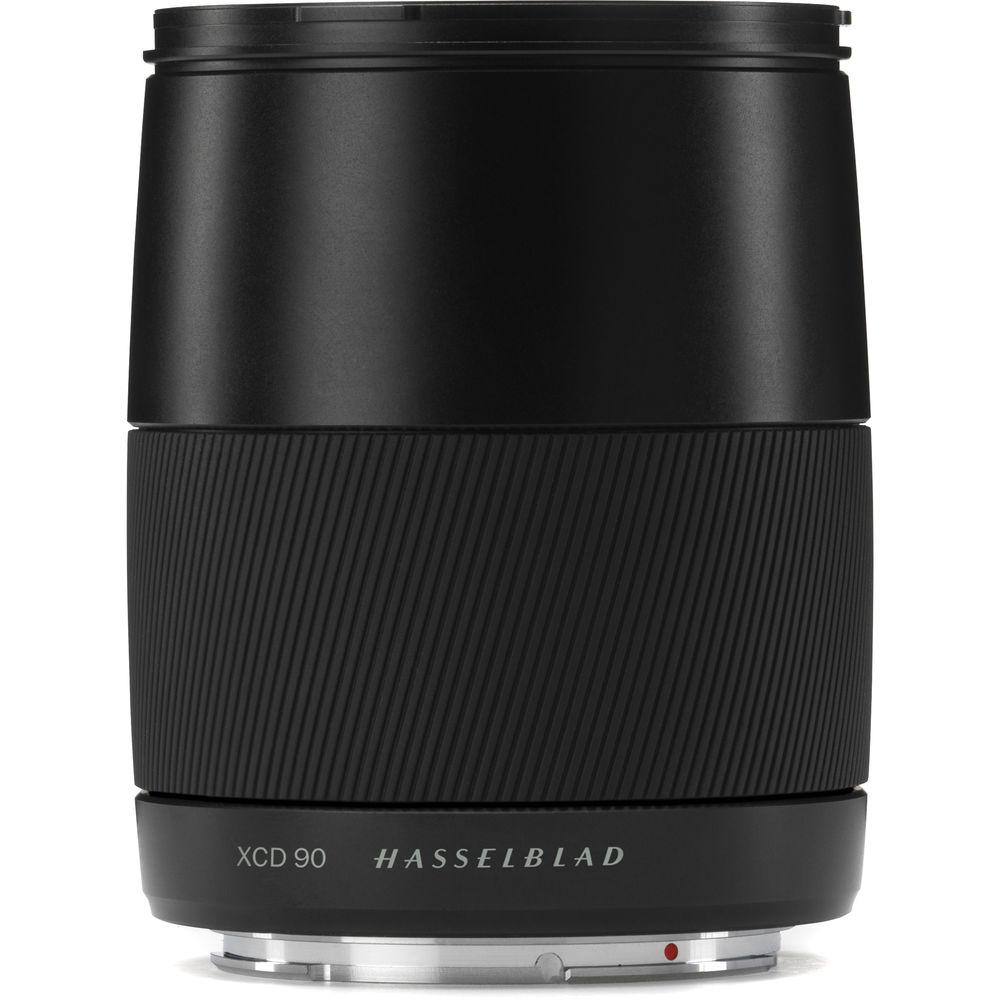

• XCD 90mm f/3.2 Lens Providing a flattering short telephoto perspective equivalent to 71mm on full-frame sensor, this exceptional XCD 90mm f/3.2 Lens from Hasselblad will allow users of the mirrorless X system to realize the full potential of their medium format system. It also offers a huge advantage in the form of an integrated Central Lens Shutter capable of flash sync up to 1/2000 second. During general use it can focus as close as 2.3' and offers autofocus with internal focusing and full-time manual focus override. Additionally, it has a 67mm front filter thread.
• H-3054752 Rechargeable Battery (3200mAh) The 3200mAh Hasselblad H-3054752 Rechargeable Battery is a lithium-ion battery for the X1D-50c camera. It is sold here as a spare or replacement item.

• X1D Camera Front Cover for X1D-50c

• H-3054752 Rechargeable Battery (3200mAh)

• Flash Shoe Cover for X1D

• BCX-1 Battery Charger for X System

• USB 3.1 Gen 1 Type-C Male to USB Type-A Male Cable (6.6')

• X1D Shoulder Strap

• SD Memory Card

• USB Drive with Software & Documentation

• Limited 1-Year Warranty

• 77mm Front Lens Cap For H Series Cameras

• Rear Lens Cap

• Lens Pouch

• Limited 1-Year or 1,000,000 Exposure Warranty

• Front Lens Cap for - 67mm - For H Series Cameras

• Lens Hood

• Lens Pouch

• Limited 1-Year or 1,000,000 Exposure Warranty

• Front Lens Cap for - 67mm - For H Series Cameras

• Lens Hood

• Lens Pouch

• Limited 1-Year or 1,000,000 Exposure Warranty

• Limited 1-Year Warranty

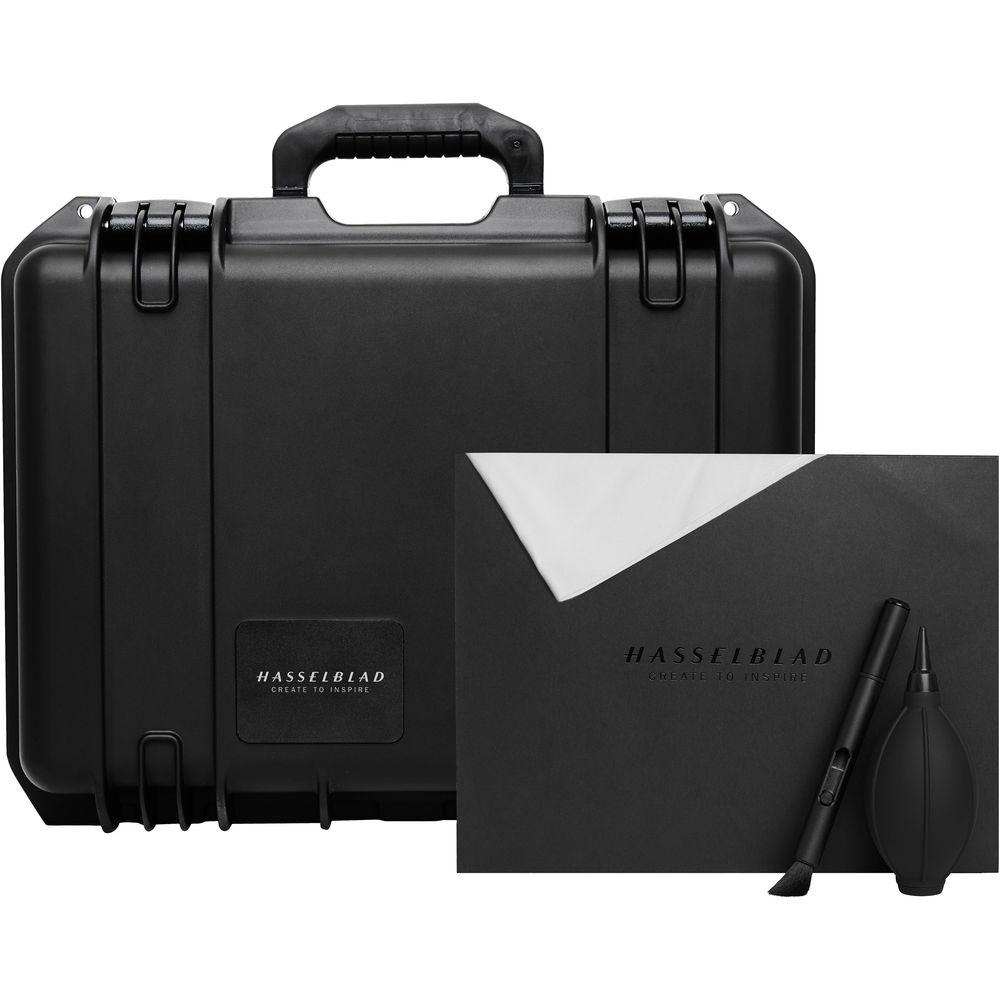

Also Includes

• Shoulder Strap
• Wrist Strap
• Cleaning Cloth
• Blower
• Lens Pen

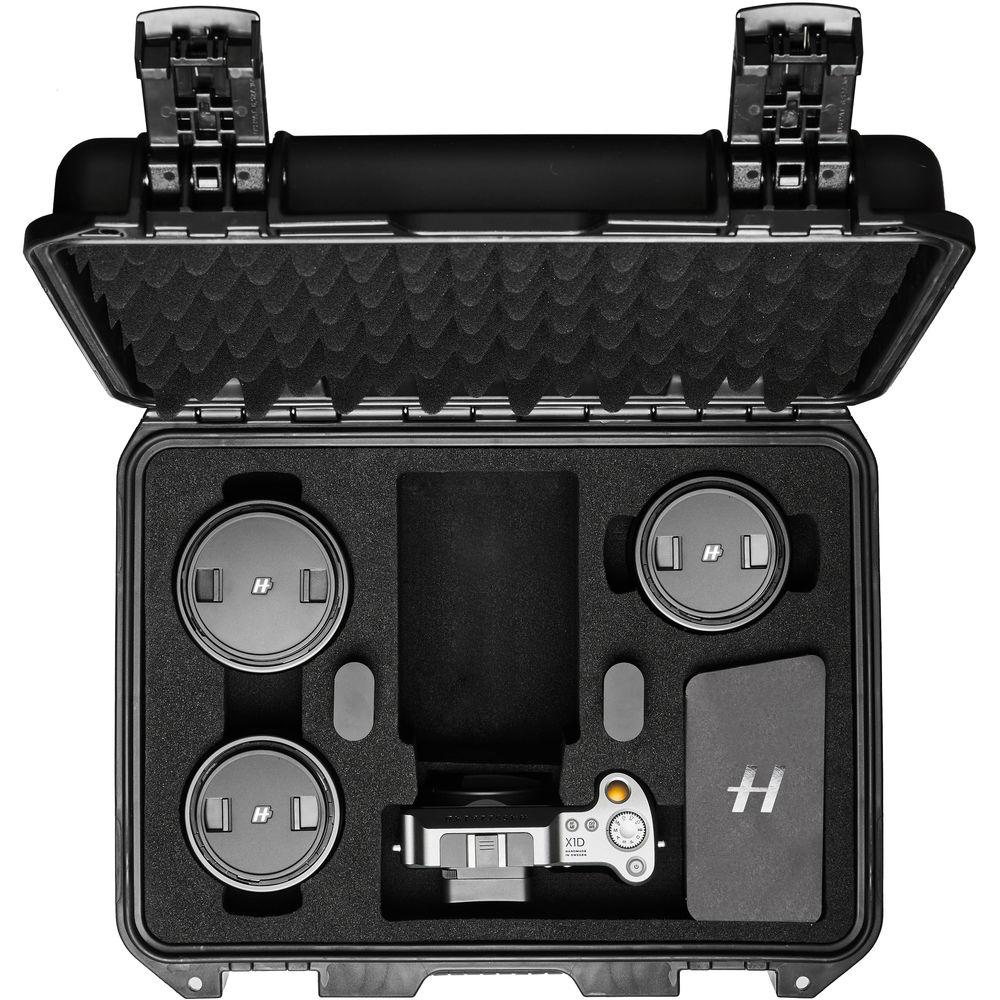

• Pelican Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• X1D-50c Medium Format Mirrorless Digital Camera (Body Only, Silver)

  Resolution	50 MP (8272 x 6200 pixels)
  Sensor	43.8 x 32.9 mm CMOS sensor IR filter mounted in front of CMOS sensor
  Pixel Size	5.3 x 5.3 μm
  Bit Depth	16-bit Dynamic range approx. 14 stops
  File Formats	Hasselblad RAW 3FR, JPEG
  File Size	RAW 3FR: 65 MB on average TIFF 8-bit: 154 MB
  Color Management System	Hasselblad Natural Color Solution
  Storage Type	2 x SD card slot
  Shooting Modes	Single shot stills or video
  Capture Rate	1.7-2.3 fps
  Focus	Autofocus metering via contrast detection Instant manual focus override
  Lens Compatibility	Hasselblad X system lens line with integral central shutter Hasselblad H system lens line via optional adapter

  Shutter Speeds	60 min to 1/2000 sec (depending on lens in use)
  ISO Range	ISO 100, 200, 400, 800, 1600, 3200, 6400, 12800, 25600
  Metering Options	Spot, center-weighted, center spot

  Recording Format	Full HD: 1920 x 1080p at 25 fps
  File Format	H.264 compressed
  Connectivity	Mini HDMI 3.5mm microphone in 3.5mm headphone out

  External Flash Connection	Hot shoe
  Max Sync Speed	1/2000 sec
  Flash Control	Automatic TTL center-weighted system, Nikon-compatible hot shoe Flash Exposure Compensation: -3 to +3 EV

  Viewfinder	2.36 MP XGA Electronic Viewfinder
  Display	3.0" 920k-dot touchscreen LCD 24-bit color
  Histogram	Yes; on rear display

  Connections	USB 3.0 Type-C connector Mini HDMI 3.5mm audio in 3.5mm audio out
  Wi-Fi	Built-in; 802.11a/b/g/n
  System & Software Requirements	Phocus Mac OS X 10.10 or later Windows 10, 8, 7 (64-bit)

  Battery Type	Rechargeable lithium-ion battery (7.2 VDC, 3200 mAh)

  Operating Temperature	14 to 113°F / -10 to 45°C
  Dimensions	5.9 x 3.9 x 2.8" / 150 x 98 x 71 mm
  Weight	25.6 oz / 725 g with battery

  Box Dimensions (LxWxH)	10.0 x 8.7 x 8.0"

• XCD 30mm f/3.5 Lens

  Focal Length	31mm
  Maximum Aperture	f/3.5
  Minimum Aperture	f/32
  Lens Mount	Hasselblad X
  Angle of View	71 Rating 86% users recommend this product to others. And what about you? This product has already been rated by 15 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
