Hauppauge Colossus 2 PCIe Video Capture

Search your instruction manual in PDF to download

User Manual for Hauppauge Colossus 2 PCIe Video Capture Card

Click to enlarge the picture
Hauppauge Colossus 2 PCIe Video Capture Card Contents of the user manual for the Hauppauge Colossus 2 PCIe Video Capture
  • Product category: Computer Hardware Hauppauge
  • Brand: Hauppauge
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hauppauge Computer Hardware

Hauppauge Colossus 2 PCIe Video Capture Card Hauppauge Colossus 2 PCIe Video Capture Card
User manual for the Hauppauge Colossus 2 PCIe Video Capture contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hauppauge product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hauppauge user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hauppauge product will considerably shorten its lifespan!



Product description

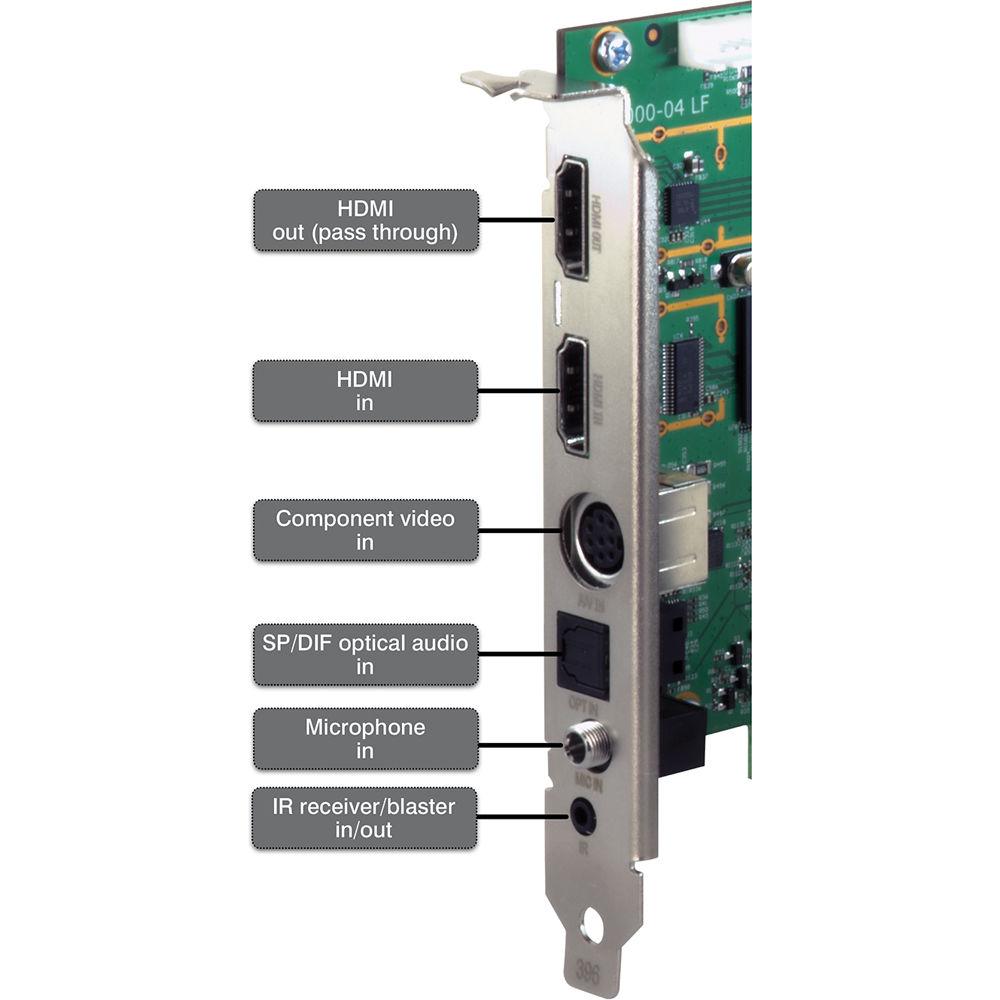

Record TV shows, gameplay, and other video sources in full-HD resolution H.264 video directly to your PC with the Hauppauge Colossus 2 PCIe Video Capture Card. The Colossus 2 plugs directly into an available PCI Express slot and features a real-time hardware H.264 encoder which compresses the input video before recording it for high-quality yet compact video files. Aside from recording, the Colossus 2 can stream video using the included StreamEez software. StreamEez allows you to stream your video to popular platforms such as Twitch, YouTube, and UStream. Using the available input selection, recording can be done from a variety of sources. The HDMI inputs provide the highest quality video from unprotected sources such as camcorders and some game systems. If you wish to record a protected source, such as a set-top box or other game systems, recording can be done through the component video input which also supports HD resolutions. When using the analog connection, higher quality digital audio can be recorded from the optical output found on many set-top boxes. Using the included WinTV software and IR blaster, the Colossus 2 can control your set-top box so you can schedule recordings for your favorite shows to watch later.

Features

  • Record your TV programs in HD from a cable TV, DVR or satellite TV box. Offload your DVR and free up DVR disk space. You can also create a library of your favorite TV programs in HD.
  • Record your Xbox, Playstation or PC game play in HD using analog or digital inputs.
  • Now with an optical audio input for digital audio input, and an IR blaster to control your cable or satellite set top box
  • Includes a no-delay HDMI loop-thru, so you can watch TV from your cable or satellite box while you record in HD.
  • Includes the StreamEez application for live streaming capabilities. StreamEez can stream to Twitch, YouTube, and Ustream channels.
  • A personal logo inserter allows you to add your own logo to your recordings or Twitch and Ustream channels.
UPC: 785428015774 In the Box Hauppauge Colossus 2 PCIe Video Capture Card
  • Component Video A/V Adapter Cable
  • IR Blaster Cable
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Hauppauge Colossus 2 PCIe Video Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Hauppauge 1577 Specs

    Video Encoder Magnum H.264 video encoder
    AC-3 recording from AC-3 source
    Bitrate: 1-13.5 Mb/s CBR (VBR maximum rate approx. 21 Mb/s)
    Recording Formats NTSC:
    1080p60 (recorded as 1080p30)
    1080i60
    720p60
    480p60
    480i60

    PAL:
    1080p50 (recorded as 1080p25)
    1080i50
    720p50
    576p50
    576i50
    System Requirements 1 x PCI Express slot
    3.0GHz single-core or 2.0GHz multi-core processor
    Microsoft Windows XP SP3/Vista/7/8 (32 or 64-bit)
    1GB RAM
    Graphics card with 256MB vRAM
    Sound card
    220MB free hard drive space
    CD-ROM drive (for software installation)
    Package Weight 1.3 lb
    Box Dimensions (LxWxH) 7.953 x 7.716 x 3.307"
