Hauppauge HD Personal Video Recorder 2

Search your instruction manual in PDF to download

User Manual for Hauppauge HD Personal Video Recorder 2

Click to enlarge the picture
Hauppauge HD Personal Video Recorder 2 Contents of the user manual for the Hauppauge HD Personal Video Recorder 2
  • Product category: Capture Devices Hauppauge
  • Brand: Hauppauge
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Hauppauge Capture Devices

Hauppauge HD Personal Video Recorder 2 Hauppauge HD Personal Video Recorder 2 Hauppauge HD Personal Video Recorder 2
User manual for the Hauppauge HD Personal Video Recorder 2 contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Hauppauge product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Hauppauge user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Hauppauge product will considerably shorten its lifespan!



Product description

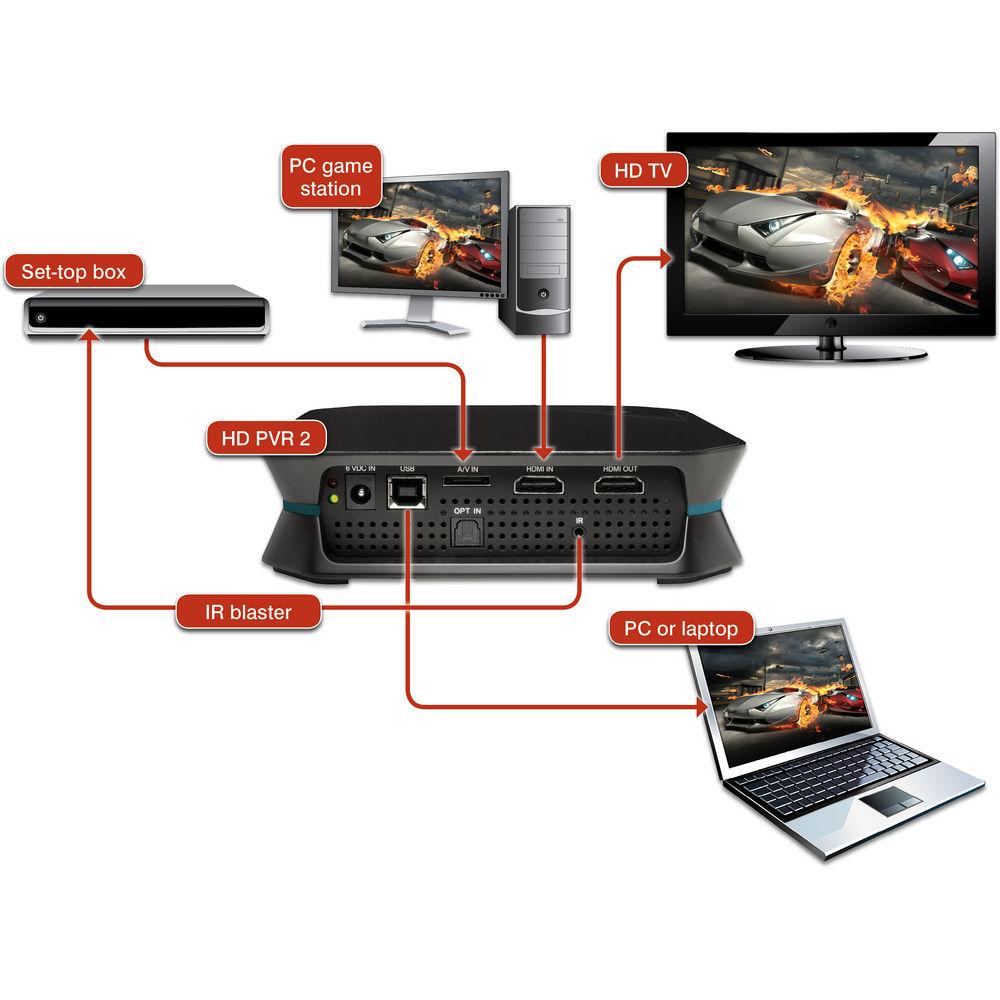

The HD Personal Video Recorder 2 from Hauppauge! comes with everything you need to record TV shows and game play in HD 1080p video quality from your PC, Xbox 360, Wii U, and Playstation 3. Take advantage of a variety of inputs including one USB port to connect to your PC; one component video input to connect to your PS3 or cable/satellite set top box; two HDMI ports for connecting to your Xbox, PC game system, TV set or home theater system; one IR blaster port to control your set top box; and one optical audio input to connect to your set top box or game console.

Once configured, you can record from both cable and satellite boxes, your PC, and a variety of video game consoles. The video is recorded in H.264 format via the included ShowBizz application making it simple to transfer the video onto DVD-R discs for playback on Blu-ray disc players. The HD Personal Video Recorder 2 also makes it simple to upload your recorded video directly to YouTube.
    HD Personal Video Recorder 2
  • The HD Personal Video Recorder 2 records video at up to 1080p from a satellite or cable TV set top box, a PC game system, Sony Playstation 3, Wii U or Microsoft Xbox 360. Record video from either HDMI (without HDCP protection) or Component Video at up to 1080p.
    Enhanced HD Audio and Video Quality
  • Record at the H.264 video encoder format and resolutions up to 1080p30 for enhanced video quality. The H.264 format is used by Blu-ray discs and exceeds other video compression standards in quality and disk space consumption, providing a crisp image and enhanced digital sound. H.264 uses 1/3 the disk space compared with MPEG-2 format.
    HD Personal Video Recorder 2 for Gamers
  • Record your gaming moves without slowing down your PC. The video compression is done inside the video recorder itself allowing you to record your PC game play in HD without slowing down your PC.
    Make Your Own HD Movie Library from Cable or Satellite TV
  • Create an HD library of TV programs by burning up to 2 hours of video recorded on the HD Personal Video Recorder 2 directly onto a standard DVD-R disc. The discs created with the included ShowBiz application can be played on Blu-ray disc players.
    Record Your Cable or Satellite TV Programs in HD
  • Connect this HD Personal Video Recorder to your satellite or cable TV set top box via the supplied HD component cables. With the TV scheduler and IR blaster, you can change the channel on the set top box and record the selected program. Hauppauge's TV Scheduler provides an easy way to schedule your TV recordings and create a schedule of weekly or once only recordings for automatic recording.
    Record Your PC Game Play in HD
  • The HD Personal Video Recorder 2 records PC game play in HD using HDMI. You can also record Xbox 360, PS3 and Wii U game play. With HD video passthrough you can record and watch your game play at the same time, with no delay. You can also capture videos in a format compatible with YouTube for easy uploading.
UPC: 785428015125 In the Box Hauppauge HD Personal Video Recorder 2
  • 6V 1.6 amp Power Supply
  • 9 ft. USB Cable
  • 6.6 ft. HDMI Cable
  • IR Blaster Cable
  • Component Video Cable with Hauppauge A/V Adapter Cable
  • Installation CD-ROM
  • Quick Installation Guide
  • Limited 2-Year Manufacturer Warranty
  • Quick-Start Guide PDF 1.5mbxcxczyfvbbzfsztcsdzcvdqvftzrvedvazucr Table of Contents




    Upload User Manual

    Have you got an user manual for the Hauppauge HD Personal Video Recorder 2 in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Hauppauge HD-PVR Specs

    Hardware Encoder • H.264 AVCHD high definition video encoder, video encode to 1080p30 from HDMI or component video
    • No delay HDMI pass through: HDMI or Component in to HDMI out, up to 1080p
    • Recording datarate: from 1 to 13.5 Mbits/sec
    Recording formats: MP4 or TS
    Video down conversion

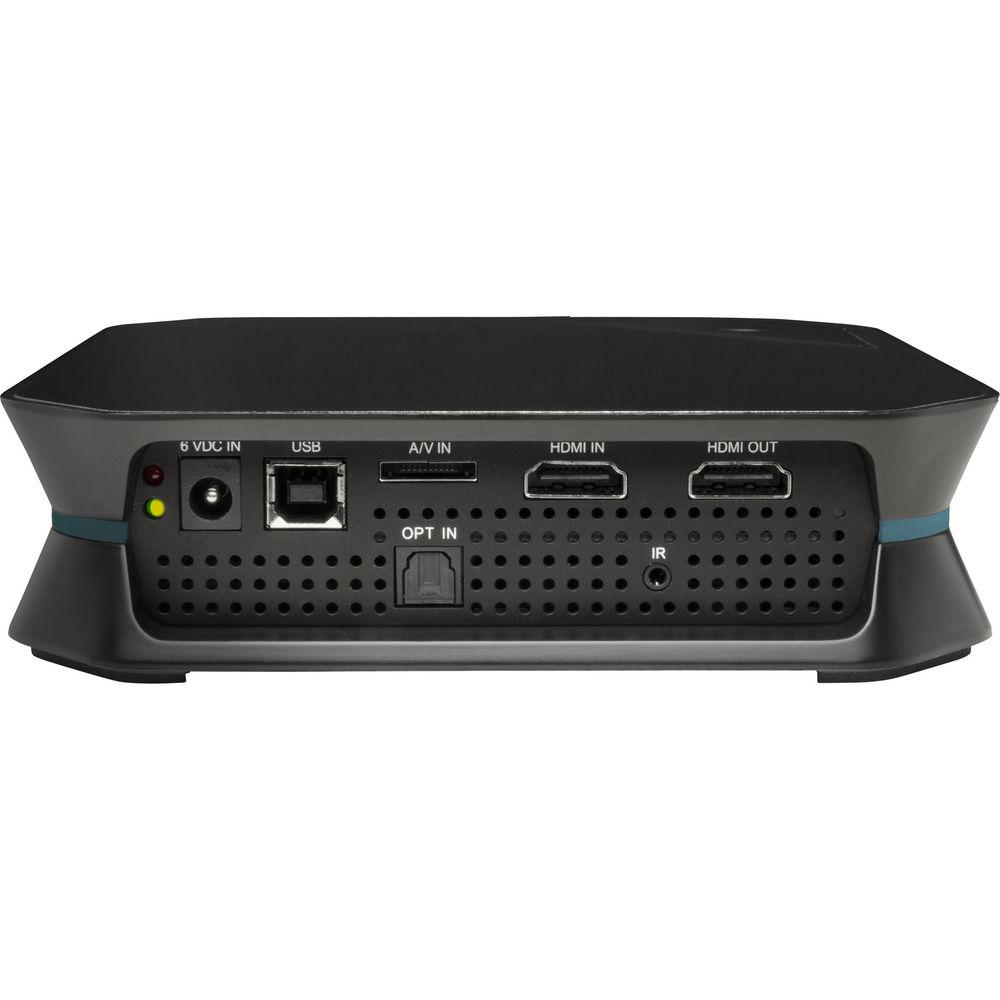

    Input/Output Connectors • HDMI in from HDMI sources without HDCP (Xbox 360 or PC game console)
    • Component video in, with stereo audio
    • SPDIF optical audio in
    • IR blaster out to control channel changing on a set top box
    • S-Video and composite video in, with stereo audio (requires an optional cable)
    • HDMI output
    Recording Formats • 1080p60 (recorded as 1080p30)
    • 1080p50 (recorded as 1080p25)
    • 1080i60
    • 1080i50
    • 720p60
    • 720p50
    • 480p60
    • 480i60
    • 576p50
    • 576i50
    Power 6V at 1.6 amps
    System Requirements Laptop or desktop PC with 3.0 GHz single core or 2.0 GHz multi-core processor
    Microsoft Windows 8, 7, Vista or Windows XP Service Pack 3
    HD TV set with HDMI in (optional, for use with pass through)
    1 GB memory recommended
    Graphics card with 256 MB memory
    Sound card
    220 MB free hard disk space
    Dimensions (WxDxH) 6 x 6 x 1.5" / 15.2 x 15.2 x 3.8
    Weight .75 lb / .34 kg
    Package Weight 3.3 lb
    Box Dimensions (LxWxH) 7.6 x 7.5 x 5.2"
