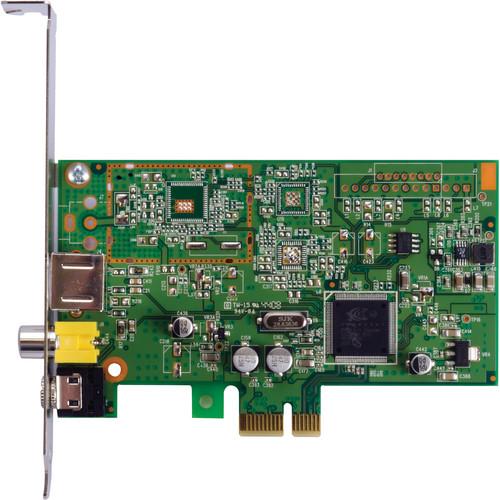

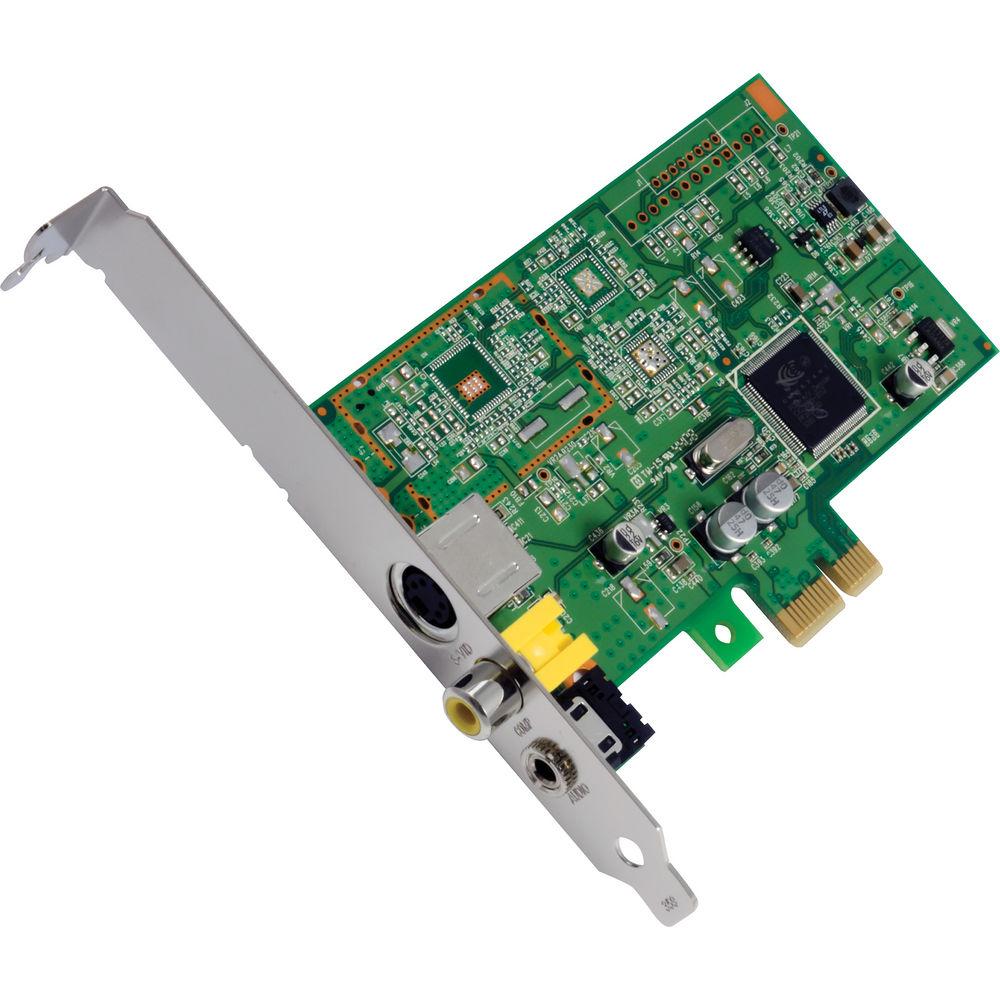

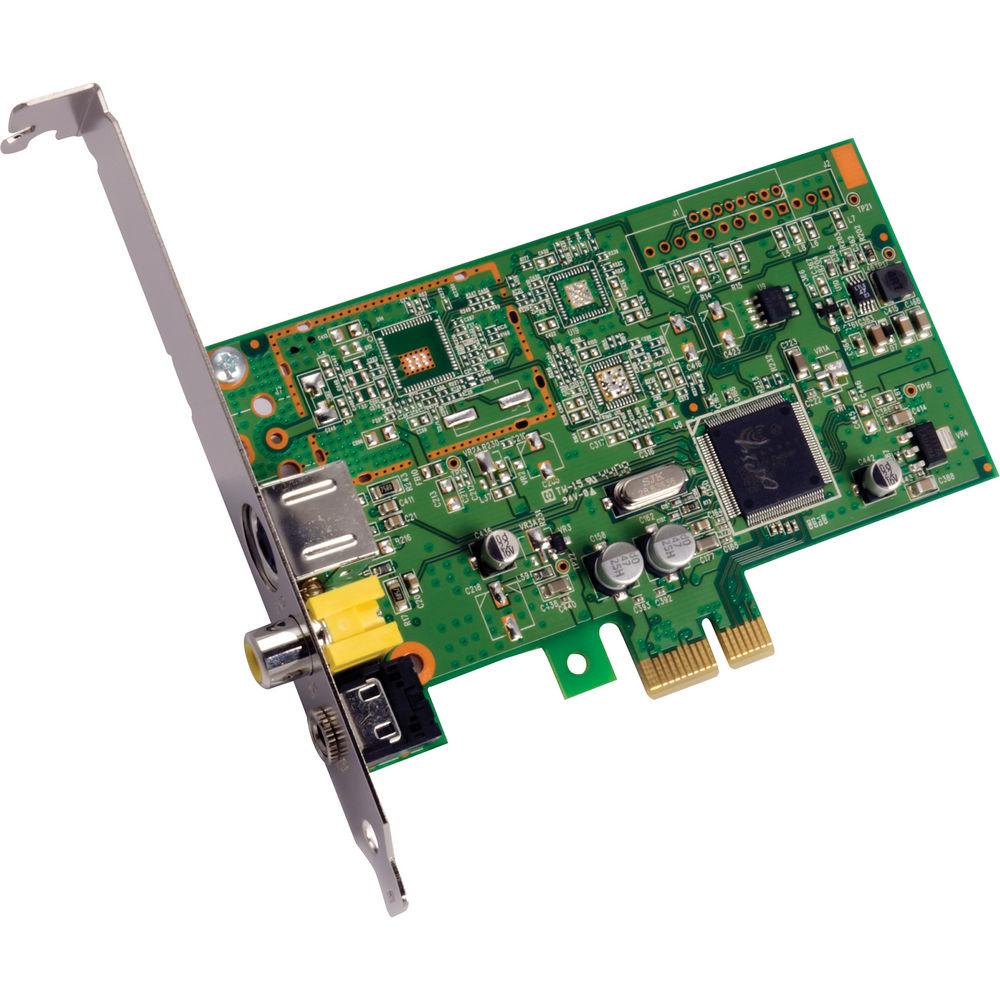

User Manual for Hauppauge ImpactVCB-e PCI Express Video Capture Card Click to enlarge the picture
Contents of the user manual for the Hauppauge ImpactVCB-e PCI Express Video Capture
- Product category: Computer Hardware Hauppauge
- Brand: Hauppauge
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hauppauge Computer Hardware
 |
User manual for the Hauppauge ImpactVCB-e PCI Express Video Capture contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hauppauge product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hauppauge user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hauppauge product will considerably shorten its lifespan!
|
Product description The ImpactVCB-e PCI Express Video Capture Card from Hauppauge is a video card that captures analog SD Video in both NTSC and PAL video formats. The card will overlay input video onto your computer screen for viewing and allows you to capture the video on your computer's HDD. The VCB-e is well suited for a wide variety of applications, such as video conferencing, surveillance, and gaming. It can also be used to record video game play or digitize SD home videos.
With the included software, you can capture stills or record the video to your computer for later playback or editing. The included software also allows you to author and burn DVDs. An available Software Development Kit (SDK) allows OEMs to build applications around the capture card. The Impact VCB-e runs on Windows 8, Windows Vista, Windows 7 and Windows XP. - Overlays analog video on a computer monitor
- Composite and S-Video inputs
- Stereo Audio 3.5 mm Mini jack input
-
- Software
- Capture and playback of video and audio
- Video editing
- Author and burn DVD
- Capture Stills while watching video
-
- Capture Rates
- Default capture rate 8 Mb/s
- Higher rates available with third party software (not included)
- Data rates above 8 Mb/s limited by software and system capabilities
- Internal PCI Express board
- Software Development Kit available for OEM
UPC: 785428013817 In the Box Hauppauge ImpactVCB-e PCI Express Video Capture Card Software: ArcSoft and WinTV Full Height Backplane Bracket Half Height Backplane Bracket Limited 1-Year Warranty User Manual PDF 737.4kbsdyyzcedeutwbyerdb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hauppauge ImpactVCB-e PCI Express Video Capture Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHauppauge 01381 Specs | | | Signal System | NTSC or PAL supported | | Inputs | Video
1 x S-Video
1 x Composite
Audio
1 x Stereo Mini Jack | | Software | ArcSoft
Hauppauge "WinTV" | | | | System Requirements | Minimum Processor
2.2 GHz Intel P4
Graphics
64MB or greater graphics card
OS
Windows 8 32/64-bit
Windows 7 32/64-bit
Windows Vista 32/64-bit
Windows XP, XP Pro, XP Media Center 32-bit | | BUS | PCI-E 1x or 16x required | | Compliance | EMI treatment for FCC Class B and European CE (EN55022, EN55013 and EN55024) and is UL listed | | Dimensions (H x L) | 2.6 x 4.3" (6.7 x 10.8 cm) | | Weight | Approximately 2.0 oz (56.7 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 7.0 x 6.4 x 2.3" |
