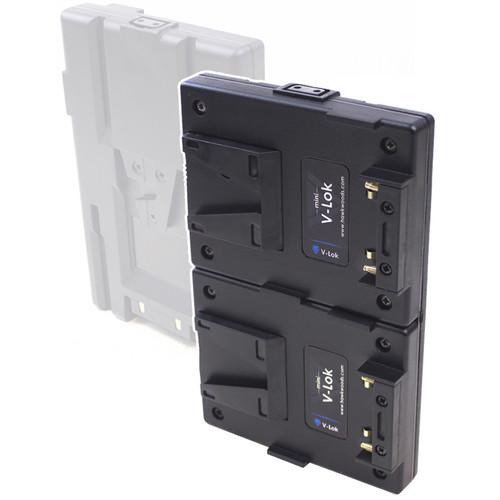

User Manual for Hawk-Woods VL-MCF2 Mini V-Lok Hot Swap Camera Plate for RED Click to enlarge the picture
Contents of the user manual for the Hawk-Woods VL-MCF2 Mini V-Lok Hot Swap
- Product category: Battery Mounting Plates Hawk-Woods
- Brand: Hawk-Woods
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawk-Woods Battery Mounting Plates
|
User manual for the Hawk-Woods VL-MCF2 Mini V-Lok Hot Swap contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawk-Woods product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawk-Woods user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawk-Woods product will considerably shorten its lifespan!
|
Product description The Hawk-Woods VL-MCF2 is a V-mount camera plate that allows you to hot swap two Hawk-Woods Mini V-Lok batteries. The reason the VL-MCF2 is called the RED version is because its sister SKU, the VL-MCF1, is slightly larger and doesn't fit RED cameras. The sister SKU is slightly larger because it has an additional D-Tap output on the side that gets in the way. This RED version has only a single D-Tap output, on the top, and it perfectly fits RED cameras and most other cameras with V-mount support.
The VL-MCF2 features an LED indication scheme that lets you know when it's allowed to hot swap and when it isn't. When you attach your batteries, a green LED lights up solid. When your camera begins to pull current, the green LED starts flashing. When a red LED begins flashing, that means you should hot-swap now or soon you won't be able to. And when the red LED turns solid, that means it's too late to swap.
The intelligent LED scheme takes into consideration that when you remove one battery, the other will need to pick up the load for both. It determines battery status against the total amount of current being drawn, and the red LED starts flashing at 12.7V. - Key Features
-
- V-mount camera plate for two Hawk-Woods Mini V-Lok batteries
- Fits RED and most other cameras with V-mount support
- Hot-swap capability with intelligent LED indication scheme
- D-Tap output
- Made in the UK
In the Box Hawk-Woods VL-MCF2 Mini V-Lok Hot Swap Camera Plate for RED Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawk-Woods VL-MCF2 Mini V-Lok Hot Swap Camera Plate for RED in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawk-Woods VL-MCF2 Specs | Accessory Ports | 1 x D-Tap | | Dimensions | 5.9 x 4 x 1" (15 x 10 x 2.5 cm) | | Weight | Approx. 9.2 oz (260 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 7.8 x 5.9 x 2.4" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
