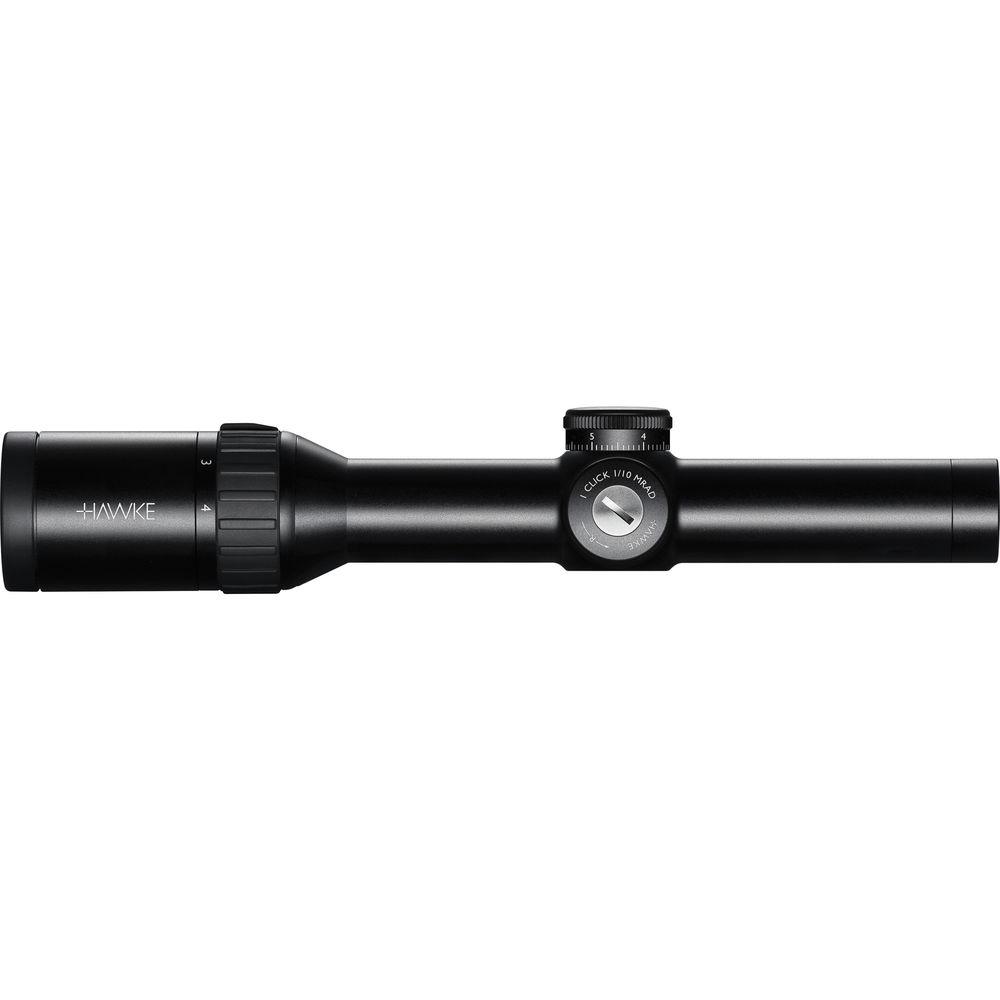

Product description Get on target using the Hawke 1-4x24 Endurance 30 WA Riflescope. This compact and lightweight scope keeps the outstanding characteristics of the series such as bright and clear fully multi-coated optics, a strong and durable one-piece 30mm maintube, a 100-yard parallax-free range, and a fast-focus eyepiece while also introducing improvements in the form of a wider field of view (124.5-31.1' field of view @ 100 yards), wider windage and elevation ranges (140 MOA), and an increased number of layers of coatings (18). Another highlight of the optical design is the illuminated second focal plane L4A Dot reticle. The reticle shares an outline with the German #4 reticle and offers three posts, a thin crosshair, and a target dot. The target dot is illuminated with a brilliant red color and has six brightness levels. - Optical Performance
-
- 1-4x zoom range
- 24mm objective lens

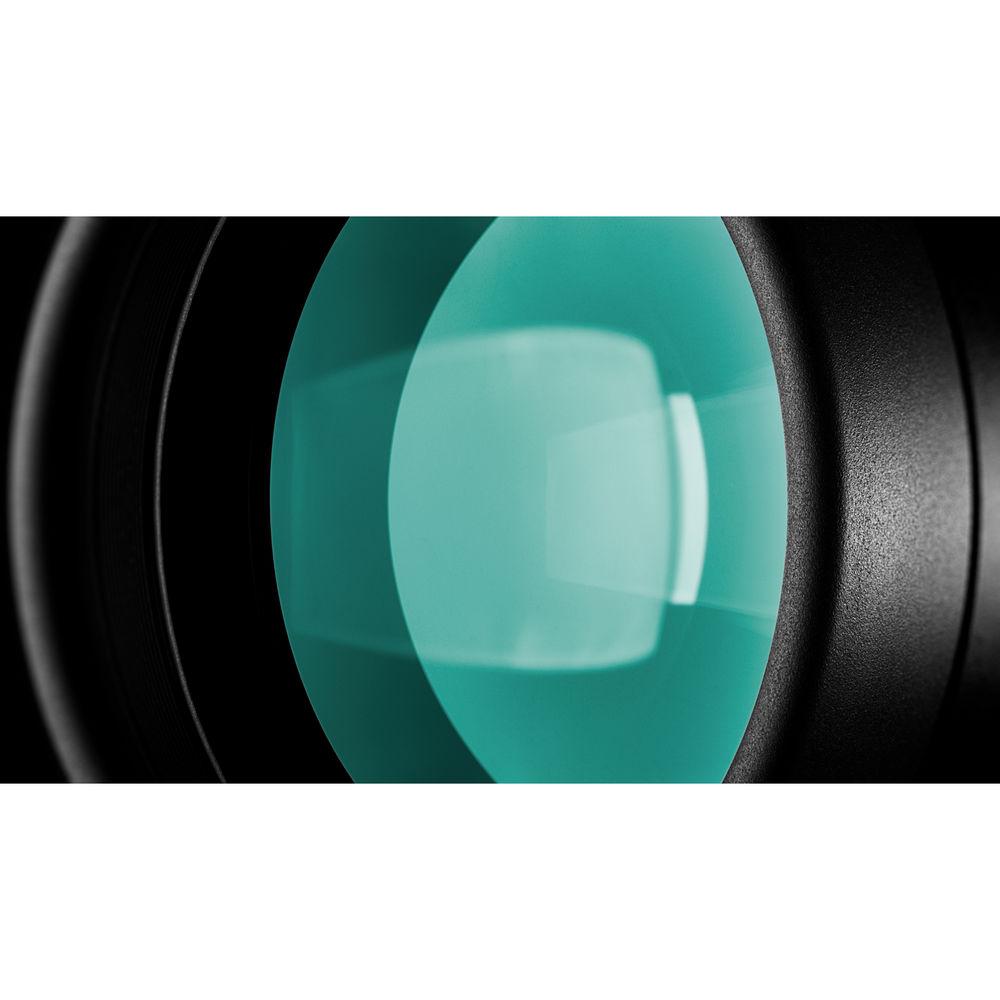

- 18 layers of anti-reflection full multi-coatings
- Wide angle optical system (WA): 124.5-31.1' field of view at 100 yards
- Use and Handling
-
- 1/2 MOA impact point correction
- 140 MOA windage and elevation adjustment range
- Parallax-free to 100 yd / 91.4 m

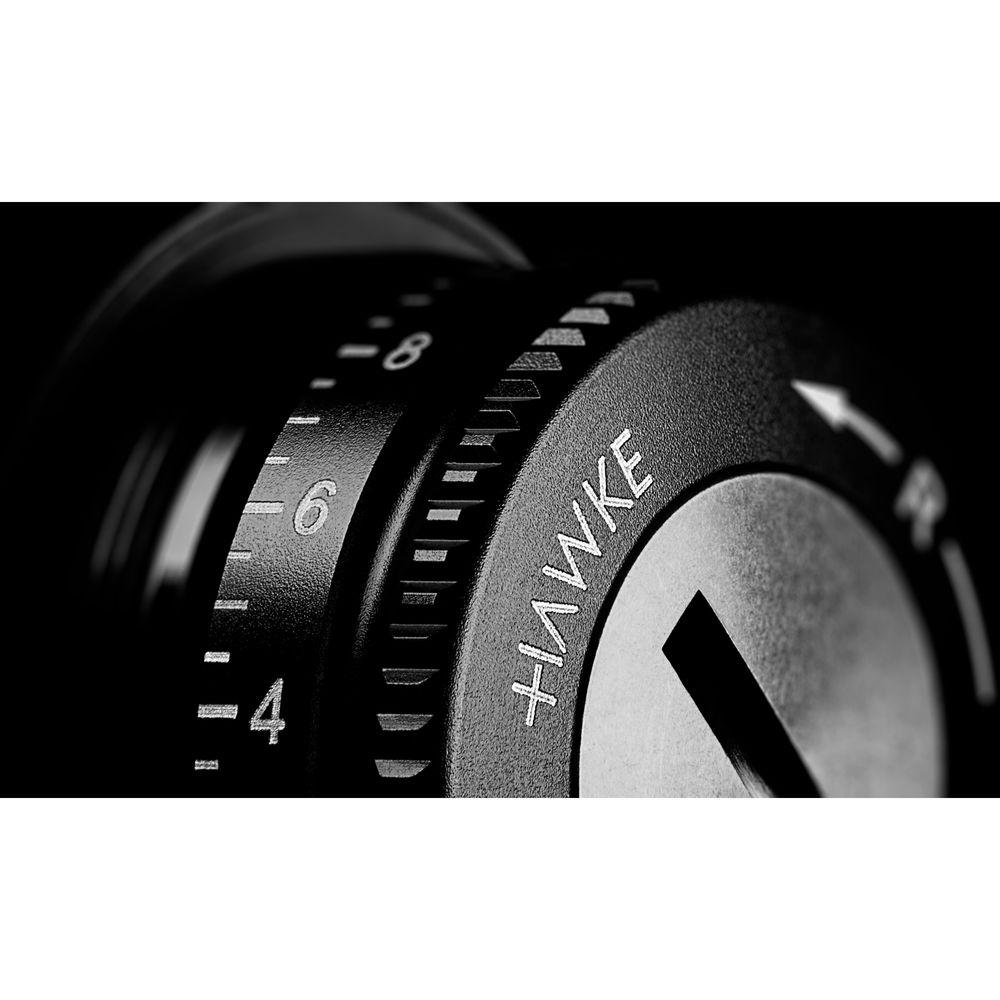

- Low-profile covered turret caps prevent accidental adjustment
- 4"-long eye relief
- 24-6mm exit pupil
- Construction Details
-
- 30mm one-piece maintube
- Lightweight and durable aluminum-alloy housing
- Threaded objective bezel for attaching accessories

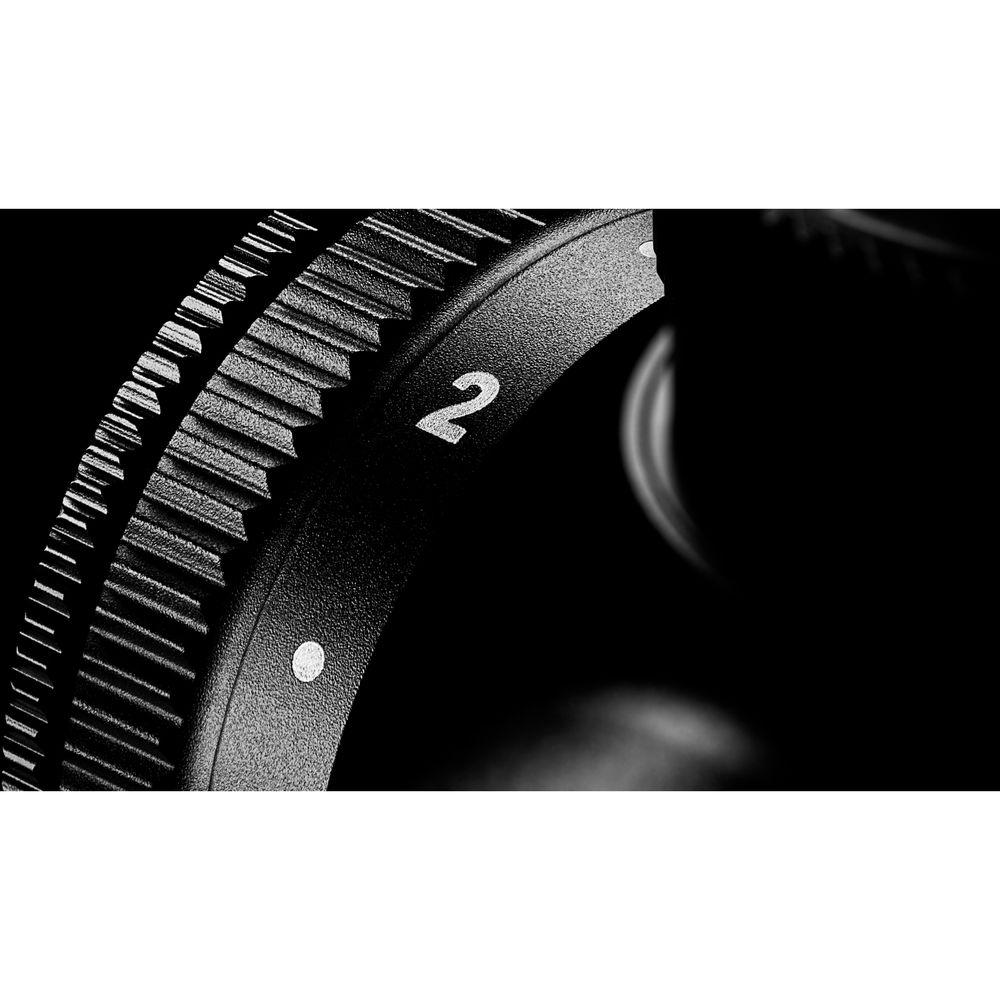

- Fast-focus eyepiece with a high-torque zoom ring
- Nitrogen filled for water and fogproof performance
- Rated for use on most calibers and recoil resistant
- Two lens covers included

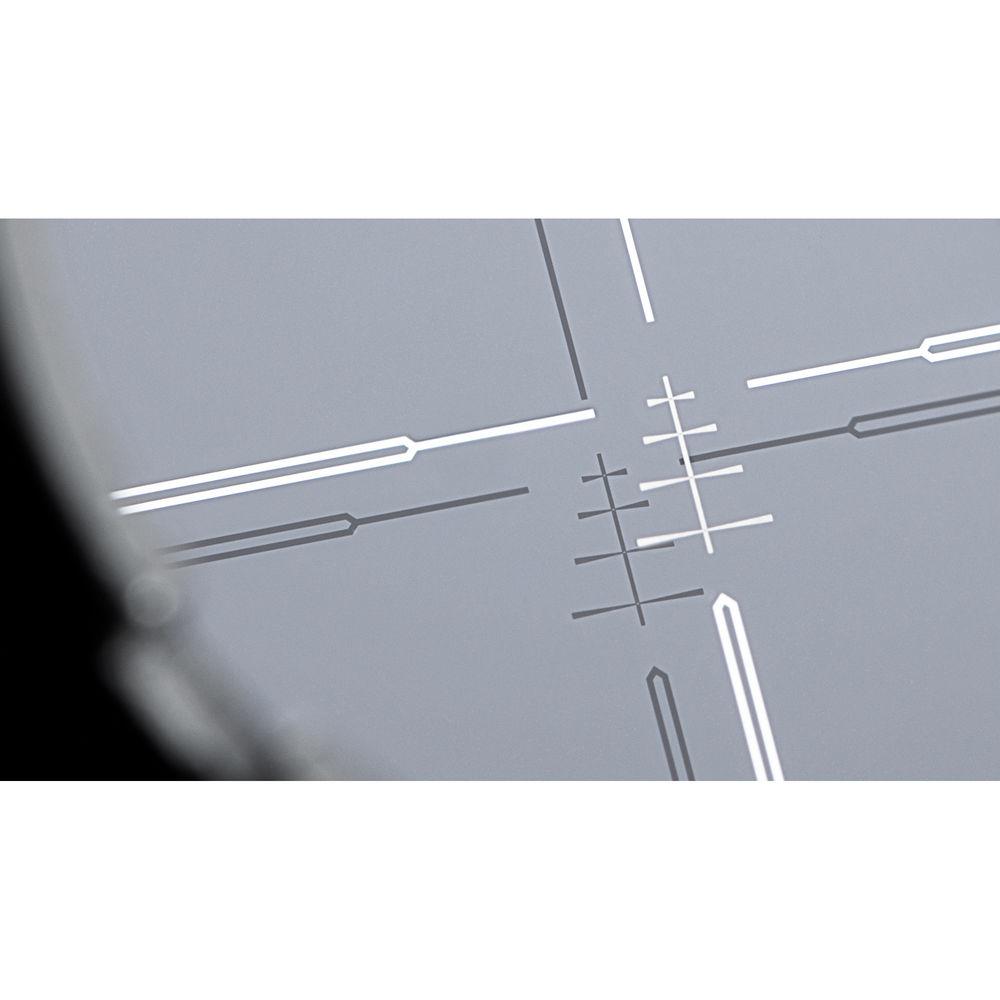

- L4A Dot Illuminated Reticle
-
- 2nd focal plane
- German #4 style outline
- Three posts
- Thin crosshair with a detached red target dot
- Six brightness levels
In the Box Hawke Sport Optics 1-4x24 Endurance 30 WA Riflescope (L4A Dot Illuminated Reticle, Matte Black) - CR2032 Battery
- 2 x Lens Covers
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 1-4x24 Endurance 30 WA Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 16300 Specs | | | Magnification | 1 to 4x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 124.5' @ 100 yd / 41.5 m @ 100 m
4x: 31.1' @ 100 yd / 10.4 m @ 100 m | | Exit Pupil Diameter | 1x: 24 mm
4x: 6 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | Dot Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 140 MOA | | Elevation Adjustment | 140 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 11.1" / 28.2 cm | | Weight | 17.4 oz / 493 g |
