User Manual for Hawke Sport Optics 1.5-6x36 XB30 Compact Crossbow Scope Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 1.5-6x36 XB30 Compact
- Product category: Riflescopes Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Riflescopes
 |
User manual for the Hawke Sport Optics 1.5-6x36 XB30 Compact contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|

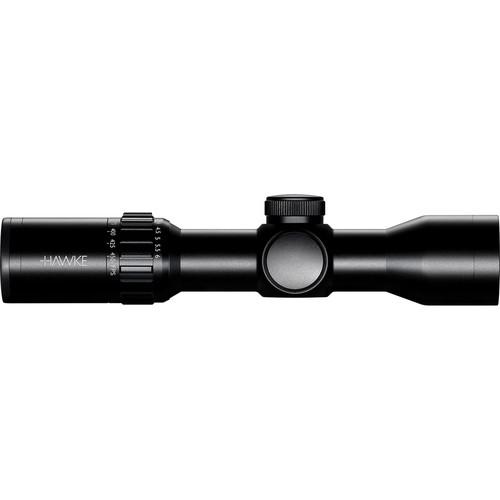

Product description Hawke optimized the 1.5-6x36 XB30 Compact Crossbow Riflescope and its XB30 Compact SR reticle for use with crossbows that produce speeds from 250 to 450 feet per second. The reticle is located in the first second plane and offers four hollow posts and an illuminated crosshair with ballistic stadia for a 100-yard maximum range and winds from 10 to 20 mph. It is also factory set to be parallax-free at 50 yards. For clarity and brightness of images, the optical system is outfitted with 14-layer fully multi-coated lenses and a 36mm objective. The housing has a 30mm single-piece maintube, fast-focus eyepiece, and capped low-profile windage and elevation turrets. The entire construction is water and fogproof for protection against environmental conditions. Also included are one CR2032 battery for powering the reticle and two durable aluminum flip-up lens caps for protecting the optics. - Optical Performance
-
- 1.5-6x zoom range
- 36mm objective lens

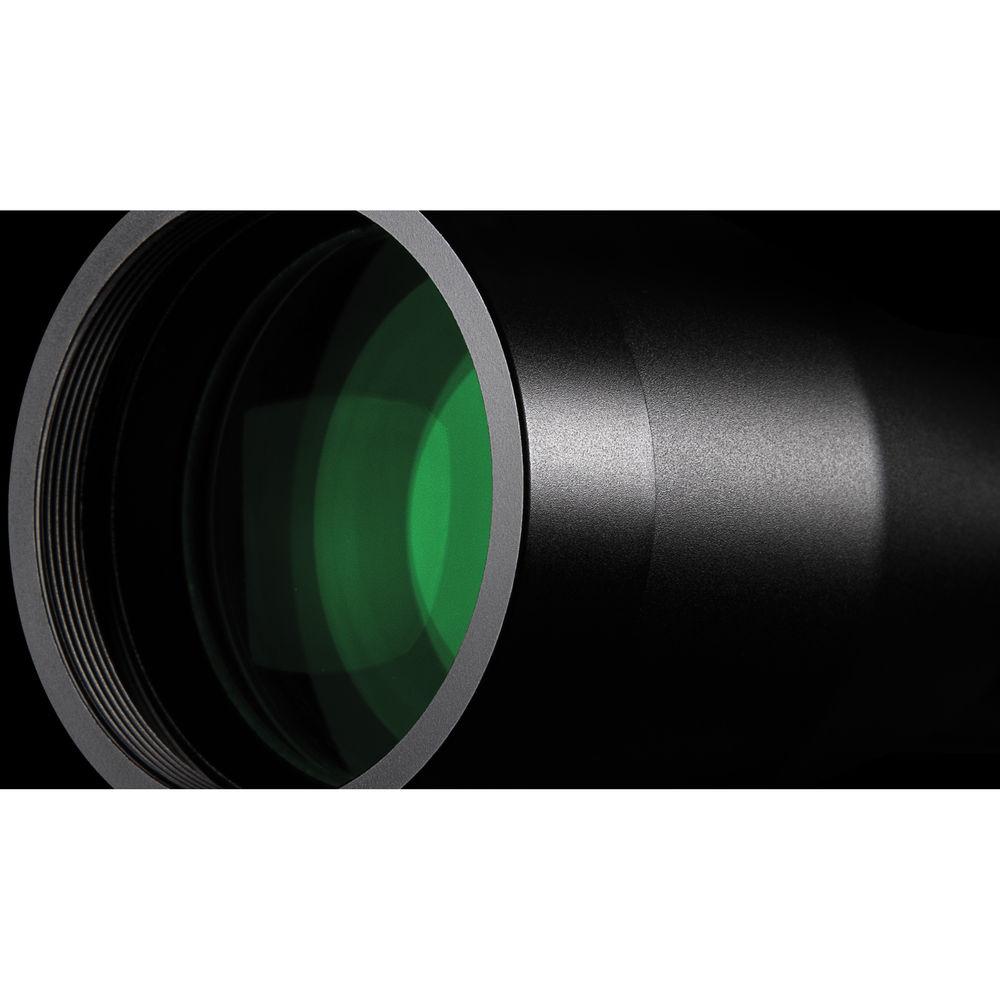

- 14 layers of anti-reflection full multi-coatings
- 87.9-21.8' field of view at 100 yards
- Use and Handling
-
- 1/2 MOA impact point correction
- 80 MOA windage and elevation adjustment range
- Capped low-profile turrets
- Fixed parallax set at 50 yards
- 3" eye relief
- Construction Details
-
- One-piece 30mm maintube
- Lightweight and durable aluminum-alloy body

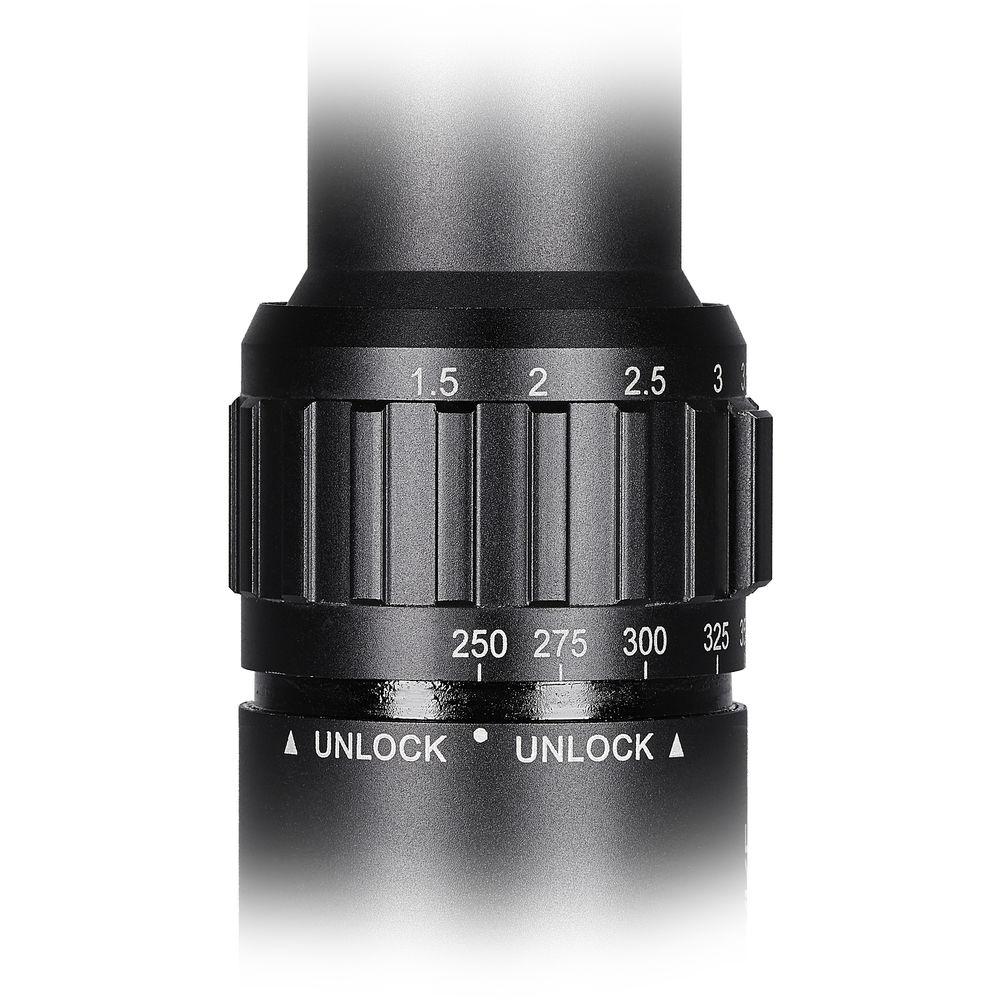

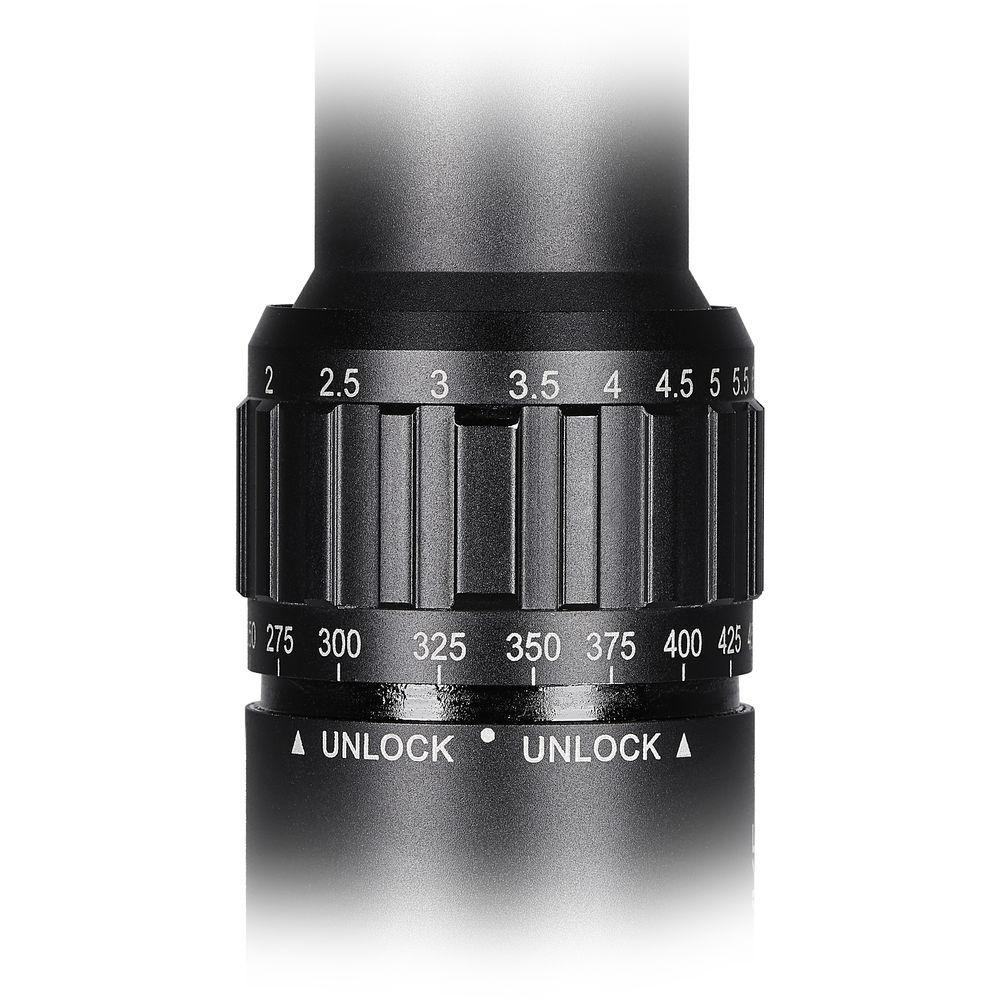

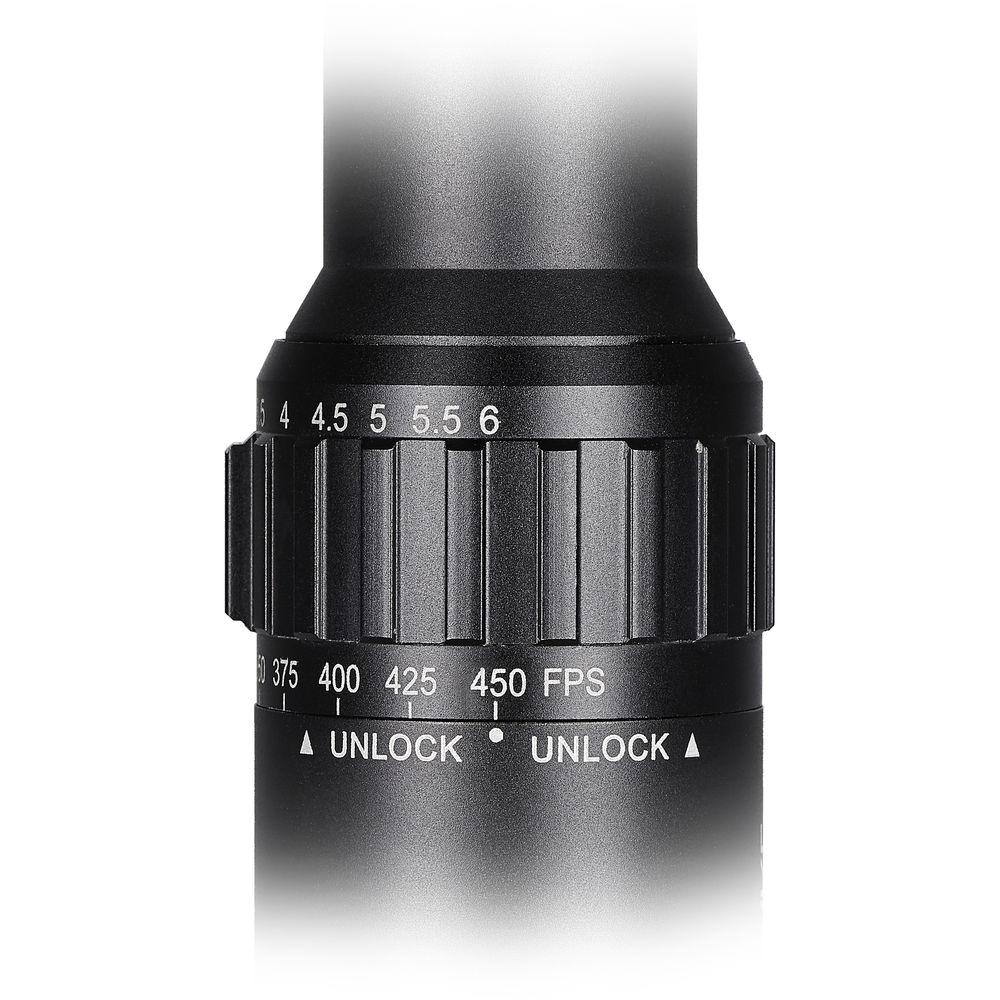

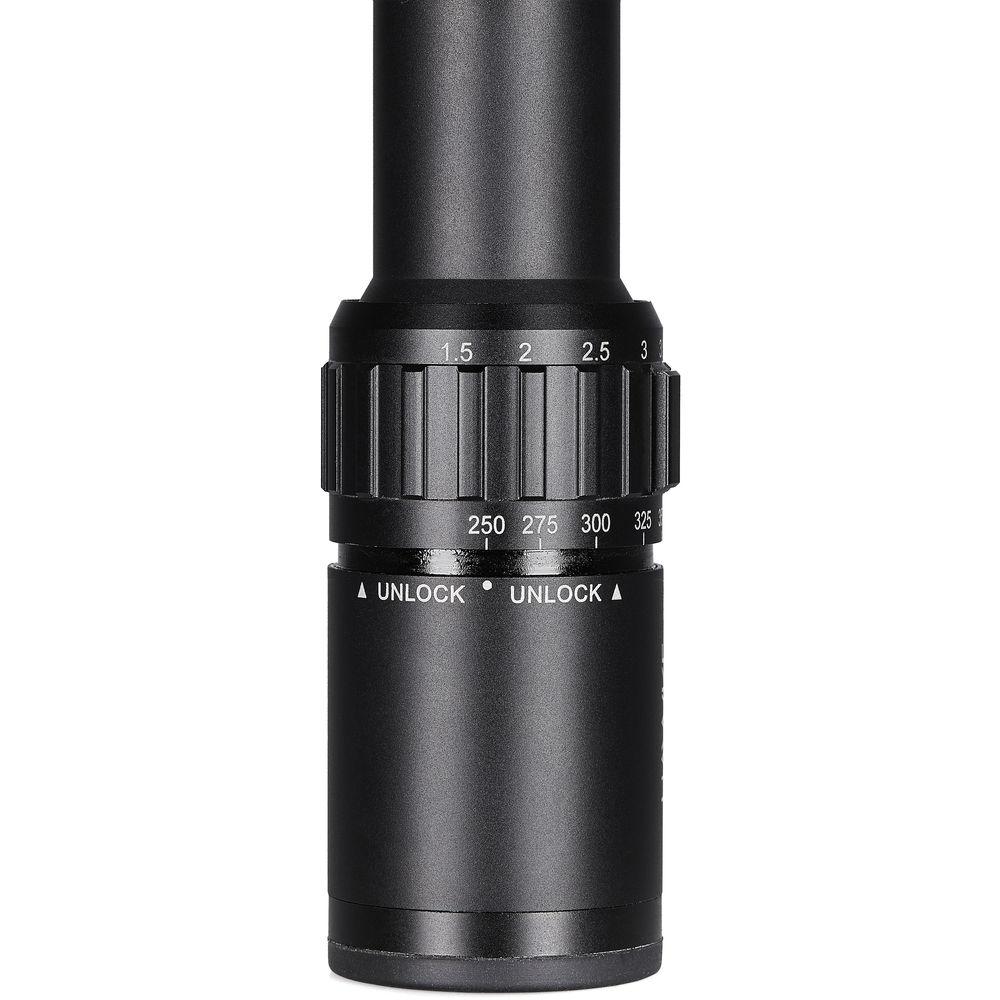

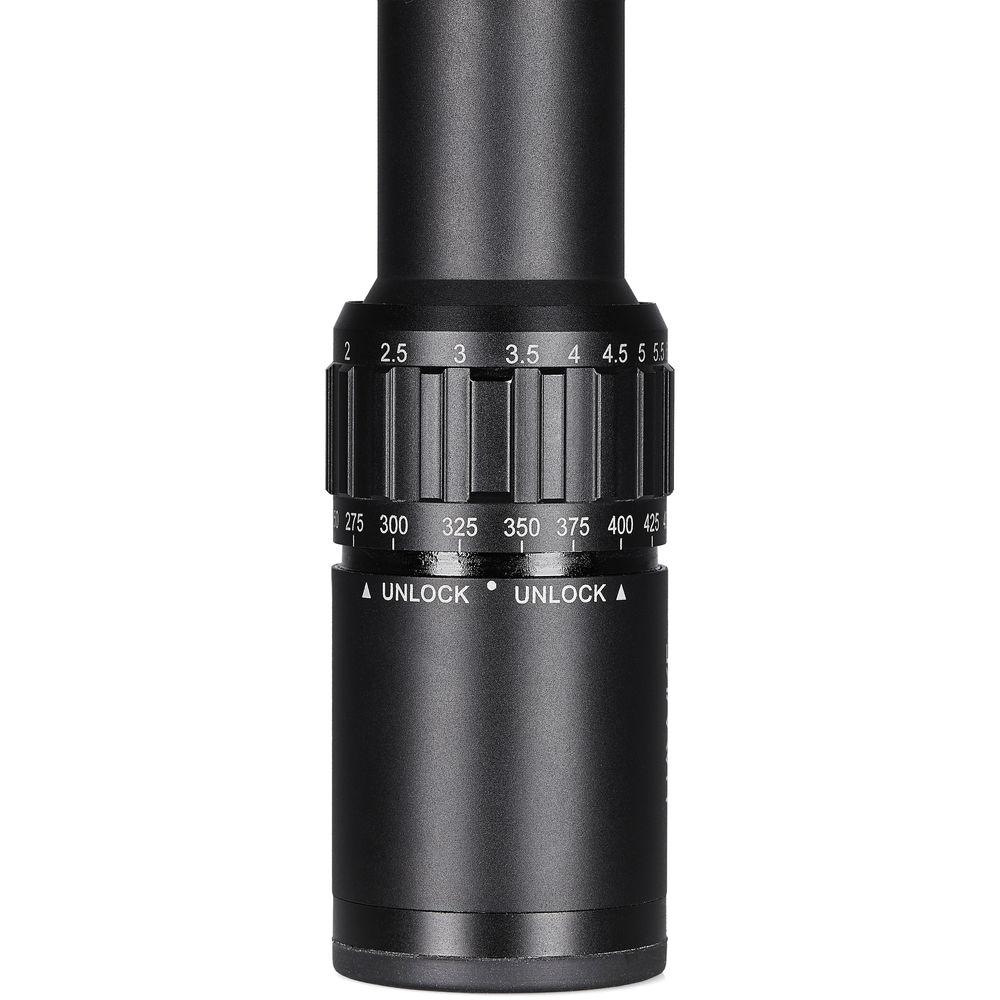

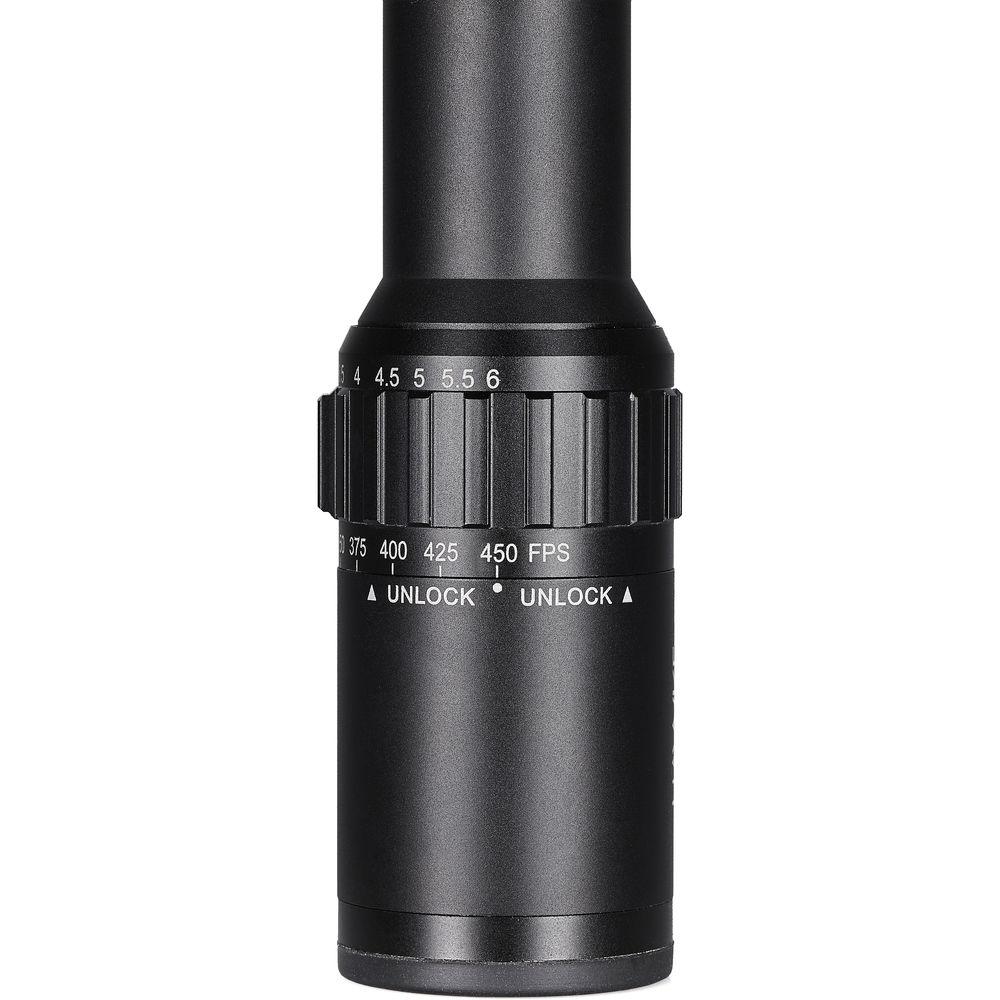

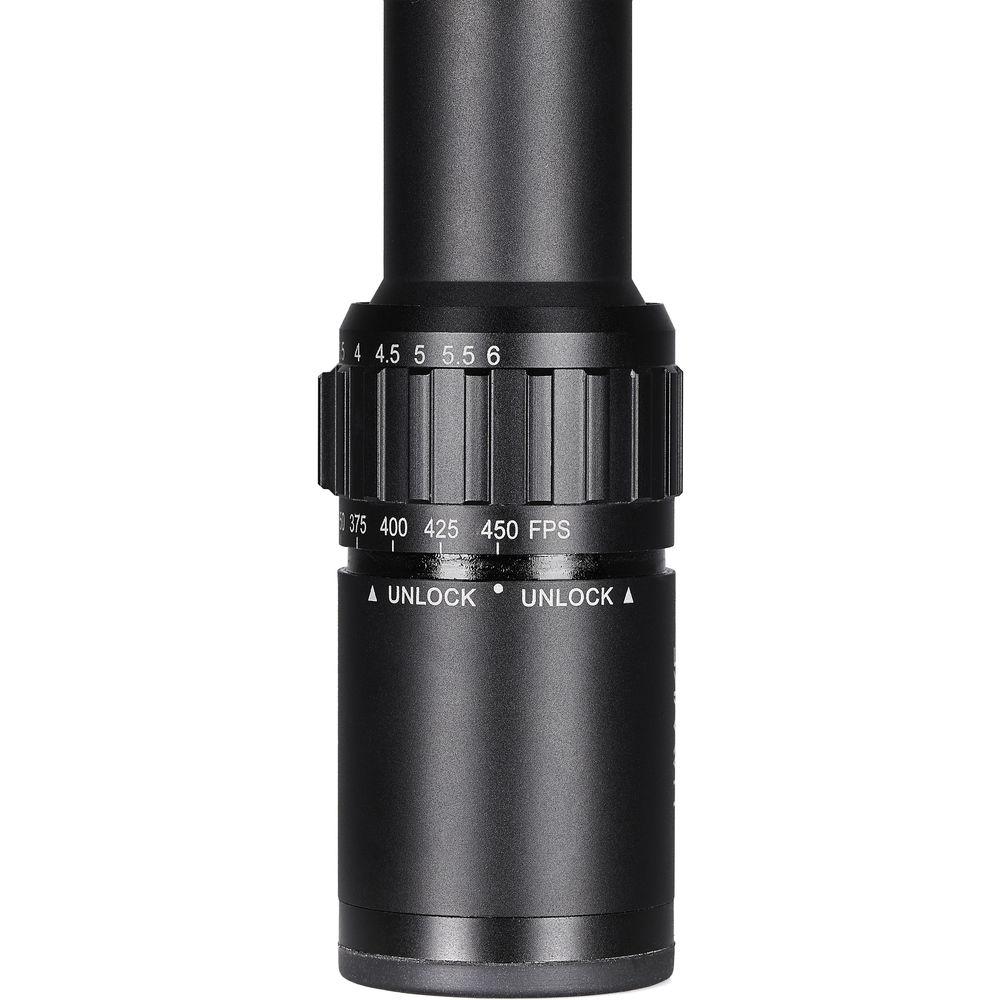

- Speed selector for 250-450 fps

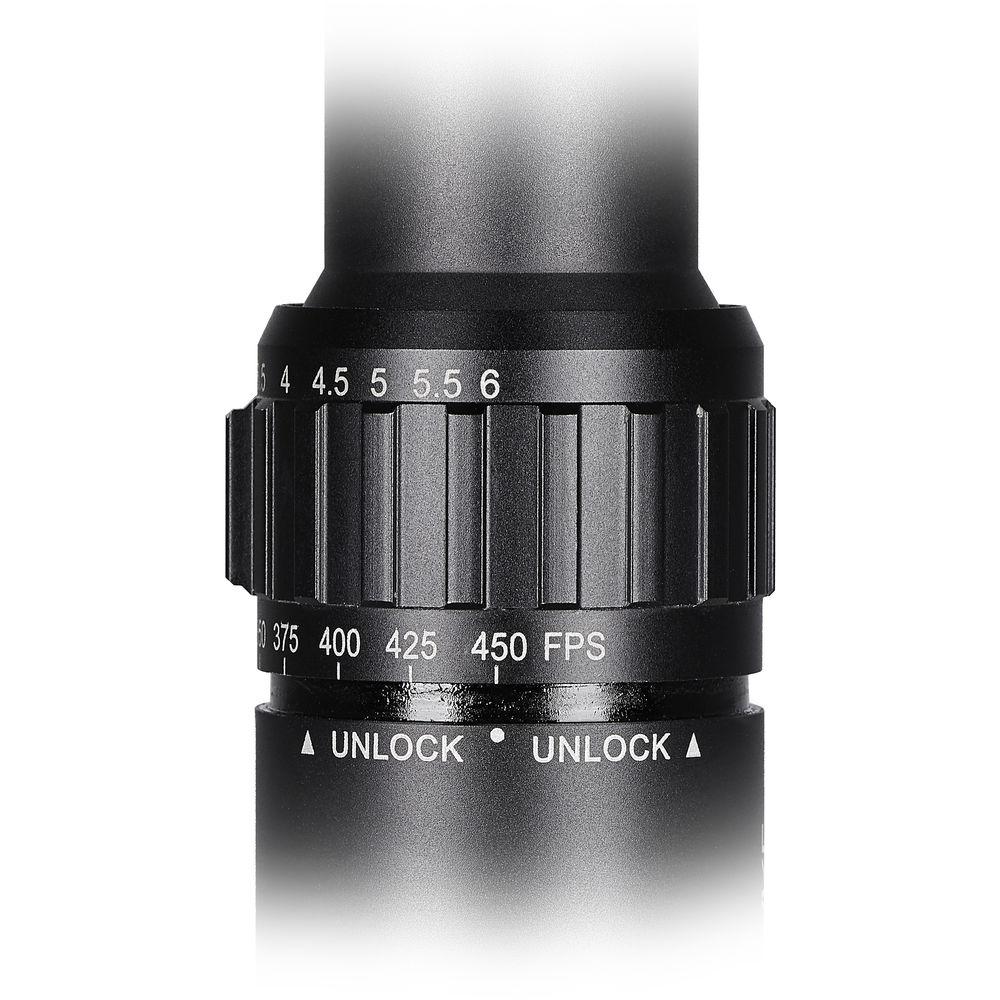

- Fast-focus eyepiece with a high-torque zoom ring
- Nitrogen filled for a water and fogproof performance
- Aluminum flip-up lens covers
- Red & Green XB30 Compact SR Illuminated Reticle
-
- Second focal plane
- Optimized for crossbows with 250-450 fps
- Four hollow needle-style posts
- Illuminated narrow T-shaped crosshair with horizontal ranging lines
- Aiming points from 20 to 100 yards with 5-yard marks
- 10-yard aiming points have windage bars and dots for 10 mph and 20 mph winds
- Rheostat reticle brightness controls with five settings
In the Box Hawke Sport Optics 1.5-6x36 XB30 Compact Crossbow Scope (Red & Green XB30 Compact SR Illuminated Reticle, Matte Black) - CR2032 Battery
- 2 x Flip-Up Lens Covers
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 1.5-6x36 XB30 Compact Crossbow Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 12226 Specs | | | Magnification | 1.5 to 6x | | Objective Lens Diameter | 36 mm | | Field of View | 1.5x: 87.9' @ 100 yd / 29.3 m @ 100 m
6x: 21.8' @ 100 yd / 7.3 m @ 100 m | | Exit Pupil Diameter | 1.5x: 24 mm
6x: 6 mm | | Eye Relief | 3" / 76 mm | | | | Reticle Type | XB30 Compact SR Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 80 MOA | | Elevation Adjustment | 80 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 9.3" / 23.6 cm | | Weight | 15.1 oz / 429 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 12.7 x 3.7 x 3.3" |
