User Manual for Hawke Sport Optics 1.5-6x44 Endurance 30 WA Riflescope Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 1.5-6x44 Endurance 30
- Product category: Riflescopes Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Riflescopes
 |
User manual for the Hawke Sport Optics 1.5-6x44 Endurance 30 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|

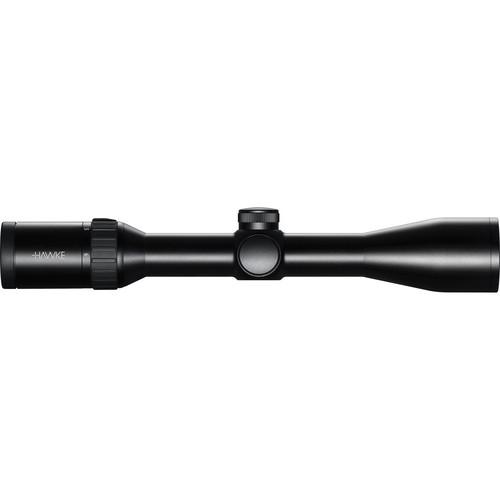

Product description Hawke outfitted this 1.5-6x44 Endurance 30 WA Riflescope with a wider 44mm objective for better performance in challenging light conditions while carrying over other highlights of the Endurance series such as a strong single-piece 30mm maintube, a wide-angle optical system (82.9 - 20.7' at 100 yards), extensive windage and elevation ranges (120 MOA), and 18 layers of anti-reflection multi-coatings. To help you make precision shots, the second image plane of this scope contains a 4A Dot reticle, with fine features and a well-defined illuminated red target dot. Its outline resembles the German #4 pattern, where a target dot is surrounded by a fine crosshair and three thin posts. The dot is illuminated with a brilliant red color and has six brightness levels. The reticle is set to be parallax-free at 100 yards, and the entire construction is purged with nitrogen and sealed for fog and waterproofing. - Optical Performance
-
- 1.5-6x zoom range
- 44mm objective lens is suitable for most lighting conditions

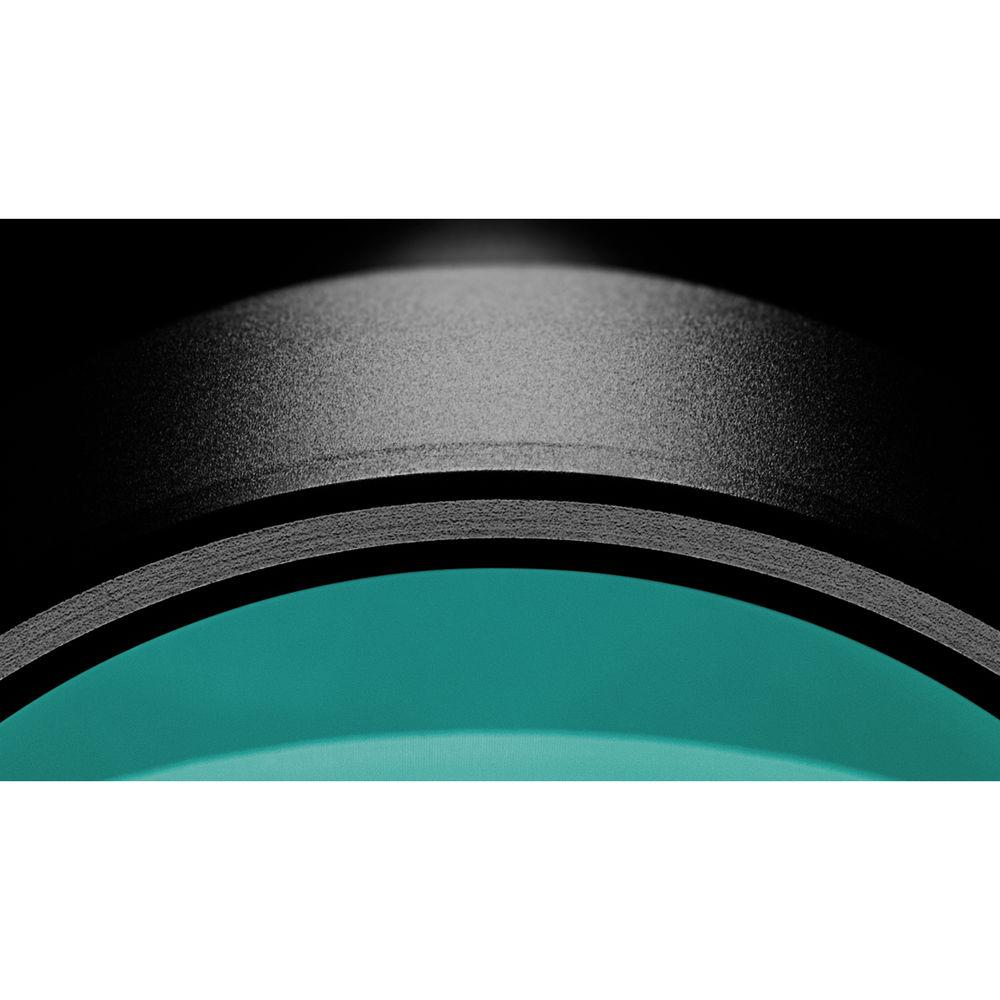

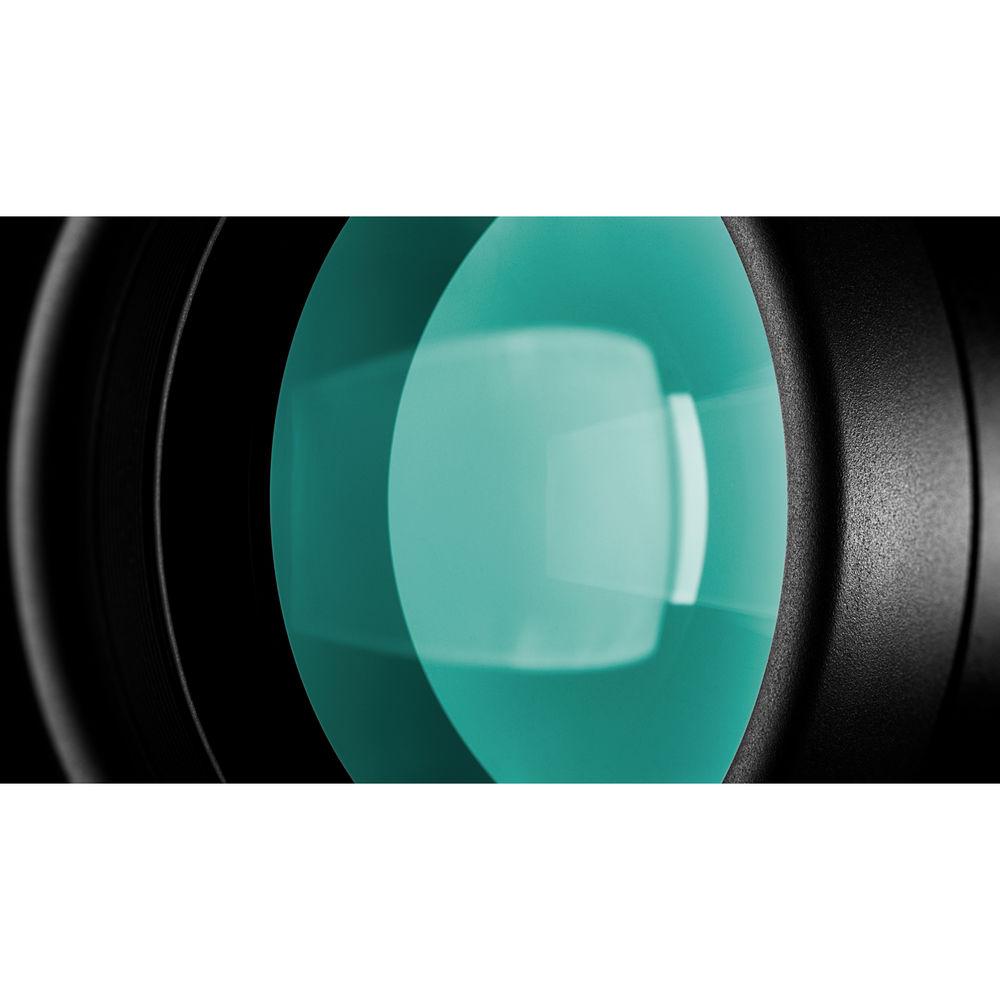

- 18 layers of anti-reflection full multi-coatings
- Use and Handling
-
- 1/4 MOA impact point correction
- 120 MOA windage and elevation adjustment range

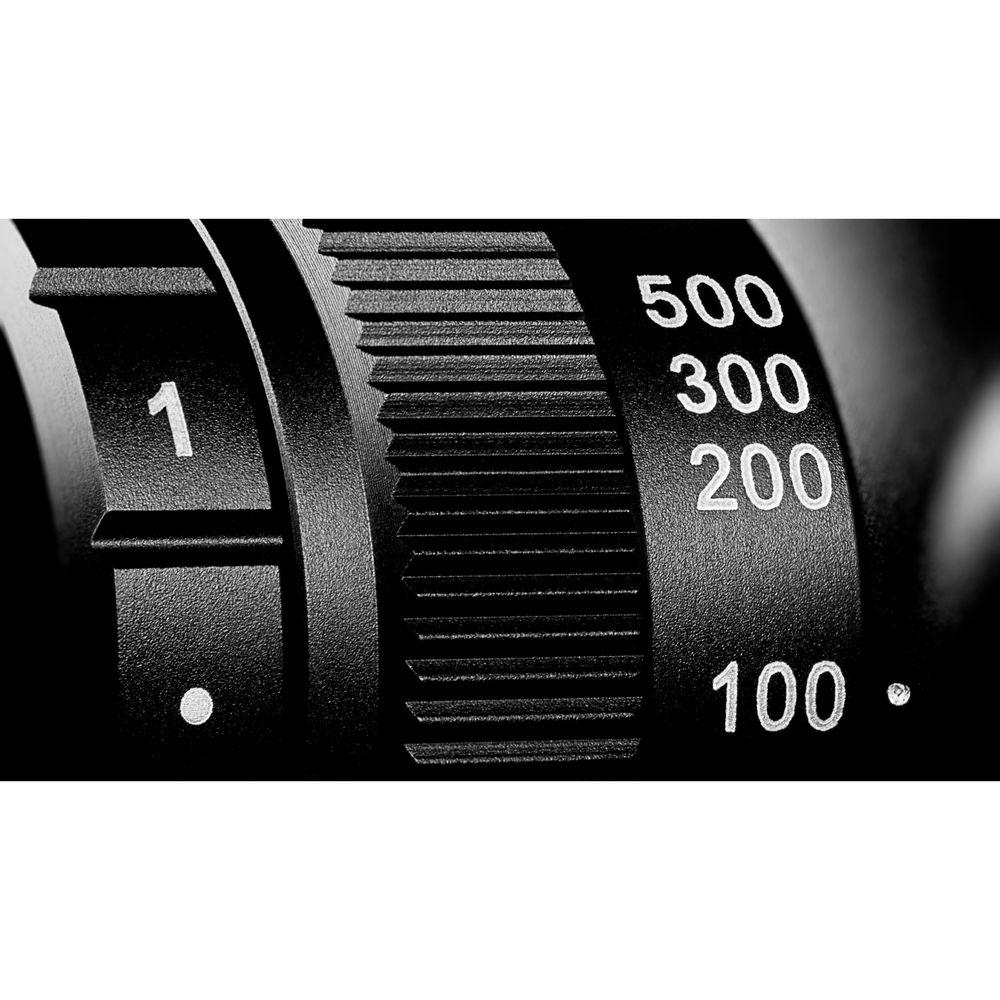

- Parallax-free to 100 yd

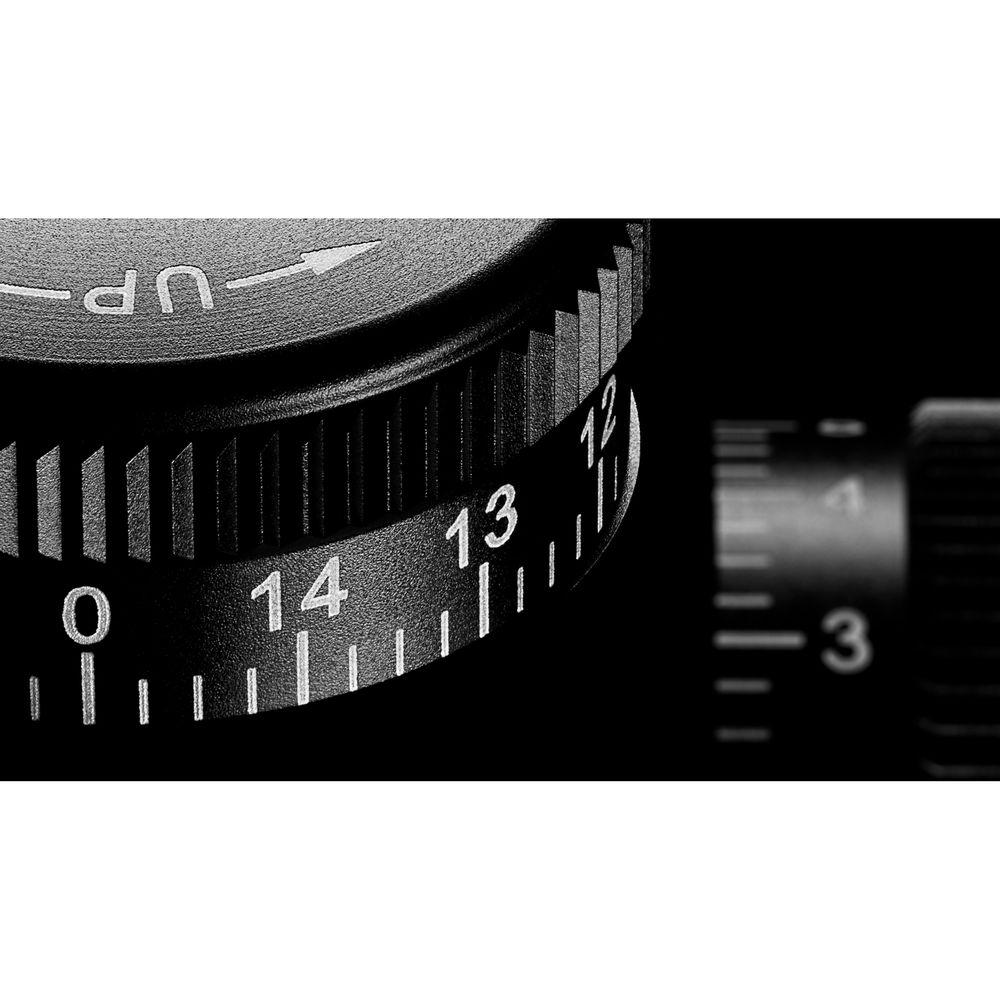

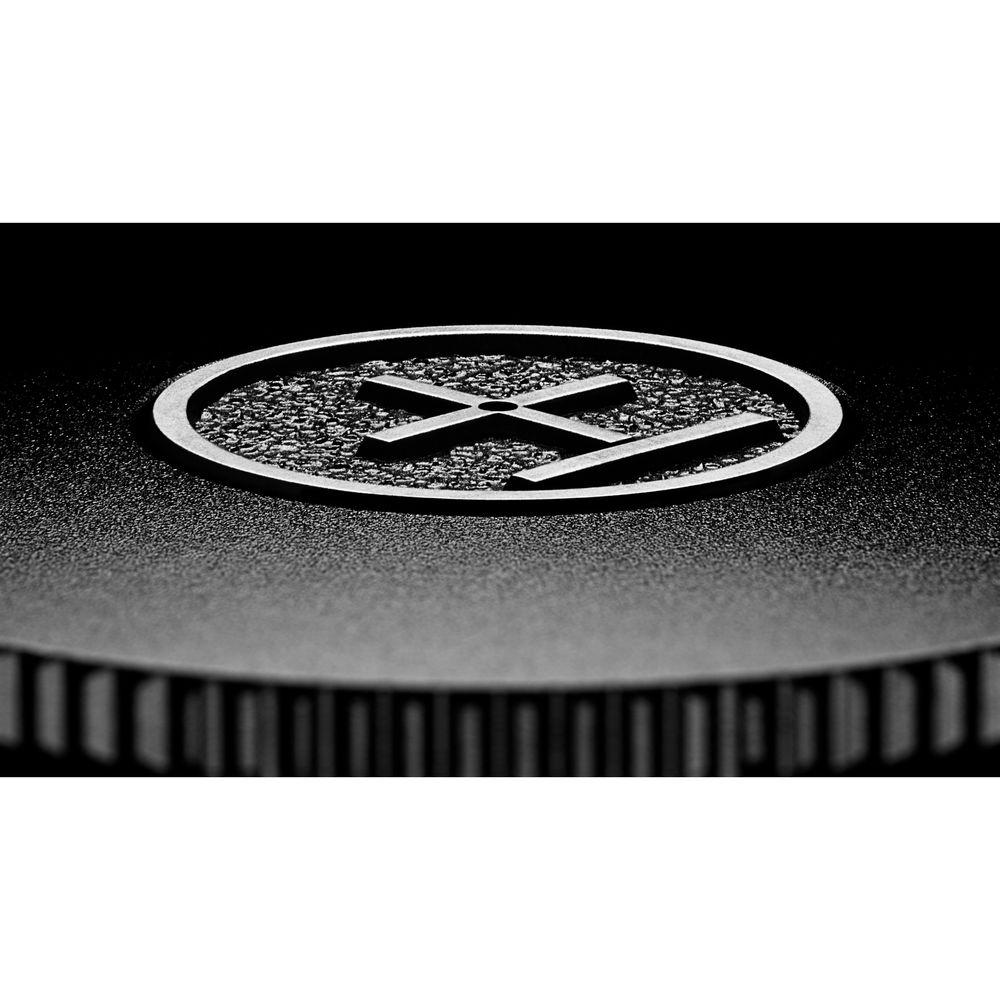

- Low-profile capped turrets
- 4"-long eye relief
- 29-7mm exit pupil
- Construction Details
-
- 30mm one-piece maintube
- Lightweight and durable aluminum-alloy housing
- Threaded objective bezel for attaching accessories

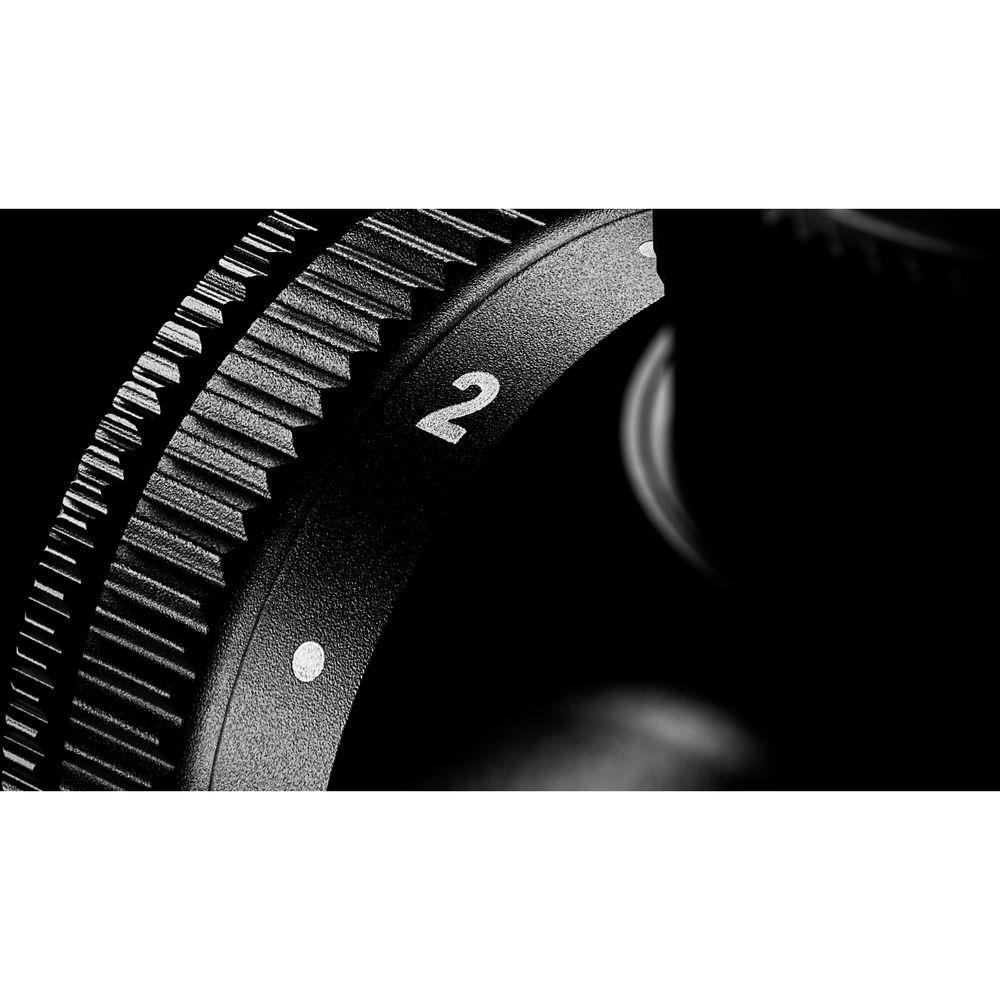

- Fast-focus eyepiece with a high-torque, slip-free rubber zoom ring
- Nitrogen filled for water and fogproof performance
- Two lens covers included

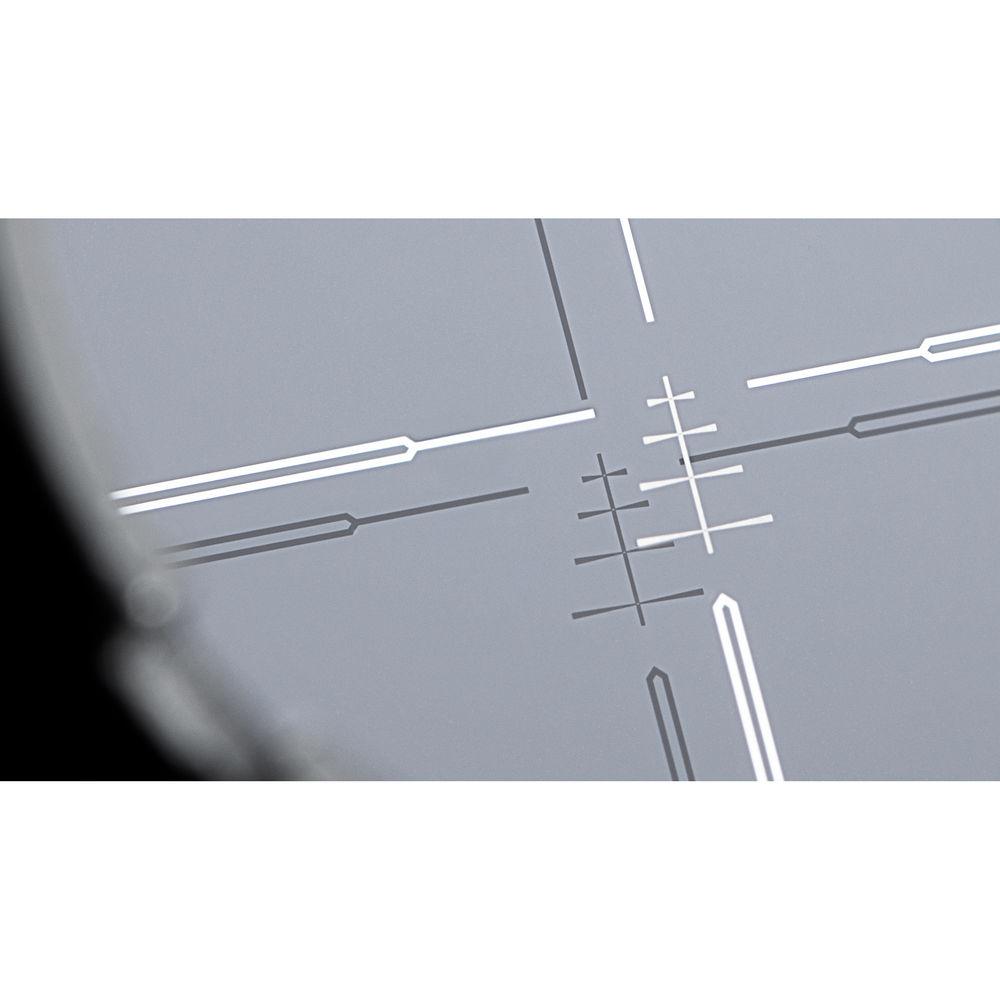

- Red L4A Dot Illuminated Reticle
-
- 2nd focal plane
- German #4 style outline
- Three posts
- Thin crosshair with a detached red target dot
- Six brightness levels
In the Box Hawke Sport Optics 1.5-6x44 Endurance 30 WA Riflescope (L4A Dot Illuminated Reticle, Matte Black) Sunshade CR2032 Battery 2 x Lens Caps Lens Cloth Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 1.5-6x44 Endurance 30 WA Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 16310 Specs | | | Magnification | 1.5 to 6x | | Objective Lens Diameter | 44 mm | | Field of View | 1.5x: 82.9' @ 100 yd / 27.6 m @ 100 m
6x: 20.7' @ 100 yd / 6.9 m @ 100 m | | Exit Pupil Diameter | 1.5x: 29 mm
6x: 7 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | Dot Reticle (Second Focal Plane) | | Illuminated Color | Red | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 120 MOA | | Elevation Adjustment | 120 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.2" / 33.6 cm | | Weight | 20.1 oz / 569 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
