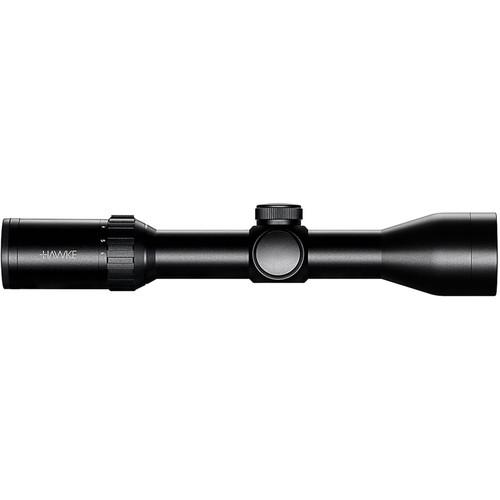

Product description See a sharp image even at dawn and dusk with the Hawke 1.5-6x44 Vantage 30 WA Riflescope. This optic's large objective lens admits a great deal of light for a bright image even in low-light conditions, and its 11 layers of anti-reflection coatings on all lens surfaces deliver a sharp image with ample contrast. Designated WA for its wide-angle field of view (80.4-19.8' at 100 yards), the scope features a strong, single-piece 30mm maintube with 200 MOA of elevation and windage adjustment at 1/2 MOA per click for long-distance shots. The L4A Dot reticle in the second (rear) focal plane features a fine crosshair and three thin posts, with a red or green dot and five brightness levels. The scope is set to be parallax-free at 100 yards, and the aluminum housing is purged with nitrogen and sealed for water and fogproof performance. - Optical Performance
-
- 1.5-6x zoom range
- 44mm objective lens is suitable for most lighting conditions
- 11 layers of anti-reflection coatings on all lens aurfaces

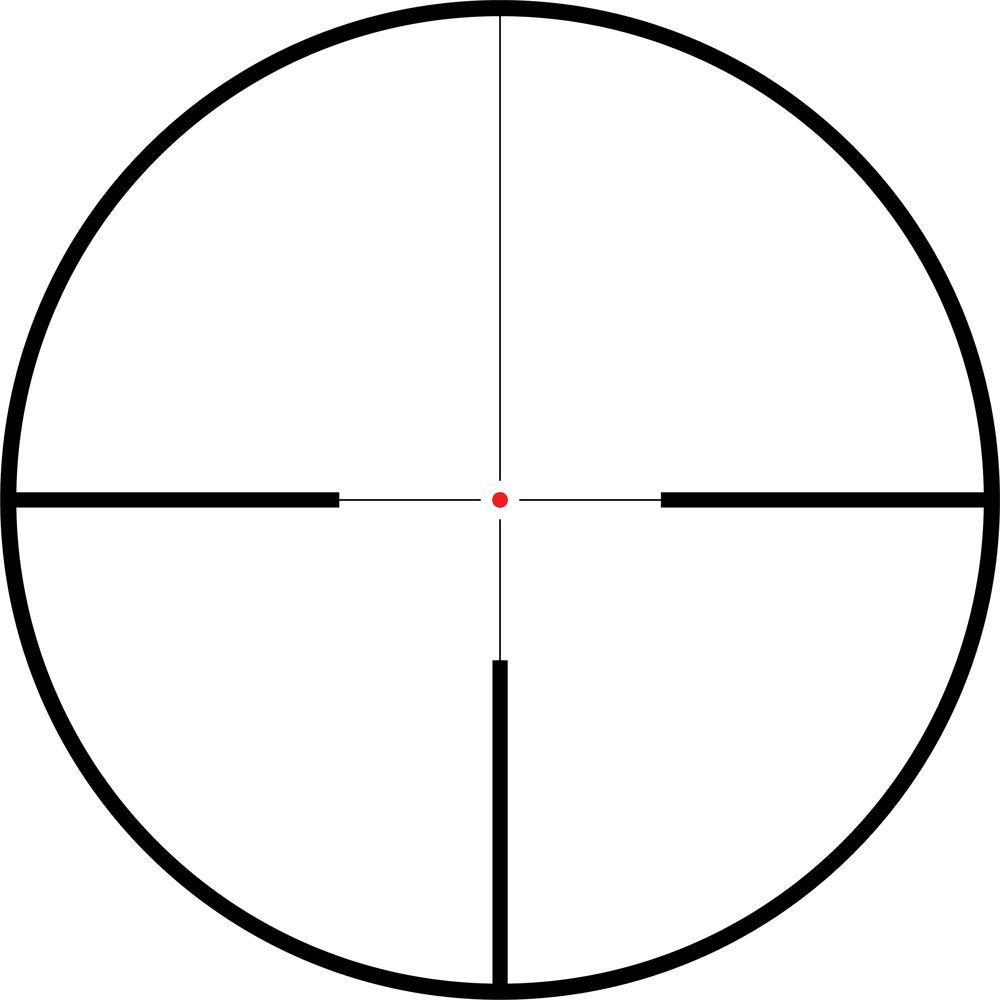

- Red/Green L4A Dot Illuminated Reticle
-
- Second focal plane
- German #4 style outline
- Three posts

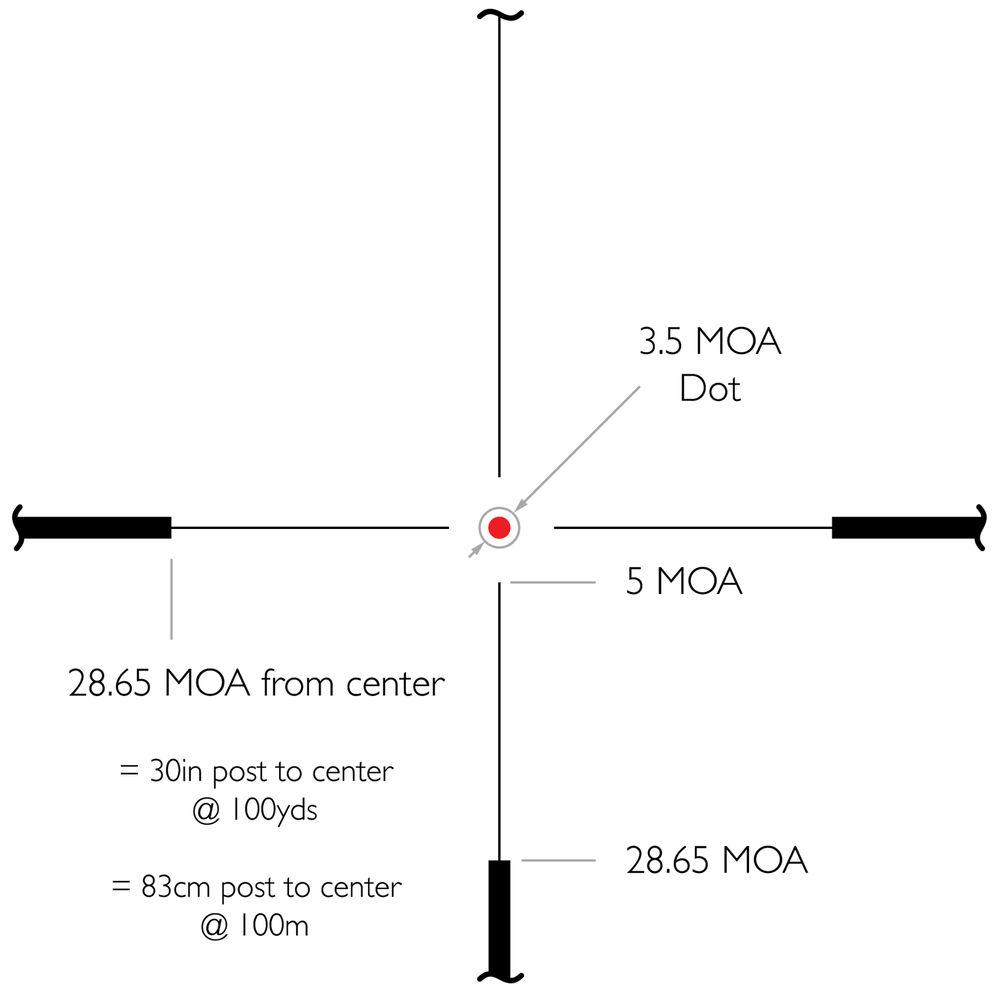

- Thin crosshair with a 3.5 MOA, red or green target dot
- Five brightness levels
- Use and Handling
-
- 1/2 MOA impact point correction
- 200 MOA windage and elevation adjustment range
- Parallax-free to 100 yd
- Low-profile capped turrets
- Long 3.5" eye relief
- 29-7mm exit pupil
- Construction Details
-
- 30mm one-piece maintube
- Lightweight and durable aluminum housing
- Fast-focus eyepiece with a high-torque zoom ring
- Nitrogen filled for water and fogproof performance
- Two lens covers included
In the Box Hawke Sport Optics 1.5-6x44 Vantage 30 WA Riflescope (L4A Dot Illuminated Reticle, Black) CR2032 Battery 2 x Lens Caps Lens Cloth Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 1.5-6x44 Vantage 30 WA Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 14276 Specs | | | Magnification | 1.5 to 6x | | Objective Lens Diameter | 44 mm | | Field of View | 1.5x: 80.4' @ 100 yd / 26.7 m @ 100 m
6x: 19.8' @ 100 yd / 6.6 m @ 100 m | | Exit Pupil Diameter | 1.5x: 29 mm

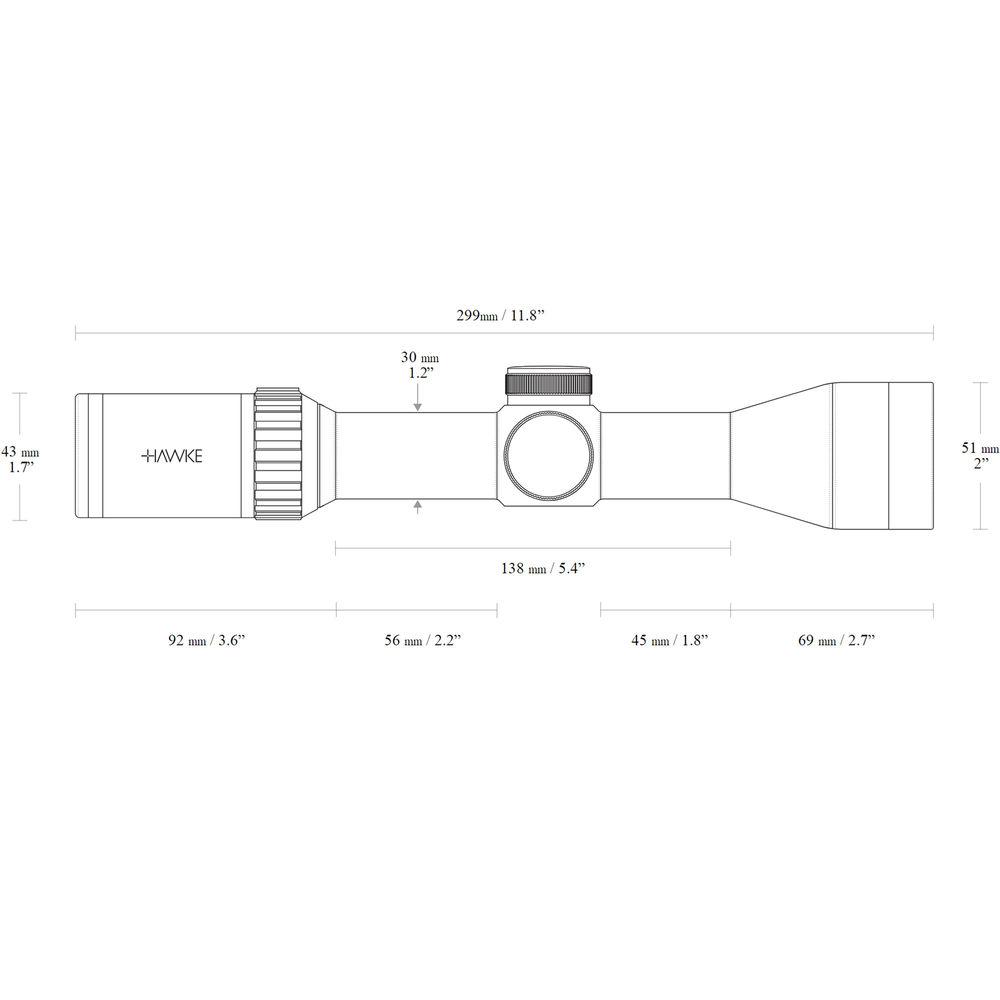

6x: 7 mm | | Eye Relief | 3.5" / 88.9 mm | | | | Reticle Type | L4A Dot Reticle (Second Focal Plane) | | Illuminated Color | Green, Red | | Brightness Settings | Adjustable Brightness (5 Levels) | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 200 MOA | | Elevation Adjustment | 200 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 11.8" / 30 cm | | Weight | 18.2 oz / 516 g |
