User Manual for Hawke Sport Optics 1-5x24 XB30 Pro Crossbow Scope Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 1-5x24 XB30 Pro
- Product category: Riflescopes Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Riflescopes
 |
User manual for the Hawke Sport Optics 1-5x24 XB30 Pro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|

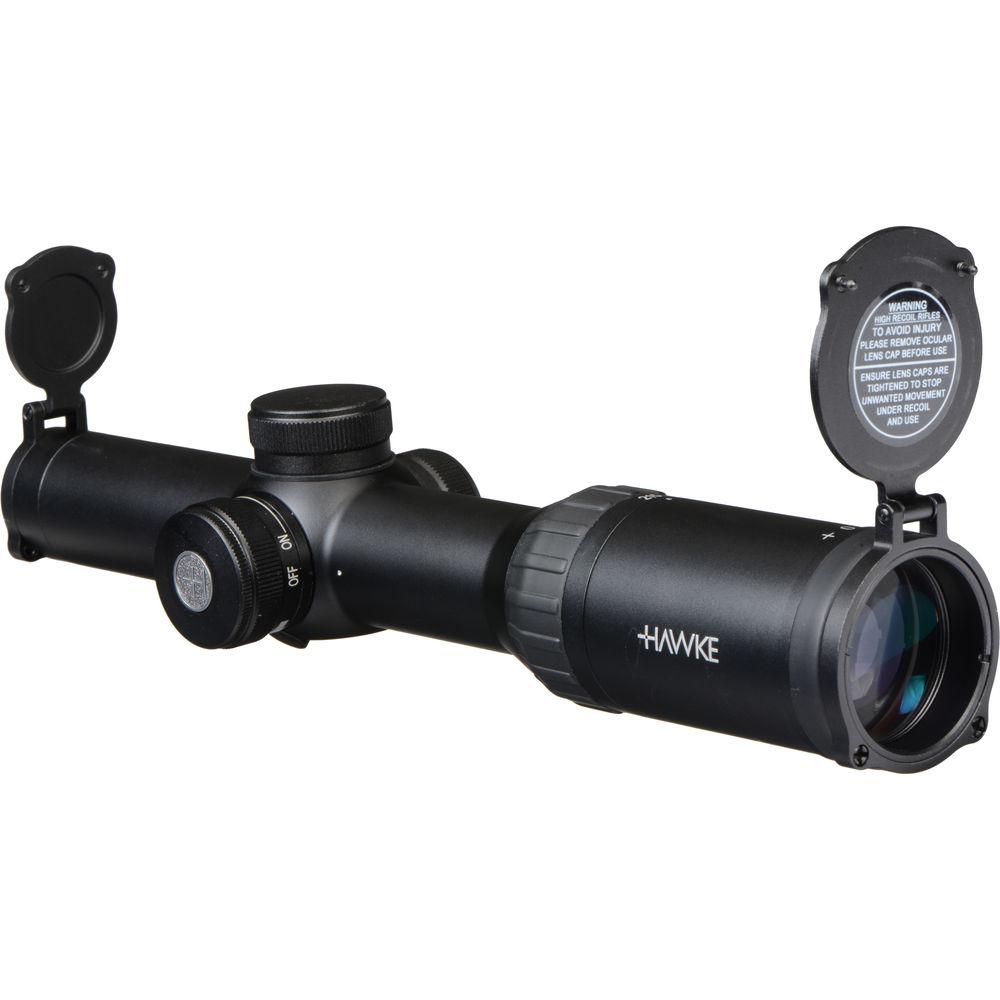

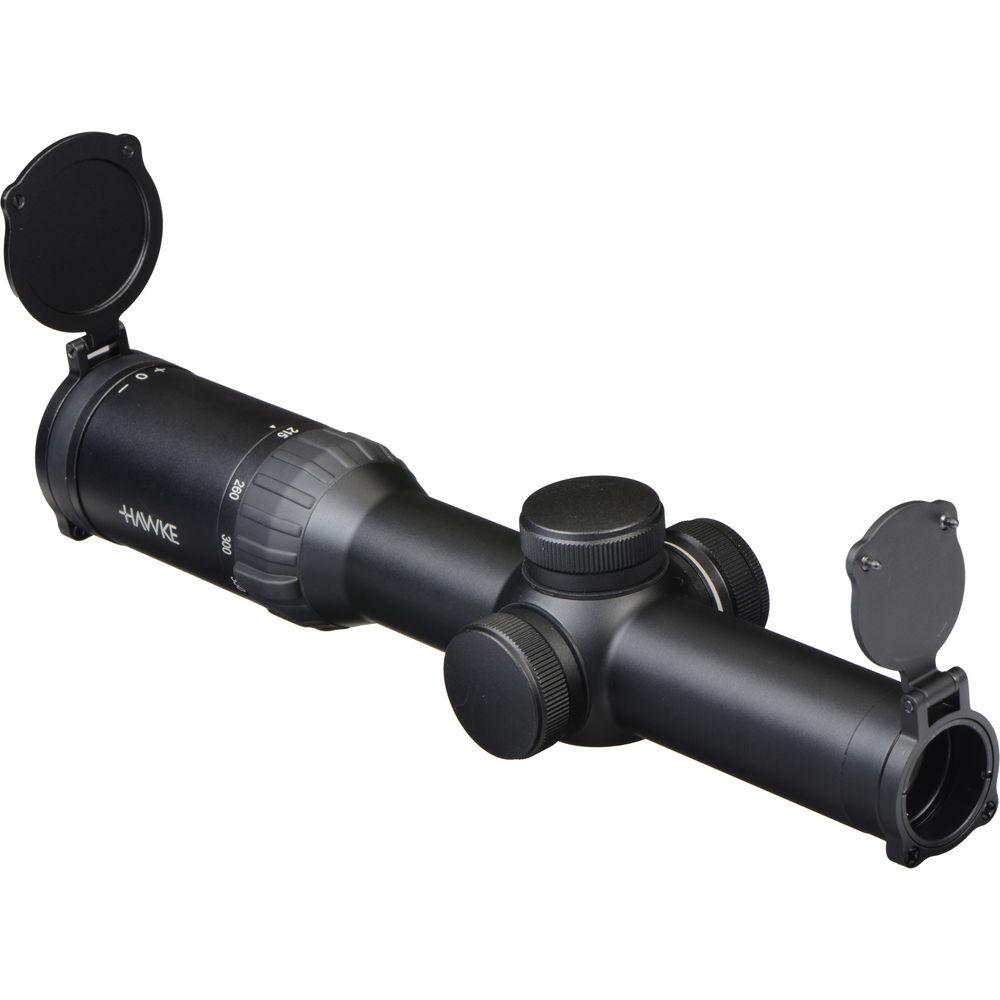

Product description Hawke Sports Optics specifically designed and engineered their 1-5x24 XB30 Pro Crossbow Scope and SR reticle for crossbows using bolts traveling at speeds from 215-450 ft/s for optimum accuracy and ease-of-use. By placing the reticle on the second focal plane, the zoom changes the reticle's sub-tensions with the magnification, which allows you to calibrate the reticle to the bolt's speed for greatly improved shot placement. Multiple illuminated center aiming points provide drop compensation out to 60 yards, with non-illuminated markers on the posts give BDC aiming points from 70-100 yards. The illumination is red with a stepless rheostat to give you complete and precise control of the intensity to match most lighting conditions.The objective is intentionally on the small side to maintain a low-profile and to keep the weight down. To offset the smaller objective are anti-reflection fully multi-coated optics that help maximize light transmission, ensuring bright and clear high-contrast images. This maximization of light transmission boosts the scope’s low-light performance so you can hunt at dawn and dusk when many game animals amore most active. Capped turrets help guard against accidental adjustments while a fast-focus collar and knurled rheostat allow you to quickly adapt to rapidly changing conditions. Complementing the performance of the scope is a lightweight and durable anodized aluminum housing with a robust 30mm one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof. - Optical Performance
-
- 1-5x zoom range
- 24mm objective lens
- 16-layer anti-reflection fully multi-coated optics improves color fidelity, contrast, and overall image brightness
- 100-20.9' field of view at 100 yards
- Reticle Details
-

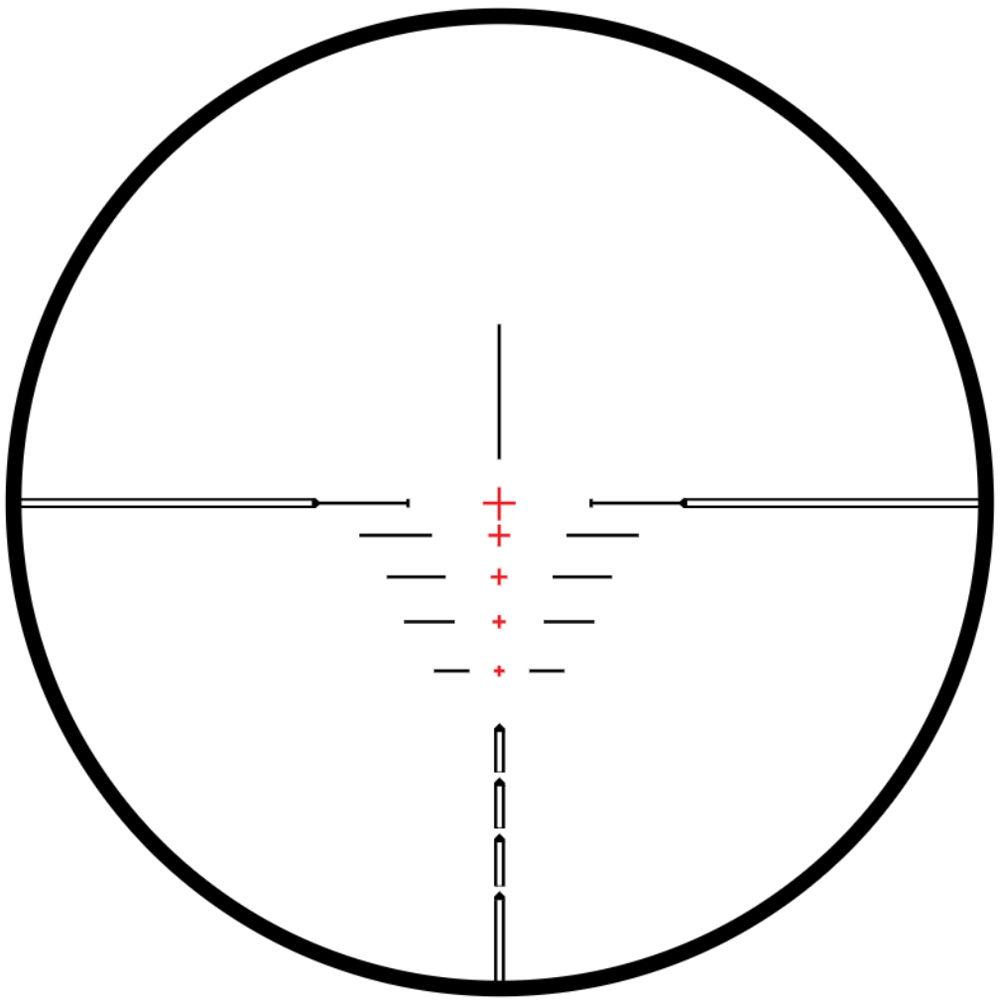

- SR partially-illuminated modified German style
- Designed for use with bolts traveling 215-450 ft/s
- Reticle is placed on second focal plane, so the sub-tensions change with zoom settings for different speed bolts
- Hollow outer posts with thin inner hairs on horizontal and lower vertical axes
- Upper half of field of view is completely open
- Illuminated center aiming crosses and indicators in hollow posts provide drop compensation from 30 to 100 yards
- 4" bracketing at each corresponding distance
- Ballistic specifications at 5x magnification
- Bow speed: 450 ft/s
- Ballistic coefficient: 0.0553
- Zeroed range: 20 yd
- Scope height: 2" (5.1cm)
- Ballistic specifications at 1x magnification
- Bow speed: 215 ft/s
- Ballistic coefficient: 0.0553
- Zeroed range: 20 yd
- Scope height: 2" (5.1cm)
- Glass-etched to resist fading and shifting over time
- Partial illumination:
- Knurled Posi-Grip adjustment collar
- Stepless rheostat enables precise intensity control
- Red illumination: Ideal for low-light conditions
- Runs on one included CR2032 battery
- Use and Handling
-
- Fast-focus collar
- High-torque zoom mechanism maintains settings under extreme conditions
- 1/2 MOA per click impact point correction
- 210 MOA windage and elevation adjustment range
- Finger-adjustable, low-profile covered turret caps prevent accidental adjustment
- Fixed parallax set at 50 yards
- Wide 24-4.8mm exit pupil
- Comfortable 3" eye relief
- Construction Details
-
- Robust one-piece 30mm maintube
- Lightweight and durable aluminum alloy chassis
- Nitrogen-filled for water and fogproof performance
- Anodized aluminum flip-up objective and ocular lens covers
- Length: 10.1 inches
- Weight: 16.5 ounces
In the Box Hawke Sport Optics 1-5x24 XB30 Pro Crossbow Scope (SR Illuminated Reticle) Lens Cloth CR2032 Battery Ocular Lens Cover Objective Lens Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 1-5x24 XB30 Pro Crossbow Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 12230 Specs | | | Magnification | 1 to 5x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 100' @ 100 yd / 33.3 m @ 100 m
5x: 20.9' @ 100 yd / 7 m @ 100 m | | Exit Pupil Diameter | 1x: 24 mm
5x: 4.8 mm | | Eye Relief | 3" / 76 mm | | | | Reticle Type | SR Duplex Crosshair Reticle (Second Focal Plane) | | Illumination | Illuminated | | Illuminated Color | Red | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 210 MOA | | Elevation Adjustment | 210 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 10.1" / 25.6 cm | | Weight | 16.5 oz / 468 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 12.9 x 4.7 x 3.1" |
