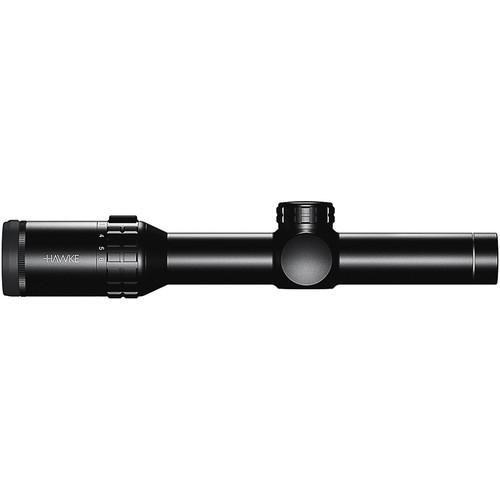

User Manual for Hawke Sport Optics 1-6x24 Frontier 30 Riflescope Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 1-6x24 Frontier 30
- Product category: Riflescopes Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Riflescopes
 |
User manual for the Hawke Sport Optics 1-6x24 Frontier 30 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|
Product description Equipped with an uncluttered red Circle Dot reticle, the Hawke 1-6x24 Frontier 30 Riflescope offers premium optics, precise impact point correction, and durable, waterproof construction. Its lenses bear 21 layers of anti-reflective coating for optimal light transmission, and the 30mm one-piece aluminum maintube allows 140 MOA of elevation and windage adjustment at 1/2 MOA per click of the low-profile, locking, zero-stop turrets. The glass-etched reticle has six brightness levels with off positions in between. You can operate the 6x zoom quickly with the detachable thumb lever and use the locking ocular to keep your image dialed in. The housing is nitrogen purged for waterproof performance and built to withstand the bumps and bruises of the field. - Optical Performance
-
- 1-6x zoom magnification
- 24mm objective lens
- 21 layers of anti-reflection fully multi-coated optics improves contrast and image brightness
- 112.8-18.9' field of view at 100 yards

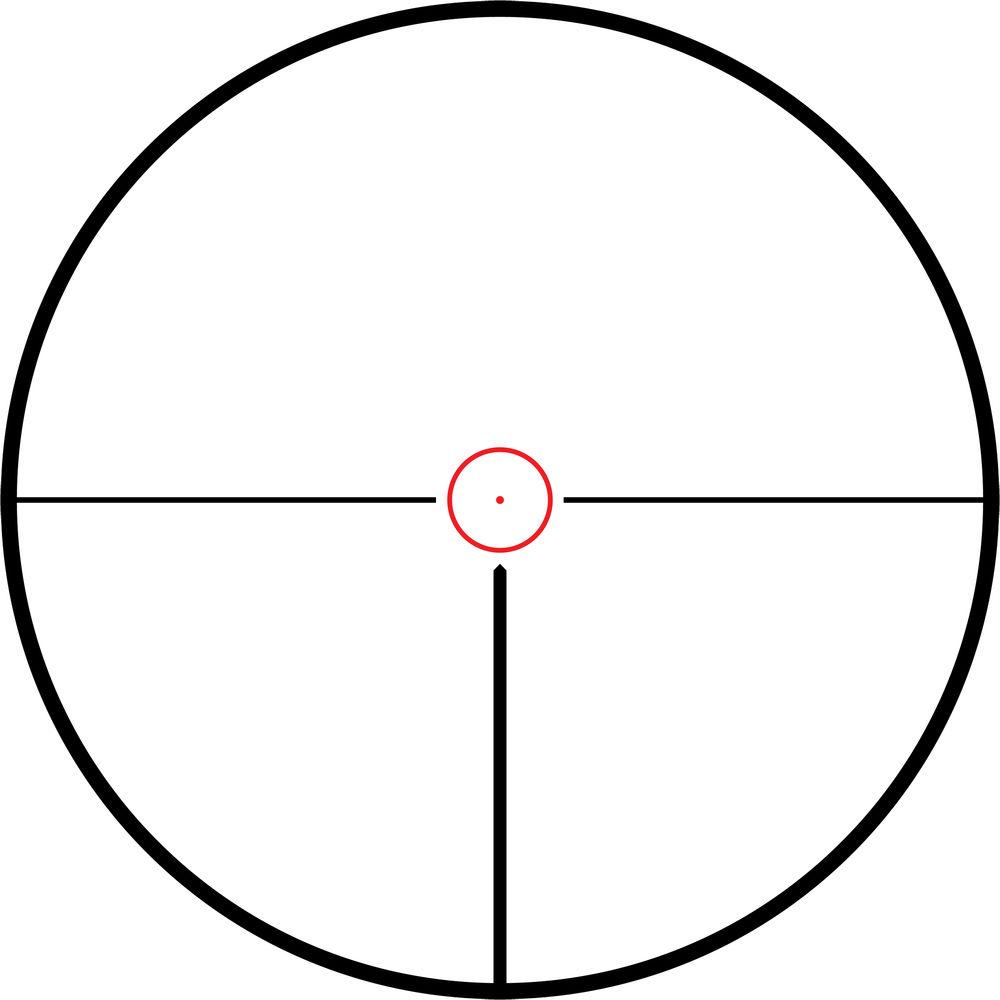

- Circle Dot Illuminated Reticle
-
- Second focal plane
- Etched on glass
- Bright red center dot and illuminated circle
- Designed for fast target acquisition in battue and driven hunt
- Six brightness settings with off positions in between
- Use and Handling
-
- 1/2 MOA impact point correction
- 140 MOA windage and elevation adjustment range
- Locking, zero-stop turrents
- Parallax-free at 100 yards
- Construction Details
-
- 30mm one-piece maintube
- Lightweight aluminum housing
- Removable zoom thumb lever
- Capped low-profile fingertip turrets, resettable to zero
- Nitrogen filled, water, fog, and shockproof
- Lens caps included
In the Box Hawke Sport Optics 1-6x24 Frontier 30 Riflescope (Circle Dot Illuminated Reticle, 2019 Version) Zoom Lever Flip-Up Lens Covers Lens Cloth CR2032 Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 1-6x24 Frontier 30 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 18401 Specs | | | Magnification | 1 to 6x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 112.8' @ 100 yd / 37.4 m @ 100 m
6x: 18.9' @ 100 yd / 6.3 m @ 100 m | | Exit Pupil Diameter | 1x: 24 mm

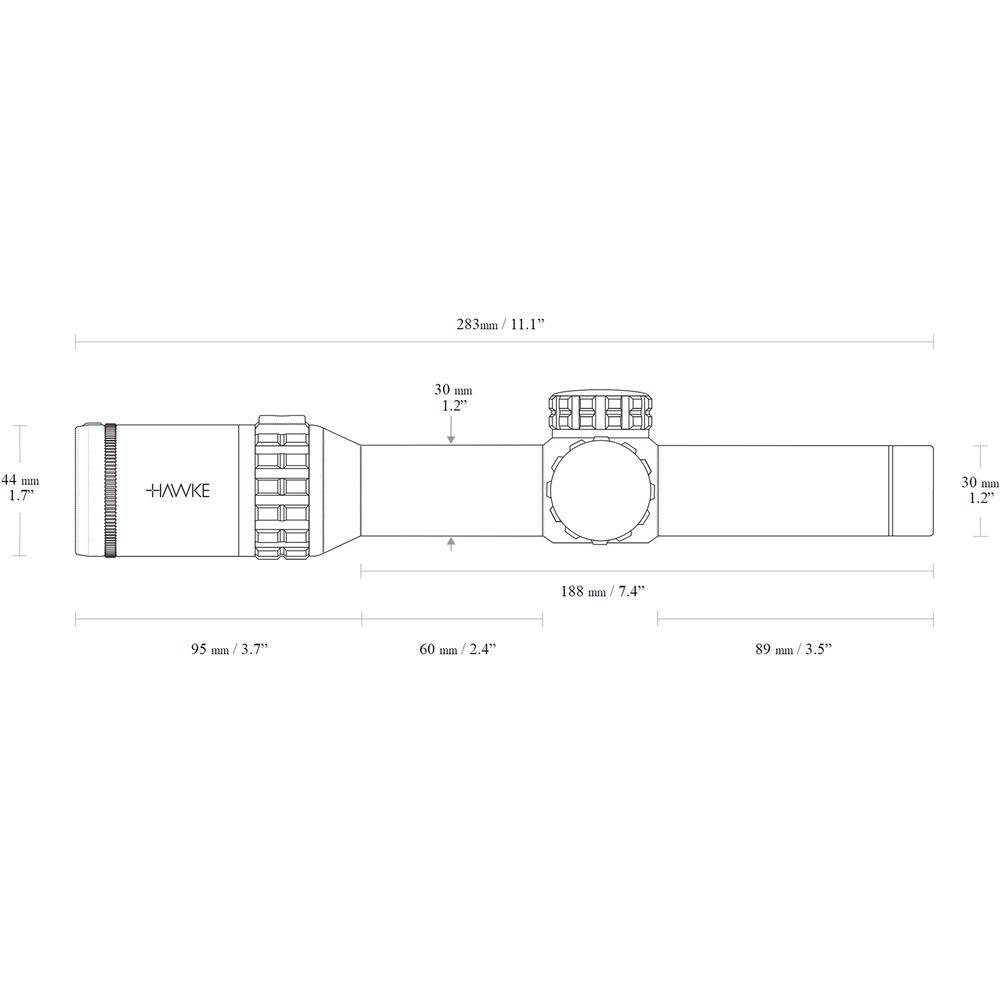

6x: 4 mm | | Eye Relief | 4" / 101.6 mm | | | | Reticle Type | Circle Dot Reticle (Second Focal Plane) | | Illumination | Illuminated | | Brightness Settings | Adjustable Brightness (6 Levels) | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 140 MOA | | Elevation Adjustment | 140 MOA | | Parallax Correction | No, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2023 | | Material | Aluminum | | Dimensions | Length: 11.1" / 28.2 cm | | Weight | 18.1 oz / 513 g |
