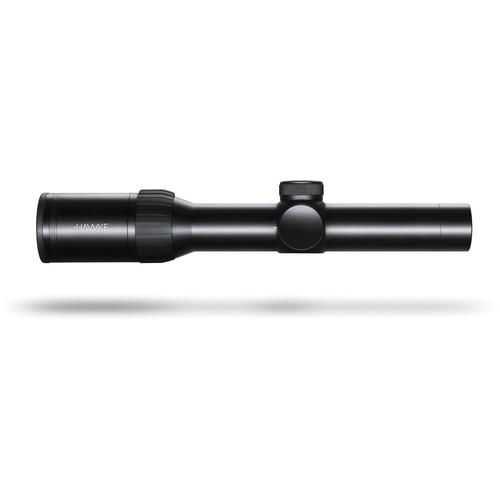

User Manual for Hawke Sport Optics 1-6x24 Frontier 30 Tactical Riflescope Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 1-6x24 Frontier 30
- Product category: Riflescopes Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Riflescopes
|
User manual for the Hawke Sport Optics 1-6x24 Frontier 30 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|
Product description Hawke Sport Optics designed the 1-6x24 Frontier 30 Tactical Riflescope specifically to address the needs of tactical shooters. To emphasize its goals, Hawke outfitted this scope with a compact low-profile body, a 24mm objective, and an illuminated Tactical Dot reticle that is located in the first focal plane. The Tactical Dot reticle features a modified German 4 design with brilliant red illumination. The center illuminated area consists of the aiming dot, target circle, and two lateral crosshairs. The non-illuminated portion of the reticle consists of three medium posts (truncated at the outer edges) and a fine bottom line with ballistic and wind stadia. For added accuracy, the parallax is fixed to 100 yards. To help with compensation for wind and ballistic bullet drop, the riflescope offers 35 MRAD of windage and elevation adjustment range and a 1/10 MRAD per click impact point correction. The optical system highlights fully multi-coated elements with 21 layers of anti-reflection coatings for ultimate resolution and image brightness.
The scope's aluminum construction is centered around its 30mm single-piece maintube. It is filled with nitrogen for fogproof and waterproof performance. The overall design features a compact shape with low-profile capped turrets, fast-focus eyepiece, and a high-torque rubberized Posi-Grip zoom ring. To keep your scope's lenses protected from debris, dust, and dirt while it is not used, the scope is supplied with lens caps. - Optical Performance
-
- 1-6x zoom magnification
- 24mm objective lens
- 21 layers of anti-reflection fully multi-coated optics improves contrast and image brightness
- 108 - 17.6' field of view at 100 yards
- Use and Handling
-
- 1/10 MRAD impact point correction
- 35 MRAD windage and elevation adjustment range
- 6 MRAD per revolution
- Construction Details
-
- 30mm one-piece maintube
- Lightweight aluminum housing
- High-torque Posi-Grip zoom ring on the eyepiece
- Capped low-profile fingertip turrets, resettable to zero
- Nitrogen-filled, fogproof
- Lens caps included
- Waterproof
- Tactical Dot Illuminated Reticle
-
- 1st focal plane
- Etched on glass
- Three truncated medium posts
- Thin vertical crosshair with holdover
- Illuminated target dot, broken at the bottom target circle, and two lateral crosshairs
- 6 brightness settings to match a variety of lighting conditions
- Fixed parallax at 100 yd
In the Box Hawke Sport Optics 1-6x24 Frontier 30 Tactical Riflescope (Tactical Dot Illuminated Reticle, 2017 Version) - CR-2032 Battery
- 2 x Elasticated Lens Covers
- Lens Cloth
- Limited Lifetime Warranty
- Limited 10-Year Europe Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 1-6x24 Frontier 30 Tactical Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 18201 Specs | | | Magnification | 1 to 6x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 108' @ 100 yd / 36 m @ 100 m
6x: 17.6' @ 100 yd / 5.9 m @ 100 m | | Exit Pupil Diameter | 1x: 10 mm
6x: 2 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | Tactical Dot Reticle (First Focal Plane) | | | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 35 MRAD | | Elevation Adjustment | 35 MRAD | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 10.4" / 265 mm | | Weight | 17.7 oz / 503 g | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 13.9 x 4.1 x 4.1" |
