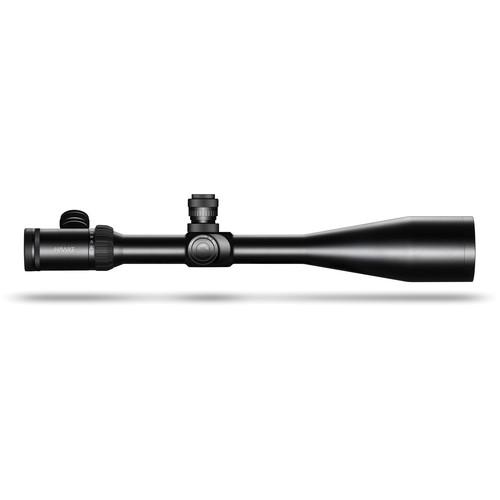

User Manual for Hawke Sport Optics 10-50x60 Sidewinder ED Side Focus Riflescope Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 10-50x60 Sidewinder ED
- Product category: Riflescopes Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Riflescopes
|
User manual for the Hawke Sport Optics 10-50x60 Sidewinder ED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|
Product description Hawke Sport Optics delivered the 10-50x60 Sidewinder ED Side Focus Riflescope specifically to address the needs of low-light and long-range precision shooters and hunters. To emphasize its goals, Hawke outfitted the scope with Extra-Low Dispersion optics, an extra-wide 60mm objective lens, which can gather more light at dawn and dusk than most objectives, and the illuminated TMX reticle. The high image resolution and brightness, assured by 18-layer full multi-coatings, are further augmented with a high contrast and a vivid true color, thanks to Extra-Low Dispersion (ED) optical glass. Another highlight of this scope is the etched-on-glass 2nd focal plane TMX reticle with an illuminated crosshair. The crosshair offers a horizontal range of 6 mils and 8 mils of ballistic compensation from the center down. The reticle also has a grid of ultra-fine reference dots below the horizontal line, where dots are spaced at 0.5 mil intervals. The grid provides you with aiming points for any weather or situation and allows you to adjust your shots instantly without resorting to windage and elevation knobs. For added accuracy, you can easily correct the parallax effect from 10 yd to infinity with the adjustable side focus knob. To help with compensation for wind and ballistic bullet drop, the riflescope offers 45 MOA of windage and elevation adjustment range and a 1/4 MOA per click impact point correction.
The scope's aluminum construction is centered around its 30mm single-piece maintube. It is filled with nitrogen for fogproof and waterproof performance. The overall design features a slender and unobtrusive shape with finger-operated precision turrets. These locking and resettable turrets offer 1/4 MOA per click adjustments, but can be easily interchanged with optional 1/8 MOA or 1/10 MRAD counterparts, depending on your goals and preferences. To provide precise adjustments and a secure grip, the turrets also feature graduation and fine knurling. To prevent recoil-related zoom shift, the fast-focus eyepiece is outfitted with a high-torque zoom ring. To keep your scope's lenses protected from debris, dust, and dirt while it is not used, the external lenses can be protected with the included aluminum flip-up lens covers. Other included accessories are a lens cloth, one CR-2032 battery, and screw-in 4" sunshade. - TMX Illuminated Reticle
-
- 2nd focal plane
- Sub-tension set at 20x
- Ultra-fine Mil-Dot style pattern
- Optimized for long ranges
- Three sets of lateral outer wings with bar markings
- Ultra-fine illuminated red crosshair with bar markings
- Major bars are 1.5 MOA high
- Minor bars are 0.75 MOA high
- 0.5 mil / 1.72 MOA spacing between major and minor bars
- 1 mil / 3.44 MOA spacing between major bars
- 0.1 MOA gaps inside each mark improve point of aim
- Grid formation below the horizontal line provides fine dots
- Features etched reference numbers
- Allows for instant aiming adjustments
- 8 mil ballistic compensation range from center down
- 6 mil total horizontal compensation range
- Parallax: 10 yards to infinity
- Continuous brightness control
- Optical Performance
-
- ED - Extra-Low Dispersion glass delivers vivid, true color, and high resolution images
- 60mm objective increases image brightness in challenging light conditions and at high magnifications
- 18 full multi-coatings improve transmission, image clarity and detail, and reduce glare
- 11.7 - 2.4' field of view at 100 yards
- 6 - 1.2mm exit pupil
- 3.7" eye relief
- Hawke Ballistic Reticle Calculator (BRC)
-
- Free software & apps for Android/iOS/Windows allow you to:
- Customize reticle performance
- Change Ballistic Coefficient (BC)
- Change zero distances, muzzle velocity, and magnification
- Plot your trajectory and find suitable aim points
- Print trajectory graphs, reticle images, and range calculations
- Construction Details
-
- 30mm single-piece maintube
- Lightweight and durable aluminum housing
- Interchangeable, locking, and resettable turrets with graduations
- Push-pull locking turrets, resettable to zero
- 1/4 MOA impact point correction
- 45 MOA windage and elevation adjustment range
- High-torque zoom ring secures your zoom setting
- Knurled Posi-Grip adjustment collar
- Nitrogen-filled for water and fogproof performance
- Locking high-torque eyepiece
- Aluminum flip-up lens covers
- 4" threaded sunshade
- 4" side parallax wheel
In the Box Hawke Sport Optics 10-50x60 Sidewinder ED Side Focus Riflescope (TMX Illuminated Reticle, Black) - Interchangeable Turrets
- Pointer
- Lens Cloth
- CR-2032 Battery
- 4" Side Wheel
- 2 x Flip-Up Lens Covers
- 4" Screw-On Sun Shade
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 10-50x60 Sidewinder ED Side Focus Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 17370 Specs | | | Magnification | 10 to 50x | | Objective Lens Diameter | 60 mm | | Field of View | 10x: 24' @ 100 yd / 8 m @ 100 m
50x: 11.7' @ 100 yd / 3.9 m @ 100 m | | Exit Pupil Diameter | 10x: 6 mm
50x: 1.2 mm | | Eye Relief | 3.7" / 95 mm | | | | Reticle Type | TMX Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 45 MOA | | Elevation Adjustment | 45 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 18" / 458 mm | | Weight | 34.6 oz / 980 g | | | | Package Weight | 4.65 lb | | Box Dimensions (LxWxH) | 19.8 x 7.6 x 4.0" |
