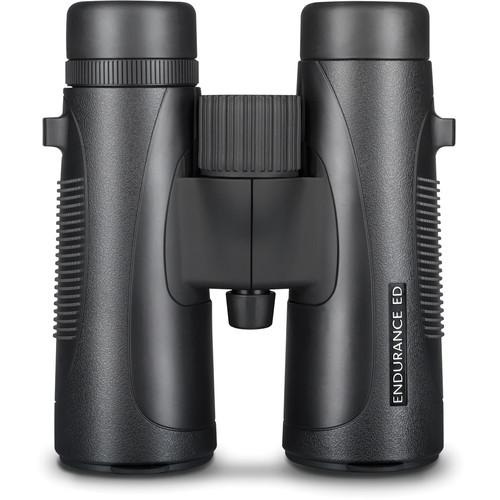

User Manual for Hawke Sport Optics 10x42 Endurance ED Binocular Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 10x42 Endurance ED
- Product category: Binoculars Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Binoculars
|
User manual for the Hawke Sport Optics 10x42 Endurance ED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More erzrqqsxtz Hawke Sports Optics' black 10x42 Endurance ED Binocular features phase-corrected BAK4 roof prisms, extra low-dispersion (ED) glass, and anti-reflection fully multi-coated optics to produce a versatile and capable optic that produces bright and clear high-contrast images with true color rendition and virtually no color-fringing. Coupled with the optical features are 42mm diameter objectives which give the binocular very competent low-light performance. This combination of optics and objectives make the Endurance ideally suited for most outdoor activities from hunting, to birding, to sporting events.Complementing the optical performance are construction details that make the binocular durable and comfortable to use. The chassis is made from a polycarbonate that is impact and corrosion-resistant. It is also temperature-resistant, so the optical tubes won't expand and contract with temperature fluctuation, which, over time, can cause the optics to move out of collimation; preventing the binocular from being able to achieve sharp focus. The optical tubes are wrapped with rubber armoring which not only protects them from drops and impacts, it also gives the binocular a slip-resistant grip - especially in cold and wet weather. The optical tubes are nitrogen-filled and O-ring sealed to be water and fogproof - especially in extreme weather conditions. A right-eye diopter adjustment allows the binocular to be customized to most people's needs, and twist-up eyecups means it can be comfortably used with or without eye wear. - Optical Performance
-
- 10x magnification
- 42mm objective lenses
- Compact BAK4 roof prisms
- Extra low-dispersion (ED) glass corrects for chromatic aberrations for true color representation and reduced fringing
- Anti-reflection fully multi-coated optics improve color rendition, contrast, and overall image brightness
- Phase corrected prism coatings reduce internal light dispersion, improves contrast, and color fidelity
- 304' field of view at 1000 yards
- 58° apparent angle of view
- Use and Handling
-
- Closed bridge configuration
- 53-73mm interpupillary distance range
- Large knurled fast-focus wheel goes from min to max focus in 1.2 turns
- Right-eye dioptric correction
- Twist-up click-stop eye cups for use with or without eyewear
- Comfortable 4.2mm exit pupil
- Long 13mm eye relief
- Construction Details
-
- Impact, corrosion, temperature-resistant polycarbonate chassis
- Nitrogen-filled for water and fogproof performance
- Black rubber armoring protects chassis from impacts and provides a slip-resistant grip
- Textured armoring and deep palm grooves adds additional slip-resistance to the grip
- Stay-on flip-down objective lens covers
- Weight: 23 ounces
In the Box Hawke Sport Optics 10x42 Endurance ED Binocular (Black) Lens Cloth Ocular Lens Cap Objective Lens Cap Neck Strap Carrying Case Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 erzrqqsxtz User Manual PDF 1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 10x42 Endurance ED Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 36206 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 42 mm | | Angle of View | 5.8° (Actual) | | Field of View | 304.5' @ 1000 yd / 101.5 m @ 1000 m | | Minimum Focus Distance | 6.6' / 2 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 13.0 mm | | Interpupillary Adjustment | 53 to 73 mm / 2.1 to 2.9" | | Focus Type | Center | | Tripod Mount | None | | Dimensions | Length: 5.6 x 4.9" / 14.3 x 12.5 cm | | Weight | 23.00 oz / 652 g | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 8.2 x 6.9 x 3.0" |
