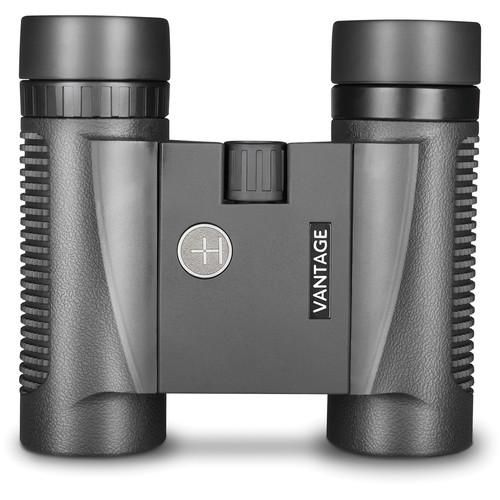

User Manual for Hawke Sport Optics 12x25 Vantage Binocular Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 12x25 Vantage Binocular
- Product category: Binoculars Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Binoculars
|
User manual for the Hawke Sport Optics 12x25 Vantage Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Hawke Optics' designed the gray 12x25 Vantage Binocular with compact BAK4 roof prisms and anti-reflection coatings to produce images that are crisp and clear with improved color and contrast. A center, fast-focus mechanism runs through the entire focus range in just 1.8 turns, so your initial focus is fast and tracking moving subjects is easy. Three-stage twist-up eyecups make the binocular comfortable to use with or without eyewear.Complementing the optical performance is a lightweight and durable polycarbonate chassis wrapped in textured slip-resistant gray rubber armoring. Utilizing polycarbonate not only reduces weight without sacrificing strength, but the material is temperature-resistant so it will not expand and contract the way metal does. Over time, thermal expansion and contraction can cause the optical components to move out of alignment, preventing the binocular from being able to achieve sharp focus. In order to keep the footprint small, the bridge is designed with dual hinges that allow the optical tubes to be folded under the bridge making them extremely compact when closed to easily fit in a pocket, pack, or purse. - Optical Performance
-
- 12x magnification
- 25mm objective lenses
- Compact BAK4 roof prisms
- Anti-reflection fully-coated optics improve brightness, color rendition, and contrast
- 247-foot field of view at 1000 yards
- 8mm eye relief
- 2.1mm exit pupil
- Use and Handling
-
- Closed bridge configuration
- Knurled center focus wheel
- Fast-focus system goes through entire focus range in 1.8 turns
- 73-112mm interpupillary distance range
- Right-eye dioptric correction
- 3-stage twist-up eyecups allow for comfortable use with or without eyewear
- Construction Details
-
- Lightweight and durable polycarbonate chassis
- Polycarbonate is temperature-resistant and resistant to thermal expansion and contraction
- Dual-hinge bridge design allows optical tubes to fold under bridge to be more compact when closed
- Protective gray rubber armoring with deep ridges provide a slip-resistant grip
- Nitrogen-filled for water and fogproof performance
- Lightweight: 10.4 ounces
In the Box Hawke Sport Optics 12x25 Vantage Binocular (Gray) Lens Cloth Neck Strap Carrying Case Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 reduxaywxsxzdfctrv Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 12x25 Vantage Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 34205 Specs | Prism Type | Roof | | Magnification | 12 x | | Objective Lens Diameter | 25 mm | | Angle of View | 4.7° (Actual) | | Field of View | 246.7' @ 1000 yd / 82.2 m @ 1000 m | | Minimum Focus Distance | 19.7' / 6 m | | Exit Pupil Diameter | 2.1 mm | | Eye Relief | 8.0 mm | | Interpupillary Adjustment | 73 to 112 mm / 2.9 to 4.4" | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 4.4 x 4.2" / 11.2 x 10.7 cm | | Weight | 10.4 oz / 295.0 g | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 5.8 x 3.8 x 3.0" |
