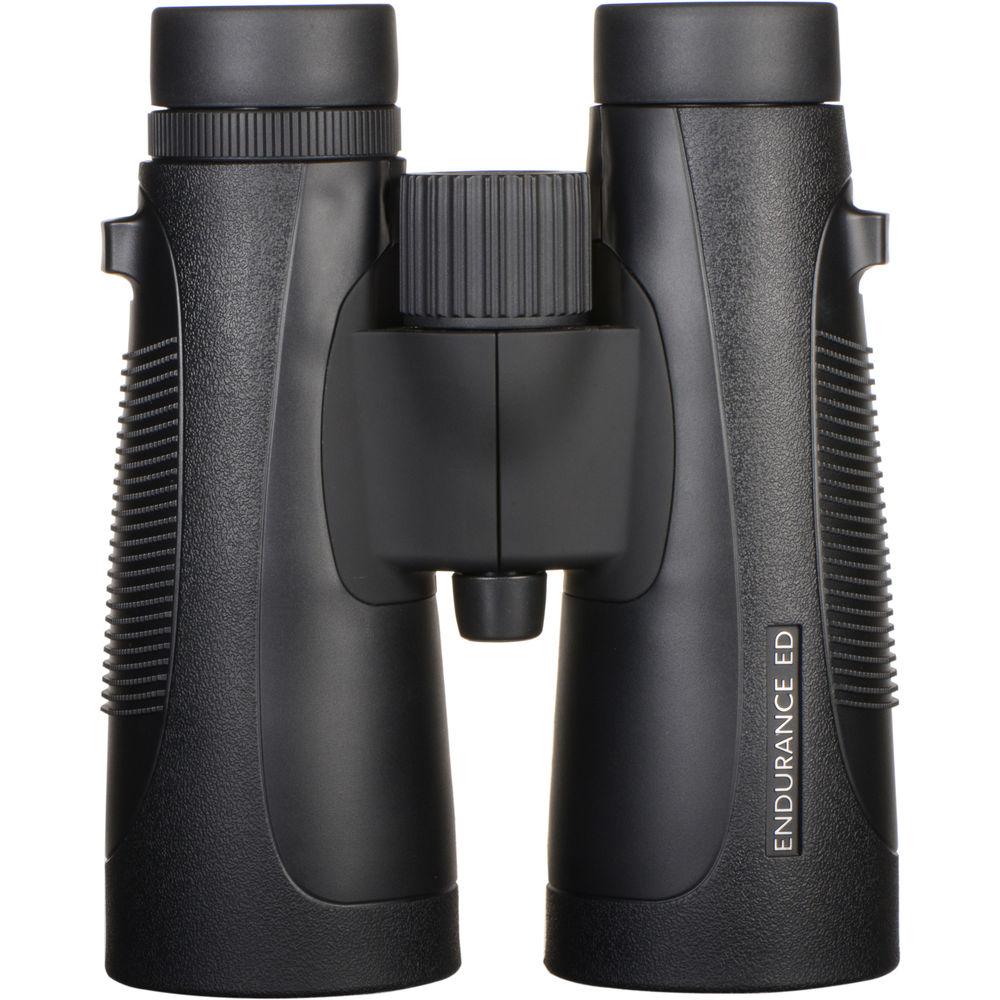

User Manual for Hawke Sport Optics 12x50 Endurance ED Binocular Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 12x50 Endurance ED
- Product category: Binoculars Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Binoculars
 |
User manual for the Hawke Sport Optics 12x50 Endurance ED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|

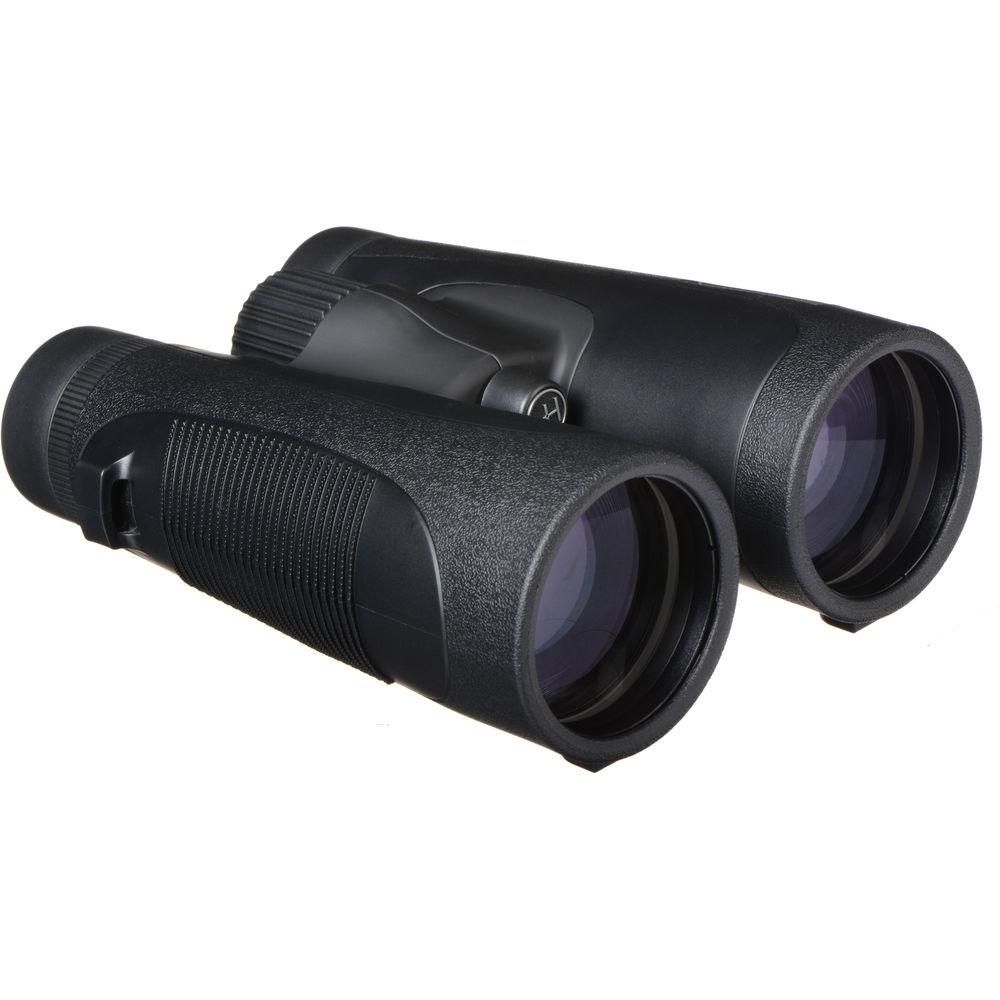

Product description The B&H Binocular Buying Guide Read More Designed with large objectives and a powerful magnification to make detailed observations at far distances, the Hawke Sport Optics black 12x50 Endurance ED Binoculars sport extra low-dispersion glass, phase-corrected BAK4 prisms, and anti-reflection fully multi-coated optics to improve their overall performance and enhance their low-light capabilities. The combination of magnification, optical technologies, and over-sized objectives produce bright and clear high-contrast images with accurate color rendition and virtually no fringing. Whether hunting, birding, or watching sporting events, the Endurance ED will bring your subjects and the scene up close to provide an immersive observational experience.To help offset the weight of the large objectives, the Endurance ED is built with a lightweight polycarbonate chassis that is corrosion resistant to help it hold up to a lifetime of outdoor use. It is also temperature resistant, so the optical tubes won't expand and contract with temperature fluctuation, which, over time, can cause the optics to move out of collimation and prevent the binoculars from being able to achieve sharp focus. The optical tubes are wrapped with rubber armoring, which not only protects them from drops and impacts, but also gives the binoculars a slip-resistant grip - especially in cold and wet weather. The optical tubes are nitrogen filled and O-ring sealed to be waterproof and fogproof - especially in extreme weather conditions. To reduce user fatigue and keep them steady, a tripod adapter mount is located in the front of the hinge for setting them up on a support system. A right-eye diopter adjustment allows the binoculars to be customized to most people's needs, and the twist-up eyecups provide comfortable use with or without eyewear. - Optical Performance
-
- 12x magnification
- 50mm objective lenses
- Compact BAK4 roof prisms
- Extra low-dispersion (ED) glass corrects chromatic aberrations for true color representation and reduced fringing
- Anti-reflection fully multi-coated optics improve color rendition, contrast, and overall image brightness
- Phase-corrected prism coatings reduce internal light dispersion, improve contrast and color fidelity
- 246' field of view at 1000 yards
- 56° apparent angle of view
- Use and Handling
-
- Closed bridge configuration
- 60-75mm interpupillary distance range
- Large knurled fast-focus wheel moves from near to far focus in just 1.2 turns
- Right-eye dioptric correction
- Twist-up click-stop eyecups for use with or without eyewear
- 4.2mm exit pupil
- 13mm eye relief
- Construction Details
-
- Impact, corrosion, and temperature-resistant polycarbonate chassis
- Nitrogen filled for waterproof and fogproof performance
- Black rubber armoring protects chassis from impacts and provides a slip-resistant grip
- Textured armoring and deep palm grooves add additional slip-resistance to the grip
- Stay-on flip-down objective lens covers
- Weight: 28 ounces
In the Box Hawke Sport Optics 12x50 Endurance ED Binocular (Black) Lens Cloth Neck Strap Carrying Case 2 x Ocular Lens Cap 2 x Objective Lens Cap Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 12x50 Endurance ED Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 36210 Specs | Prism Type | Roof | | Magnification | 12 x | | Objective Lens Diameter | 50 mm | | Angle of View | 4.7° (Actual) | | Field of View | 246.0' @ 1000 yd / 81.7 m @ 1000 m | | Minimum Focus Distance | 8.2' / 2.5 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 13.0 mm | | Interpupillary Adjustment | 60 to 75 mm / 2.4 to 3" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | Length: 6.5 x 5.2" / 16.5 x 13.3 cm | | Weight | 28.0 oz / 794.0 g | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 8.3 x 7.6 x 3.4" |
