User Manual for Hawke Sport Optics 12x56 Endurance Binocular Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 12x56 Endurance Binocular
- Product category: Binoculars Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Binoculars
 |
User manual for the Hawke Sport Optics 12x56 Endurance Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|

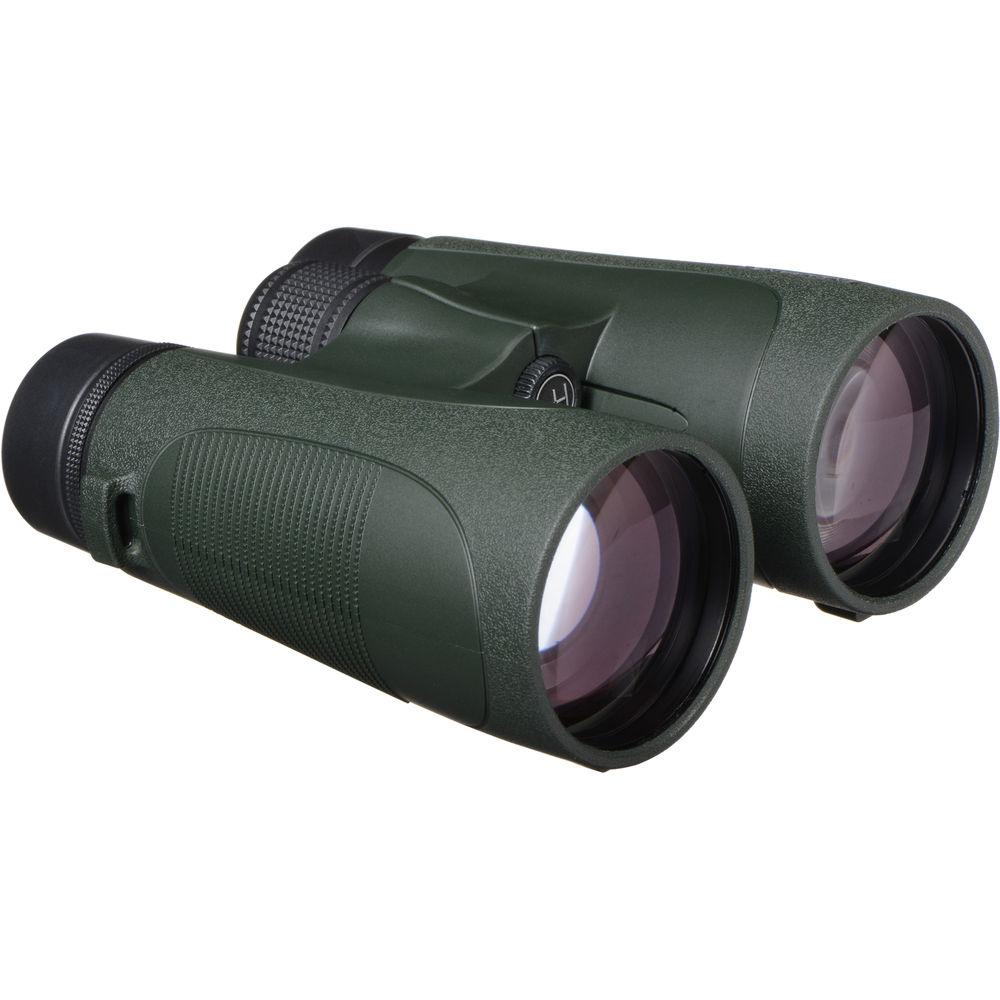

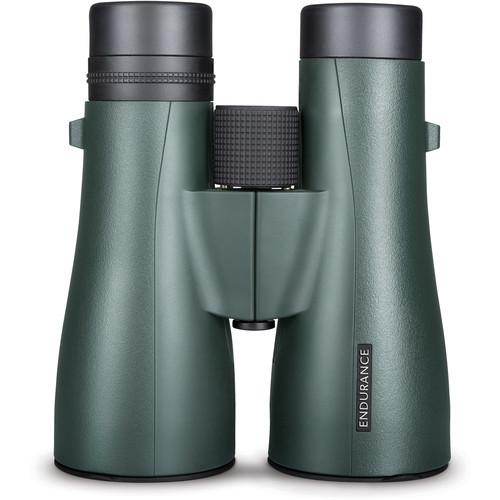

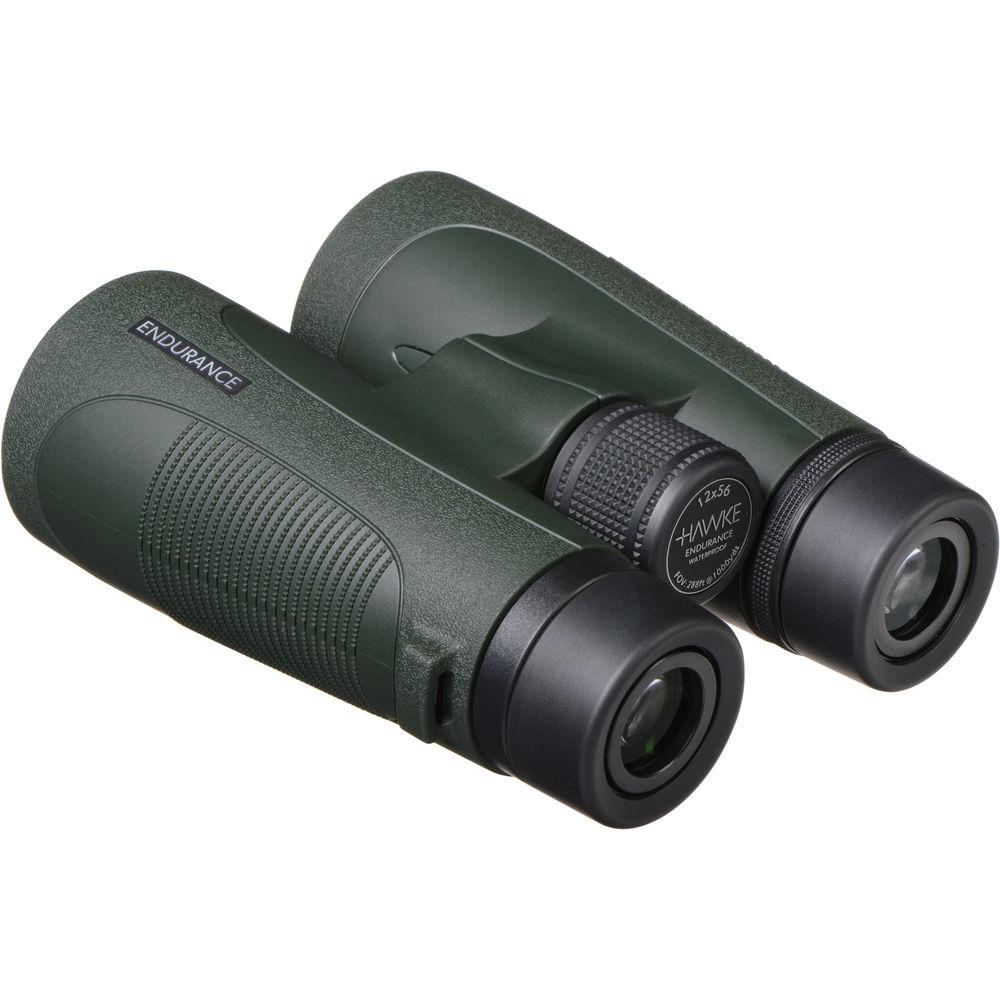

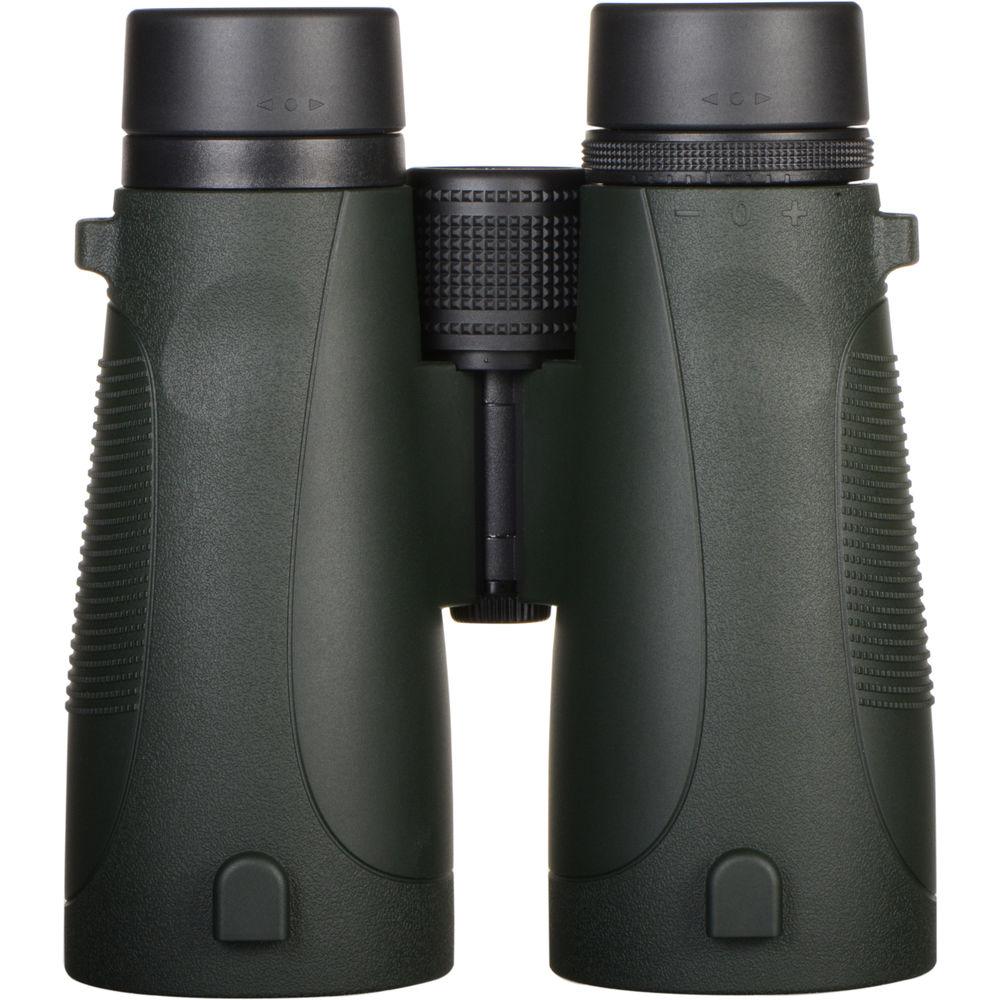

Product description The B&H Binocular Buying Guide Read More abxyexdyvy Engineered to optimize its low-light performance, Hawke Sport Optics' green 12x56 Endurance Binocular features a high magnification and large objectives that produce a respectable 4.7mm exit pupil that will completely cover most users' pupils when they fully dilate as conditions darken. To help reduce the appearance of visible hand shake common with high-power optics, the Endurance is outfitted with a wide viewing angle. It sports a fully multi-coated lens system and phase-corrected BAK4 prisms to produce bright and clear, high-contrast images from dawn to dusk and under heavy cloud cover or dense canopies. With the ability to achieve focus within seven feet using a fast focus mechanism, the Endurance is ready for almost any intermediate- to long-range glassing task.Aptly named, this binocular is built to endure a life lived outdoors in harsh conditions. To help offset the weight of the large objects, the Endurance sports a lightweight and corrosion-resistant aluminum-alloy chassis. The optical tubes are nitrogen filled and O-ring sealed to be water and fogproof, especially when moving through extreme temperature changes. To reduce user fatigue and keep it steady, it is tripod mountable with an optional adapter, available separately. A right-eye diopter adjustment allows the binocular to be customized to most people's prescription needs, and the twist-up eyecups provide comfortable use with or without eyewear. - Optical Performance
-
- Powerful 12x magnification
- Large 56mm objectives
- Compact BAK4 roof prisms
- Anti-reflection fully multi-coated optics improve color rendition, contrast, and overall image brightness
- Phase-corrected prism coatings reduce internal light dispersion and improve contrast and color fidelity
- 288' field of view at 1000 yards
- Wide 66° apparent field of view
- Comfortable 4.7mm exit pupil covers most pupils when fully dilated in low light conditions and reduces noticeable hand-shake
- Extended 15mm eye relief
- Use and Handling
-
- Close bridge configuration
- Large knurled center focus wheel
- Fast focus mechanism moves through entire focus range in just 1.5 turns
- Three-stage twist-up eyecups for use with or without eyewear
- 60-76mm interpupillary adjustment range
- Right eye dioptric correction
- Tripod mountable with optional adapter
- Construction Details
-
- Lightweight and durable aluminum-alloy chassis
- Nitrogen-filled housing for fog and waterproof performance
- Green armoring to protect the chassis from impacts and deep side grips provide secure slip-resistant handling
- Stay-on flip-down objective lens covers
- Weight: 37 oz

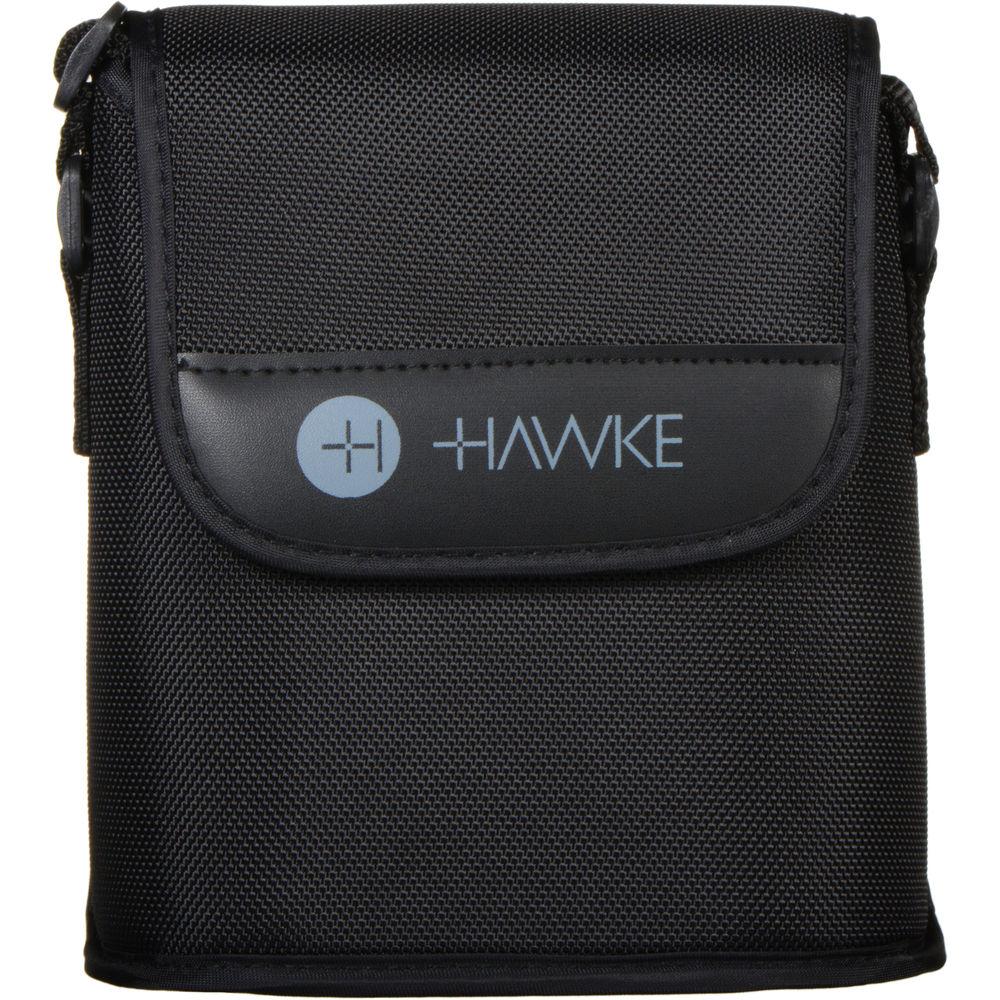

In the Box Hawke Sport Optics 12x56 Endurance Binocular (Green) Lens Cloth Neck Strap Carrying Case 2 x Ocular Lens Cap 2 x Objective Lens Cap Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 abxyexdyvy Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 12x56 Endurance Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 36222 Specs | Prism Type | Roof | | Magnification | 12x | | Objective Lens Diameter | 56 mm | | Angle of View | 5.5° (Actual) | | Field of View | 288.7' @ 1000 yd / 96.2 m @ 1000 m | | Minimum Focus Distance | 6.6' / 2 m | | Exit Pupil Diameter | 4.7 mm | | Eye Relief | 15 mm | | Interpupillary Adjustment | 60 to 76 mm / 2.4 to 3" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 6.2 x 5.7" / 15.7 x 14.4 cm | | Weight | 36.86 oz / 1045 g | | | | Package Weight | 3.4 lb | | Box Dimensions (LxWxH) | 8.2 x 6.8 x 3.2" |
