User Manual for Hawke Sport Optics 2.5-10x50 Endurance 30 WA Riflescope Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 2.5-10x50 Endurance 30
- Product category: Riflescopes Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Riflescopes
 |
User manual for the Hawke Sport Optics 2.5-10x50 Endurance 30 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|

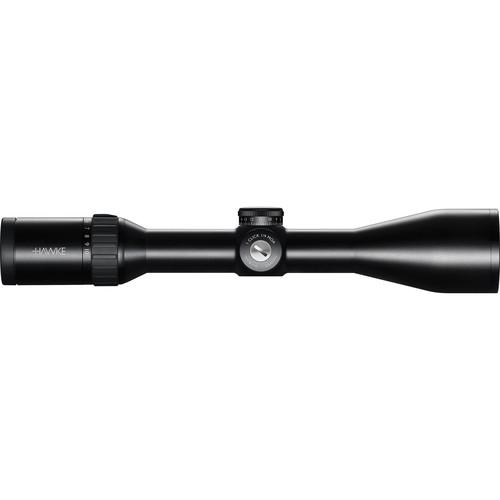

Product description Hawke's 2.5-10x50 Endurance 30 WA Riflescope combines a higher zoom with a wide 50mm objective in a compact and lightweight body to deliver a versatile scope for precision and distance hunting in low light. The scope inherits many characteristics of the series such as bright and clear fully multi-coated optics, a strong and durable one-piece 30mm maintube, a 100-yard parallax-free range, and a fast-focus eyepiece while also introducing improvements in the form of an extended 49.8-12.5' (at 100 yards) field of view, 110 MOA windage and elevation ranges, and an increased number of layers of coatings (18). At the core of the optical system is the second focal plane LRC (Long Range Centerfire) illuminated reticle, defined by three hollow tapered posts, a thin crosshair, and a cascading illuminated set of ballistic stadia. The reticle draws power from the included CR2032 battery, gives six brightness levels, and provides a precise aiming reference. - Optical Performance
-
- 2.5-10x zoom range
- 50mm objective lens

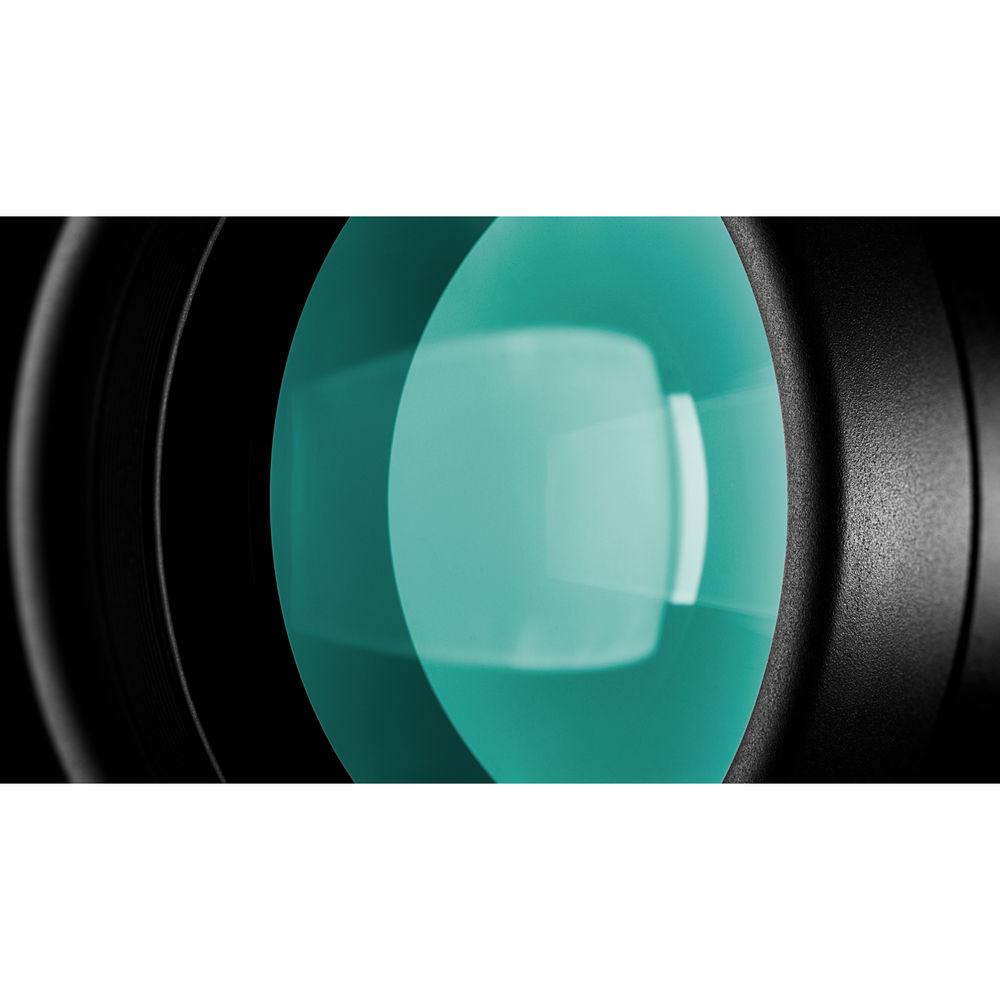

- 18 layers of anti-reflection full multi-coatings
- Wide angle optical system (WA): 49.8-12.5' field of view at 100 yards
- Use and Handling
-
- 1/4 MOA impact point correction
- 110 MOA windage and elevation adjustment range

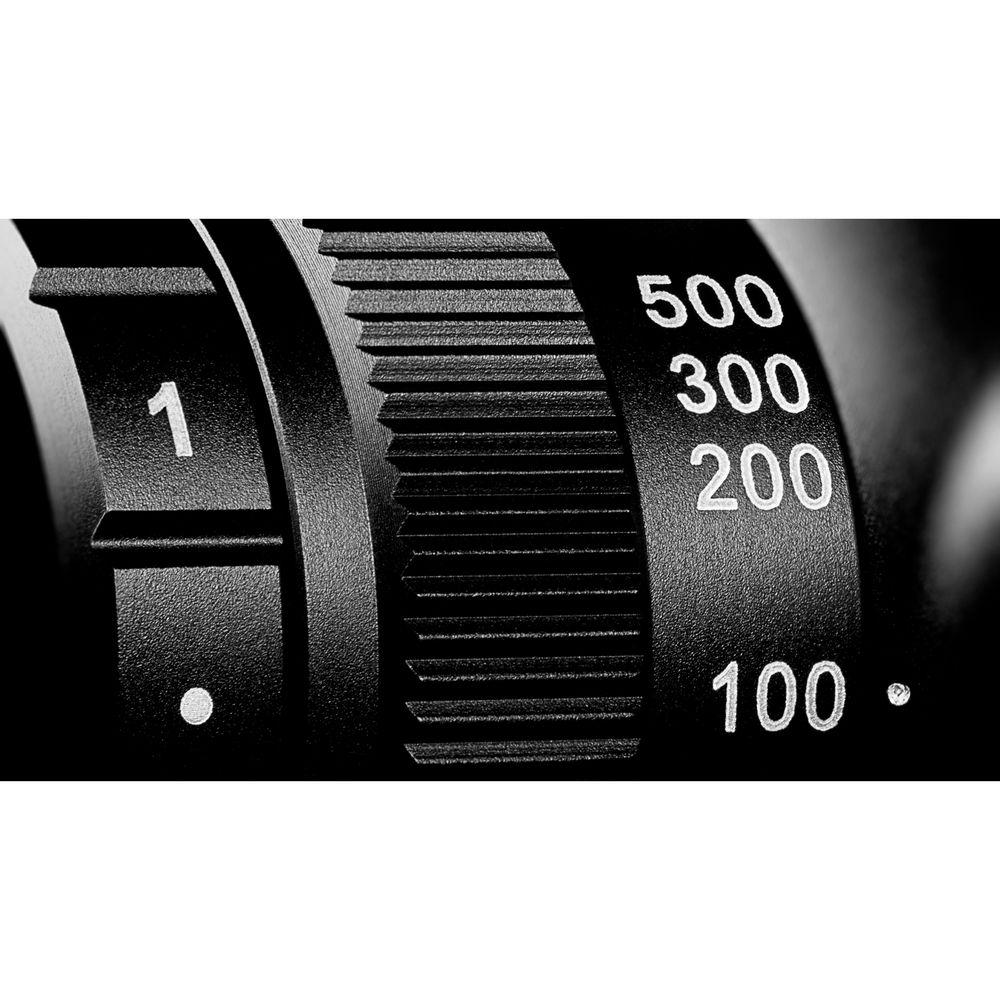

- Parallax-free to 100 yd

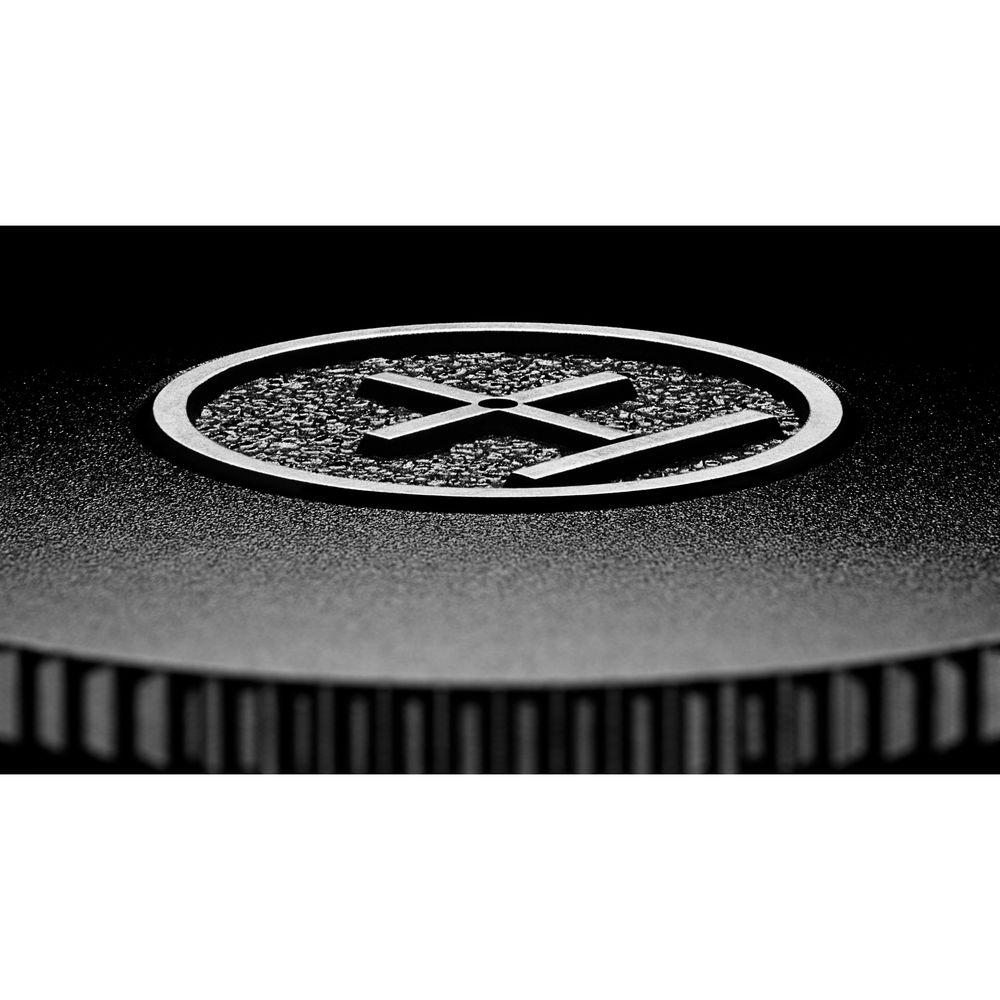

- Low-profile covered turret caps prevent accidental adjustment
- 4"-long eye relief
- 20-5mm exit pupil
- Construction Details
-
- 30mm one-piece maintube
- Lightweight and durable aluminum-alloy housing

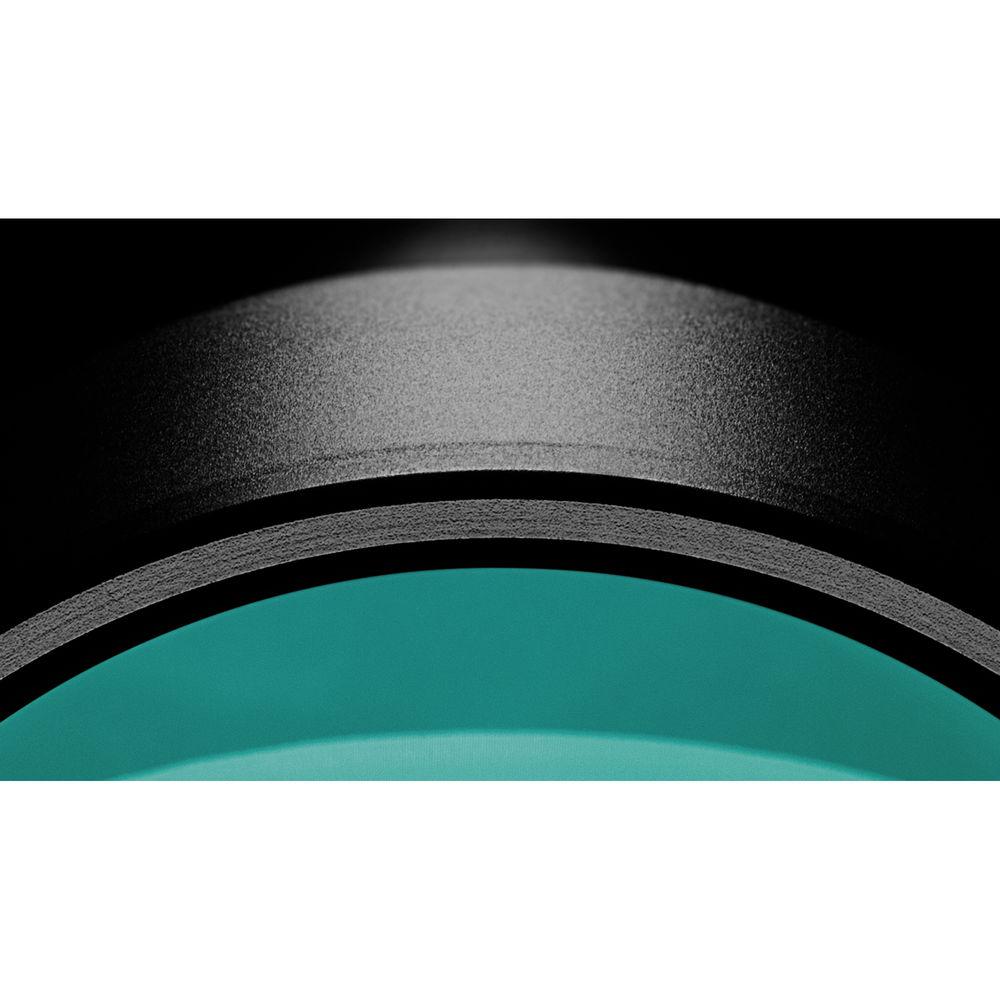

- Threaded objective bezel for attaching accessories

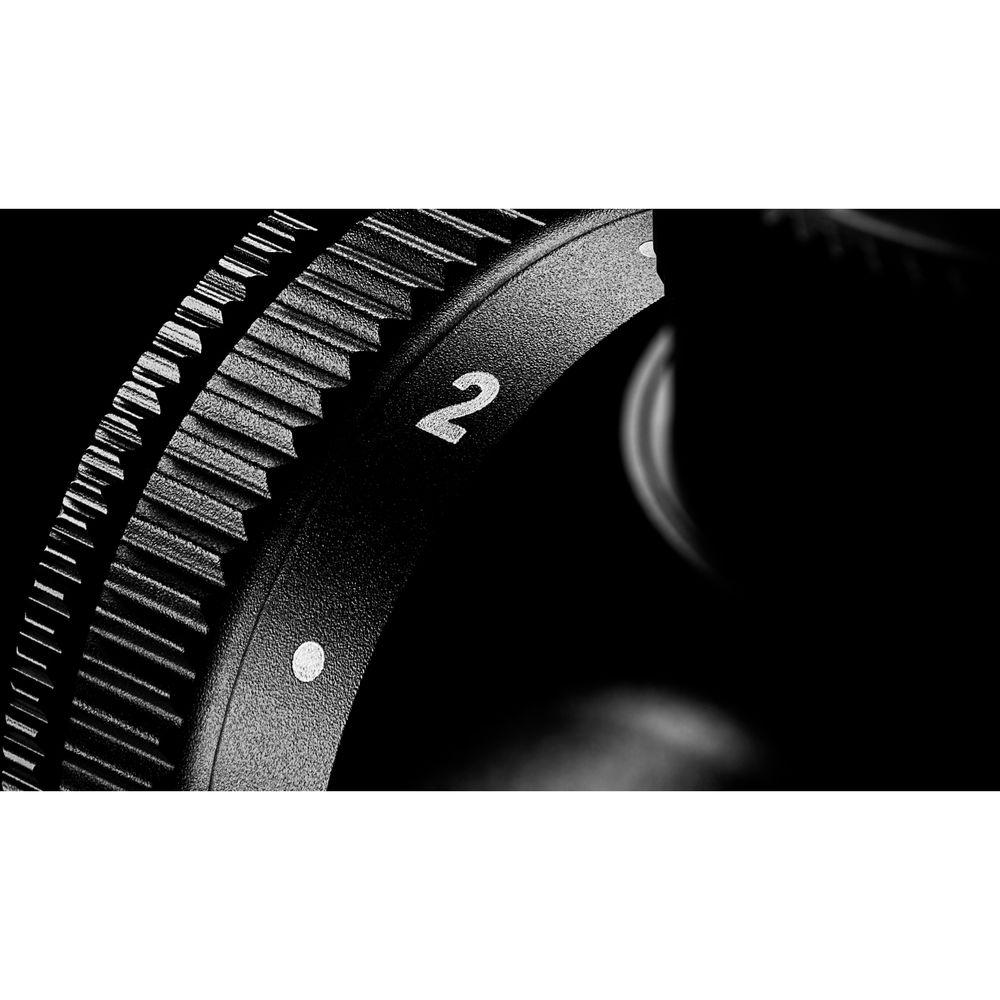

- Fast-focus eyepiece with a high-torque zoom ring
- Nitrogen filled for water and fogproof performance
- Rated for use on most calibers and recoil resistant
- Two lens covers included

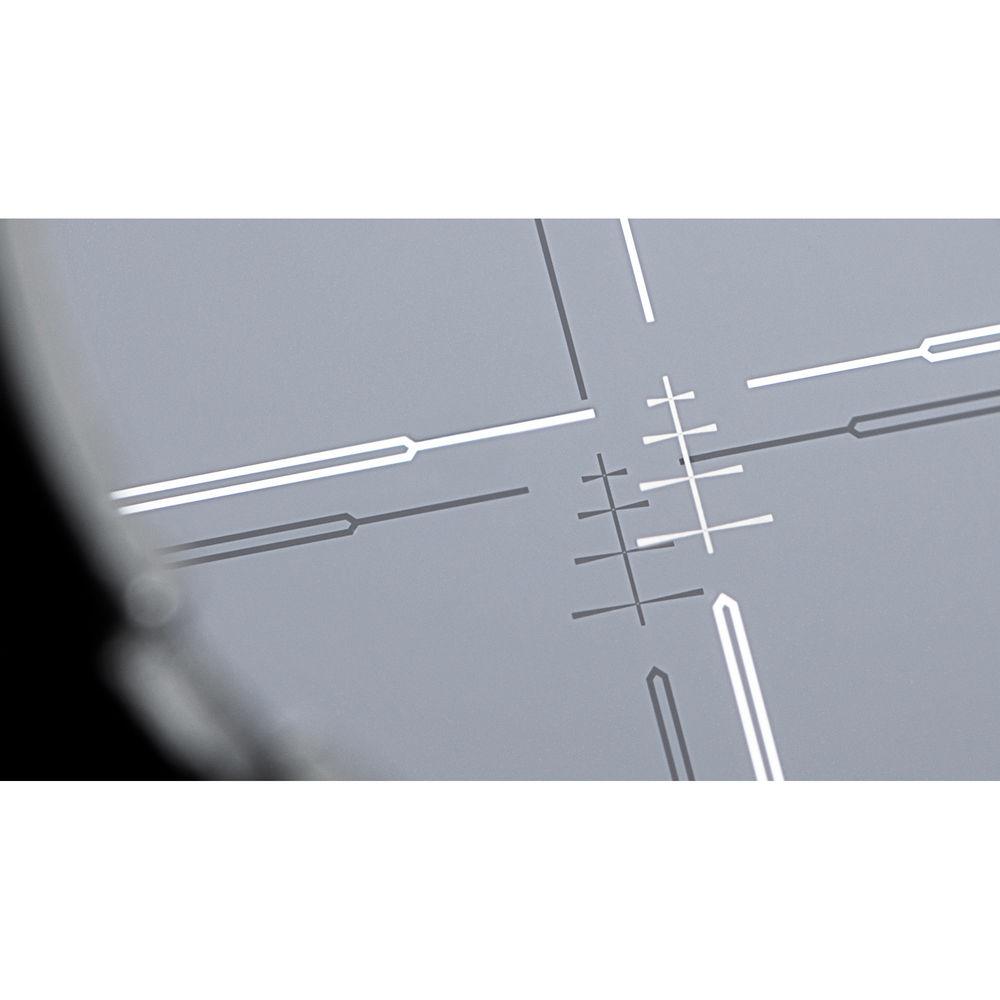

- LRC Illuminated Reticle
-
- 2nd focal plane
- Long Range Centerfire (LRC)
- Hollow bottom and horizontal tapered posts
- Illuminated cascading ballistic stadia
- Thin crosshair
- Six brightness levels
In the Box Hawke Sport Optics 2.5-10x50 Endurance 30 WA Riflescope (LRC Illuminated Reticle, Matte Black) - CR2032 Battery
- 2 x Lens Covers
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 2.5-10x50 Endurance 30 WA Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 16321 Specs | | | Magnification | 2.5 to 10x | | Objective Lens Diameter | 50 mm | | Field of View | 2.5x: 49.8' @ 100 yd / 16.6 m @ 100 m
10x: 12.5' @ 100 yd / 4.2 m @ 100 m | | Exit Pupil Diameter | 2.5x: 20 mm
10x: 5 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | LRC Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 110 MOA | | Elevation Adjustment | 110 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.1" / 33.4 cm | | Weight | 22.5 oz / 637 g |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 12 owners. Add your rating and experience with the product.
