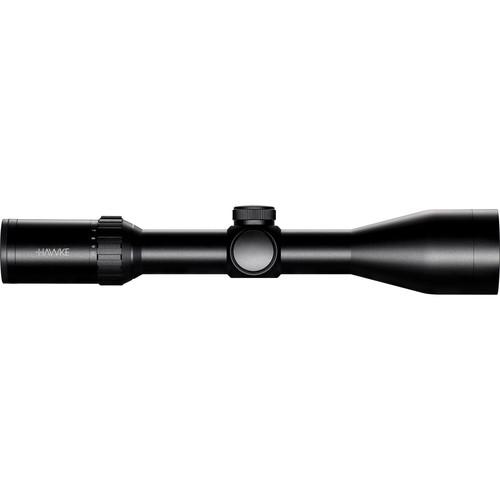

User Manual for Hawke Sport Optics 2.5-10x50 Vantage 30 WA Riflescope Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 2.5-10x50 Vantage 30
- Product category: Riflescopes Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Riflescopes
 |
User manual for the Hawke Sport Optics 2.5-10x50 Vantage 30 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|
Product description Hawke positions the 2.5-10x50 Vantage 30 WA Riflescope as a durable and versatile hunting scope with a wide 50mm aperture for a great low-light performance and a fine-featured illuminated L4A Dot reticle that allows precise aiming without covering the background. The reticle lies in the second focal plane and has a brilliant target dot with red or green illumination and five brightness levels. Its outline resembles the German #4 style, where a target dot is surrounded by a fine crosshair and three thin posts. To generate bright and vivid images, the optical system is outfitted with precision-ground lenses that are treated with 11 layers of anti-reflection full multi-coatings. To ensure outstanding image clarity, free of ghost images and stray light, the interior of the housing is covered with a special black finish that does not reflect any light. This iteration of the series also features a widened angle (WA) of view: 50.4-12.6' field of view at 100 yards.
To match the quality of the optics, the housing is designed with strength, durability, and ergonomics in mind. Its defining features are a CNC-machined single-piece 30mm maintube, scratch-resistant anodized finish, water and fogproof performance, and a high-torque slip-free rubberized zoom ring. To protect windage and elevation turrets from accidental bumps, they have low-profile caps, and to guard optics from dirt and debris, the scope ships with two lens covers. - Optical Performance
-
- 2.5-10x zoom range

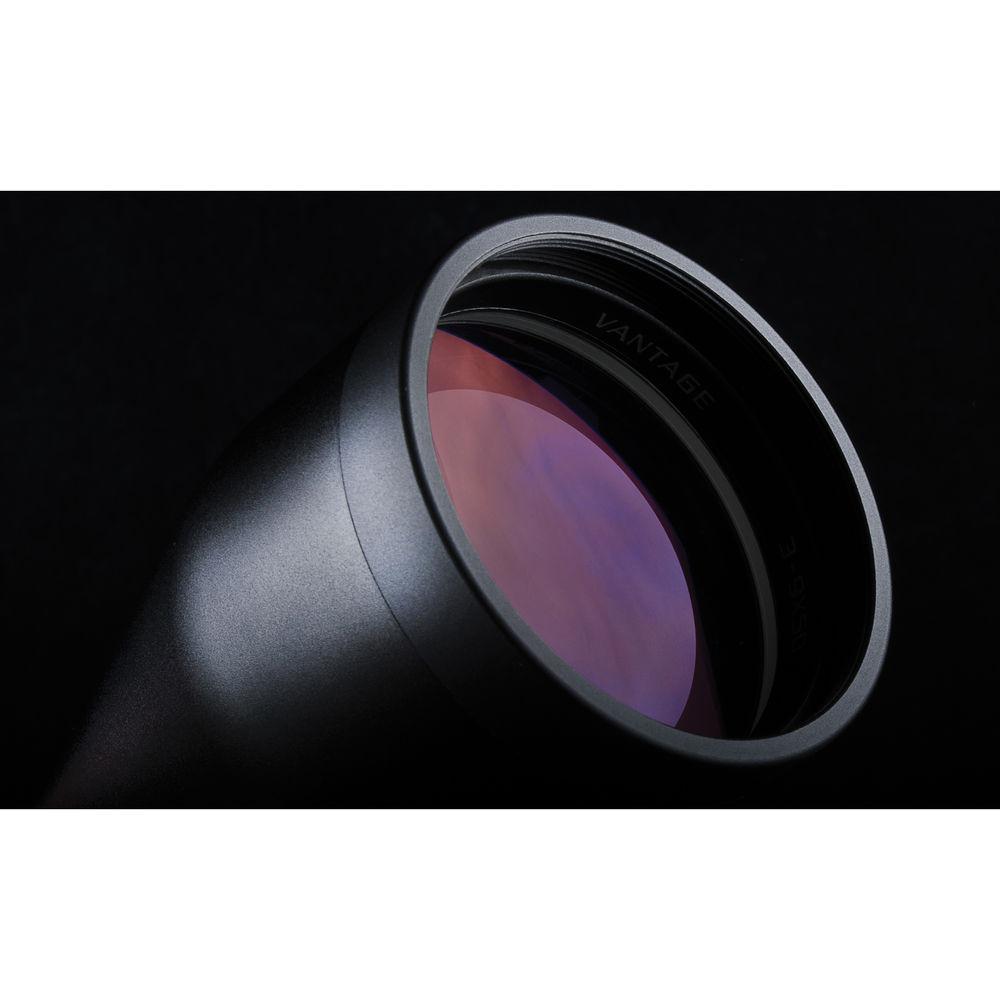

- 50mm objective lens
- Precision-ground optical elements
- Fully multi-coated optics with 11 layers of magnesium fluoride coatings
- Black anti-reflective (absorptive) coating on the interior of the maintube prevents stray light
- Wide angle optical system (WA): 50.4-12.6' field of view at 100 yards
- Use and Handling
-

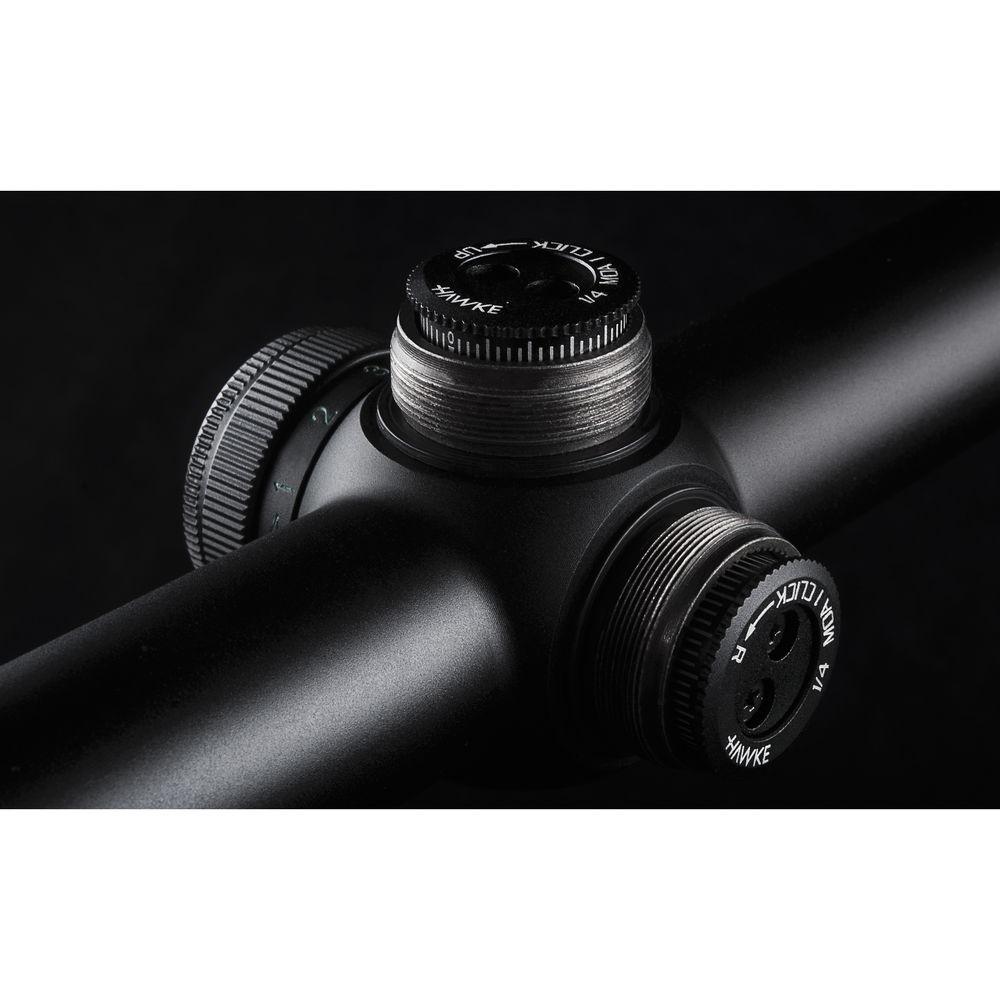

- 1/4 MOA impact point correction
- 60 MOA windage and elevation adjustment range
- Parallax-free to 100 yd

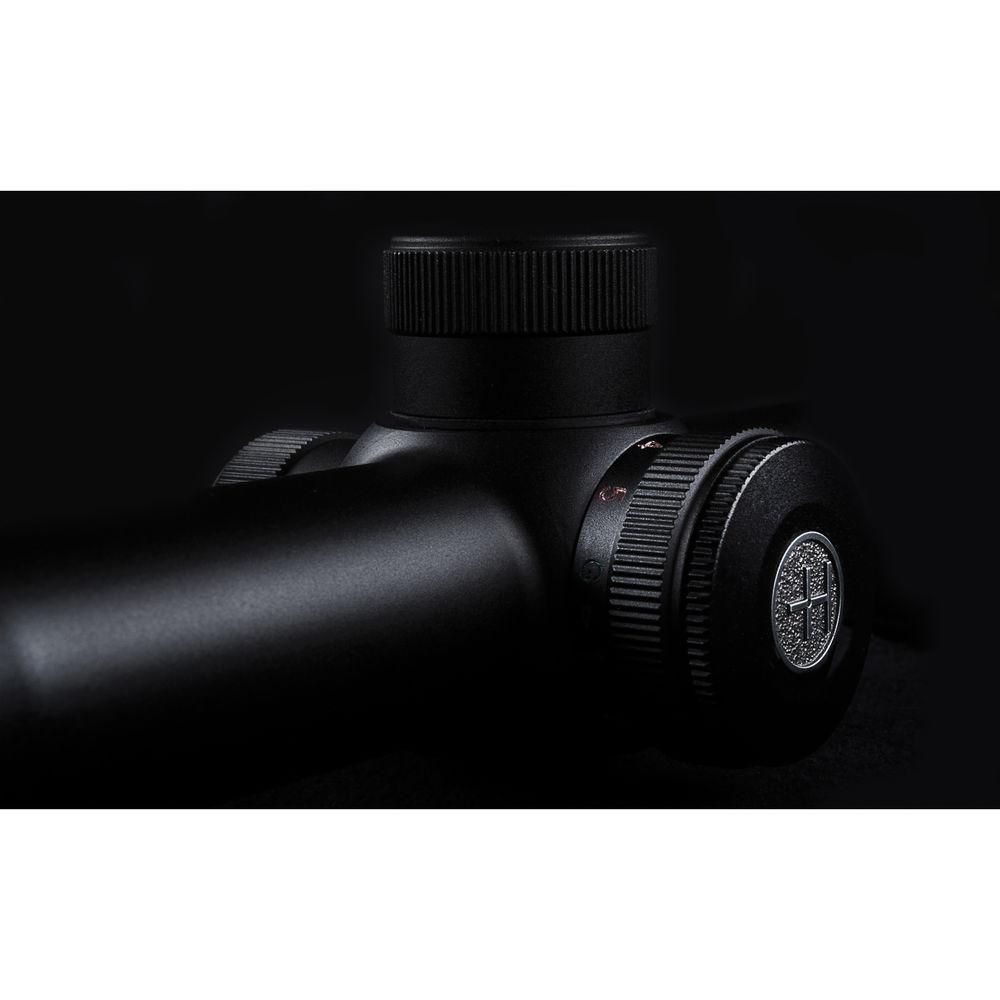

- Low-profile covered turret caps prevent accidental adjustment
- 3.5"-long eye relief
- Construction Details
-
- 30mm CNC-machined one-piece maintube
- Lightweight and durable aluminum-alloy housing
- Scratch-resistant anodizing coating
- Threaded objective bezel for attaching accessories
- Low-profile, capped, resettable to zero turrets
- Turret box has a beryllium leaf spring that won't relax or flatten with time

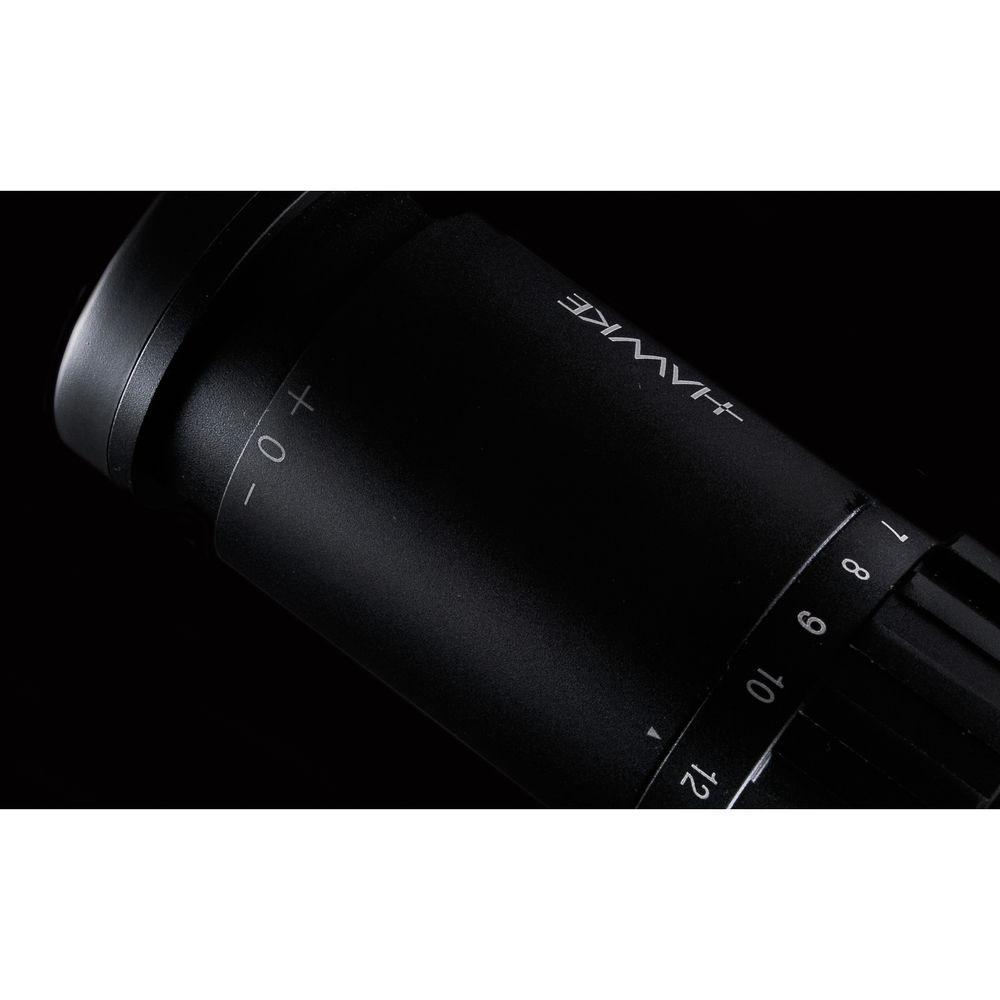

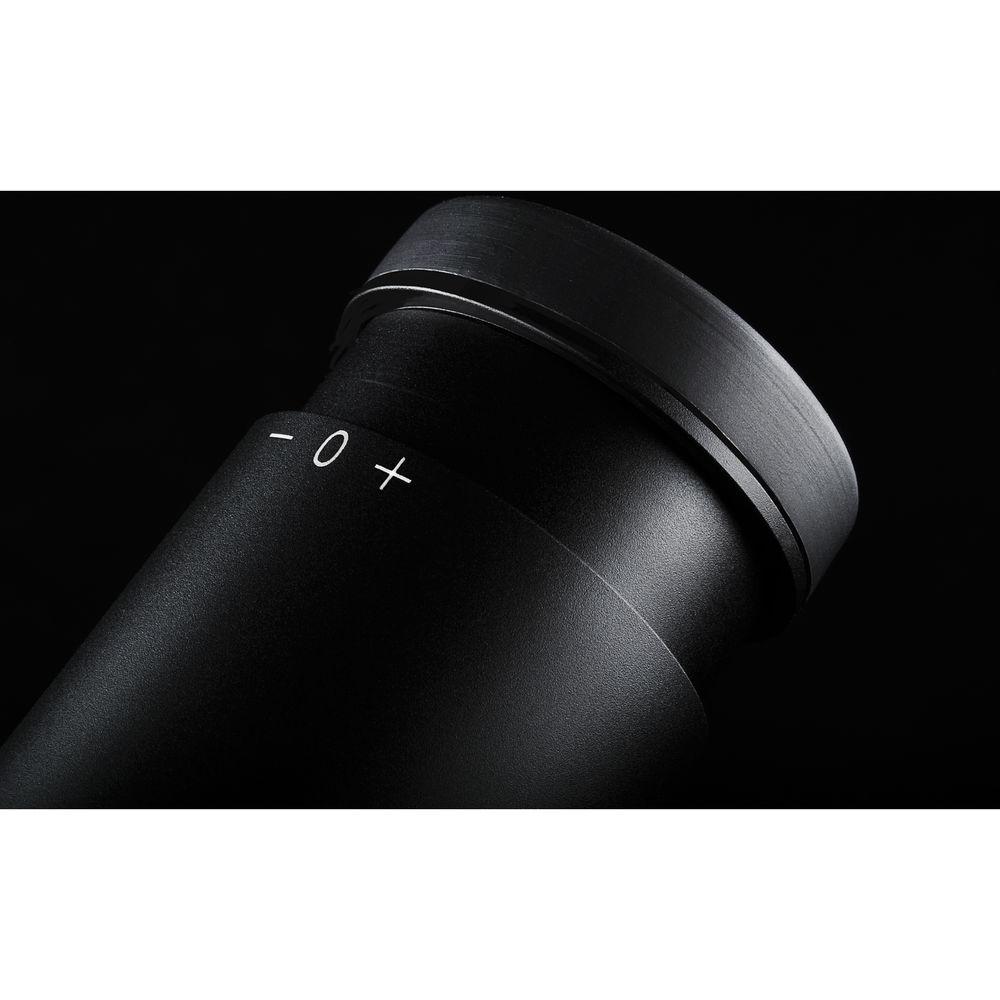

- Fast-focus eyepiece with a high-torque, slip-free rubberized zoom ring
- Nitrogen filled for water and fogproof performance
- Rated for use on most calibers and recoil resistant
- Two lens covers included
- Red & Green L4A Illuminated Reticle
-
- Second focal plane
- Red or green illumination with five levels of brightness
- German #4 style
- Three posts
- Thin crosshair with a detached red target dot
In the Box Hawke Sport Optics 2.5-10x50 Vantage 30 WA Riflescope (Red & Green L4A Dot Illuminated Reticle, Matte Black) CR2032 Battery 2 x Lens Covers Lens Cloth Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 2.5-10x50 Vantage 30 WA Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 14274 Specs | | | Magnification | 2.5 to 10x | | Objective Lens Diameter | 50 mm | | Field of View | 2.5x: 50.4' @ 100 yd / 16.8 m @ 100 m
10x: 12.6' @ 100 yd / 4.2 m @ 100 m | | Exit Pupil Diameter | 2.5x: 20 mm
10x: 5 mm | | Eye Relief | 3.5" / 90 mm | | | | Reticle Type | Dot Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.1" / 33.3 cm | | Weight | 21.2 oz / 602 g |
