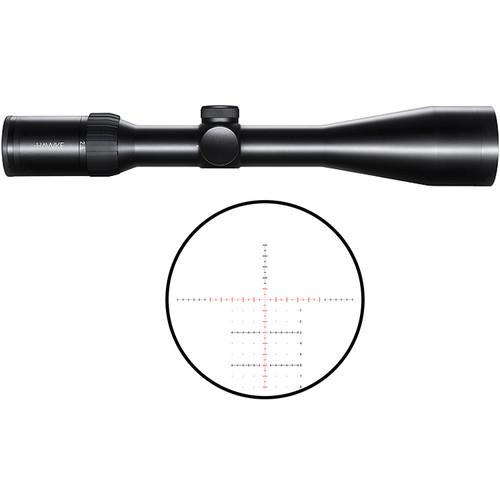

User Manual for Hawke Sport Optics 2.5-15x50 Frontier 30 SF Riflescope Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 2.5-15x50 Frontier 30
- Product category: Riflescopes Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Riflescopes
|
User manual for the Hawke Sport Optics 2.5-15x50 Frontier 30 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|
Product description Designed for long-range use with exceptional low-light performance, the Hawke Sport Optics 2.5-15x50 Frontier 30 SF Riflescope offers a broad zoom range, making it ideal for game of all sizes at most distances. Its large 50mm objective and 21-layer anti-reflection fully multi-coated optics draws in copious amounts of light versus smaller objective scopes to provide you with bright and clear images during the pre-dawn and post-dusk hours when many game animals are most active, and in heavily canopied areas.To enhance its low-light performance, Hawke has partially illuminated the reticle. The center section of the crosshairs and stadia markings are illuminated in an easy-to-see red color and allow users to estimate range and target size, while providing hold-over/under and to compensate for shot angle without adjusting the turrets. For use in all lighting conditions - from low-light to bright daylight - the illuminated portion of the reticle can be adjusted through eleven output levels to ensure users can clearly see it at the optimum intensity. The scope's fast-focus collar and knurled rheostat control allow you to quickly adapt to rapidly changing situations. Complementing the performance of the scope is a lightweight and durable anodized aluminum housing, with a 30mm one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof. - Optical Performance
-
- 2.5-15x zoom range
- 50mm objective lens
- 21-layer anti-reflection fully multi-coated optics
- 42-6.9' field of view at 100 yards
- TMX SFP Reticle
-
Ranging Details:
- Thin hairs with stadia on all axes
- 1.0 MRAD (3.44 MOA) spacing between stadia, with smaller 0.5 MRAD (1.72 MOA) indicators
- Three 1.0 MRAD dot markings on both sides of lower vertical axis, with lines at 3 & 6 MRAD
- 0.1 MOA gap in center at stadia to improve aim
- 1.0 MRAD stadia posts are 1.5 MOA wide
- 0.5 MRAD stadia 0.75 MOA wide
Illuminated Region and Stadia:
- 5 MRAD from center on left and right horizontal axis
- 1 MRAD from center on upper vertical axis
- 8 MRAD from center on lower vertical axis
- Eleven selectable brightness levels
- Runs on one included CR2032 coin-cell battery
- Use and Handling
-
- Fast-focus collar
- 1/10 MRAD per click impact point correction
- 35 MRAD windage and elevation adjustment range
- Parallax adjustment from 10 yards, side adjustment turret
- Low-profile covered turret caps prevent accidental adjustment
- Long 4" eye relief
- Comfortable 20-3mm exit pupil
- Construction Details
-
- 30mm one-piece maintube
- Lightweight and durable aluminum alloy housing
- Nitrogen-filled for water and fogproof performance
- Rated for use on most calibers and recoil-resistant
- Exposed tactical-style windage and elevation turrets
- Front and rear flip-up lens covers
- Screw-on removable 4" sunshade
- Length: 13.7 inches
- Weight: 23.4 ounces
In the Box Hawke Sport Optics 2.5-15x50 Frontier 30 SF Riflescope (TMX Illuminated Reticle) - Lens Cloth
- CR2032 Battery
- Screw-On Sunshade
- 2 x Lens Covers
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 2.5-15x50 Frontier 30 SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 18222 Specs | | | Magnification | 2.5 to 15x | | Objective Lens Diameter | 50 mm | | Field of View | 2.5x: 42' @ 100 yd / 14 m @ 100 m
15x: 6.9' @ 100 yd / 2.3 m @ 100 m | | Exit Pupil Diameter | 2.5x: 20 mm
15x: 3.3 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | TMX Reticle (Second Focal Plane) | | Illumination | Illuminated | | Brightness Settings | Adjustable Brightness (6 Levels) | | | | Mounting | None | | Filter Thread | None | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 35 MRAD | | Elevation Adjustment | 35 MRAD | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.7" / 34.8 cm | | Weight | 23.4 oz / 663 g |
