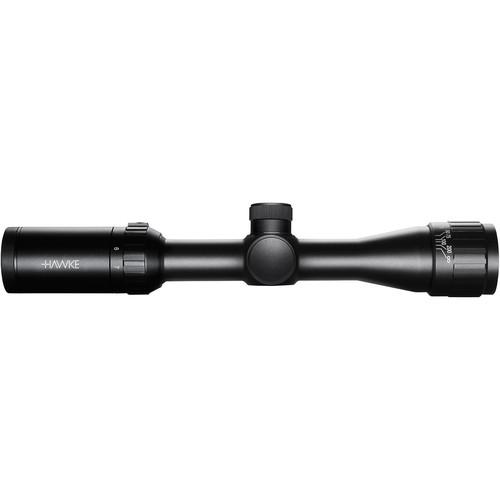

User Manual for Hawke Sport Optics 2-7x32 Vantage AO Riflescope Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 2-7x32 Vantage AO Riflescope
- Product category: Riflescopes Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Riflescopes
|
User manual for the Hawke Sport Optics 2-7x32 Vantage AO Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|
Product description The Hawke Sports Optics 2-7x32 Vantage AO Riflescope represents a basic all-purpose scope that is ideal for most close and mid-range uses. Its 11-layer fully multi-coated optics maximizes light transmission and helps off-set the smaller 32mm objective to produce bright and clear images in most lighting conditions. The low minimum magnification allows you to use the scope with a reflex-scope both-eyes-open technique for fast target acquisition and tracking at close to mid-ranges. Complementing the performance of the scope is a lightweight and durable anodized aluminum housing with a 1" one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof. Threads on the ocular and objective provide a solid mounting point for optional accessories such as sun shades. - Optical Performance
-
- 2-7x zoom range
- 32mm objective lens
- 11-layer anti-reflection fully multi-coated optics
- 46.6-14.1' field of view at 100 yards
- Reticle Details
-
- Modified duplex crosshair-style reticle
- Aiming cross is 15 MOA from center to inside edge of outer posts
- Use dots for ranging, hold-over/under, and target size estimation
- Etched onto glass for no fading or shift over time
- Placed on second focal plane
- Use and Handling
-
- Fast-focus collar
- 1/4 MOA per click impact point correction
- 140 MOA windage and elevation adjustment range
- Side parallax correction turret, adjustable from 10 yards to infinity
- Low-profile covered turret caps prevent accidental adjustment
- 3.5" long eye relief
- 16-4.5mm exit pupil
- Construction Details
-
- 1" one-piece maintube
- Lightweight and durable aluminum alloy housing
- Nitrogen-filled for water and fogproof performance
- Threaded objective & ocular for optional accessories such as sun shades
- Recoil-resistant, rated for use with most calibers
- Length: 11.5 inches
- Weight: 14.7 ounces
In the Box Hawke Sport Optics 2-7x32 Vantage AO Riflescope (Mil Dot Reticle) Lens Cloth Ocular Lens Cover Objective Lens Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 2-7x32 Vantage AO Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Hawke Sport Optics 2-7x32 Vantage AO Riflescope can be downloaded in PDF format at the link stated below.
Technical parametersHawke Sport Optics 14111 Specs | | | Magnification | 2 to 7x | | Objective Lens Diameter | 32 mm | | Field of View | 2x: 46.6' @ 100 yd / 15.5 m @ 100 m
7x: 14.1' @ 100 yd / 4.7 m @ 100 m | | Exit Pupil Diameter | 2x: 16 mm
7x: 4.5 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | MIL Dot Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 140 MOA | | Elevation Adjustment | 140 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 11.5" / 29.2 cm | | Weight | 14.7 oz / 417 g | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 13.8 x 3.9 x 3.1" |
