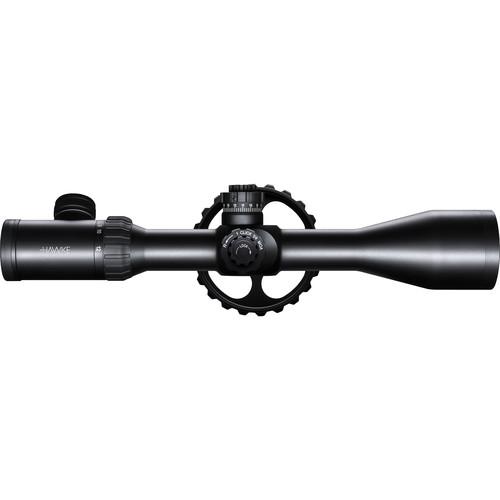

Product description Hawke Optics engineered their 3-12x50 Airmax 30 SF Riflescope to increase the accuracy of airguns, especially in low-light situations, by employing a large objective, fully multi-coated optics, and a partially-illuminated reticle that is specifically designed for airgun use. This duplex ranging reticle is based on a mil-dot system and provides multiple aiming points on all axes to help compensate for the notoriously-wobbly air pellet trajectories. Utilizing the reticle's aiming points allows you to adjust your shot quickly without having to manipulate the scope's windage and elevation turrets. Its center crosshairs, mil-dots, and stadia are illuminated so users can see it in low-light conditions and a stepless rheostat that provides precise reticle intensity adjustment.The scope's large 50mm objective draws in considerably more light than smaller-objective optics and the 16-layer anti-reflection optical coatings increase light transmission to enhance its low-light performance such as at dawn and dusk, or in heavily-canopied woods. Exposed tactical turrets and a removable 4" parallax adjustment wheel, coupled with its fast-focus collar and zoom ring allow users to quickly adapt to rapidly changing situations. Complementing the performance of the scope is a lightweight and durable anodized aluminum housing, with a 30mm one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof. - Optical Performance
-
- 3-12x zoom range
- 50mm objective lens
- 16-layer anti-reflection fully multi-coated optics
- 30.9-8.3' field of view at 100 yards

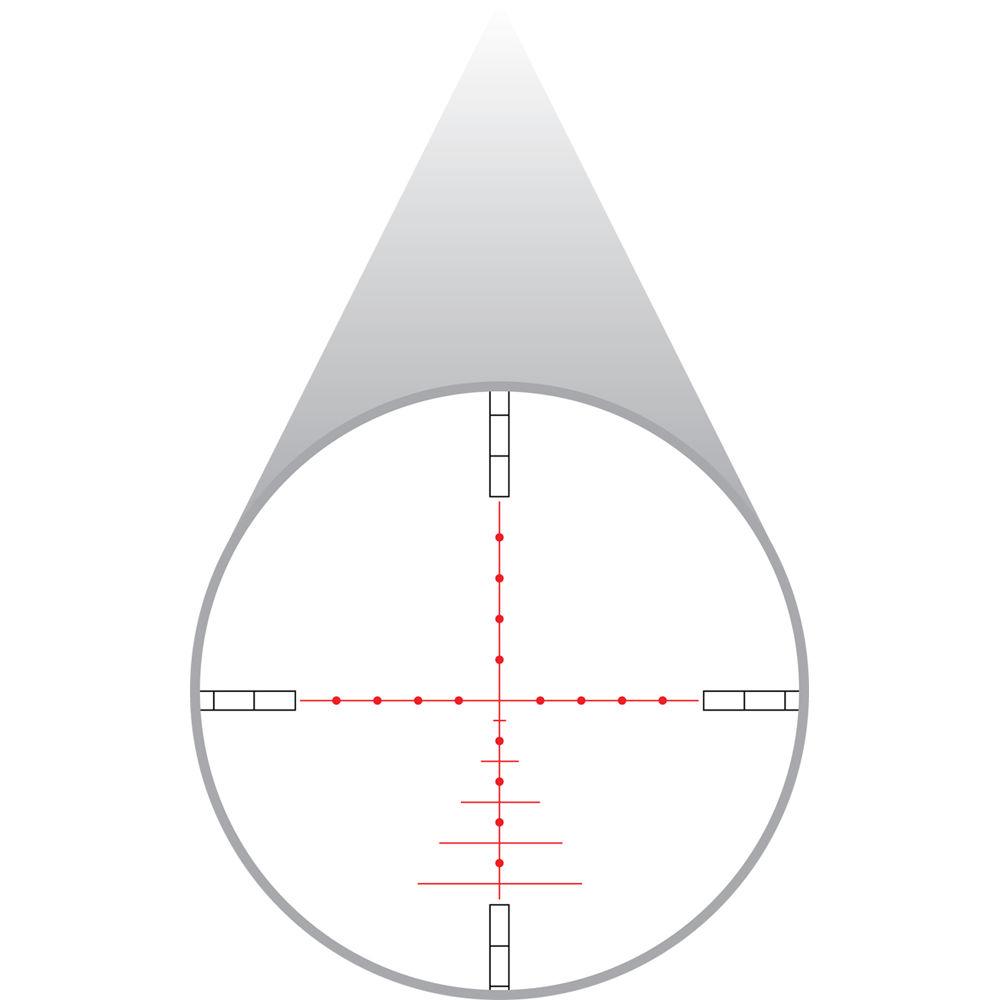

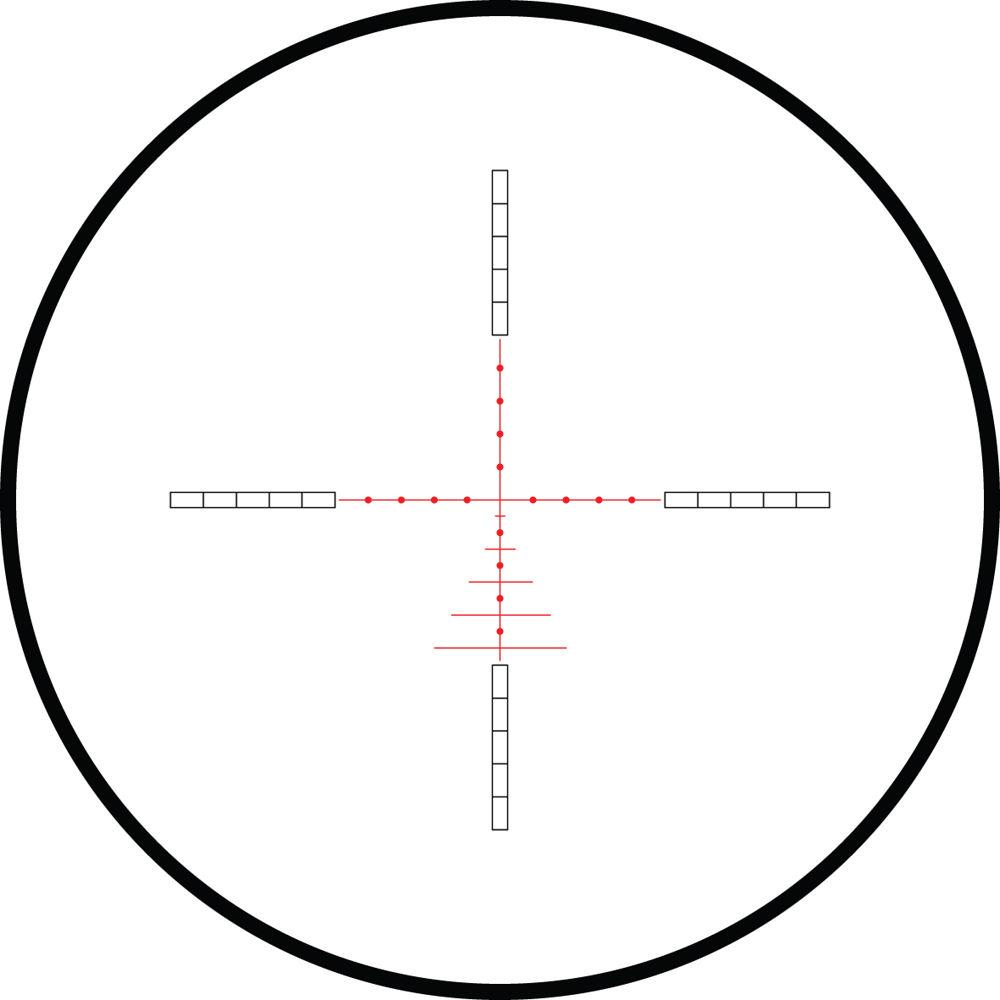

- Reticle Details
-
- Modified duplex crosshair-style reticle
- 1 mil spacing on all axes for ranging, hold-over/under, and target size estimation
- 1/2 mil-dot spacing on the lower post offer aim-points for long shots
- Horizontal bars calculated at 0.5/1.5/2.5/3.5/4.5 mil spacing
- Mil-spaced hollow outer bars for bracketing
- Partially illuminated:
- Illuminated in red
- Stepless rheostat for precise reticle intensity control
- Center hairs and mil-dots illuminated for low-light use
- Etched onto glass for no fading or shift over time
- Placed on second focal plane
- Runs on one included CR2032 battery
- Use and Handling
-
- Fast-focus collar
- 1/4 MOA per click impact point correction
- 95 MOA windage and elevation adjustment range
- Parallax adjustment
- Side turret with removable adjustment wheel
- Adjustable from 10 yards to infinity
- Uncovered tactical turrets for fast shot correction
- 4" long eye relief
- Comfortable 17-4mm exit pupil
- Construction Details
-
- 30mm one-piece maintube
- Lightweight and durable aluminum alloy housing
- Nitrogen-filled for water and fogproof performance
- Metal flip-up eyepiece and objective lens covers
- 4" screw-on sun shade
- Large 4" parallax turret wheel for precision adjustment
- Length: 13.6 inches
- Weight: 27.5 ounces
In the Box Hawke Sport Optics 3-12x50 Airmax 30 SF Riflescope (AMX IR Illuminated Duplex Reticle) Lens Cloth CR2032 Battery 4" Side Wheel 4" Screw-On Sun Shade Flip-Up Ocular Lens Cover Flip-Up Objective Lens Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 3-12x50 Airmax 30 SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 13300 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 30.9' @ 100 yd / 10.3 m @ 100 m
12x: 8.3' @ 100 yd / 2.8 m @ 100 m | | Exit Pupil Diameter | 3x: 17 mm
12x: 4 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | AMX IR Duplex Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 95 MOA | | Elevation Adjustment | 95 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.6" / 34.6 cm | | Weight | 27.5 oz / 780 g | | | | Package Weight | 3.445 lb | | Box Dimensions (LxWxH) | 15.95 x 6.25 x 3.7" |
