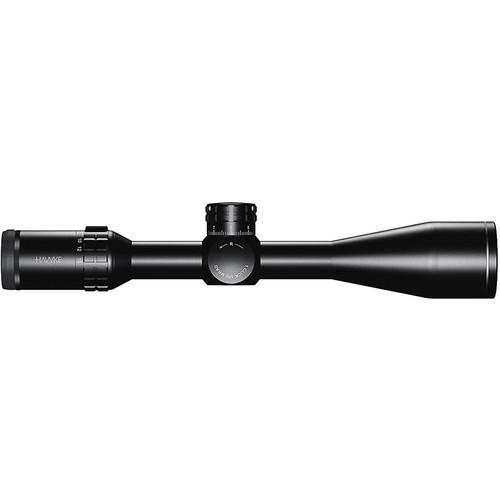

Product description Designed for medium-range use with all rifle calibers, the Hawke Sport Optics 3-15x44 Frontier SF Riflescope offers a broad zoom range, making it ideal for game of all sizes at most distances. Its 44mm objective and 21-layer anti-reflection fully multi-coated optics draw in ample light for a bright and clear image, even in lower-light hours, when many game animals are most active, and in heavily canopied areas.
Six brightness levels ensure users will see the Mil Pro (10x) reticle in a wide range of light conditions. One-half MRAD spacing out to 10 MRAD allows for precision holdover on long shots, and small 1/4 MRAD marks provide accurate range-finding capability. The scope's fast-focus collar with removable thumb lever allow you to quickly adapt to rapidly changing situations. A side-mounted focus dial permits parallax adjustment from 10 yards to infinity. The lightweight and durable anodized aluminum housing consists of a 1" one-piece maintube, nitrogen filled and sealed for water and fogproof performance. - Optical Performance
-
- 3-15x zoom range
- 44mm objective lens
- 21-layer anti-reflection fully multi-coated optics
- 37.5-7.5' field of view at 100 yards

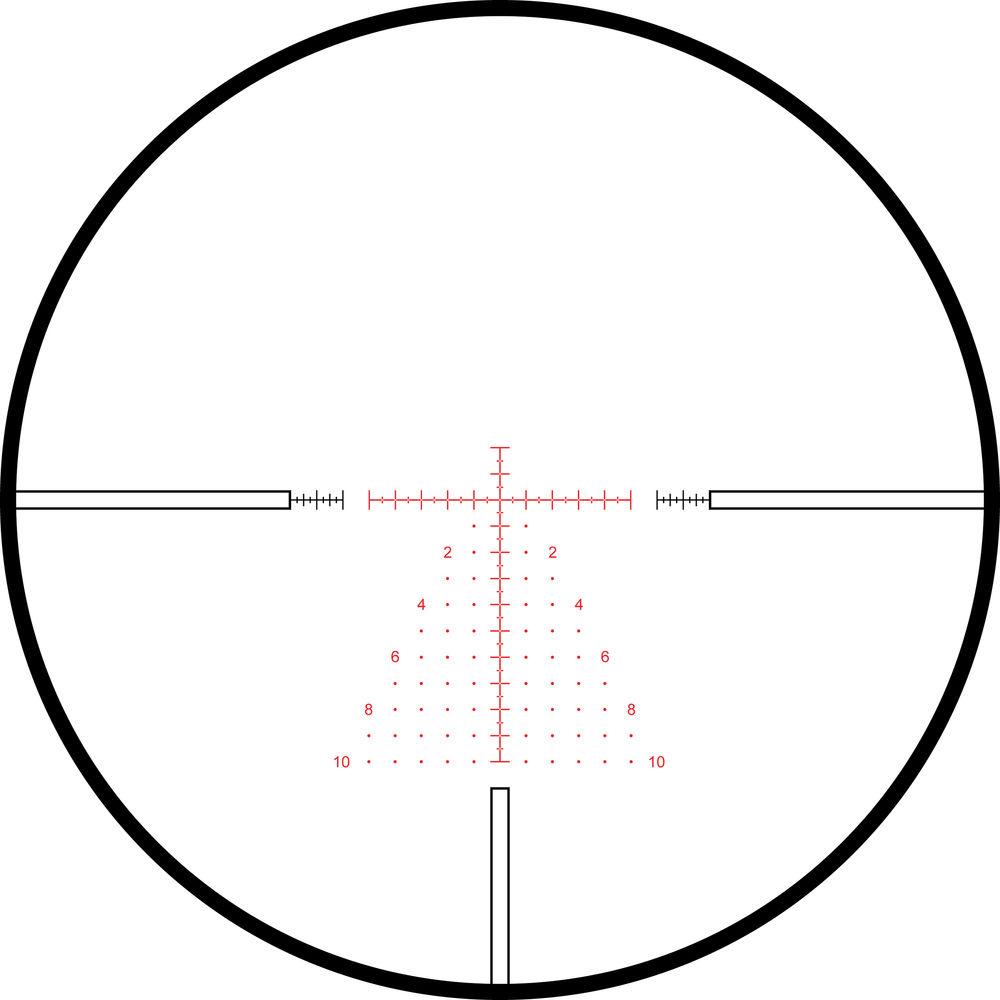

- Mil Pro (10x) SFP Reticle
-
- Accurate MRAD spacing on 10× magnification

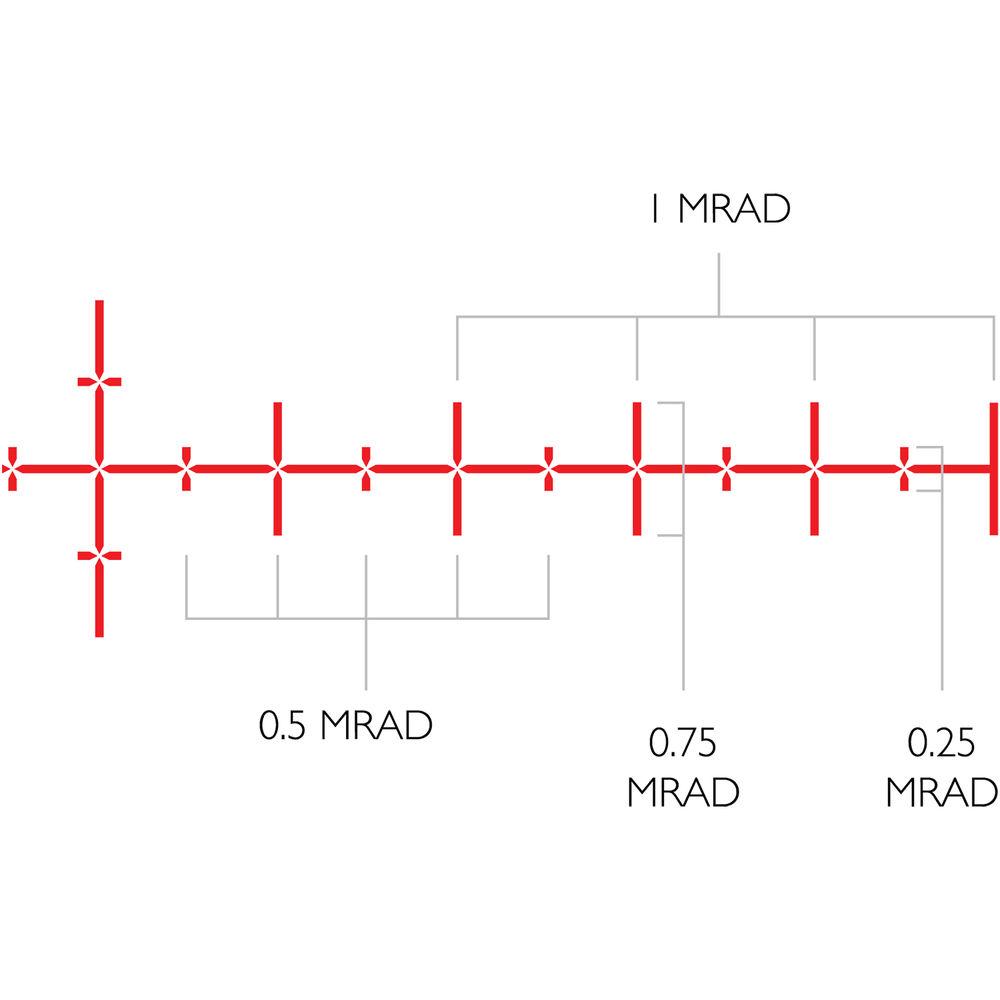

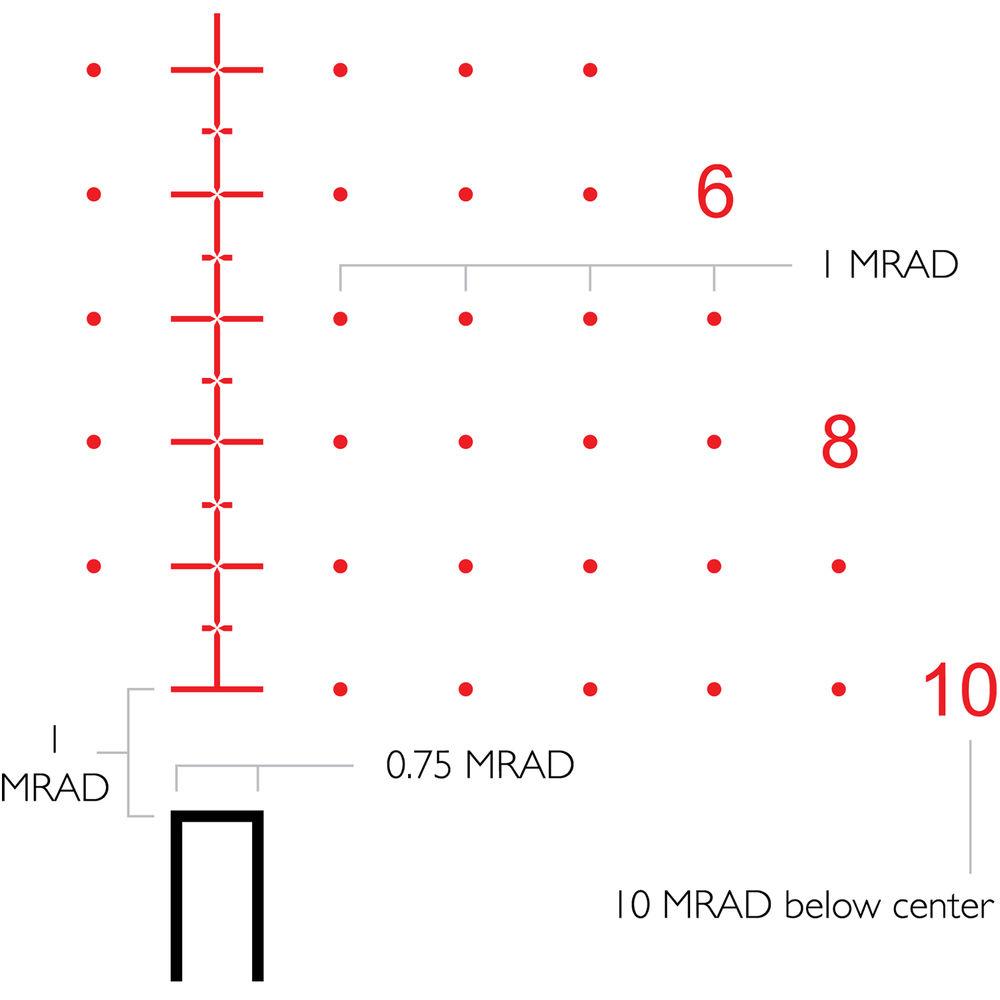

- One-half MRAD spaced markings extending out to 10 MRAD of holdover

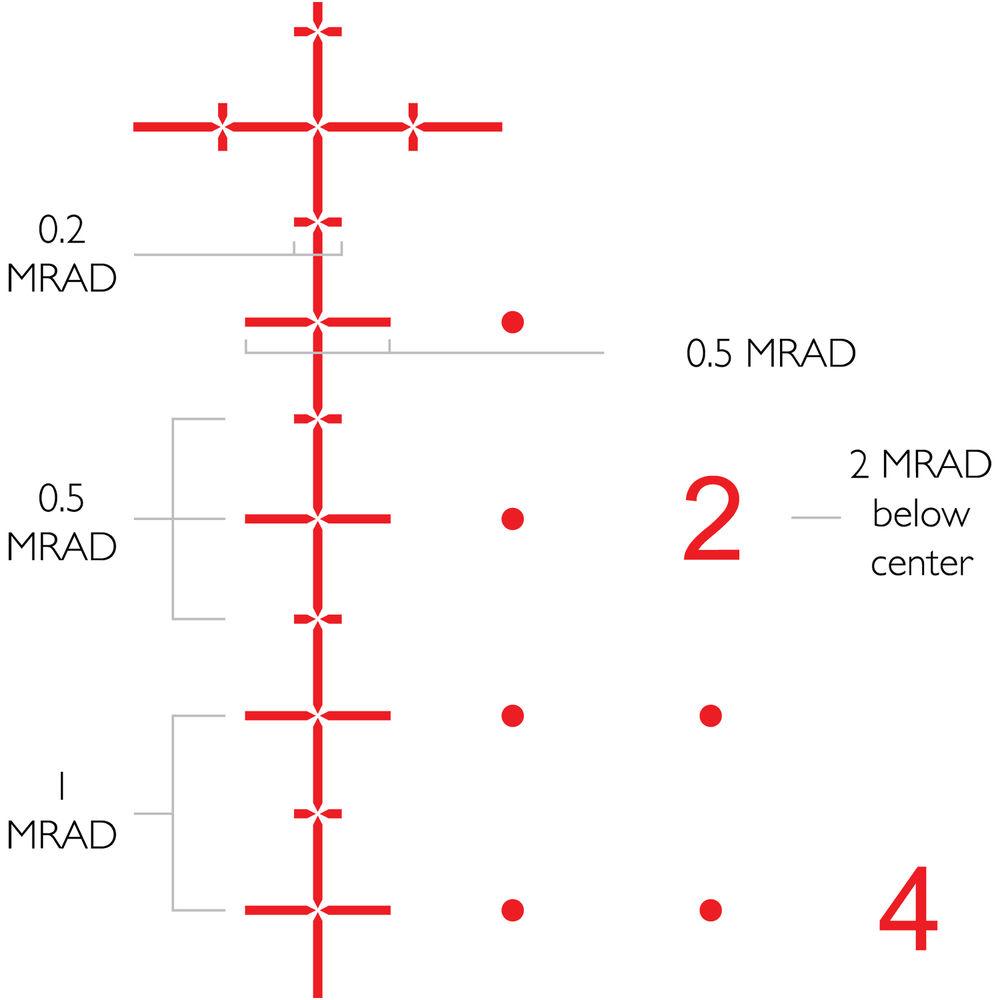

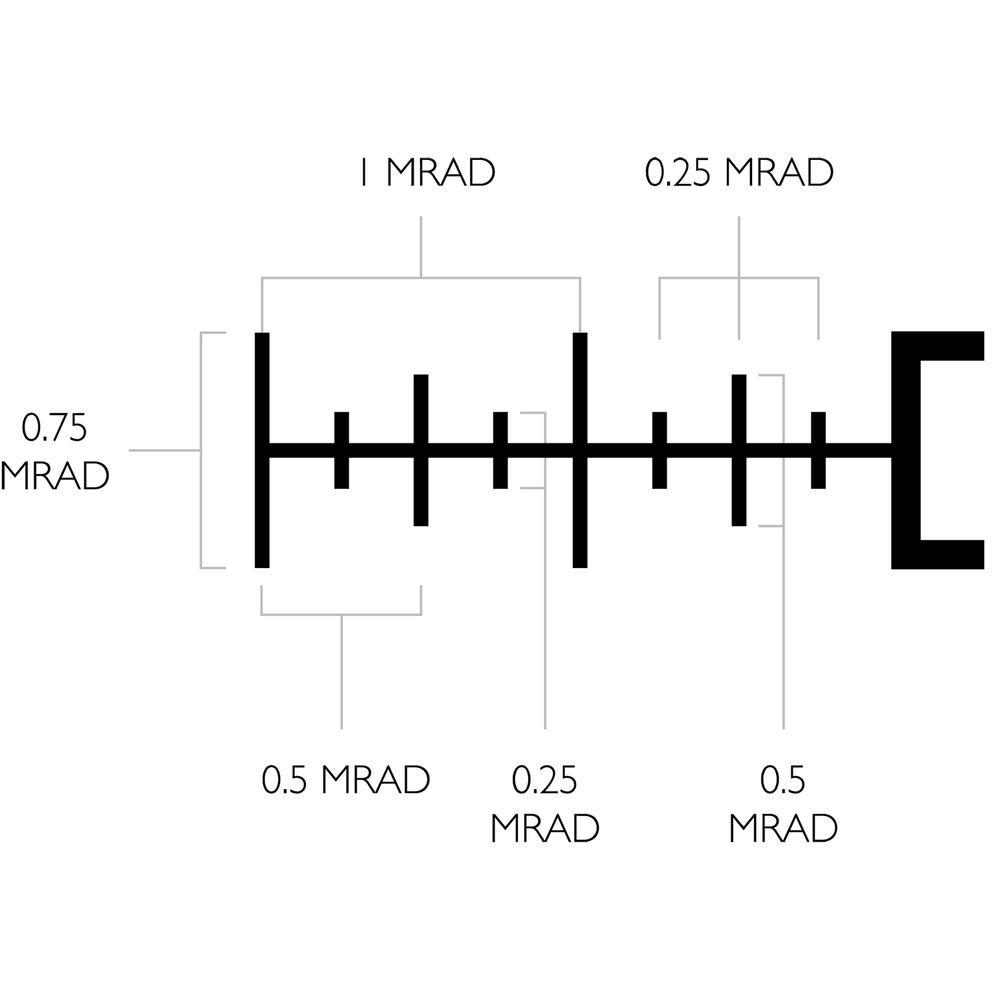

- One, ½, and ¼ MRAD brackets for range finding
- Every second MRAD spacing on lower section is numbered to ensure quick and easy acquisition of target and ease of reference
- Each cross has a see-through gap, allowing an unobstructed view of the target
- Runs on one included CR2032 coin-cell battery
- Use and Handling
-
- All-caliber rated
- Fast-focus collar
- 1/10 MRAD per click impact point correction
- 21 MRAD windage and elevation adjustment range
- Parallax adjustment from 10 yards to infinity, side adjustment turret
- Exposed, locking, zero-stop turrets
- Long 4" eye relief
- Construction Details
-
- 1" one-piece maintube
- Lightweight and durable aluminum-alloy housing
- Nitrogen filled for waterproof and fogproof performance
- Front and rear flip-up lens covers
- Screw-on removable 4" sunshade
- Length: 13.2 inches
- Weight: 20.6 ounces
In the Box Hawke Sport Optics 3-15x44 Frontier SF Riflescope (Mil Dot Illuminated Reticle) Zoom Lever Screw-On Sunshade Lens Cloth 2 x Lens Covers CR2032 Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 3-15x44 Frontier SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 18120 Specs | | | Magnification | 3 to 15x | | Objective Lens Diameter | 44 mm | | Field of View | 3x: 37.5' @ 100 yd / 12.5 m @ 100 m
15x: 7.5' @ 100 yd / 2.5 m @ 100 m | | Exit Pupil Diameter | 3x: 11 mm
15x: 2 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | Mil Pro (10x) Reticle (Second Focal Plane) | | Illumination | Illuminated | | Brightness Settings | Adjustable Brightness (6 Levels) | | | | Mounting | None | | Filter Thread | None | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 21 MRAD | | Elevation Adjustment | 21 MRAD | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 13.2" / 33.5 cm | | Weight | 20.6 oz / 584 g |
