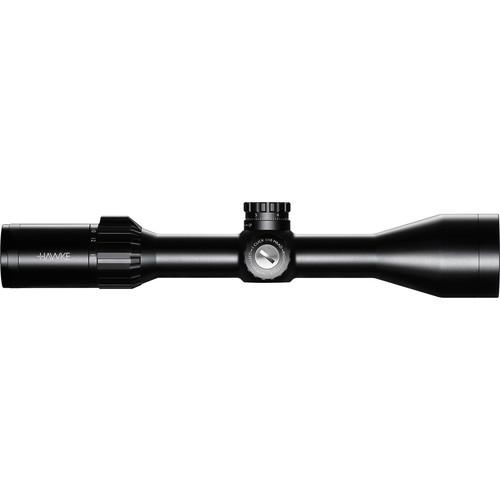

Product description Own the field with the Hawke 3-15x50 Frontier FFP Riflescope. This optic features a precision-engineered body and gear, high-quality optics, and a first focal plane MIL Ext. illuminated reticle. To live up to the expectations of demanding tactical shooters, the optical system is outfitted with lenses that are treated with 21 layers of anti-reflection full multi-coatings and a wide 50mm objective for maximizing brightness and visibility in challenging lighting conditions. The Mil Ext. reticle features 1/2 MRAD spacing out to 10 MRAD for precision holdover on long shots, and small 1/5 MRAD marks provide accurate range-finding capability. A side-focus dial allows for parallax correction from 15 yards to infinity.

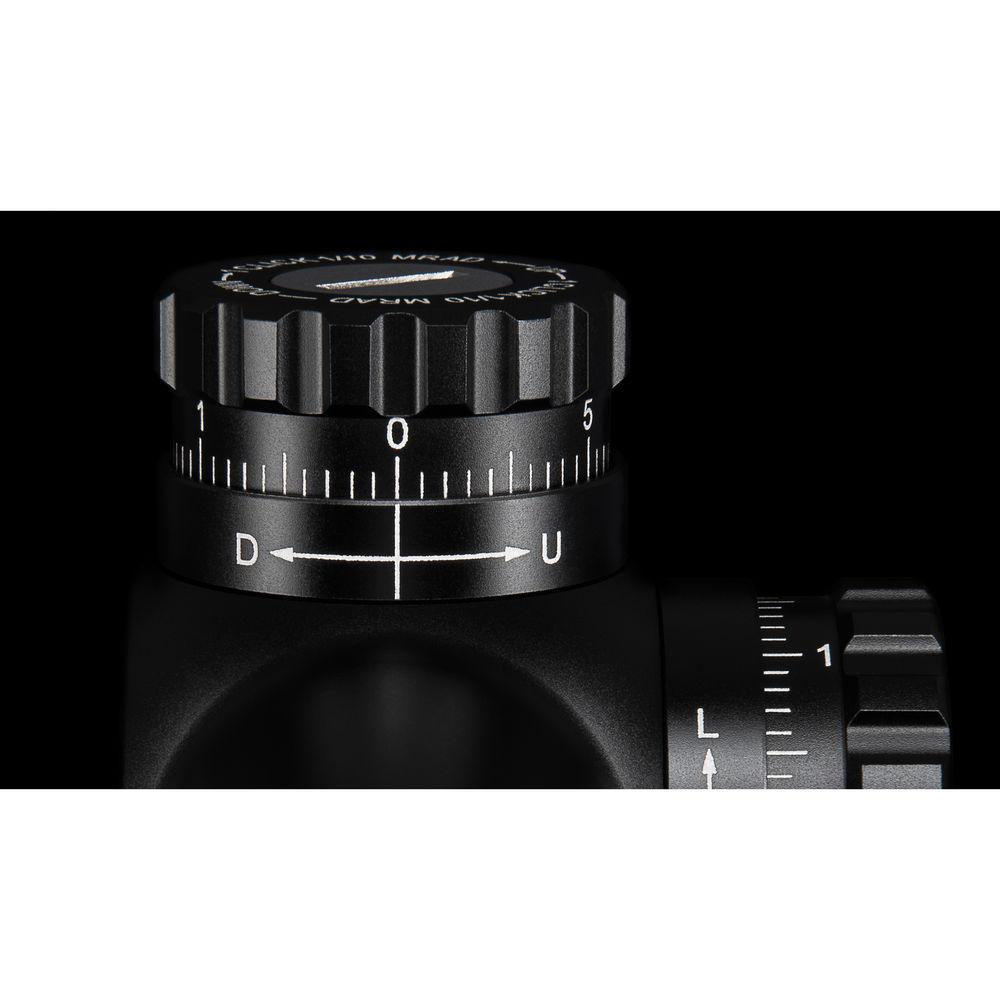

Exposed, locking, zero-stop turrets adjust impact point at 1/10 MRAD per click with an elevation and windage adjustment range of 20 MRAD. The 30mm, one-piece aluminum maintube is nitrogen purged and sealed for fog and waterproof performance. The fast focus eyebell and zoom ring with removable thumb lever helps you get on target quickly. . - Optical Performance
-
- 3-15x magnification
- 50mm objective diameter
- 21 layers anti-reflective coating
- 36.7 - 7.3' field of view

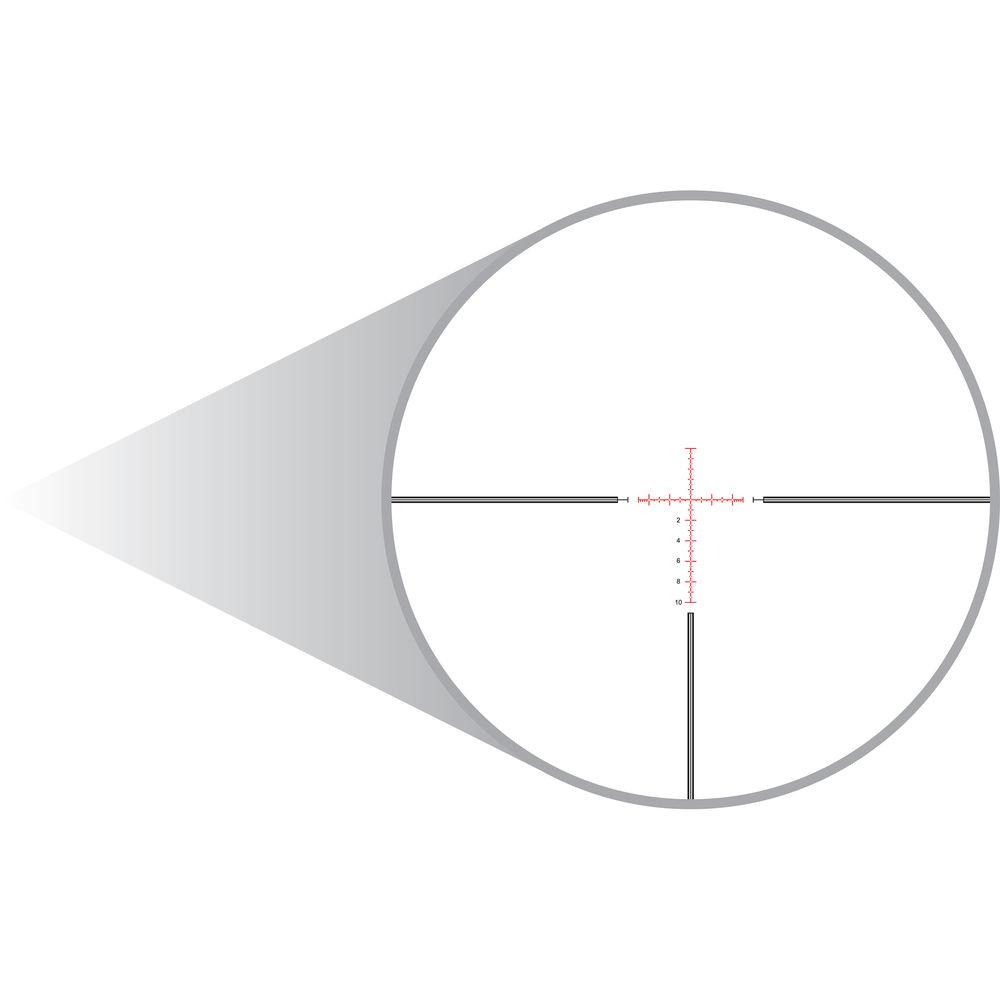

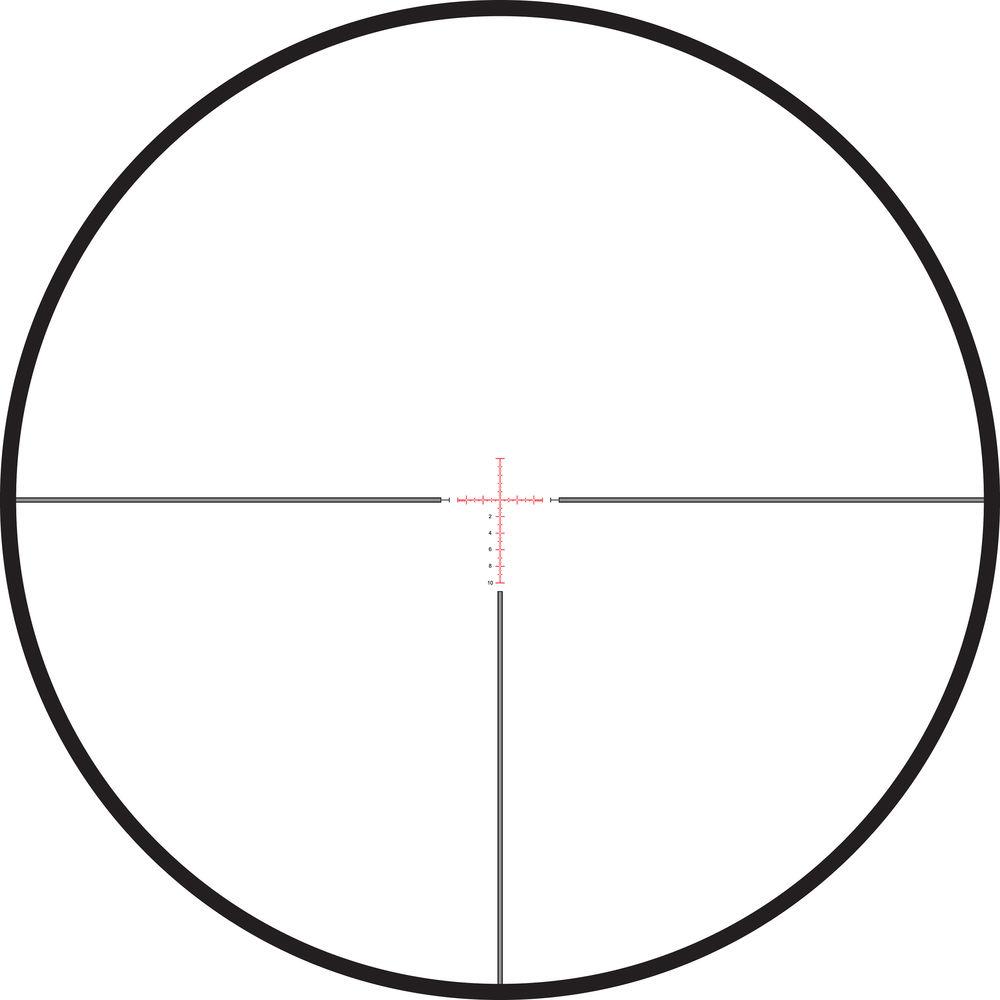

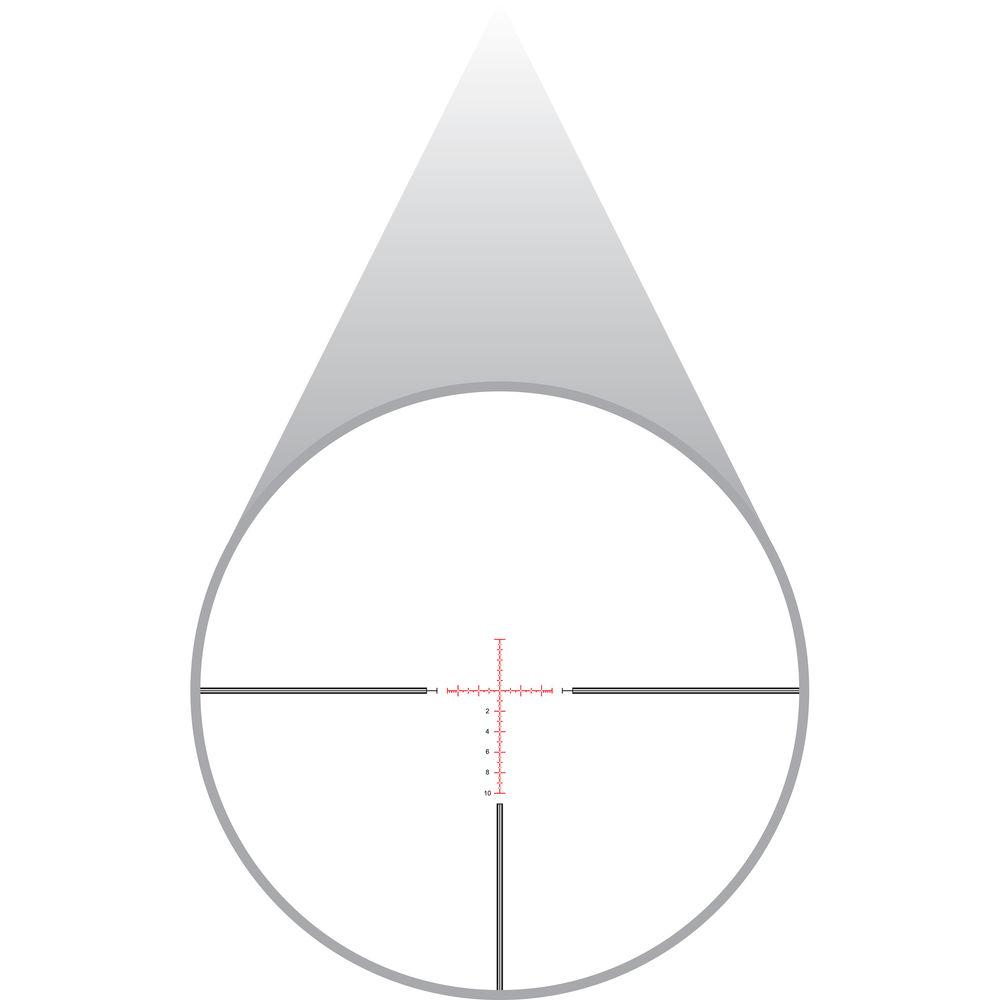

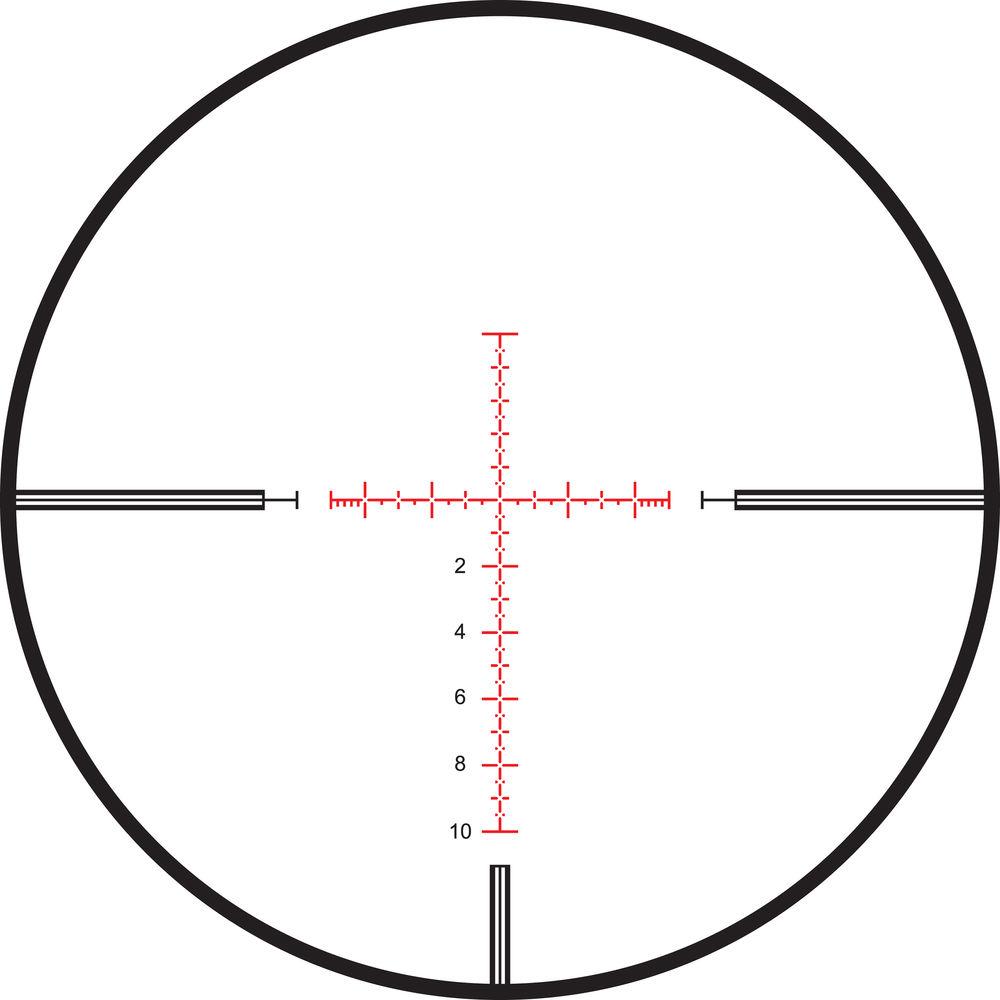

- Mil Ext. Reticle
-
- First Focal Plane
- Developed specifically for first focal plane

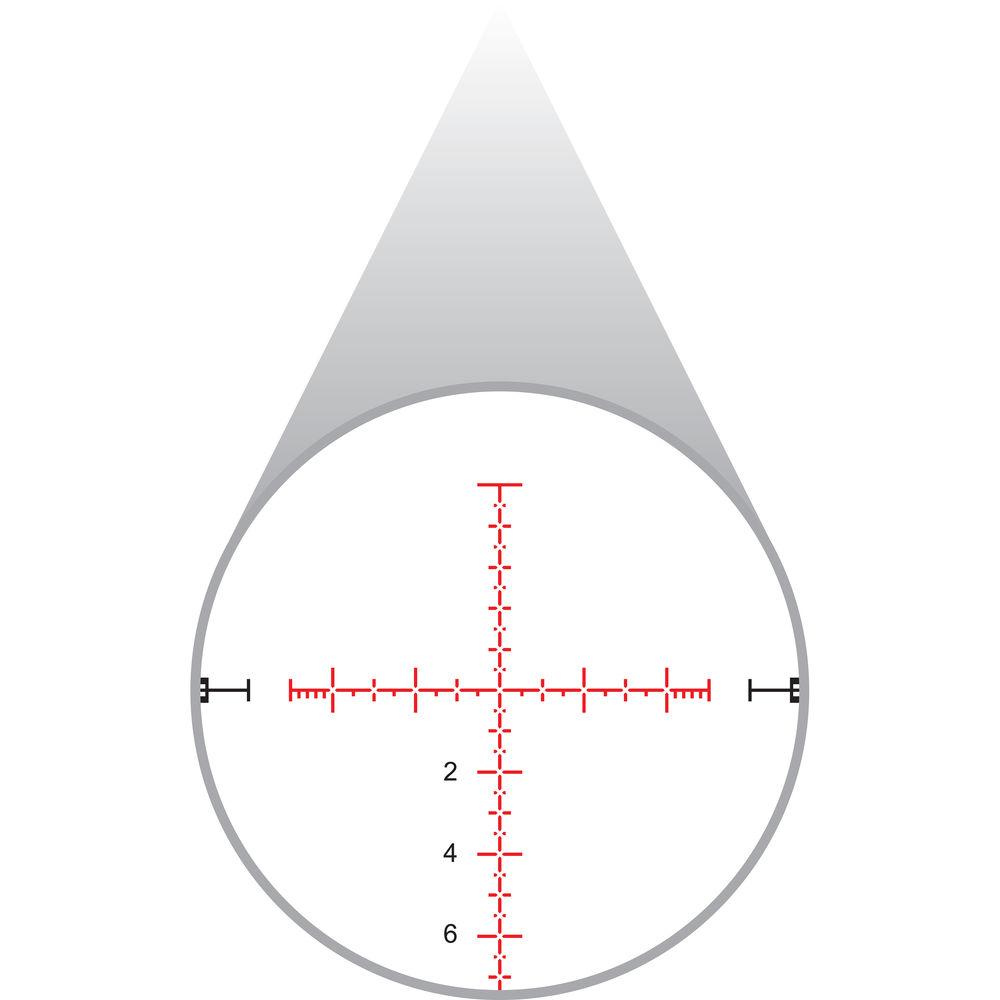

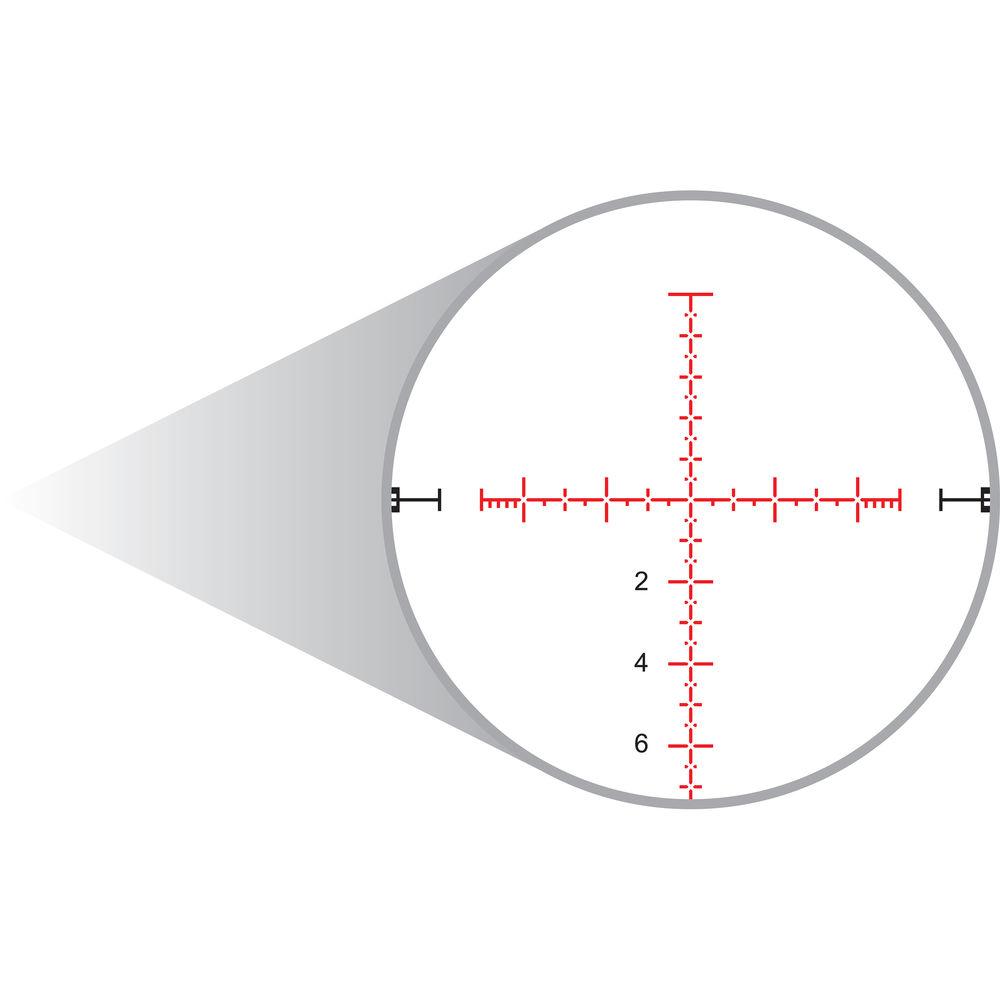

- One-half MRAD spaced markings extending out to 10 MRAD of holdover
- One, 1/2, and 1/5 MRAD brackets for range finding
- Every second MRAD spacing on lower section is numbered to ensure quick and easy acquisition of target and ease of reference
- Glass-etched with red illumination
- Six brightness levels
- Runs on one CR2032 battery
- Use and Handling
-
- 1/10 MRAD impact point correction
- 20 MRAD windage and elevation adjustment range
- Side focus parallax correction from 15 yards to infinity
- Construction Details
-
- Aluminum housing, 30mm mono-tube chassis
- Long eye relief for high recoil and magnum calibers

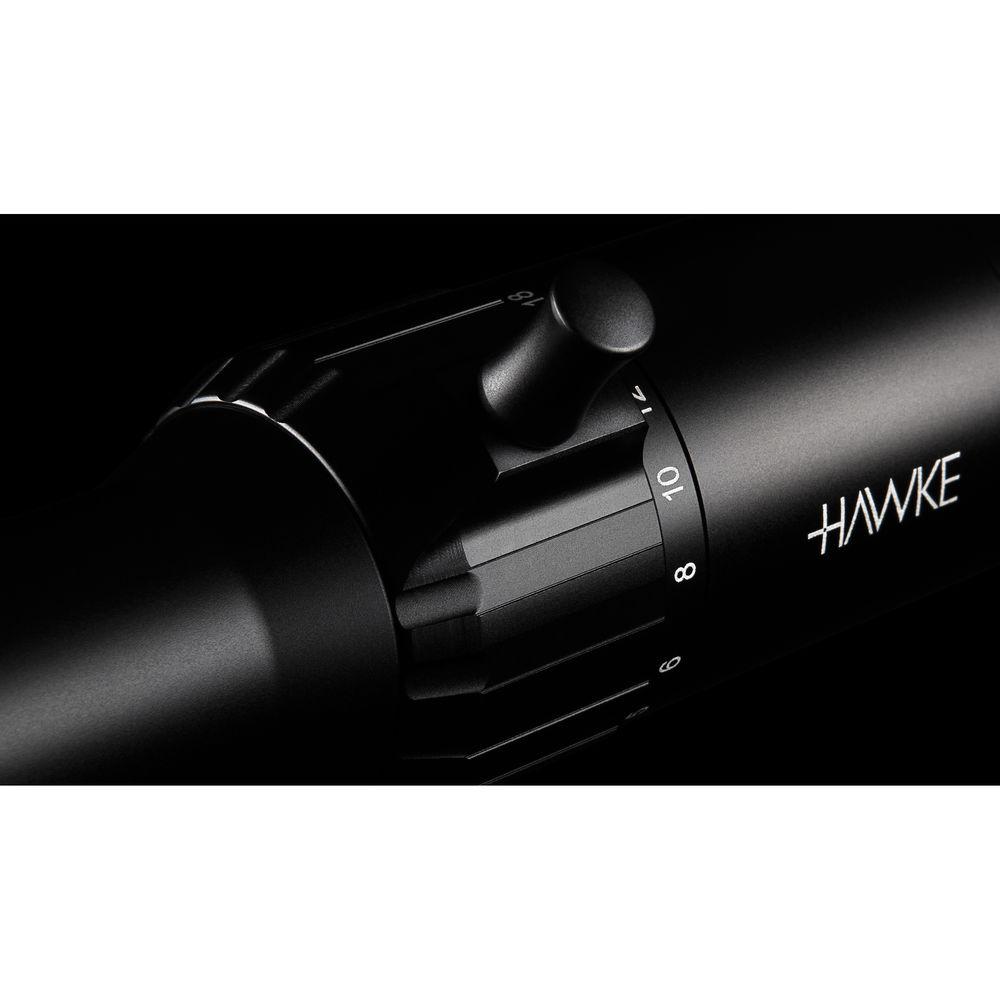

- Fast focus eyebell and zoom ring with thumb lever Nitrogen-filled, fogproof and waterproof
In the Box Hawke Sport Optics 3-15x50 Frontier FFP Riflescope (Mil Ext. Illuminated Reticle) 4" Sunshade Zoom Lever 2 x Lens Covers Lens Cloth CR2032 Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 3-15x50 Frontier FFP Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 18320 Specs | | | Magnification | 3 to 15x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 36.7' @ 100 yd / 12.2 m @ 100 m
15x: 7.3' @ 100 yd / 2.4 m @ 100 m | | Exit Pupil Diameter | 3x: 16.7 mm
15x: 3.3 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | MIL Ext. Reticle (First Focal Plane) | | Illumination | Illuminated | | Brightness Settings | Adjustable Brightness (6 Levels) | | | | Impact Point Correction | 1/10 MIL per Click | | Windage Adjustment | 20 MRAD | | Elevation Adjustment | 20 MRAD | | Parallax Correction | Yes, 15 yd / 13.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.2" / 335 mm | | Weight | 26.3 oz / 745 g | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 15.7 x 4.2 x 4.1" |
