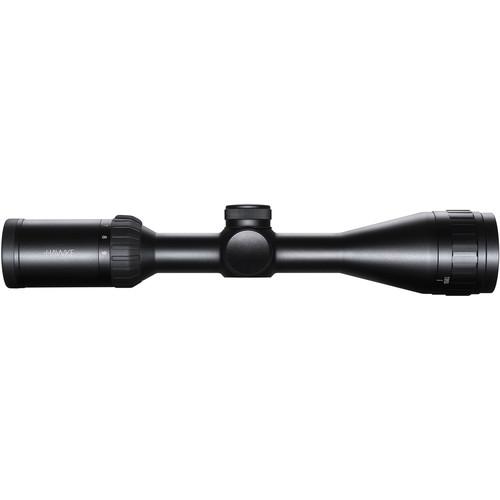

Product description Hawke Optics engineered their 3-9x40 Airmax AO Riflescope to increase the accuracy of airguns by employing a reticle that is specifically designed for airgun use. The duplex ranging reticle is based on a mil-dot system and provides multiple aiming points on all axes to help compensate for the notoriously-wobbly air pellet trajectories. Utilizing the reticle's aiming points allows you to adjust your shot quickly without having to manipulate the scope's windage and elevation turrets.The scope's 40mm objective draws in considerably more light than smaller-objective optics to enhance its low-light performance such as at dawn, dusk, or in heavily-canopied woods. Short covered turrets give this optic an low profile with reduced snag possibilities. Capped turrets help guard against accidental adjustments, while its fast-focus collar and zoom ring allow you to quickly adapt to rapidly changing situations. Complementing the performance of the scope is a lightweight and durable anodized aluminum housing, with a 1" one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof. - Optical Performance
-
- 3-9x zoom range
- 40mm objective lens
- 16-layer anti-reflection fully multi-coated optics
- 37.2-13.6' field of view at 100 yards

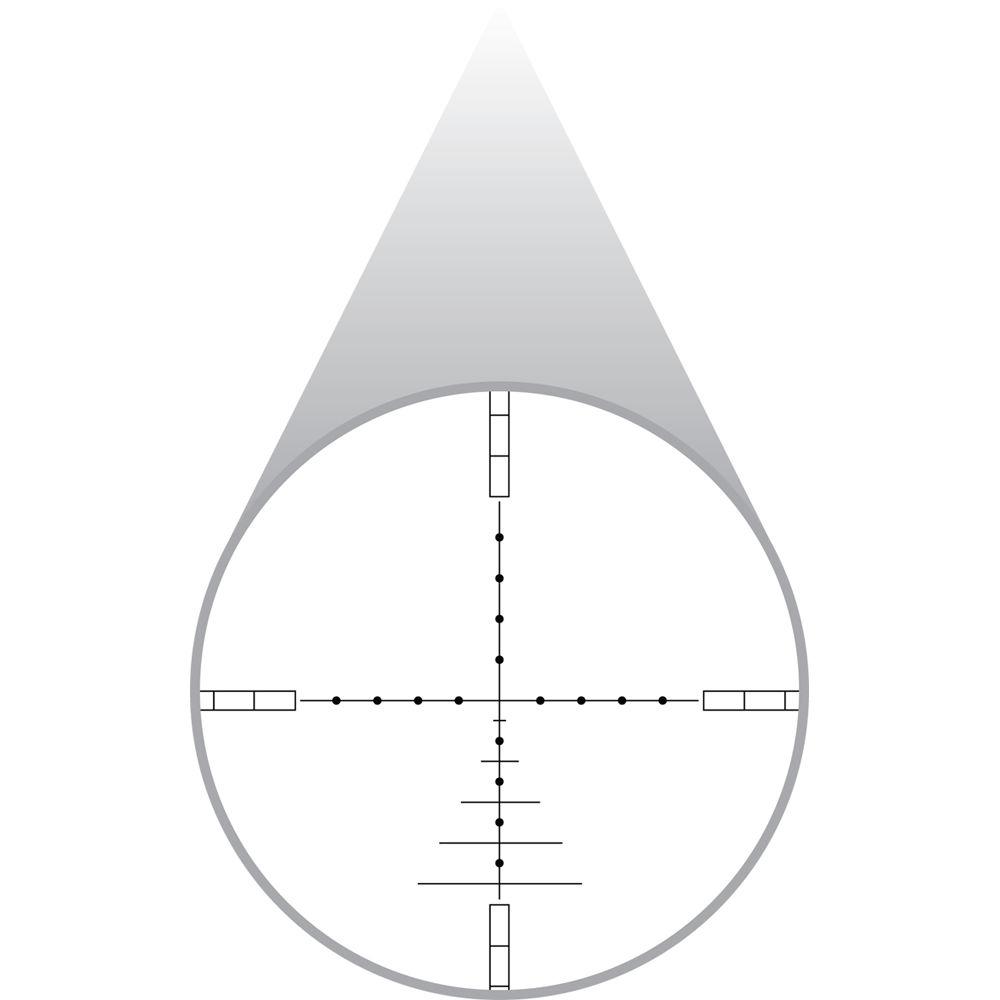

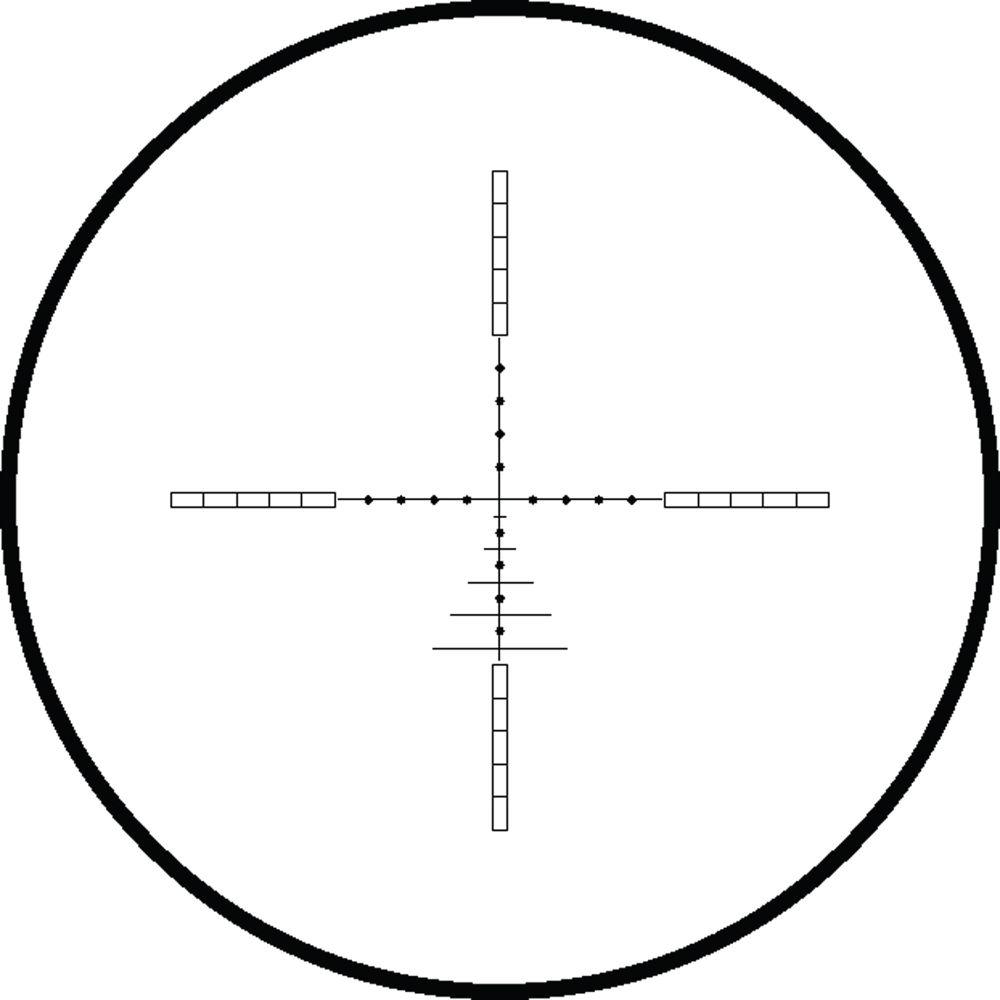

- Reticle Details
-
- Modified duplex crosshair-style reticle
- Etched onto glass for no fading or shift over time
- Placed on second focal plane
- 1 mil spacing on all axes for ranging, hold-over/under, and target size estimation
- 1/2 mil-dot spacing on the lower post offer aim-points for long shots
- Use and Handling
-
- Fast-focus collar
- 1/4 MOA per click impact point correction
- 80 MOA windage and elevation adjustment range
- Parallax adjustment
- Side capped turret
- Adjustable from 7.5 yards to infinity
- Low-profile covered turret caps prevent accidental adjustment
- 3.5" long eye relief
- 13-4mm exit pupil
- Construction Details
-
- 1" one-piece maintube
- Lightweight and durable aluminum alloy housing
- Nitrogen-filled for water and fogproof performance
- Threaded objective & ocular for optional accessories such as sun shades
- Rated for use on most calibers and recoil-resistant
- Length: 12 inches
- Weight: 18.3 ounces
In the Box Hawke Sport Optics 3-9x40 Airmax AO Riflescope (AMX Ranging Duplex Reticle) Lens Cloth Ocular Lens Cover Objective Lens Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 3-9x40 Airmax AO Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 13110 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 40 mm | | Field of View | 3x: 37.2' @ 100 yd / 12.4 m @ 100 m
9x: 13.6' @ 100 yd / 4.5 m @ 100 m | | Exit Pupil Diameter | 3x: 13 mm
9x: 4 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | AMX Duplex Ranging Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 80 MOA | | Elevation Adjustment | 80 MOA | | Parallax Correction | Yes, 7.5 yd / 6.9 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 12" / 30.5 cm | | Weight | 18.3 oz / 519 g | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 14.5 x 4.0 x 3.2" |
