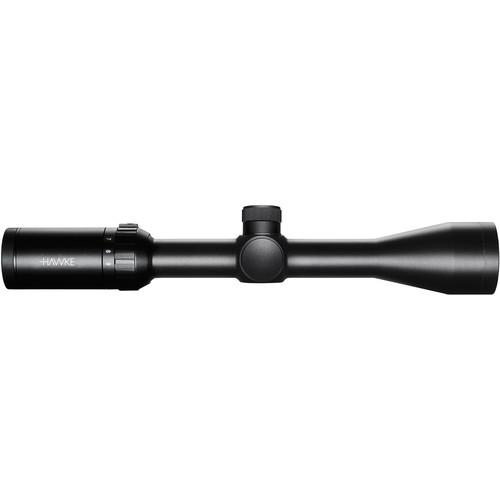

Product description Designed as a multi-purpose, utilitarian mid to long-range optic, the Hawke Optics 3-9x40 Vantage IR Riflescope boasts a partially-illuminated crosshair reticle with five selectable brightness levels for use in most lighting conditions in either red or green. Red is ideal for low-light conditions, while green is easier to see in bright sunlight. The 40mm objective draws in generous amounts of light versus smaller objectives while maintaining a low-profile. Covered turrets help guard against accidental adjustments while a fast-focus collar and knurled rheostat allow you to quickly adapt to rapidly changing situations. Complementing the performance of the scope is a lightweight and durable anodized aluminum housing, with a 1" one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof. - Optical Performance
-
- 3-9x zoom range
- 40mm objective lens
- 11-layer anti-reflection fully multi-coated optics
- 39-12.7' field of view at 100 yards
- Reticle Details
-
- Illuminated crosshair-style reticle
- Designed for subsonic .22 LR rounds
- Non-illuminated crosshairs and hollow outer posts
- Illuminated center and adjusted aiming crosses
- Designed to be zeroed on 9x at 50 yd with all aim-points on lower vertical axis precalculated out to 200 yards
- Sub-tensions set at 9x magnification
- Round specifications:
- Muzzle velocity: 1057 ft/s
- Ballistic coeffiecient: 0.1730
- Scope height: 1.75" (44.5mm)
- Placed on second focal plane
- Partially illuminated:
- Knurled Posi-Grip adjustment collar
- Five selectable brightness levels
- Choose between red and green colors
- Red is ideal for low-light conditions
- Green is easier to see in bright daylight than red
- Runs on one included CR2032 coin-cell battery
- Use and Handling
-
- Fast-focus collar
- 1/4 MOA per click impact point correction
- 100 MOA windage and elevation adjustment range
- Parallax-free to 75 yards
- Low-profile covered turret caps prevent accidental adjustment
- 3.5" long eye relief
- 13-4mm exit pupil
- Construction Details
-
- 1" one-piece maintube
- Lightweight and durable aluminum alloy housing
- Nitrogen-filled for water and fogproof performance
- Rated for use on most calibers and recoil-resistant
- Length: 12.7 inches
- Weight: 17.9 ounces
In the Box Hawke Sport Optics 3-9x40 Vantage IR Riflescope (Rimfire .22 SS Illuminated Reticle) Lens Cloth CR2032 Battery Ocular Lens Cover Objective Lens Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 3-9x40 Vantage IR Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 14223 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 40 mm | | Field of View | 3x: 39' @ 100 yd / 13 m @ 100 m
9x: 12.7' @ 100 yd / 4.2 m @ 100 m | | Exit Pupil Diameter | 3x: 13 mm
9x: 4 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | Subsonic Rimfire .22 Duplex Reticle | | Illumination | Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 100 MOA | | Elevation Adjustment | 100 MOA | | Parallax Correction | Yes, 75 yd / 69 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 12.7" / 32.2 cm | | Weight | 17.9 oz / 507 g |
