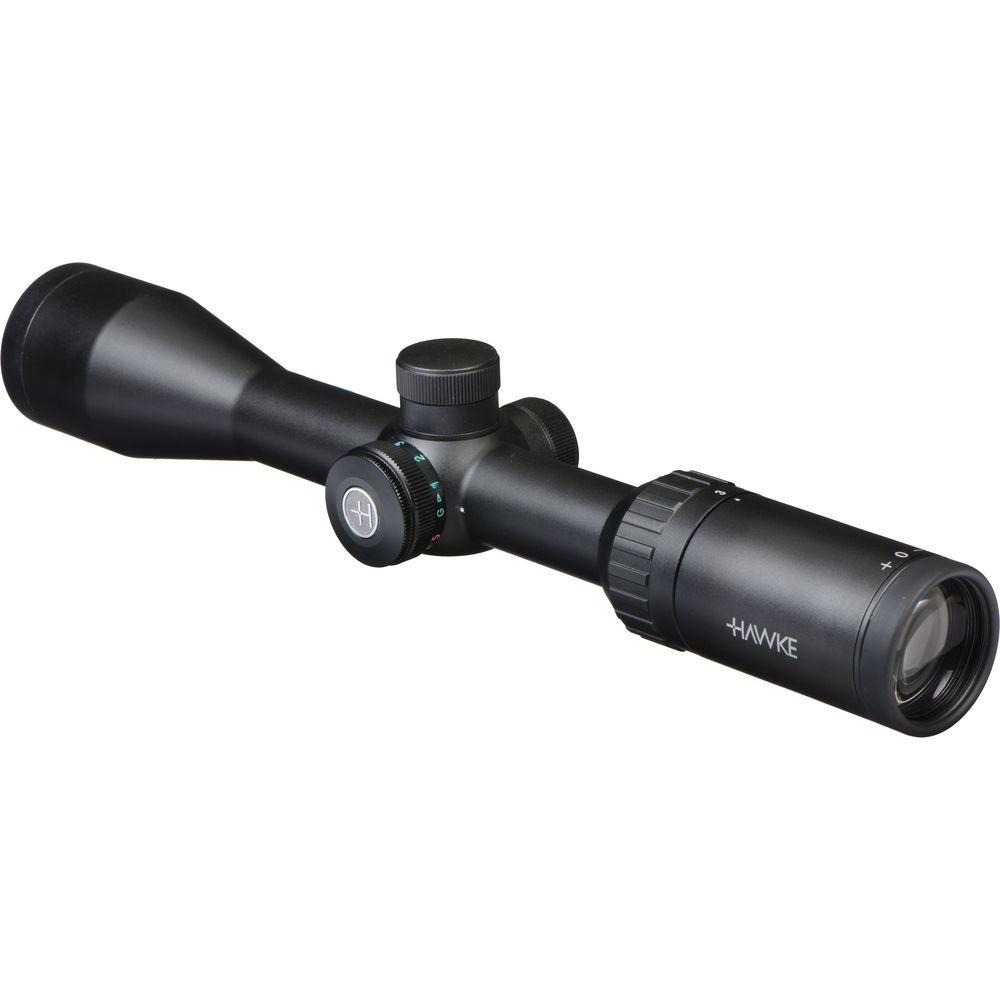

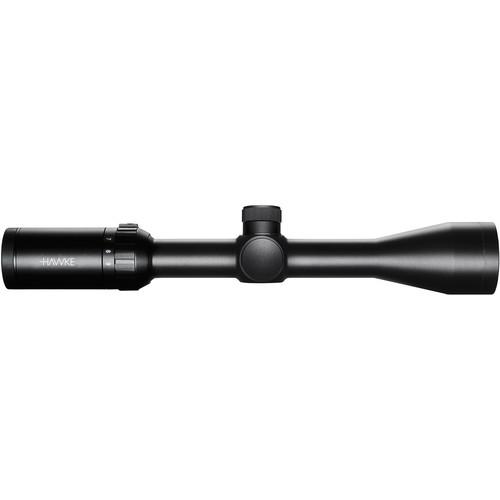

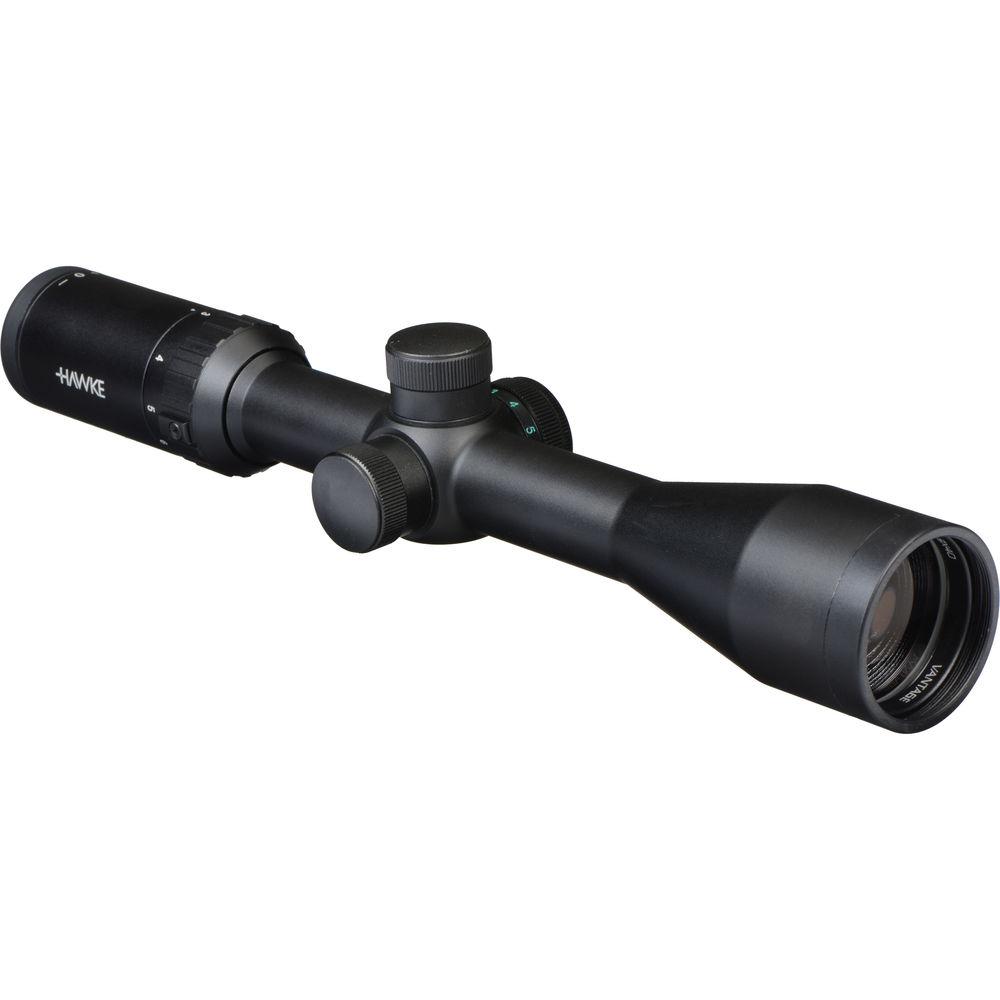

User Manual for Hawke Sport Optics 3-9x40 Vantage IR Riflescope Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 3-9x40 Vantage IR
- Product category: Riflescopes Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Riflescopes
 |
User manual for the Hawke Sport Optics 3-9x40 Vantage IR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|
Product description Designed as a multi-purpose, utilitarian mid to long-range optic, the Hawke Optics 3-9x40 Vantage IR Riflescope boasts a partially-illuminated crosshair reticle with five selectable brightness levels for use in most lighting conditions in either red or green. Red is ideal for low-light conditions, while green is easier to see in bright sunlight. The 40mm objective draws in generous amounts of light versus smaller objectives while maintaining a low-profile. Covered turrets help guard against accidental adjustments while a fast-focus collar and knurled rheostat allow you to quickly adapt to rapidly changing situations. Complementing the performance of the scope is a lightweight and durable anodized aluminum housing, with a 1" one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof. - Optical Performance
-
- 3-9x zoom range
- 40mm objective lens
- 11-layer anti-reflection fully multi-coated optics
- 39-12.7' field of view at 100 yards
- Reticle Details
-
- Illuminated crosshair-style reticle
- Designed for .30/30 rounds
- Center illuminated aiming cross
- Aiming cross is 10 MOA long from center, 15 MOA from center to inside edge of outer posts
- Sub-tensions set at 4x
- Placed on second focal plane
- Partially illuminated:
- Knurled Posi-Grip adjustment collar
- Five selectable brightness levels
- Choose between red and green colors
- Red is ideal for low-light conditions
- Green is easier to see in bright daylight than red
- Runs on one included CR2032 coin-cell battery
- Use and Handling
-
- Fast-focus collar
- 1/4 MOA per click impact point correction
- 100 MOA windage and elevation adjustment range
- Parallax-free to 100 yards
- Low-profile covered turret caps prevent accidental adjustment
- 3.5" long eye relief
- 13-4mm exit pupil
- Construction Details
-
- 1" one-piece maintube
- Lightweight and durable aluminum alloy housing
- Nitrogen-filled for water and fogproof performance
- Rated for use on most calibers and recoil-resistant
- Length: 12.7 inches
- Weight: 17.9 ounces
In the Box Hawke Sport Optics 3-9x40 Vantage IR Riflescope (30/30 IR Illuminated Reticle) Lens Cloth CR2032 Battery Ocular Lens Cover Objective Lens Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 3-9x40 Vantage IR Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 14220 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 40 mm | | Field of View | 3x: 39' @ 100 yd / 13 m @ 100 m
9x: 12.7' @ 100 yd / 4.2 m @ 100 m | | Exit Pupil Diameter | 3x: 13 mm
9x: 4 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | 30/30 IR Duplex Reticle | | Illumination | Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 100 MOA | | Elevation Adjustment | 100 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 12.7" / 32.2 cm | | Weight | 17.9 oz / 507 g | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 14.6 x 3.9 x 3.0" |
