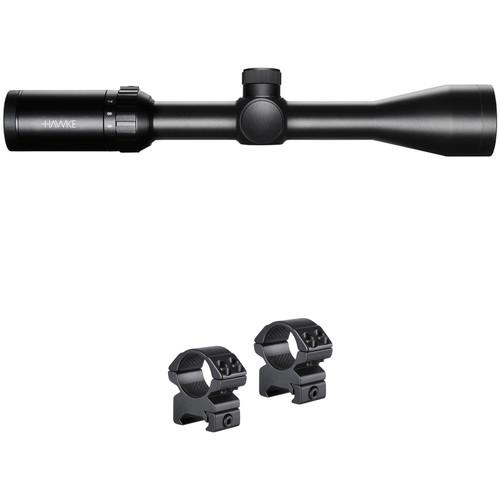

Product description This Hawke 3-9x40 Vantage IR Riflescope and Medium Match Ring Mount Kit was put together by B&H to remove the unnecessary guesswork, save time, and give you a complete combo that is ready for use immediately after unboxing. The included Vantage riflescope is designed to exceed your expectations in terms of performance while also providing simplicity of use and handling. It is a durable, waterproof, and fogproof precision optic that will work seamlessly with the pair of included medium Weaver rings. - Hawke Sport Optics 3-9x40 Vantage IR Riflescope (Rimfire .22 HV Illuminated Reticle) Designed as a multi-purpose, utilitarian mid to long-range optic, the Hawke Optics 3-9x40 Vantage IR Riflescope boasts a partially-illuminated crosshair reticle with five selectable brightness levels for use in most lighting conditions in either red or green. Red is ideal for low-light conditions, while green is easier to see in bright sunlight. The 40mm objective draws in generous amounts of light versus smaller objectives while maintaining a low-profile. Covered turrets help guard against accidental adjustments while a fast-focus collar and knurled rheostat allow you to quickly adapt to rapidly changing situations. Complementing the performance of the scope is a lightweight and durable anodized aluminum housing, with a 1" one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof.
- Optical Performance
-
- 3-9x zoom range
- 40mm objective lens
- 11-layer anti-reflection fully multi-coated optics
- 39-12.7' field of view at 100 yards
- Reticle Details
-
- Illuminated crosshair-style reticle
- Designed for high-velosity .22 LR caliber rounds
- Non-illuminated crosshairs and hollow outer posts
- Illuminated center and adjusted aiming crosses
- Designed to be zeroed on 9x at 50 yd with all aim-points on lower vertical axis precalculated out to 200 yards
- Sub-tensions set at 9x magnification
- Round specifications:
- Muzzle velocity: 1260 ft/s
- Ballistic Coeffiecient: 0.1262
- Scope height: 1.75" (44.5mm)
- Placed on second focal plane
- Partially illuminated:
- Knurled Posi-Grip adjustment collar
- Five selectable brightness levels
- Choose between red and green colors
- Red is ideal for low-light conditions
- Green is easier to see in bright daylight than red
- Runs on one included CR2032 coin-cell battery
- Use and Handling
-
- Fast-focus collar
- 1/4 MOA per click impact point correction
- 100 MOA windage and elevation adjustment range
- Parallax-free to 75 yards
- Low-profile covered turret caps prevent accidental adjustment
- 3.5" long eye relief
- 13-4mm exit pupil
- Construction Details
-
- 1" one-piece maintube
- Lightweight and durable aluminum alloy housing
- Nitrogen-filled for water and fogproof performance
- Rated for use on most calibers and recoil-resistant
- Length: 12.7 inches
- Weight: 17.9 ounces
- Hawke Sport Optics 2-Piece Match Mount for Weaver Rails (1", Aluminum, Medium, Matte Black) Designed to attach riflescopes with a 1" maintube to a Weaver mounting system, this Match Mount from Hawke Sport Optics features a two-piece anodized aluminum alloy design along with a medium profile that positions the center of the scope 1.1" above the mount. The scope is secured in place with double hex screws and internal cushion tape prevents marking or damage to the scope's exterior. A crossbar is also integrated into the design for additional mounting security during use.
In the Box - 3-9x40 Vantage IR Riflescope (Rimfire .22 HV Illuminated Reticle) vcfafvfwscwvuzrsdsaftaesbwbwdrzwvzfaer
- Lens Cloth
- CR2032 Battery
- Ocular Lens Cover
- Objective Lens Cover
- Limited Lifetime Warranty
- 2-Piece Match Mount for Weaver Rails (1", Aluminum, Medium, Matte Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 3-9x40 Vantage IR Riflescope & Medium Match Ring Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Hawke Sport Optics 3-9x40 Vantage IR Riflescope (Rimfire .22 HV Illuminated Reticle)
| | | Magnification | 3 to 9x | | Objective Lens Diameter | 40 mm | | Field of View | 3x: 39' @ 100 yd / 13 m @ 100 m
9x: 12.7' @ 100 yd / 4.2 m @ 100 m | | Exit Pupil Diameter | 3x: 13 mm
9x: 4 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | High Velocity Rimfire .22 Duplex Reticle | | Illumination | Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 100 MOA | | Elevation Adjustment | 100 MOA | | Parallax Correction | Yes, 75 yd / 69 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 12.7" / 32.2 cm | | Weight | 17.9 oz / 507 g | | | | Box Dimensions (LxWxH) | 14.6 x 3.9 x 3.0" | - Hawke Sport Optics 2-Piece Match Mount for Weaver Rails (1", Aluminum, Medium, Matte Black)
| Maintube Diameter | 1" | | Mounting System | Weaver | | Cap Screws | Two double hex screws per ring | | Construction | Matte black anodized aluminum alloy | | Dimensions | 1.6 x 0.8 x 1.7" / 41 x 21 x 44 mm (per ring) | | Weight | 2.9 oz / 82 g | | | | Box Dimensions (LxWxH) | 6.3 x 4.85 x 1.05" |
