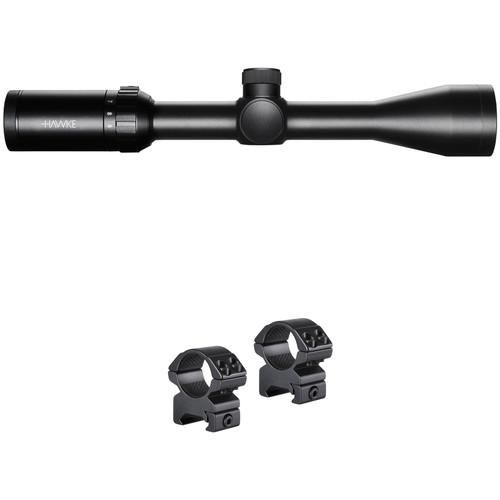

User Manual for Hawke Sport Optics 3-9x40 Vantage Riflescope & Medium Match Ring Mount Kit Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 3-9x40 Vantage Riflescope
- Product category: Riflescopes Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Riflescopes
|
User manual for the Hawke Sport Optics 3-9x40 Vantage Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|
Product description This Hawke 3-9x40 Vantage Riflescope and Medium Match Ring Mount Kit was put together by B&H to remove the unnecessary guesswork, save time, and give you a complete combo that is ready for use immediately after unboxing. The included Vantage riflescope is designed to exceed your expectations in terms of performance while also providing simplicity of use and handling. It is a durable, waterproof, and fogproof precision optic that will work seamlessly with the pair of included medium Weaver rings. - Hawke Sport Optics 3-9x40 Vantage Riflescope (30/30 Reticle) Designed as a multi-purpose, utilitarian mid to long-range optic, the Hawke Optics 3-9x40 Vantage Riflescope boasts a 40mm objective that draws in generous amounts of light versus smaller objectives while helping to maintain a low-profile to reduce snags and weight. Covered turrets help guard against accidental adjustments while a fast-focus collar and zoom ring allow you to quickly adapt to rapidly changing situations. Complementing the performance of the scope is a lightweight and durable anodized aluminum housing, with a 1" one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof.
- Optical Performance
-
- 3-9x zoom range
- 40mm objective lens
- 11-layer anti-reflection fully multi-coated optics
- 39-12.7' field of view at 100 yards
- Reticle Details
-
- Duplex crosshair-style reticle
- Long, thick outer posts for larger targets
- Thin center crosshairs allows for precision aiming at a distance without obstructing targets
- Center aiming hairs are 15 MOA long from the center on each axis, for a total of 30 MOA (or 30") total from post to post, at 100 yards on 4x magnification
- Use the known 30 MOA/inch distance to quickly calculate target size and distance while looking through scope
- Placed on second focal plane
- Use and Handling
-
- Fast-focus collar
- 1/4 MOA per click impact point correction
- 100 MOA windage and elevation adjustment range
- Parallax-free out to 100 yards
- Low-profile covered turret caps prevent accidental adjustment
- 3.5" long eye relief
- 13-4mm exit pupil
- Construction Details
-
- 1" one-piece maintube
- Lightweight and durable aluminum alloy housing
- Nitrogen-filled for water and fogproof performance
- Rated for use on most calibers and recoil-resistant
- Length: 12.4 inches
- Weight: 14.2 ounces
- Hawke Sport Optics 2-Piece Match Mount for Weaver Rails (1", Aluminum, Medium, Matte Black) Designed to attach riflescopes with a 1" maintube to a Weaver mounting system, this Match Mount from Hawke Sport Optics features a two-piece anodized aluminum alloy design along with a medium profile that positions the center of the scope 1.1" above the mount. The scope is secured in place with double hex screws and internal cushion tape prevents marking or damage to the scope's exterior. A crossbar is also integrated into the design for additional mounting security during use.
In the Box - 3-9x40 Vantage Riflescope (30/30 Reticle) vcfafvfwscwvuzrsdsaftaesbwbwdrzwvzfaer
- Lens Cloth
- Ocular Lens Cover
- Objective Lens Cover
- Limited Lifetime Warranty
- 2-Piece Match Mount for Weaver Rails (1", Aluminum, Medium, Matte Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 3-9x40 Vantage Riflescope & Medium Match Ring Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Hawke Sport Optics 3-9x40 Vantage Riflescope (30/30 Reticle)
| | | Magnification | 3 to 9x | | Objective Lens Diameter | 40 mm | | Field of View | 3x: 39' @ 100 yd / 13 m @ 100 m
9x: 12.7' @ 100 yd / 4.2 m @ 100 m | | Exit Pupil Diameter | 3x: 13 mm
9x: 4 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | 30/30 Duplex Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 100 MOA | | Elevation Adjustment | 100 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 12.4" / 31.5 cm | | Weight | 14.2 oz / 402 g | | | | Box Dimensions (LxWxH) | 14.6 x 4.3 x 2.8" | - Hawke Sport Optics 2-Piece Match Mount for Weaver Rails (1", Aluminum, Medium, Matte Black)
| Maintube Diameter | 1" | | Mounting System | Weaver | | Cap Screws | Two double hex screws per ring | | Construction | Matte black anodized aluminum alloy | | Dimensions | 1.6 x 0.8 x 1.7" / 41 x 21 x 44 mm (per ring) | | Weight | 2.9 oz / 82 g | | | | Box Dimensions (LxWxH) | 6.3 x 4.85 x 1.05" |
