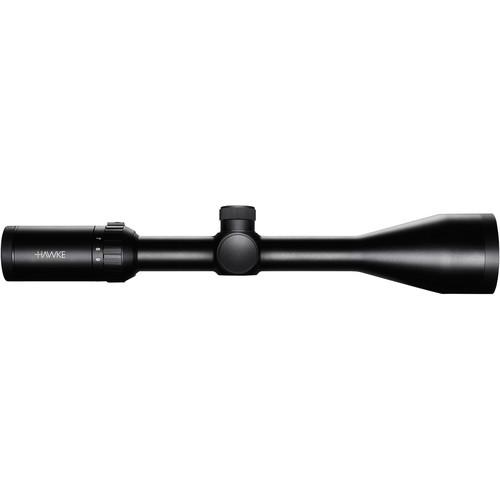

Product description Designed for long-range shooting, especially in low-light conditions, the Hawke Sports Optics 3-9x50 Vantage Riflescope boasts a large objective to draw in generous amounts of light to allow its use at dawn and dusk, or in heavily canopied areas. To further improve the scope's performance, all of its optical surfaces are fully multi-coated to boost light transmission and improve color fidelity, contrast, and image brightness. A large objective also helps to produce a wide exit pupil, even at the highest magnification, to ensure that when the eye dilates in low-light the entire field of view is easy to see without having to move your eye or head to see the whole scene. Covered turrets help guard against accidental adjustments while a fast-focus collar and zoom ring allow you to quickly adapt to rapidly changing situations. Complementing the performance of the scope is a lightweight and durable anodized aluminum housing, with a 1" one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof. - Optical Performance
-
- 3-9x zoom range
- 50mm objective lens
- 11-layer anti-reflection fully multi-coated optics improves contrast and image brightness
- 33.6-11' field of view at 100 yards

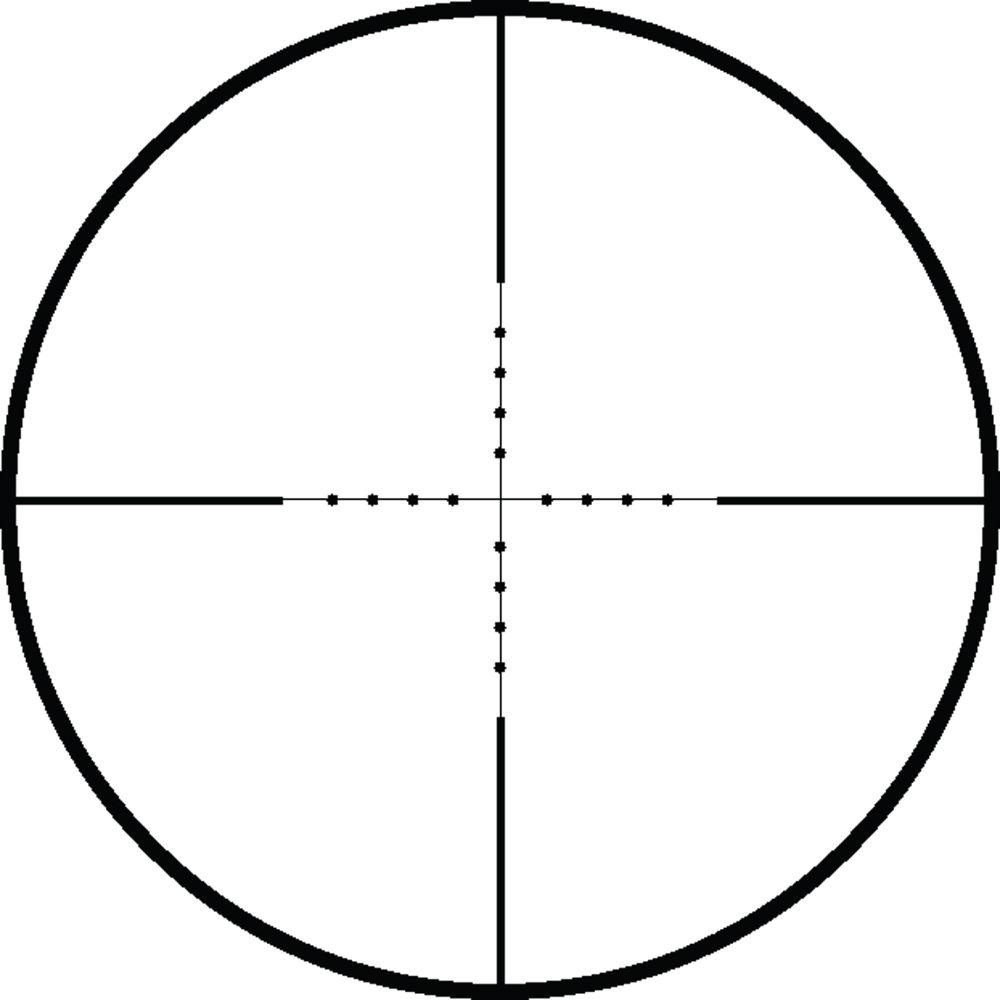

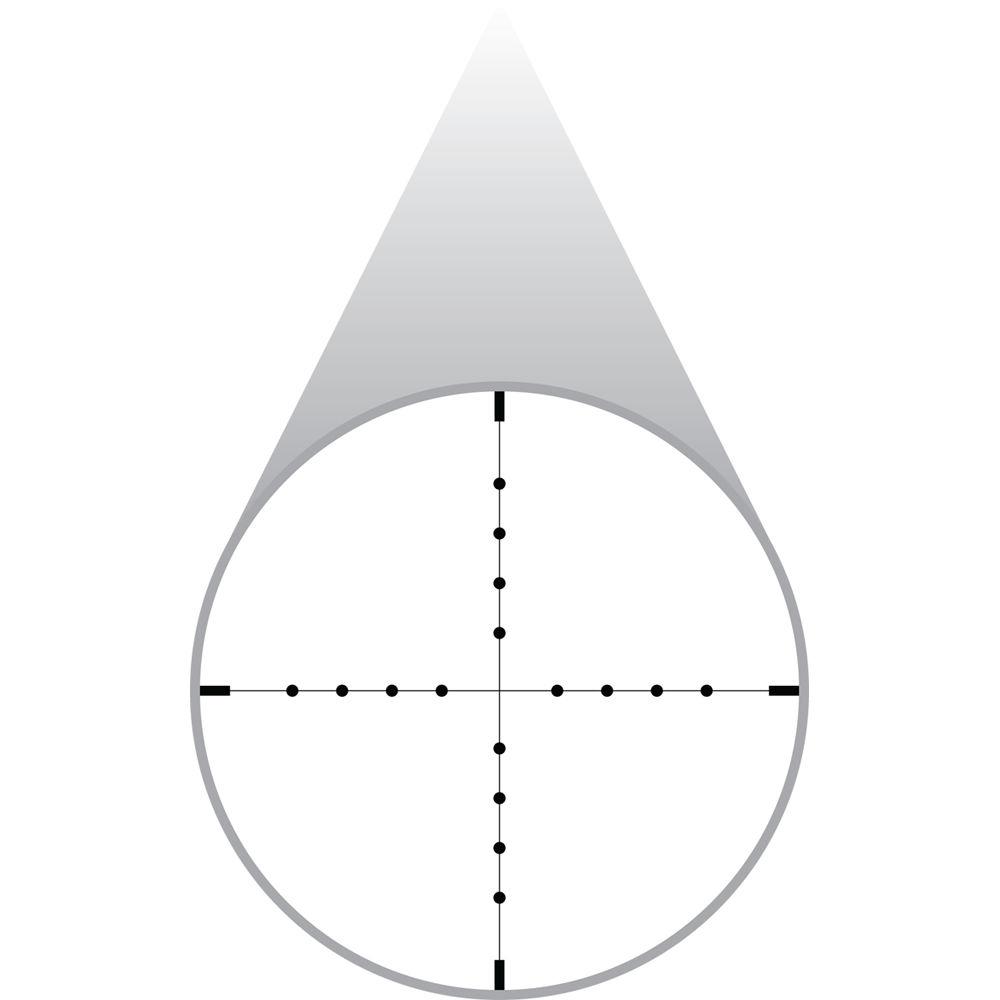

- Reticle Details
-
- Duplex crosshair-style reticle
- Four mil-dots on all axes spaced 1 mrad (3.44 MOA) apart
- Placed on second focal plane
- Use for ranging, hold-over/under, and estimating target size
- Use and Handling
-
- Fast-focus collar
- 1/4 MOA per click impact point correction
- 90 MOA windage and elevation adjustment range
- Fixed parallax set at 100 yards
- Wide 16.6-5.5mm exit pupil; when the eye dilates in low-light conditions, the entire scene will still be visible
- 3.5" long eye relief
- Construction Details
-
- 1" one-piece maintube
- Lightweight and durable aluminum alloy housing
- Nitrogen-filled for water and fogproof performance
- Rated for use on most calibers and recoil-resistant
- Length: 13.5 inches
- Weight: 16.6 ounces
In the Box Hawke Sport Optics 3-9x50 Vantage Riflescope (Mil Dot Reticle) Lens Cloth Ocular Lens Cover Objective Lens Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 3-9x50 Vantage Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 14131 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 50 mm | | Field of View | 3x: 33.6' @ 100 yd / 11.2 m @ 100 m
9x: 11' @ 100 yd / 3.6 m @ 100 m | | Exit Pupil Diameter | 3x: 17 mm
9x: 6 mm | | Eye Relief | 3.5" / 89 mm | | | | Reticle Type | MIL Duplex Crosshair-Dot Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 90 MOA | | Elevation Adjustment | 90 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 13.5" / 34.3 cm | | Weight | 16.6 oz / 470 g |
