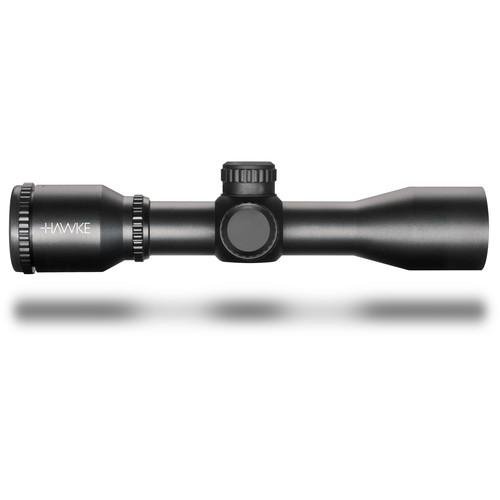

User Manual for Hawke Sport Optics 3x32 XB Crossbow Scope Click to enlarge the picture
Contents of the user manual for the Hawke Sport Optics 3x32 XB Crossbow
- Product category: Riflescopes Hawke Sport Optics
- Brand: Hawke Sport Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Hawke Sport Optics Riflescopes
|
User manual for the Hawke Sport Optics 3x32 XB Crossbow contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Hawke Sport Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Hawke Sport Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Hawke Sport Optics product will considerably shorten its lifespan!
|
Product description Hawke Sports Optics specifically designed and engineered their 3x32 XB Crossbow Scope and XB MAP reticle for crossbows using bolts traveling at 315 ft/s for optimum accuracy and ease-of-use. The objective is intentionally on the small side to maintain a low-profile, reduce snag points, and keep the weight down. To offset the smaller objective are anti-reflection fully multi-coated optics which maximize light transmission and ensure bright and clear images, and to boost its low-light performance when many game animals are most active - such as at dawn and dusk. The XB SR resembles a modified fine duplex reticle, featuring a thin crosshair, a thin vertical bottom post, and four pairs of stacked-up horizontal posts, with extending truncated thin lines. These lines point to brilliant red-green illuminated target circles of decreasing sizes that subtend 2" kill zones at corresponding distances. The post arrangement forms an inverted trapezoid target gate in the middle with aiming points from 20 to 60 yards with 10 yard intervals. The reticle is calibrated for 315 fps speeds and offers 6" and 12" brackets on its 50-yard line. Capped, finger-operated turrets help guard against accidental adjustments while a high-torque fast-focus ring quickly adapt to rapidly changing conditions. Complementing the performance of the scope is a lightweight and durable anodized aluminum housing, with a 1" one-piece maintube that is nitrogen-filled and O-ring sealed to be water and fogproof. - XB SR Illuminated Reticle
-
- Etched on glass
- Red-green illumination
- Thin crosshair with a thin vertical bottom post
- Four pairs of stacked up horizontal posts of various lengths with truncated thin lines extending to illuminated target circles
- Illuminated red-green target circles subtend 2" kill zones at corresponding distances
- post arrangement forms an inverted trapezoid target gate in the middle
- Aim points from 20 yd to 50 yd with 10 yd intervals
- 6"and 12"brackets to 50 yd line
- Calibrated for 315 fps
- Optical Performance
-
- 3x magnification
- 32mm objective lens diameter
- Fully multi-coated optics improve image resolution, clarity, and brightness
- 11 layers of anti-reflection coatings
- 33.3' field of view at 100 yd
- Compatibility with Hawke Ballistic Reticle Calculator (BRC)
-
- Downloadable free Hawke BRC software and mobile apps for Android / iOS / Windows allow you to:
- Customize the reticle performance
- Change Ballistic Coefficient (BC)
- Change zero distances, muzzle velocity, and magnification
- Plot your trajectory and find suitable aim points
- Print trajectory graphs, reticle images, and range calculations - Use and Handling
-
- 1/2 MOA impact point correction
- 120 MOA windage and elevation range
- Parallax-free at 50 yd
- Construction Details
-
- 1" single-piece maintube
- Lightweight and durable aluminum housing
- Focusing eyepiece with knurled high-torque zoom ring
- Low-profile, finger-adjustable turrets
- Nitrogen-filled, water and fogproof
In the Box Hawke Sport Optics 3x32 XB Crossbow Scope (XB SR Illuminated Reticle, Matte Black) - CR-2032 Battery
- 2 x Flip-Up Lens Covers
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Hawke Sport Optics 3x32 XB Crossbow Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHawke Sport Optics 12211 Specs | | | Magnification | 3x | | Objective Lens Diameter | 32 mm | | Field of View | 33.3' @ 100 yd / 11.1 m @ 100 m | | Exit Pupil Diameter | 11 mm | | Eye Relief | 4" / 102 mm | | | | Reticle Type | XB SR Reticle | | Illumination | Illuminated | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 120 MOA | | Elevation Adjustment | 120 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | 1 x CR2032 | | Dimensions | Length: 8.5" / 216 mm | | Weight | 10 oz / 311 g |
